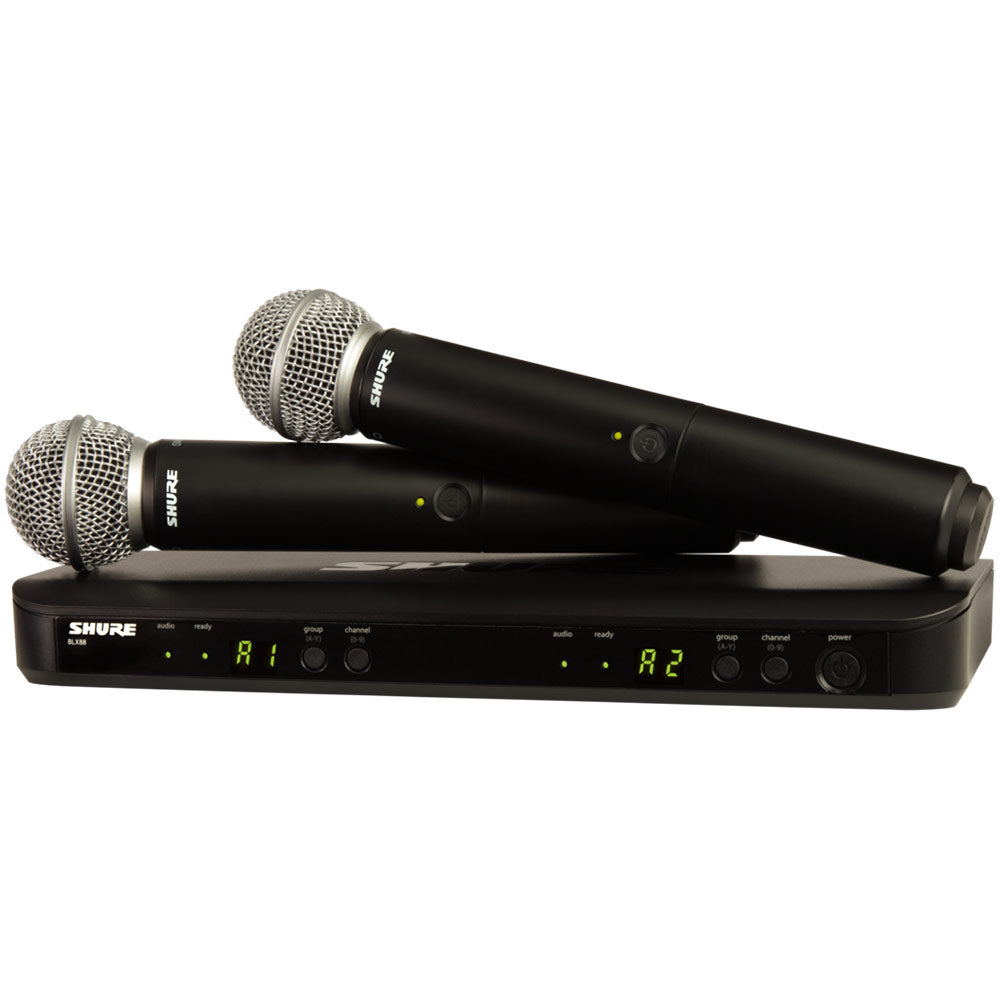

Shure BLX288/SM58-H9 Wireless Dual Vocal System with Two (2) SM58 (H10 Band - 512-542 MHz)
Dale #:
SHUR-BLX288SM58H9Availability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Purchase by January 3rd, 2025 and save $75!
Selling price reflects instant savings.
Description
The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.Main Features: Available Transmitter Form factors: Handheld Operating range (up to): 100 m (Unde... Read MoreRetail Price: $699.00 Our Price: $624.00
Free Shipping (Continental US)
Suggested Accessories
Description
The BLX288/SM58 Wireless Dual Vocal System combines simple wireless setup, professional-grade performance, and two SM58 industry-standard vocal microphones to deliver warm and clear vocal reproduction.
Main Features:
- Available Transmitter Form factors: Handheld
- Operating range (up to): 100 m (Under typical conditions)

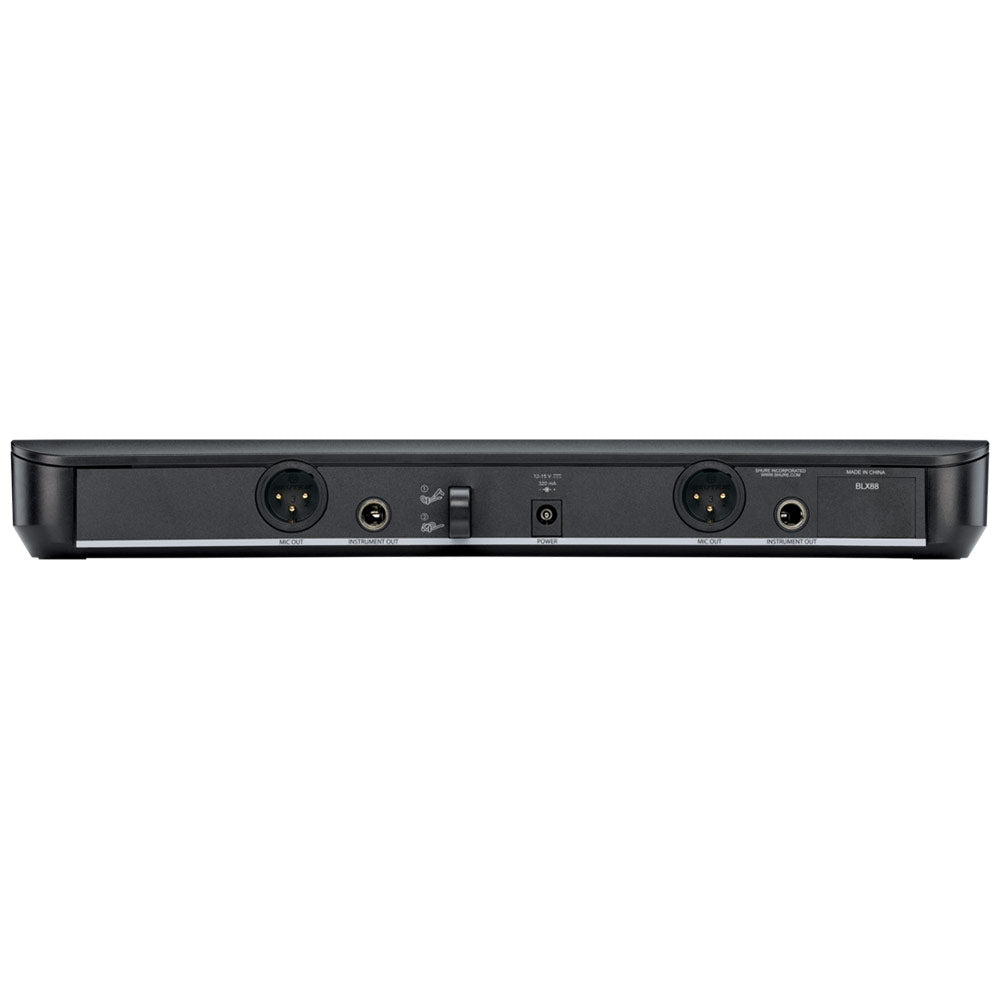

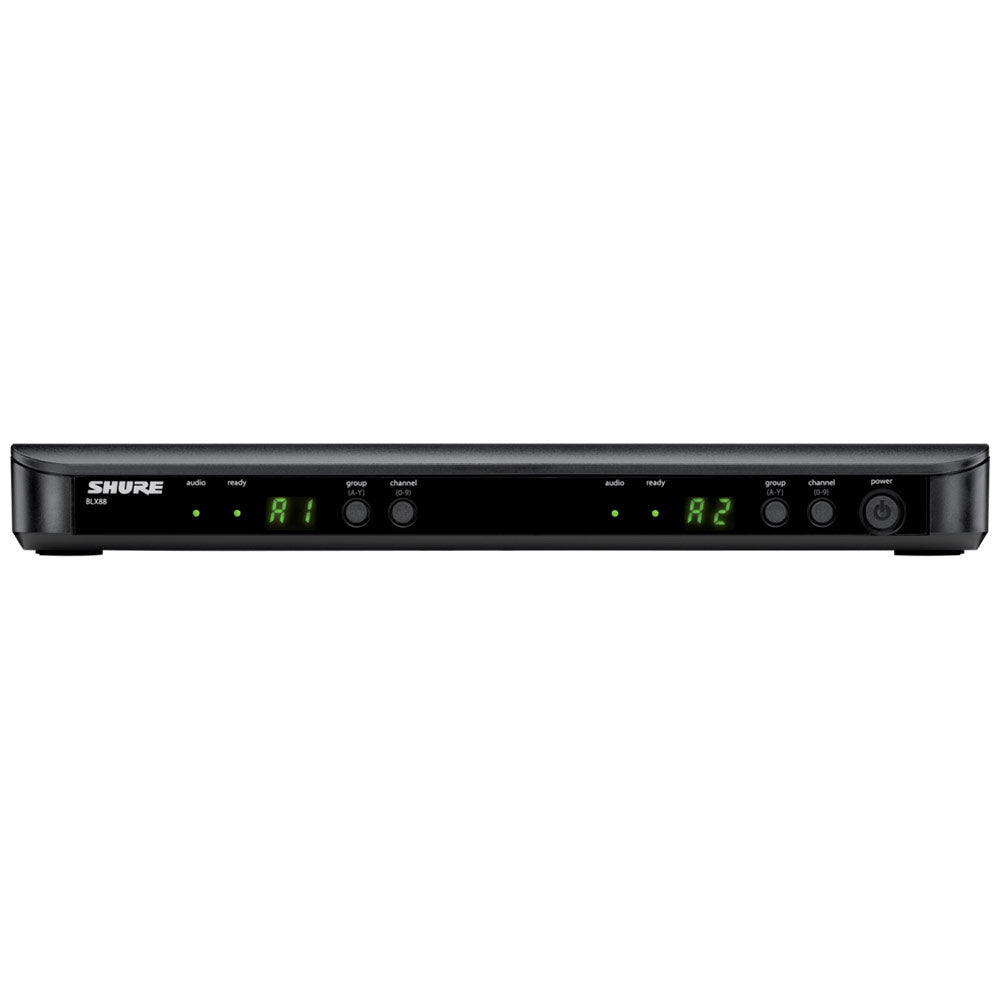

BLX88 Dual Wireless Receiver for BLX Wireless System Features:
- Up to 12 compatible systems (region dependent)
- Microprocessor-controlled internal antenna diversity
- One touch QuickScan locates the best open Frequency
- 1/4" and XLR audio outputs
- Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

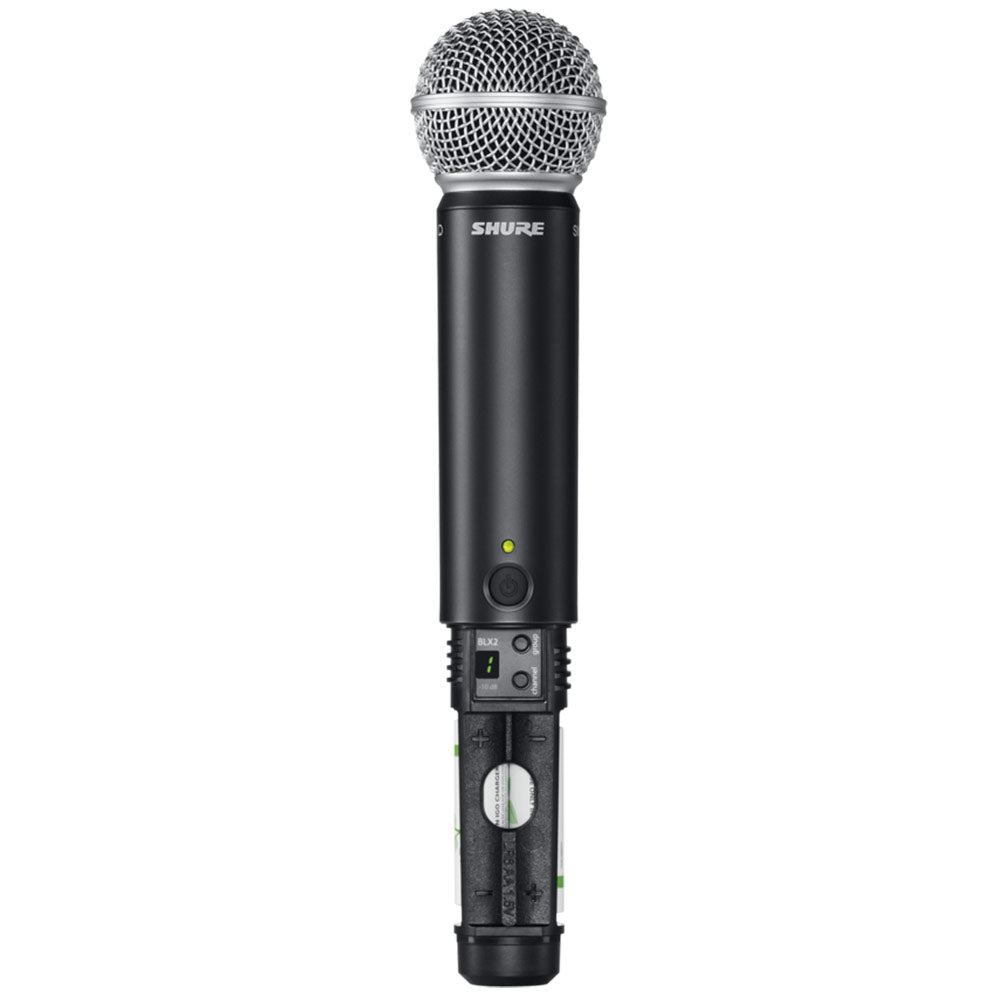

BLX2/SM58 Handheld transmitter with SM58 capsule Features:
- Power and battery status LED
- Adjustable gain control
- Quick and easy frequency matching
- AA batteries (included) provide up to 14 hours of continuous use
- 100 m (300 ft) operating range (line of sight)
- Integrated microphone capsule design
- -10 dB gain attenuation
- Lightweight, rugged construction
- Color ID caps (available separately).
More +
Product Specs
| System | |
| Working Range | 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference. |
| Audio Frequency Response | 50 to 15,000 Hz Note: Dependent on microphone type |
| Total Harmonic Distortion | Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range. |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX1 | |
| Audio Input Level | |
| max | -16 dBV maximum |
| min (0 dB) | +10 dBV maximum |
| Gain Adjustment Range | 26 dB |
| Input Impedance | 1 M? |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| Weight | 2.6 oz. (75 g), without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| Audio Input Level | |
| 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum |
| Gain Adjustment Range | 10 dB |
| RF Transmitter Output | 10 mW, typical varies by region |
| Dimensions | 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia. |
| Weight | 7.7 oz. (218 g) without batteries |
| Housing | Molded ABS |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| Battery Life | up to 14 hours (alkaline) |
| BLX4 & BLX88 | |
| Output Impedance | |
| XLR connector | 200 ? |
| 6.35 mm (1/4") connector | 50 ? |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone | |
| XLR connector | -27 dBV (into 100 k? load) |
| 6.35 mm (1/4") connector | -13 dBV (into 100 k? load) |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| Image Rejection | >50 dB, typical |
| Dimensions | |
| BLX4 | 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D |
| BLX88 | 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D |
| Weight | |
| BLX4 | 8.5 oz. (241 g) |
| BLX88 | 15.1 oz. (429 g) |
| Housing | Molded ABS |
| Power Requirements | 12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
