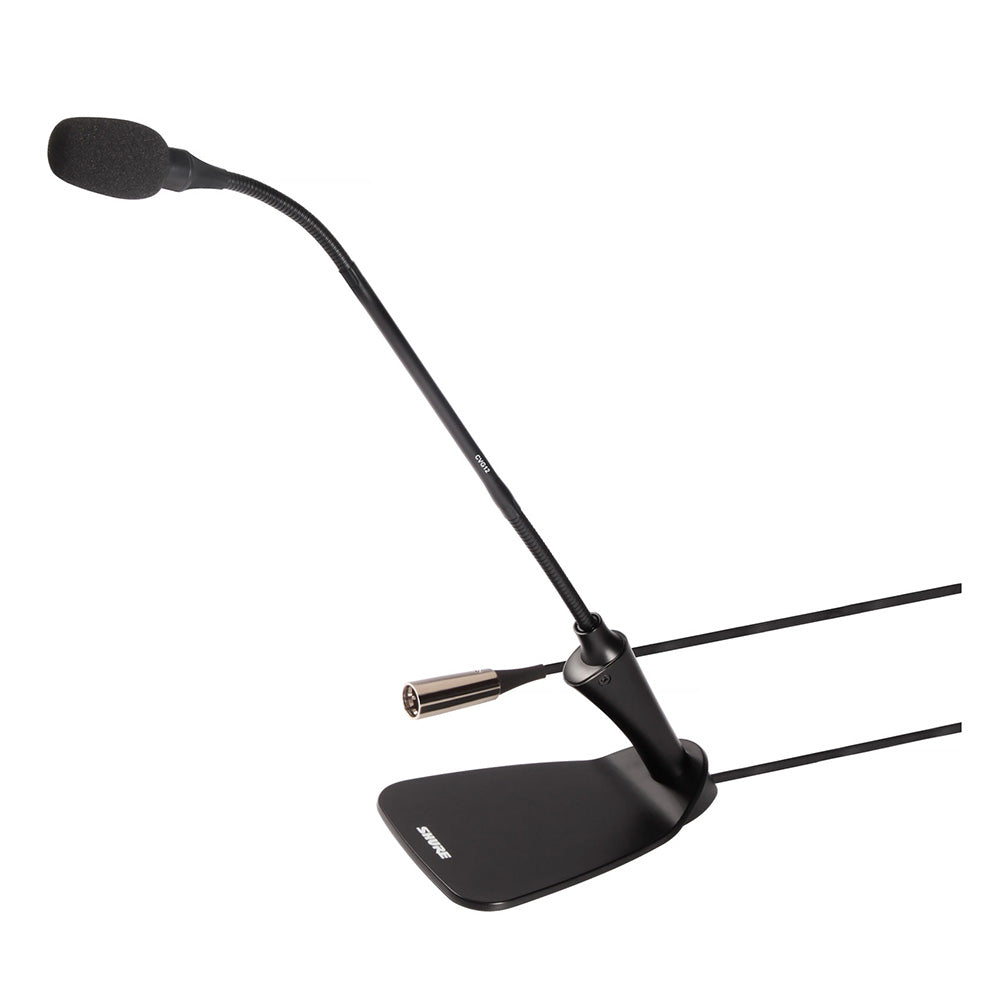

Shure CVG12D Centraverse 12-Inch Gooseneck Microphone with Base
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions.
CVG12D features a cardioid polar pattern and a frequency response that is tailored for speech which, together, maximize intelligibility in speech while reducing ambient room noise and feedback. Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning.
Featuring CommShield® Technology, which guards against unwanted RF interference from portable wireless devices, Centraverse microphones deliver in best-in-class performance and reliability.
Features:
- Electret condenser microphone with inline preamp
- Integrated desktop base
- Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
- Equipped with CommShield Technology, which is resistant to unwanted RF interference and radio signals
- Dual-section gooseneck enables ease of positioning and placement
- Best-in-class performance, construction and design
- Includes integrated 12' (365 cm) cable with plug-and-play XLR termination that minimizes setup time
| Cartridge Type | Electret Condenser |
| Frequency Response | 70Ð16000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 180 ½ |
| Sensitivity (at 1 kHz , open circuit voltage) | Ð33 dBV/Pa (22 mV) |
| Maximum SPL (1 kHz at 1% THD) | 120 dB SPL |
| Signal to Noise Ratio (referenced at 94 dB SPL) | 67 dB |
| Dynamic Range | 93 dB |
| Self Noise (equivalent SPL, A-weighted, typical) | 27 dB SPL |
| Common Mode Rejection (10 Hz to 100 kHz) | >45 dB |
| Preamplifier Output Clipping Level (1% THD) | _7 dBV |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Power Requirements | CVGD: 11Ð52 V DC, 2.0 mA CVGD/S: 11Ð52 V DC, 5.5 mA CVGD/RS: 11Ð52 V DC, 5.0 mA |
| Environmental Requirements | Operating Temperature Range: Ð18 ¡C to 57 ¡C (0 ¡F to 135 ¡F) Storage Temperature Range: Ð29 ¡C to 74 ¡C (Ð20 ¡F to 165 ¡F) Relative Humidity: 0 to 95% |
Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions.
CVG12D features a cardioid polar pattern and a frequency response that is tailored for speech which, together, maximize intelligibility in speech while reducing ambient room noise and feedback. Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning.
Featuring CommShield® Technology, which guards against unwanted RF interference from portable wireless devices, Centraverse microphones deliver in best-in-class performance and reliability.
Features:
- Electret condenser microphone with inline preamp
- Integrated desktop base
- Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
- Equipped with CommShield Technology, which is resistant to unwanted RF interference and radio signals
- Dual-section gooseneck enables ease of positioning and placement
- Best-in-class performance, construction and design
- Includes integrated 12' (365 cm) cable with plug-and-play XLR termination that minimizes setup time
| Cartridge Type | Electret Condenser |
| Frequency Response | 70Ð16000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 180 ½ |
| Sensitivity (at 1 kHz , open circuit voltage) | Ð33 dBV/Pa (22 mV) |
| Maximum SPL (1 kHz at 1% THD) | 120 dB SPL |
| Signal to Noise Ratio (referenced at 94 dB SPL) | 67 dB |
| Dynamic Range | 93 dB |
| Self Noise (equivalent SPL, A-weighted, typical) | 27 dB SPL |
| Common Mode Rejection (10 Hz to 100 kHz) | >45 dB |
| Preamplifier Output Clipping Level (1% THD) | _7 dBV |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Power Requirements | CVGD: 11Ð52 V DC, 2.0 mA CVGD/S: 11Ð52 V DC, 5.5 mA CVGD/RS: 11Ð52 V DC, 5.0 mA |
| Environmental Requirements | Operating Temperature Range: Ð18 ¡C to 57 ¡C (0 ¡F to 135 ¡F) Storage Temperature Range: Ð29 ¡C to 74 ¡C (Ð20 ¡F to 165 ¡F) Relative Humidity: 0 to 95% |
