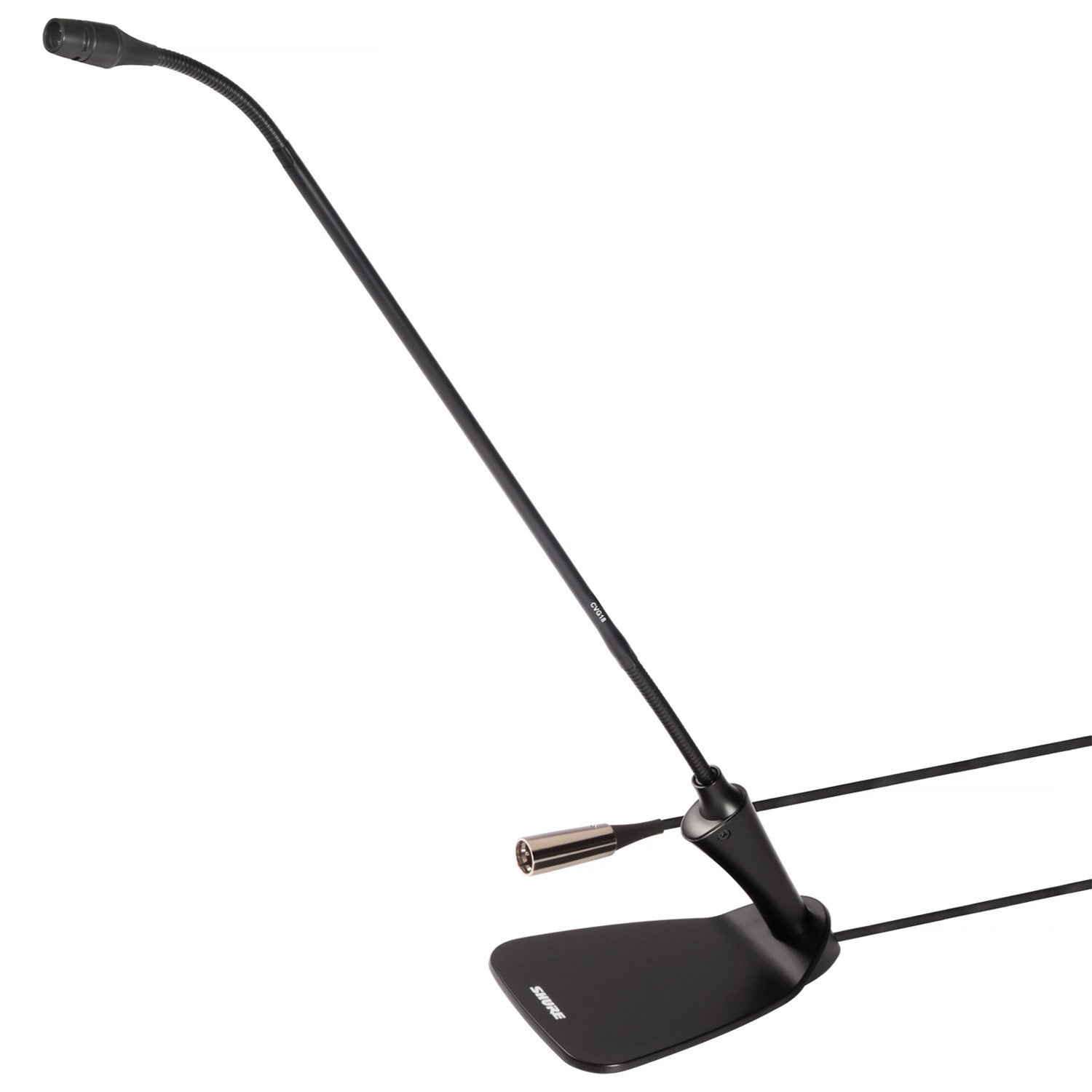

Shure CVG18D Centraverse 18-Inch Gooseneck Microphone with Base


  • Dale #:

    SHUR-CVG18DBC
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions. CVG12D features a cardioid polar pattern and a frequency response that is tailored for speech which, toget... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Centraverse™ Gooseneck Condenser Microphones are ideal for use in installed sound reinforcement applications, including corporate facilities, houses of worship, and government institutions.

CVG12D features a cardioid polar pattern and a frequency response that is tailored for speech which, together, maximize intelligibility in speech while reducing ambient room noise and feedback. Designed with dual gooseneck sections for full articulation and an integrated base for precise positioning.

Featuring CommShield® Technology, which guards against unwanted RF interference from portable wireless devices, Centraverse microphones deliver in best-in-class performance and reliability.

Features:

  • Electret condenser microphone with inline preamp
  • Integrated desktop base
  • Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
  • Equipped with CommShield Technology, which is resistant to unwanted RF interference and radio signals
  • Dual-section gooseneck enables ease of positioning and placement
  • Best-in-class performance, construction and design
  • Includes integrated 12’ (365 cm) cable with plug-and-play XLR termination that minimizes setup time

More +

Product Specs

Cartridge Type Electret Condenser
Frequency Response 70–16000 Hz
Polar Pattern Cardioid
Output Impedance 180 Ω
Sensitivity (at 1 kHz , open circuit voltage) –33 dBV/Pa (22 mV)
Maximum SPL (1 kHz at 1% THD) 120 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL) 67 dB
Dynamic Range 93 dB
Self Noise (equivalent SPL, A-weighted, typical) 27 dB SPL
Common Mode Rejection (10 Hz to 100 kHz) >45 dB
Preamplifier Output Clipping Level (1% THD) −7 dBV
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements CVGD: 11–52 V DC, 2.0 mA
CVGD/S: 11–52 V DC, 5.5 mA
CVGD/RS: 11–52 V DC, 5.0 mA
Environmental Requirements Operating Temperature Range: –18 °C to 57 °C (0 °F to 135 °F)
Storage Temperature Range: –29 °C to 74 °C (–20 °F to 165 °F)
Relative Humidity: 0 to 95%
