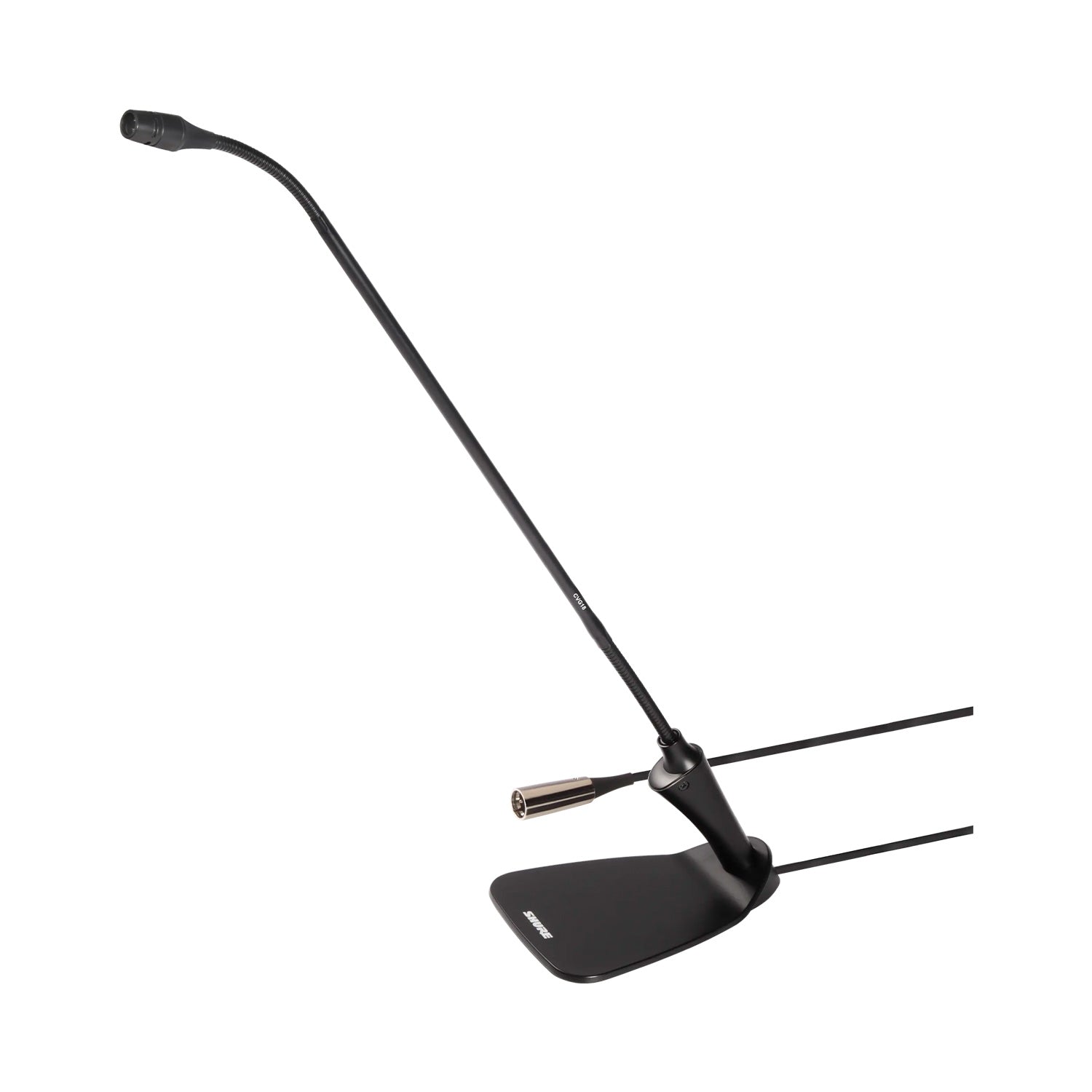

Shure CVG18DRS-B/C - Centraverse Gooseneck Microphone (Desktop Base/Light Ring)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
18" Gooseneck Condenser Microphone with Integrated Desktop Base and 12' cable, Inline Pre-Amp, Mute Switch, LightRing, Cardioid, Black
Professional gooseneck microphones featuring a cardioid polar pattern, which reduces ambient room noise and feedback, with a frequency response that is tailored for speech. Additionally, they are designed with dual gooseneck sections for full articulation and an integrated base for precise positioning.
Features:
- Electret condenser microphone with inline preamp
- Integrated desktop base
- Cardioid polar pattern with tailored response for speech maximizes intelligibility in speech while reducing the chance for feedback
- Equipped with Commshield¨ Technology, which is resistant to unwanted RF interference and radio signals
- Dual-section gooseneck enables ease of positioning and placement
- Plug-and-play connection minimizes setup time
- Best-in-class performance, dependable construction, and design
- Available in 12" (30.4 cm) and 18" (45.7 cm) gooseneck lengths
- Includes integrated 12' (365 cm) cable with XLR termination
- Available in three configurations:
- With inline preamp (CVG12D, CVG18D)
- With inline preamp, mute switch, and LED indicator (CVG12DS, CVG18DS)
- With inline preamp, mute switch, and light ring indicator (CVG12DRS, CVG18DRS)
| Cartridge Type | Electret Condenser |
| Frequency Response | 70Ð16000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 180 ½ |
| Sensitivity (at 1 kHz , open circuit voltage) | Ð33 dBV/Pa (22 mV) |
| Maximum SPL (1 kHz at 1% THD) | 120 dB SPL |
| Signal to Noise Ratio (referenced at 94 dB SPL) | 67 dB |
| Dynamic Range | 93 dB |
| Self Noise (equivalent SPL, A-weighted, typical) | 27 dB SPL |
| Common Mode Rejection (10 Hz to 100 kHz) | >45 dB |
| Preamplifier Output Clipping Level (1% THD) | _7 dBV |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Power Requirements | CVGD: 11Ð52 V DC, 2.0 mA CVGD/S: 11Ð52 V DC, 5.5 mA CVGD/RS: 11Ð52 V DC, 5.0 mA |
| Environmental Requirements | Operating Temperature Range: Ð18 ¡C to 57 ¡C (0 ¡F to 135 ¡F) Storage Temperature Range: Ð29 ¡C to 74 ¡C (Ð20 ¡F to 165 ¡F) Relative Humidity: 0 to 95% |
