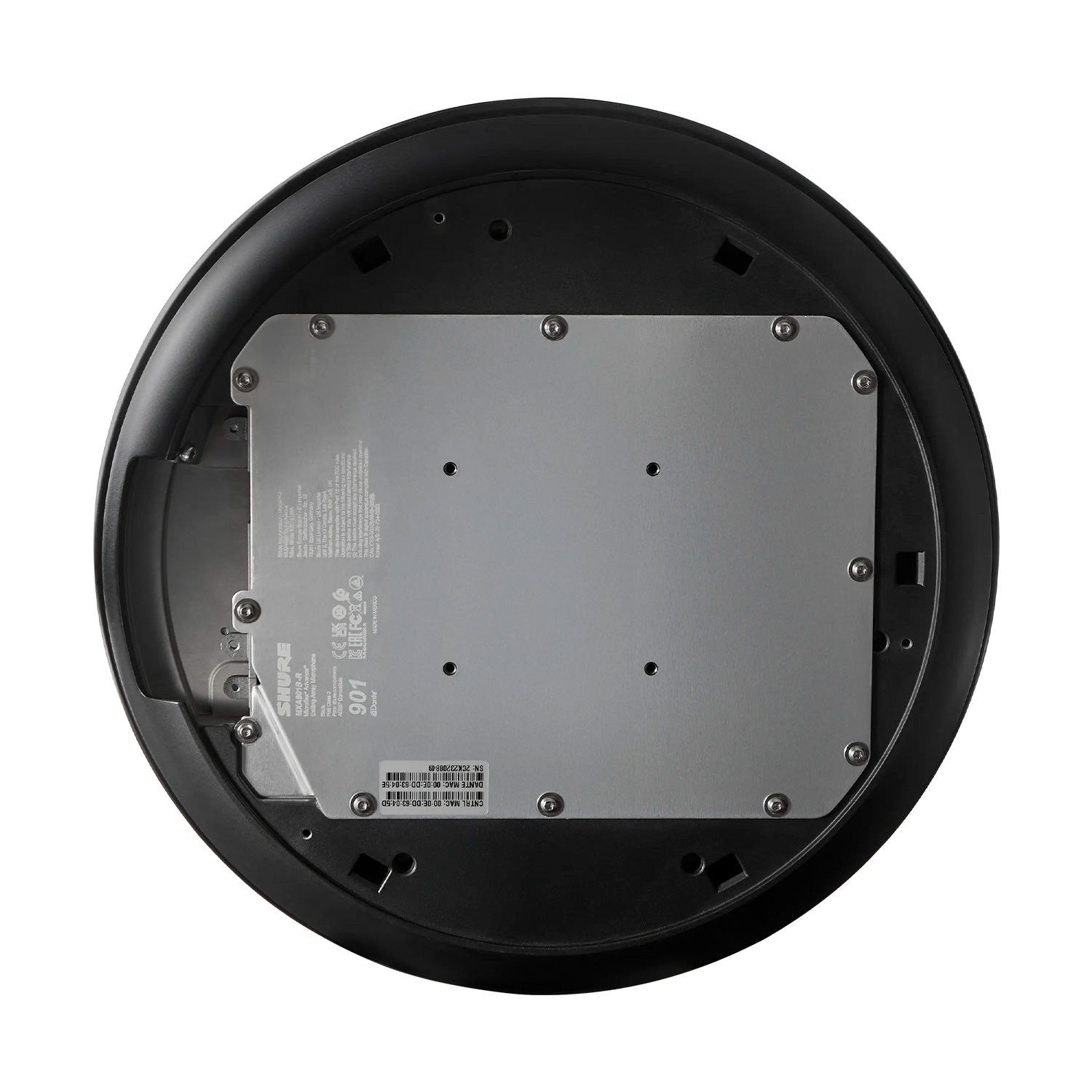

Shure DCA901 - Broadcast Microphone Array
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DCA901 opens new possibilities for capturing sound in broadcast and media production. This compact digital broadcast microphone array delivers eight channels of high-fidelity audio through a single network cable. Steerable pickup zones isolate the sounds that matter while minimizing ambient noise. With built-in DSP, fewer cables, and faster setup, it replaces bulky analog systems while supporting experiential, story-driven sound and modern production workflows.
Features:
- Capture up to eight isolated audio channels from a single broadcast array microphone
- Steerable lobes let you virtually adjust pickup zones, reducing mic count and eliminating the need to reposition gear
- A single Dante or AES67 connection delivers audio, power, and control, simplifying routing and minimizing failure points
- Built-in DSP handles EQ, compression, delay, and automixing, giving you more time to focus on creative sound design
- Actively supports REMI workflows and alternate feeds with flexible routing and remote lobe controlÊ
- Presets streamline deployments and ensure consistent configurations across shows or seasons
- Supports seamless 5.1 immersive capture and stereo conversion for both modern and legacy formats
- Low profile design installs cleanly in stadiums, studios, or mobile setups and blends into camera-ready environments
| GENERAL | |
| Coverage Type | Steerable |
| Power Requirements | Power over Ethernet (PoE), Class 0 |
| Power Consumption | 10.1 W maximum |
| Control Software | Browser-based web application |
| Cable Requirements | Cat 5e or higher (shielded cable recommended) |
| Connector Type | RJ45 |
| MICROPHONE | |
| Frequency Response | 100 Hz to 20 kHz |
| AES67 or Dante Digital Output | Channel Count: 12 total channels: 8 channel outputs, 1 mono automix output, stereo left and right automix outputs, and 1 PFL output Sampling Rate: 48 kHz Bit Depth: 24 |
| Sensitivity at 1 kHz | _36.4 dBFS/Pa |
| Maximum SPL at 10% THD |
500 Hz and higher: 130.4 dB SPL 250 Hz: 128 dB SPL 125 Hz: 120 dB SPL 63 Hz and lower: 118 dB SPL |
| Signal-To-Noise Ratio | Ref. 94 dB SPL at 1 kHz 67.1 dB A-weighted |
| Latency Not including Dante latency |
Direct outputs : 13.5 ms Automix outputs: 21.5 ms |
| Self Noise | 26.9 dB SPL-A |
| Dynamic Range | 103.5 dB |
| Built-in Digital Signal Processing | Automatic mixing, noise reduction, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | Height: 1.64 in. (41.66 mm) Diameter: 13.5 in. (342.9 mm) Smaller top diameter: 11.61 in. (294.89 mm) |
| Weight | 5 lb. (2.3 kg) |
| Plenum Rating | UL2043 (Suitable for Air Handling Spaces) |
| Dust Protection | IEC 60529 IP5X Dust Protected |
| Operating Temperature Range | _6.7¡C (20¡F) to 40¡C (104¡F) |
| Storage Temperature Range | _29¡C (-20¡F) to 74¡C (165¡F) |
