DALE SKU # SHUR-DH5BOLM3

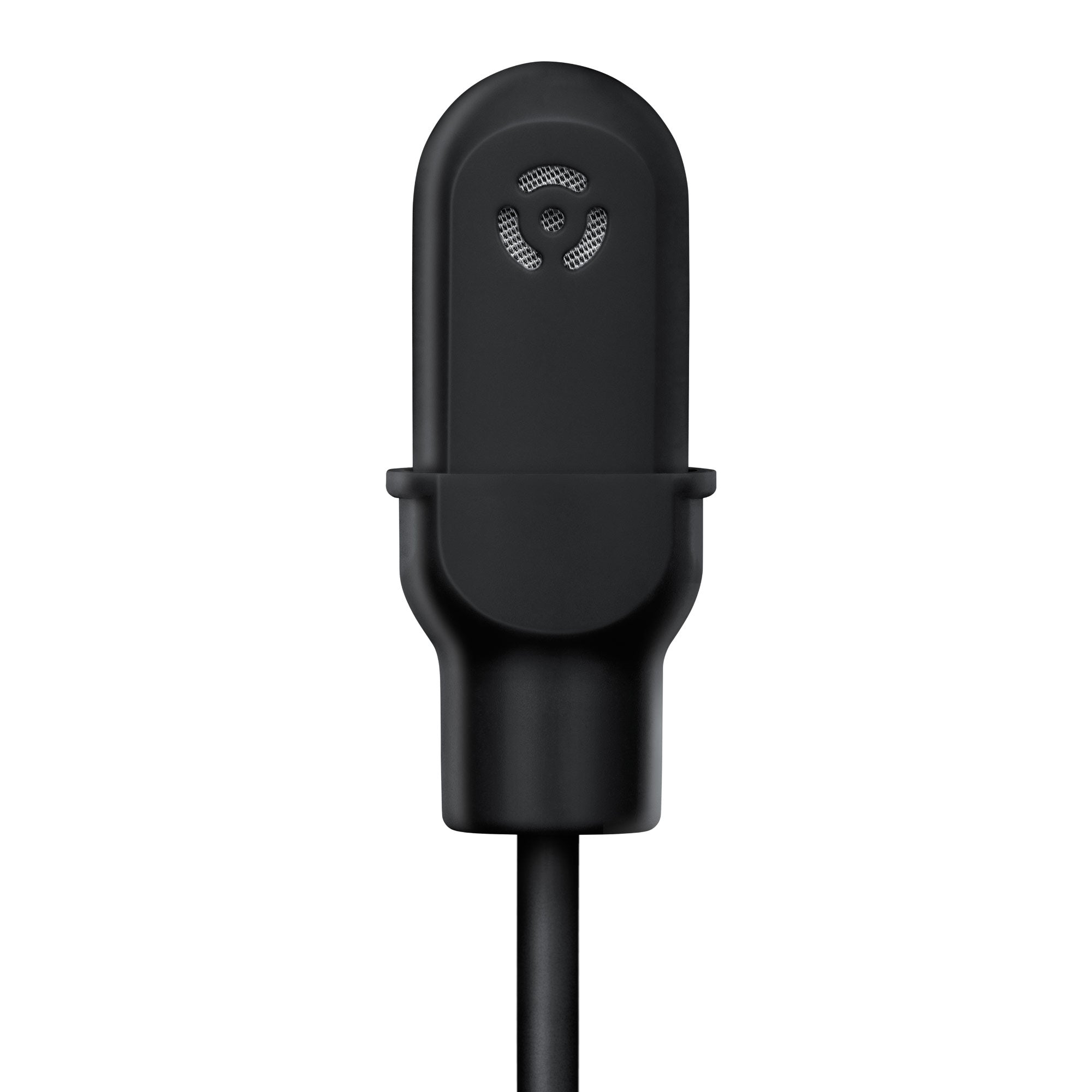

Shure DH5 DuraPlex Series Headset Microphone (Black / Lemo)

Sale price$461.00 Regular price$576.00
Save $115.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

    In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

    Features:

    • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
    • IP57 dust-resistant, waterproof rated
    • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
    • Advanced 1.6 mm Shure Plex cable:
      • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
      • Immune to memory effect and kinks
      • Fully paintable with typical theater paints, pens, and polishes

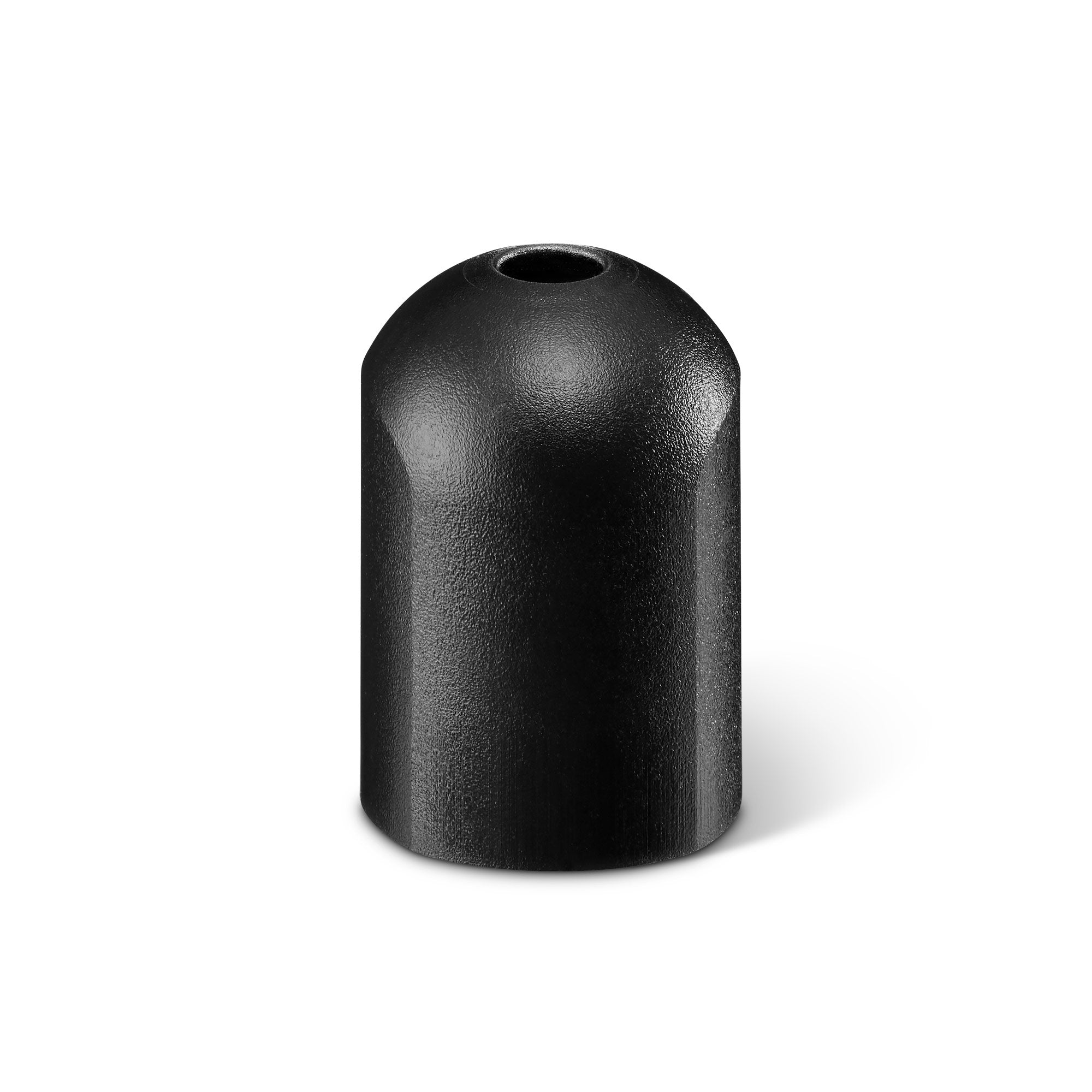

    • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
    • Available in four colors: Black, Cocoa, Tan, White
    • Available in two connector types: TA4F (mTQG) and LEMO

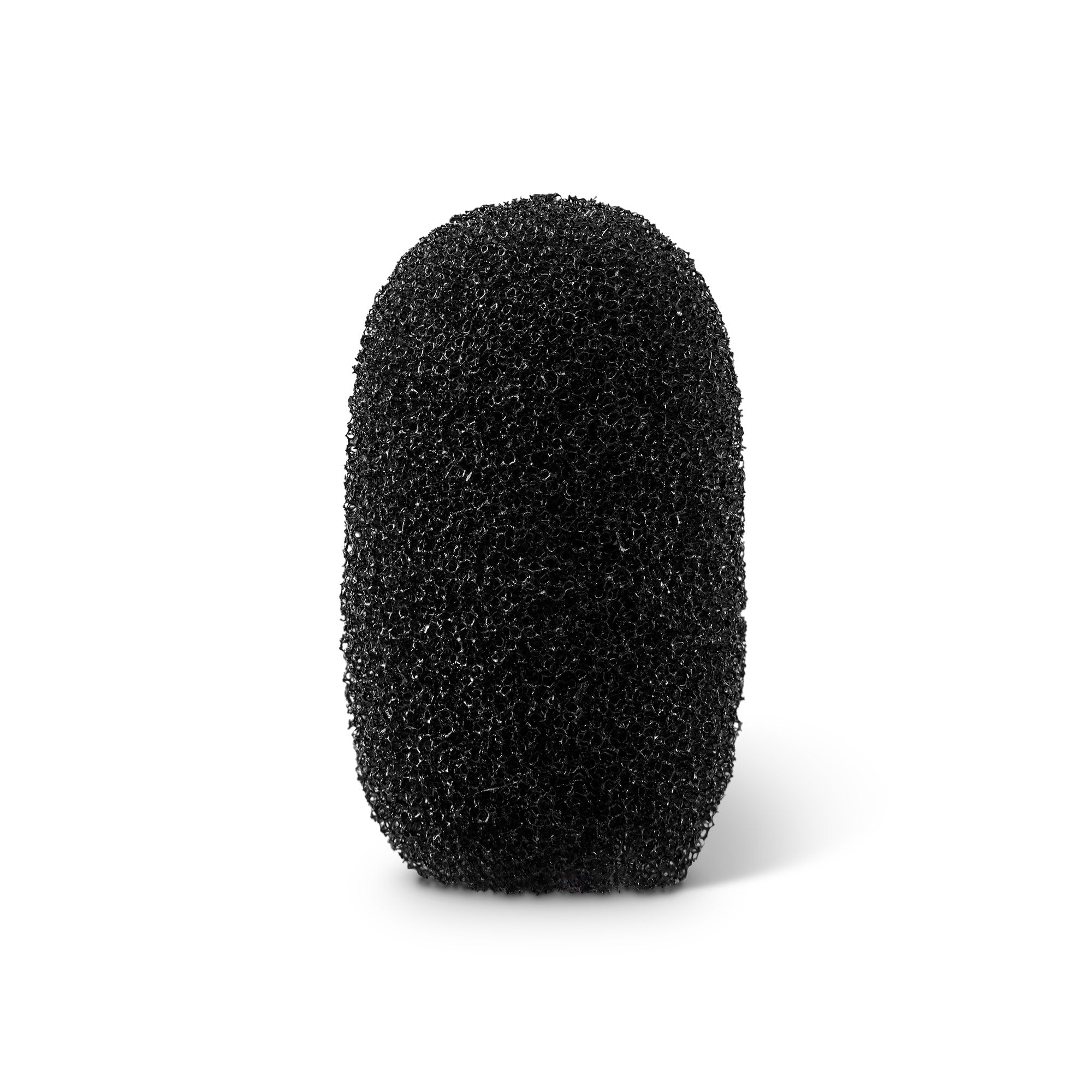

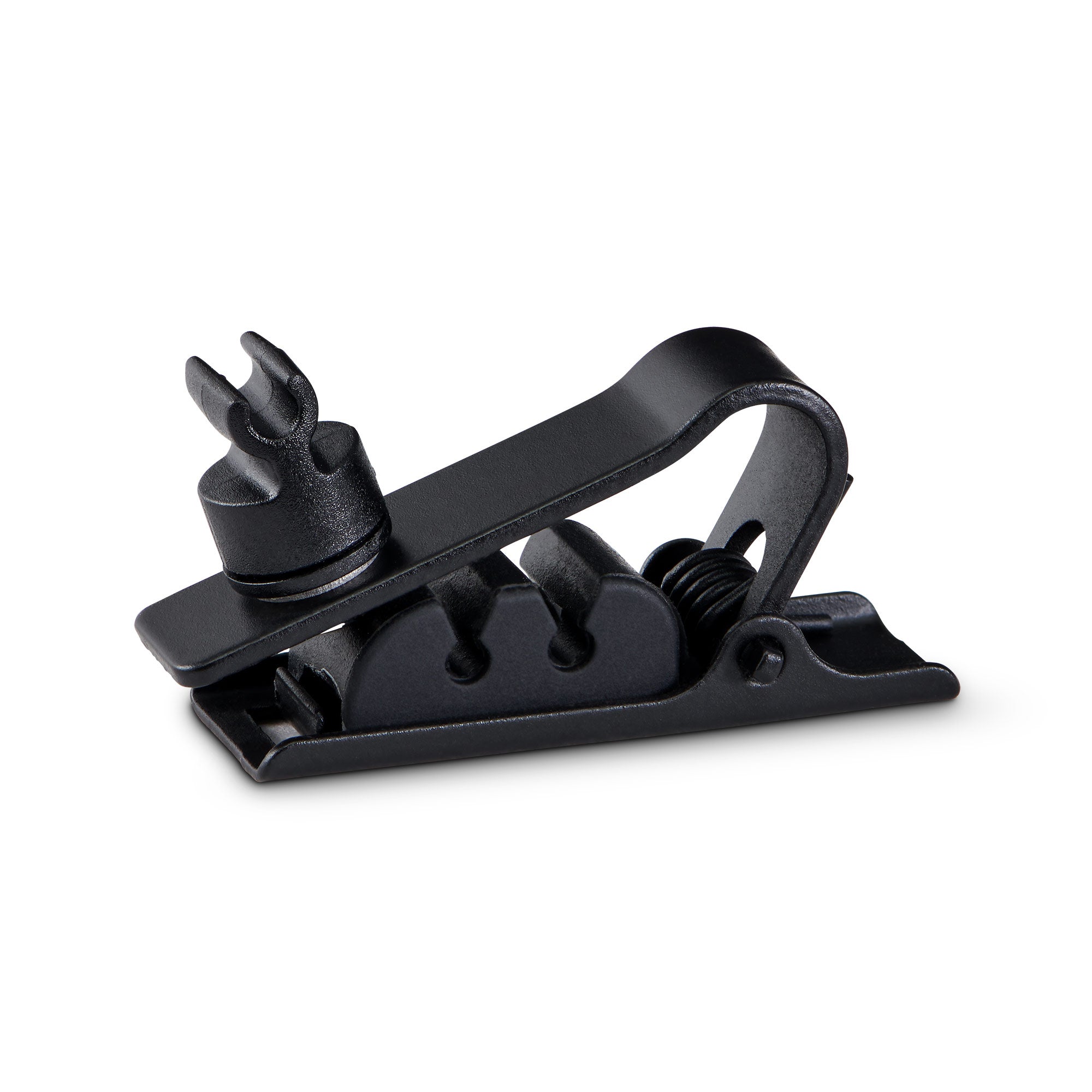

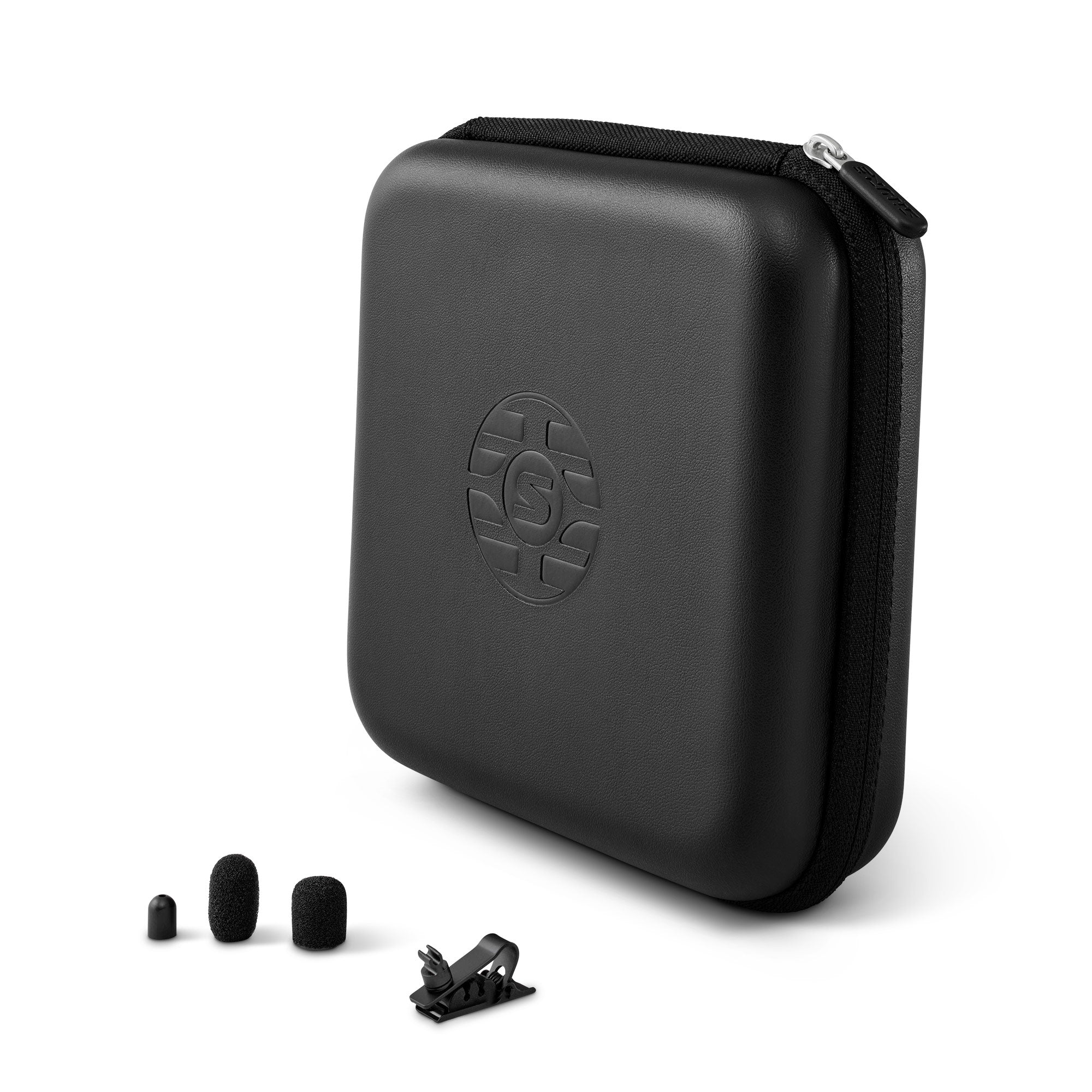

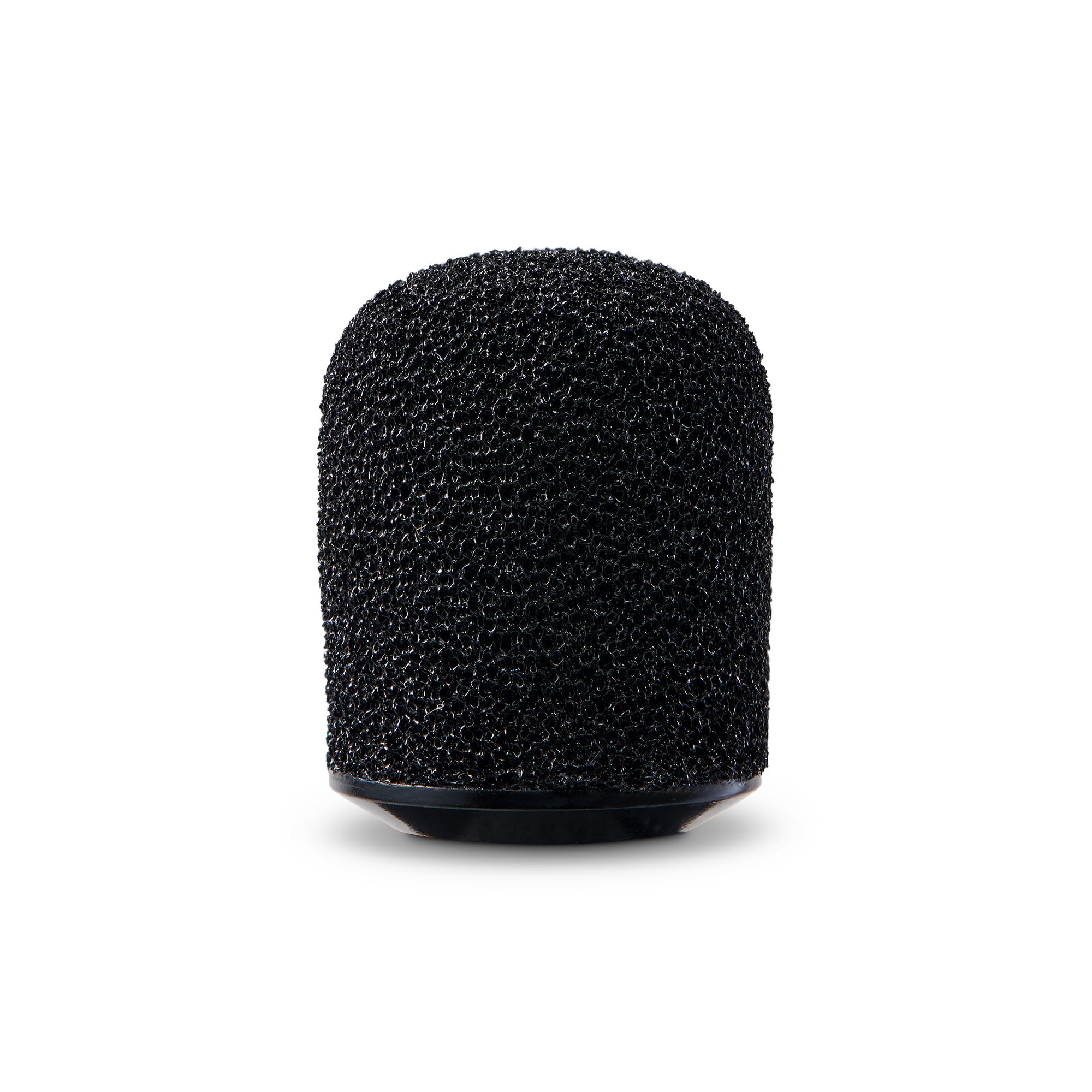

    • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
    Microphone Capsule MEMS
    Polar Pattern Omnidirectional
    Frequency Response 20 Hz to 20 kHz
    Sensitivity -42.5 dBV at 1 kHz
    Self-Noise, A-Weighted, Equivalent Acoustical 31 dB SPL-A
    Signal-To-Noise Ratio 63.0 dB
    Maximum SPL 132.0 dB SPL,1 kHz at 1% THD, typical
    Dynamic Range 101.0 dB typical

    Microphone Current Draw

    220 µA, maximum
    Bias Voltage Recommended Operating Voltage
    5 V DC, 2.6 V DC minimum
    Housing Molded ABS
    Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
    Cable Diameter 1.6 mm
    Cable Length 66 in. (1.67 m)
    Net Weight 20.0 g(0.7 oz.)

    With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

    In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

    Features:

    • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
    • IP57 dust-resistant, waterproof rated
    • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
    • Advanced 1.6 mm Shure Plex cable:
      • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
      • Immune to memory effect and kinks
      • Fully paintable with typical theater paints, pens, and polishes
    • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
    • Available in four colors: Black, Cocoa, Tan, White
    • Available in two connector types: TA4F (mTQG) and LEMO
    • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
    Microphone Capsule MEMS
    Polar Pattern Omnidirectional
    Frequency Response 20 Hz to 20 kHz
    Sensitivity -42.5 dBV at 1 kHz
    Self-Noise, A-Weighted, Equivalent Acoustical 31 dB SPL-A
    Signal-To-Noise Ratio 63.0 dB
    Maximum SPL 132.0 dB SPL,1 kHz at 1% THD, typical
    Dynamic Range 101.0 dB typical

    Microphone Current Draw

    220 µA, maximum
    Bias Voltage Recommended Operating Voltage
    5 V DC, 2.6 V DC minimum
    Housing Molded ABS
    Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
    Cable Diameter 1.6 mm
    Cable Length 66 in. (1.67 m)
    Net Weight 20.0 g(0.7 oz.)
