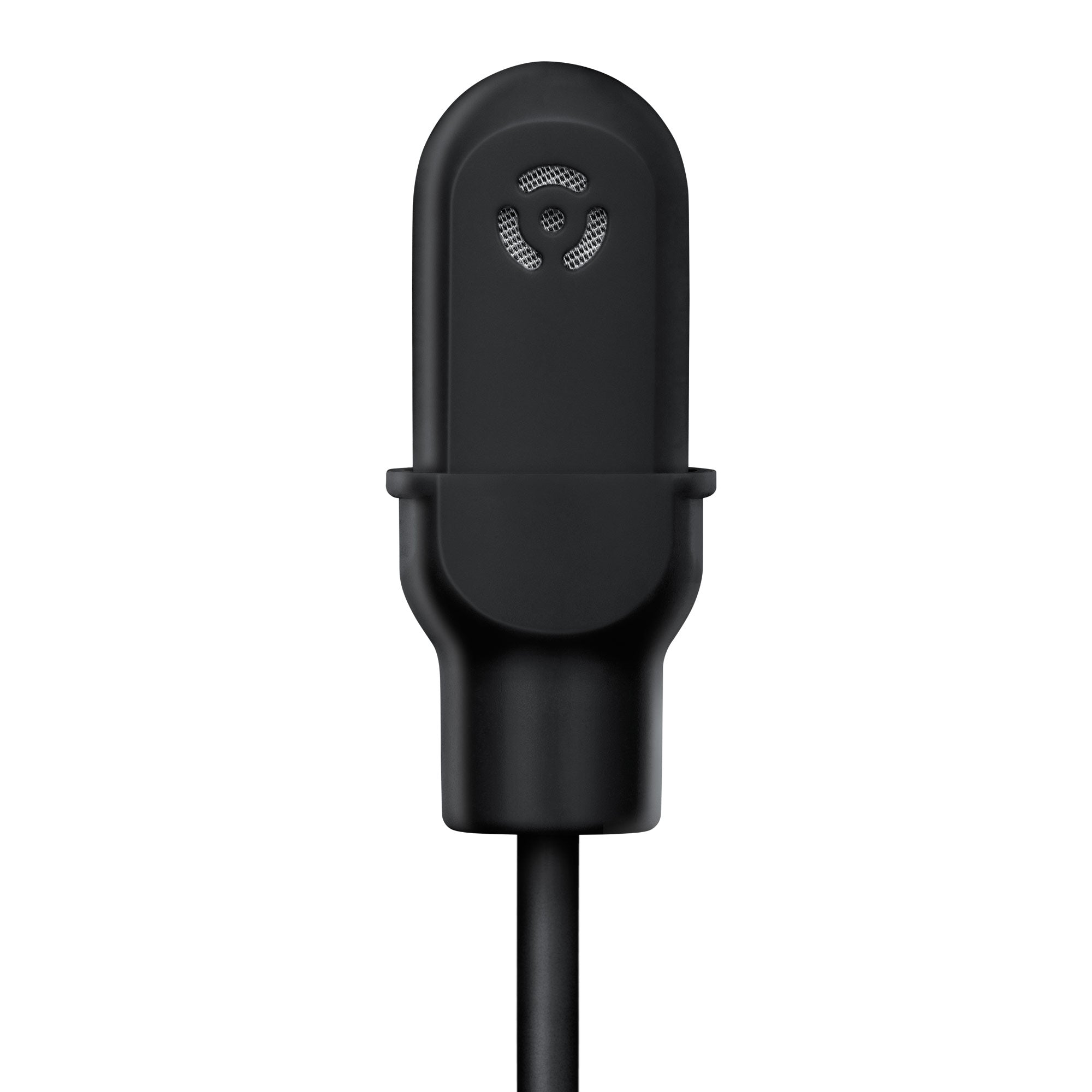

Shure DH5 DuraPlex Series Headset Microphone (Black / MTQG)

  • Dale #:

    SHUR-DH5BOMTQG
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclu... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

Features:

  • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
  • Advanced 1.6 mm Shure Plex cable:
    • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
    • Immune to memory effect and kinks
    • Fully paintable with typical theater paints, pens, and polishes

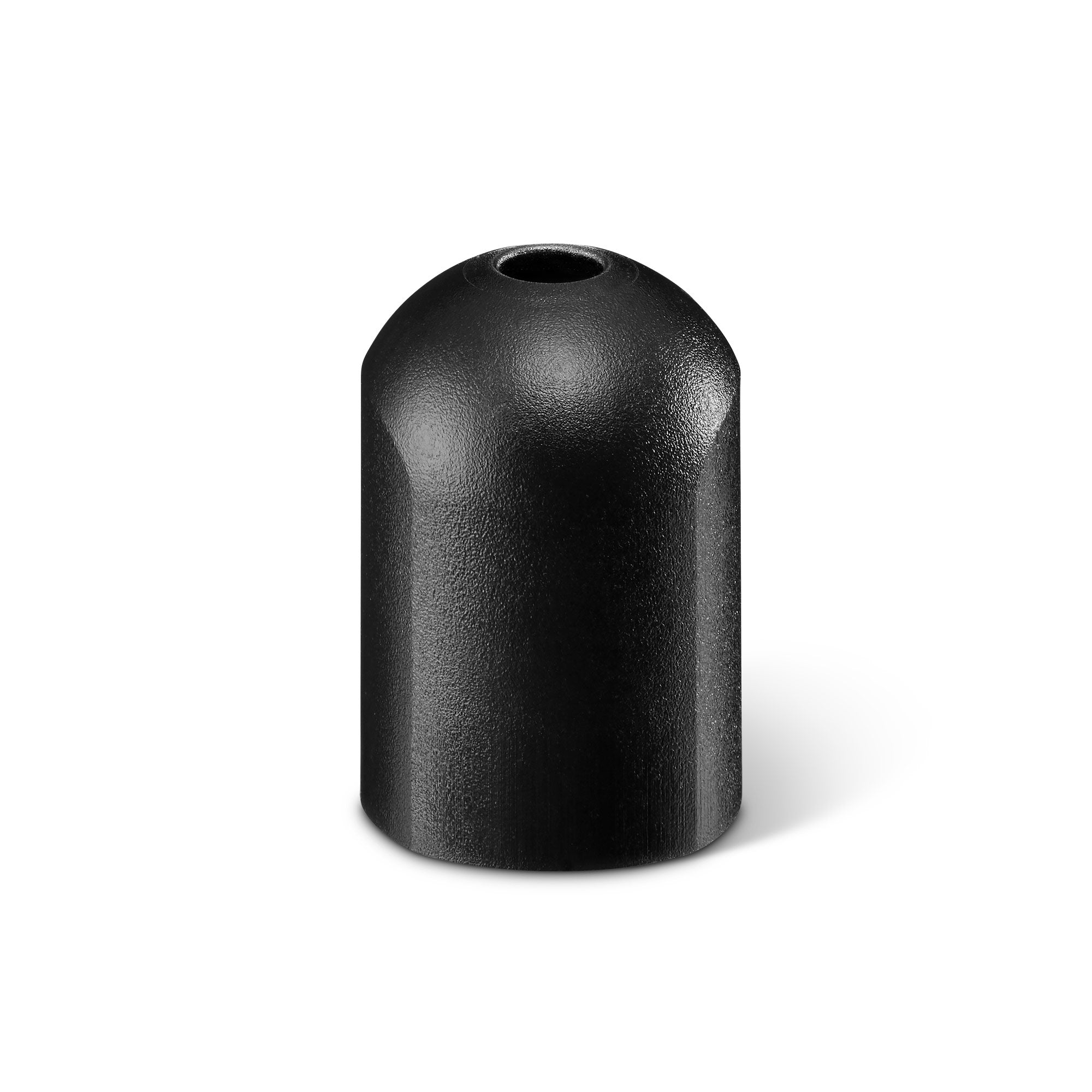

  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
  • Available in four colors: Black, Cocoa, Tan, White
  • Available in two connector types: TA4F (mTQG) and LEMO

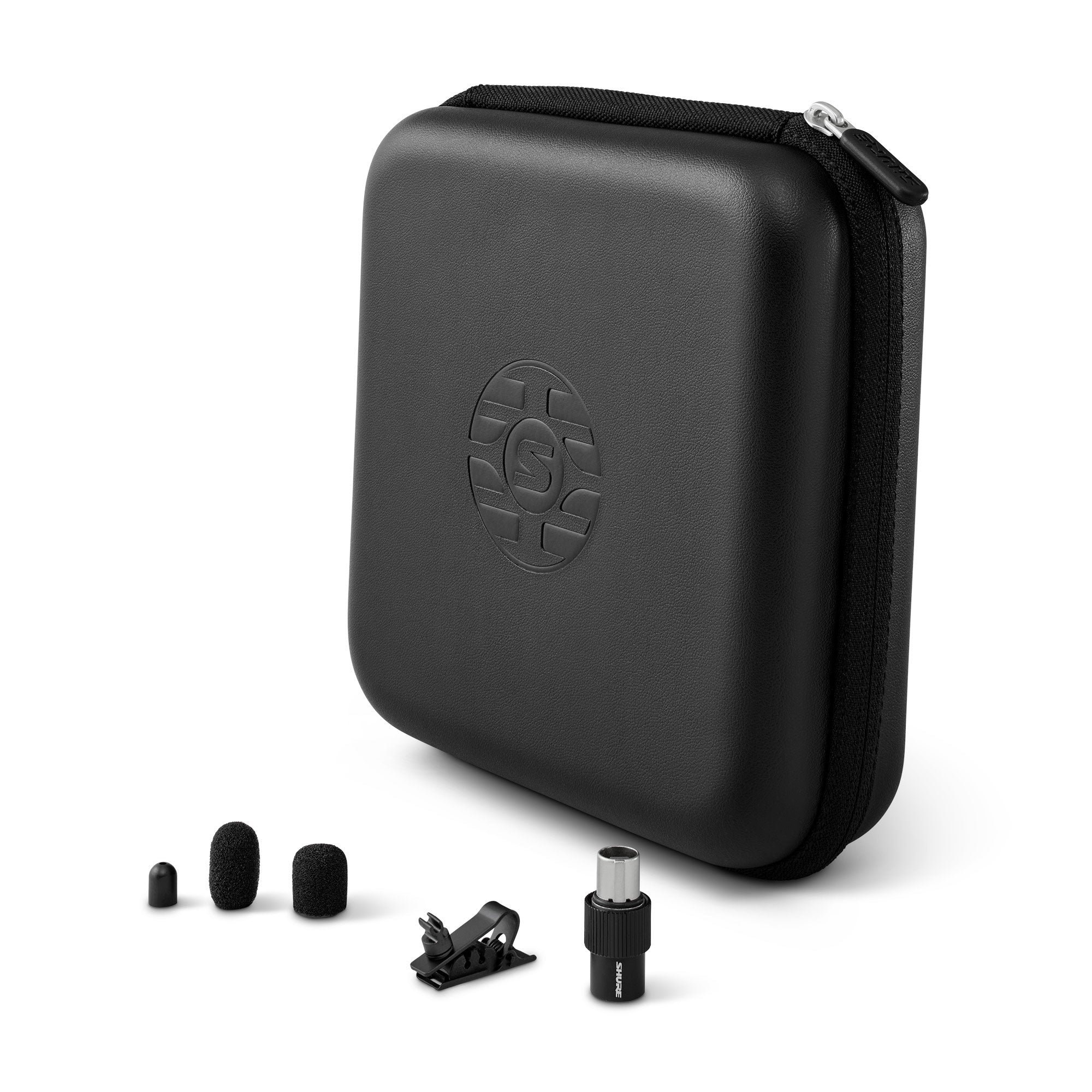

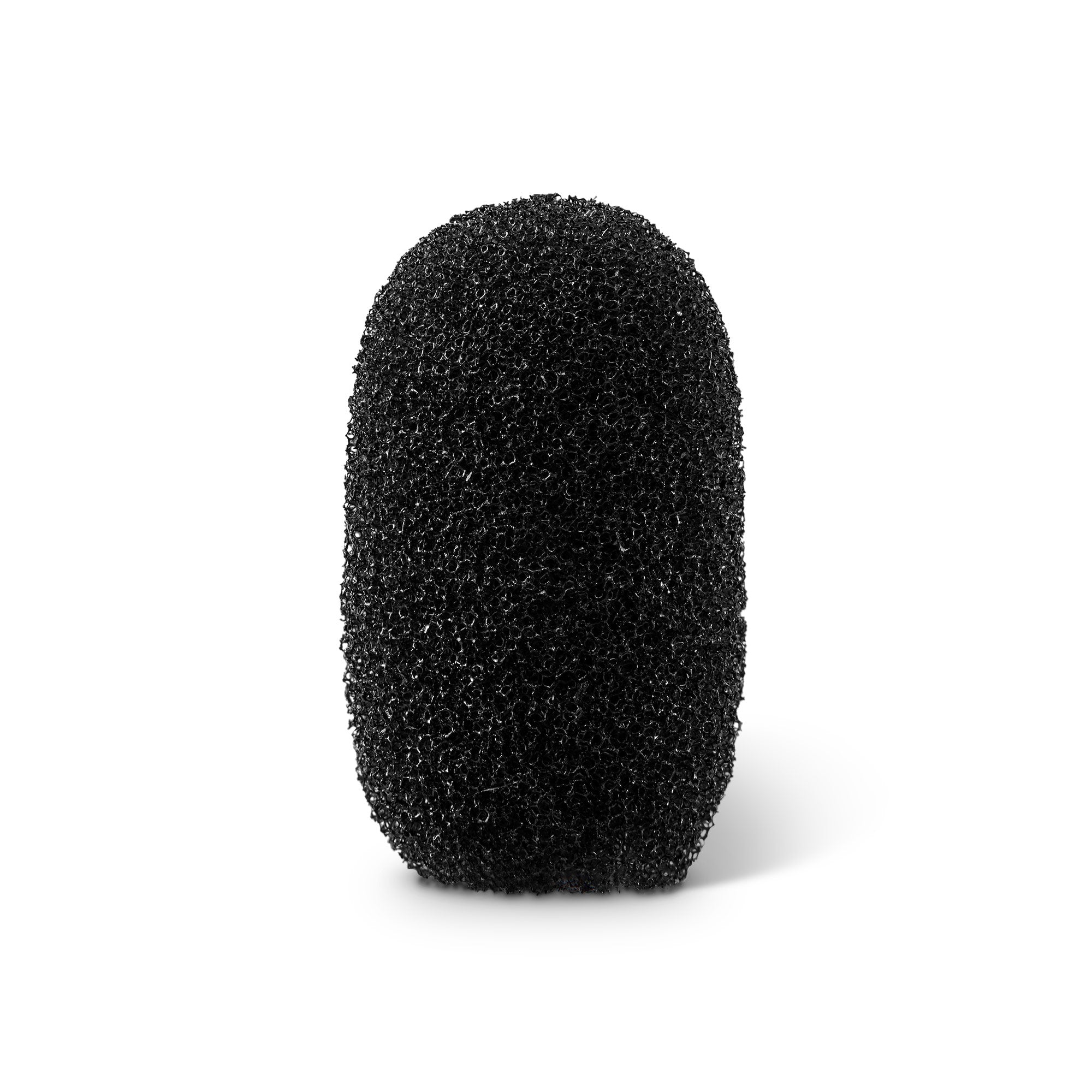

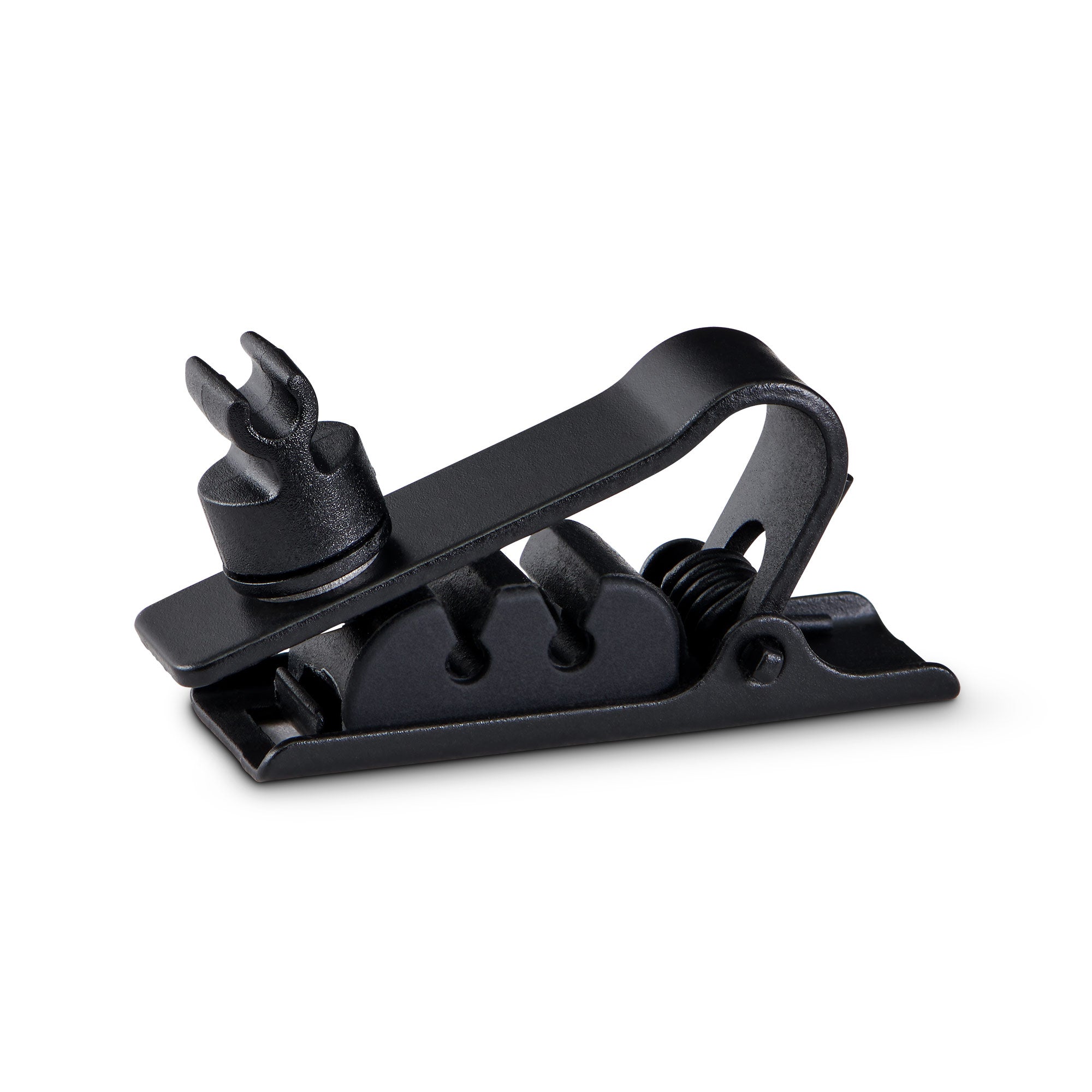

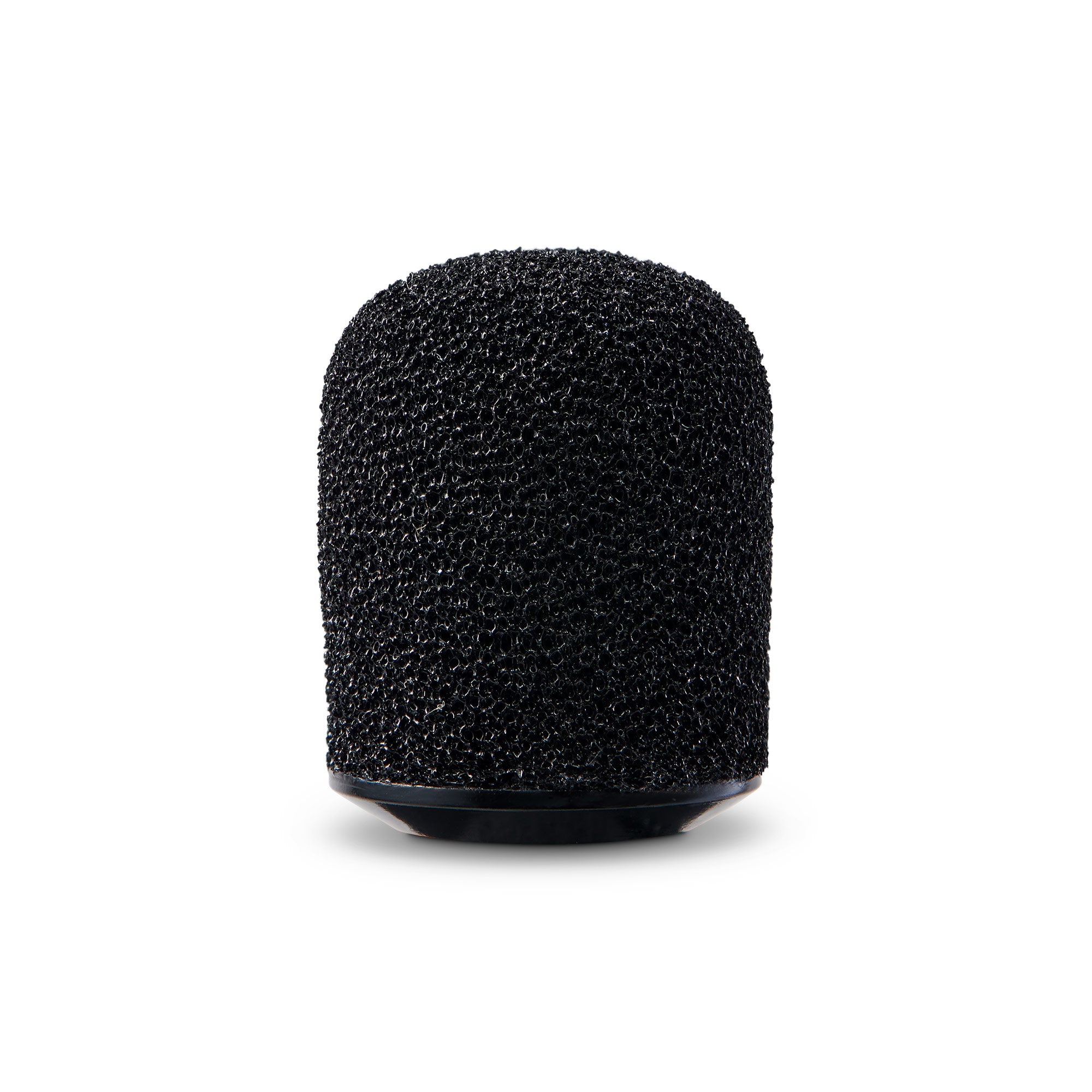

  • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

More +

Product Specs

Microphone Capsule MEMS
Polar Pattern Omnidirectional
Frequency Response 20 Hz to 20 kHz
Sensitivity -42.5 dBV at 1 kHz
Self-Noise, A-Weighted, Equivalent Acoustical 31 dB SPL-A
Signal-To-Noise Ratio 63.0 dB
Maximum SPL 132.0 dB SPL,1 kHz at 1% THD, typical
Dynamic Range 101.0 dB typical

Microphone Current Draw

220 µA, maximum
Bias Voltage Recommended Operating Voltage
5 V DC, 2.6 V DC minimum
Housing Molded ABS
Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable Diameter 1.6 mm
Cable Length 66 in. (1.67 m)
Net Weight 20.0 g(0.7 oz.)
