Description

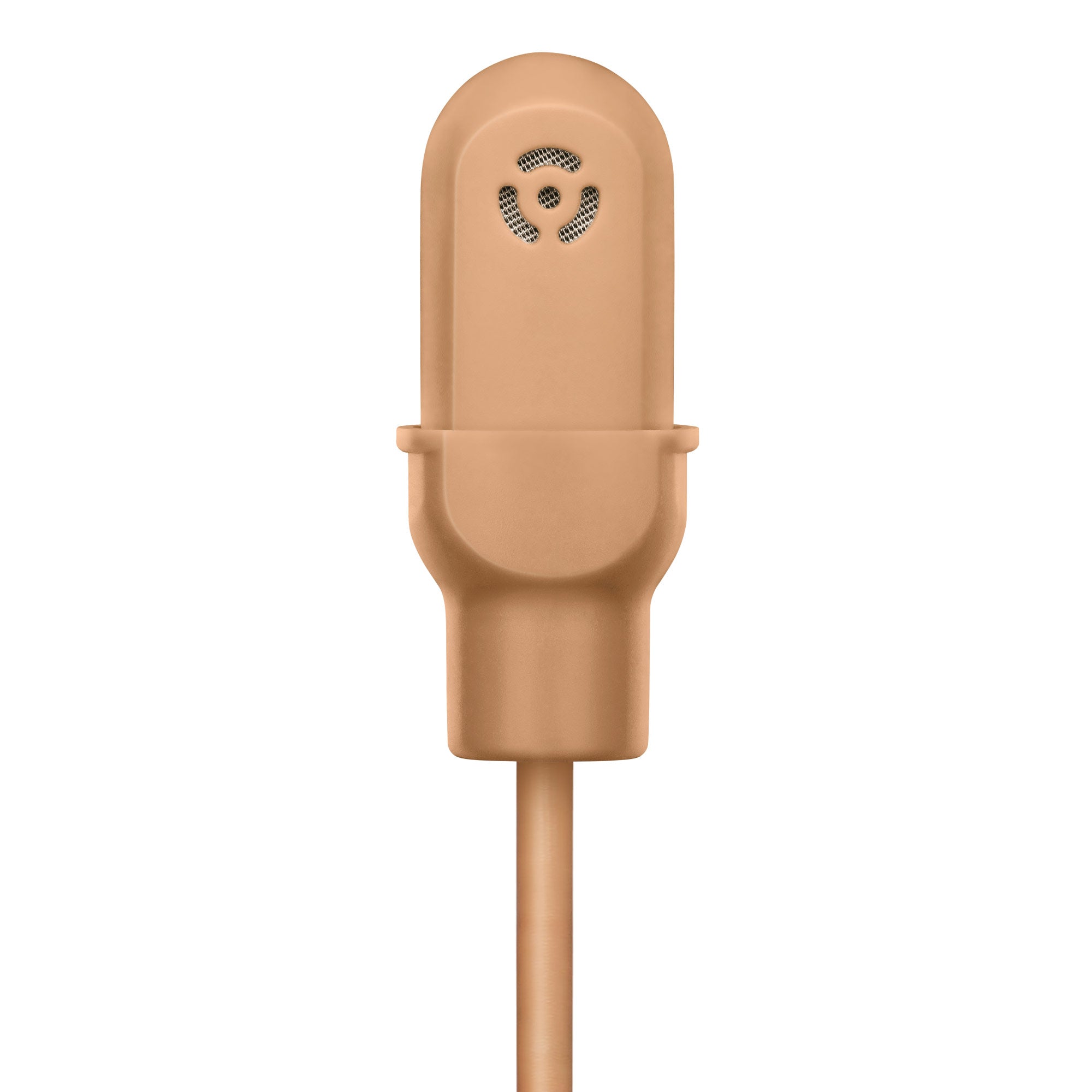

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.
In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.
Features:
- 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable:
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes

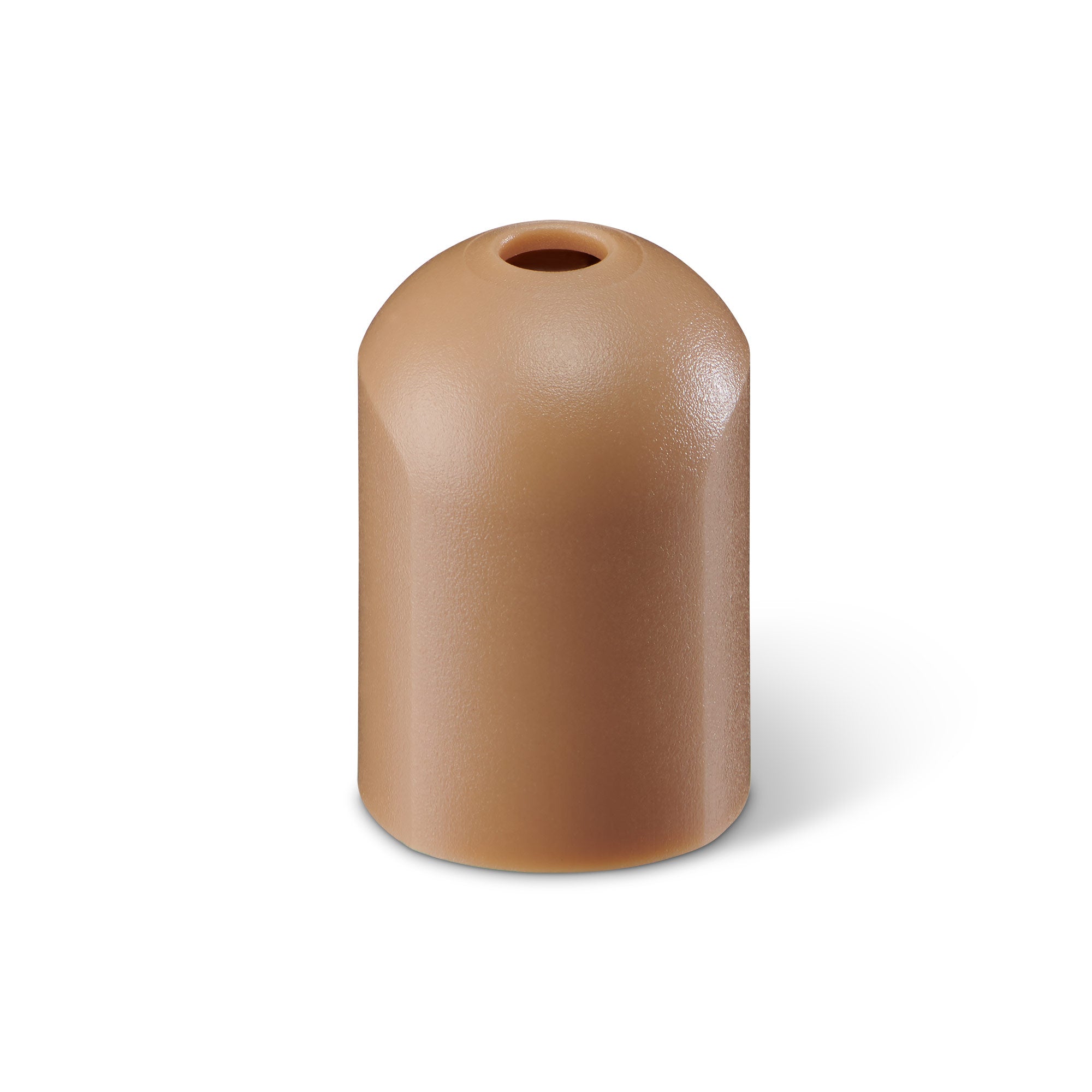

- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in four colors: Black, Cocoa, Tan, White
- Available in two connector types: TA4F (mTQG) and LEMO

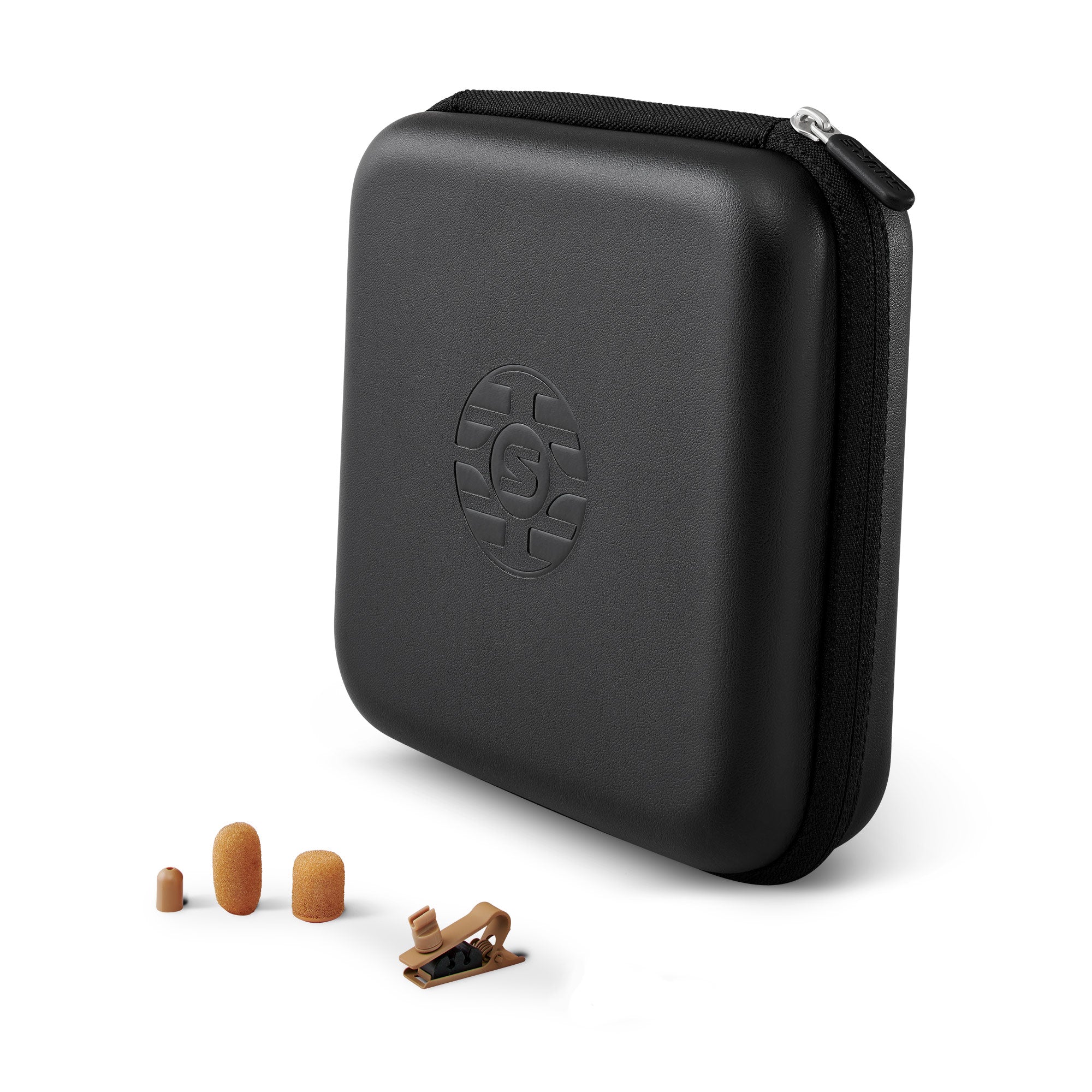

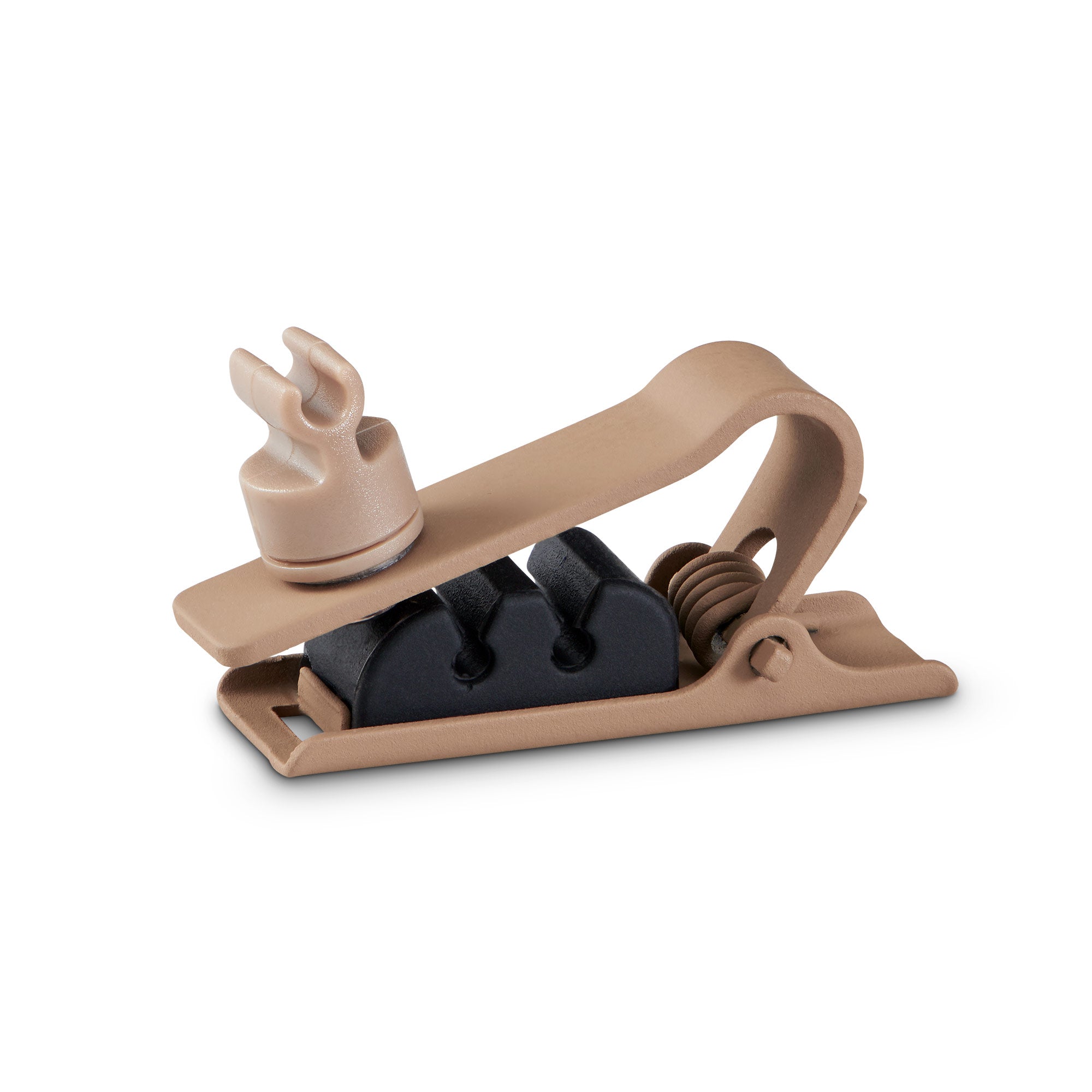

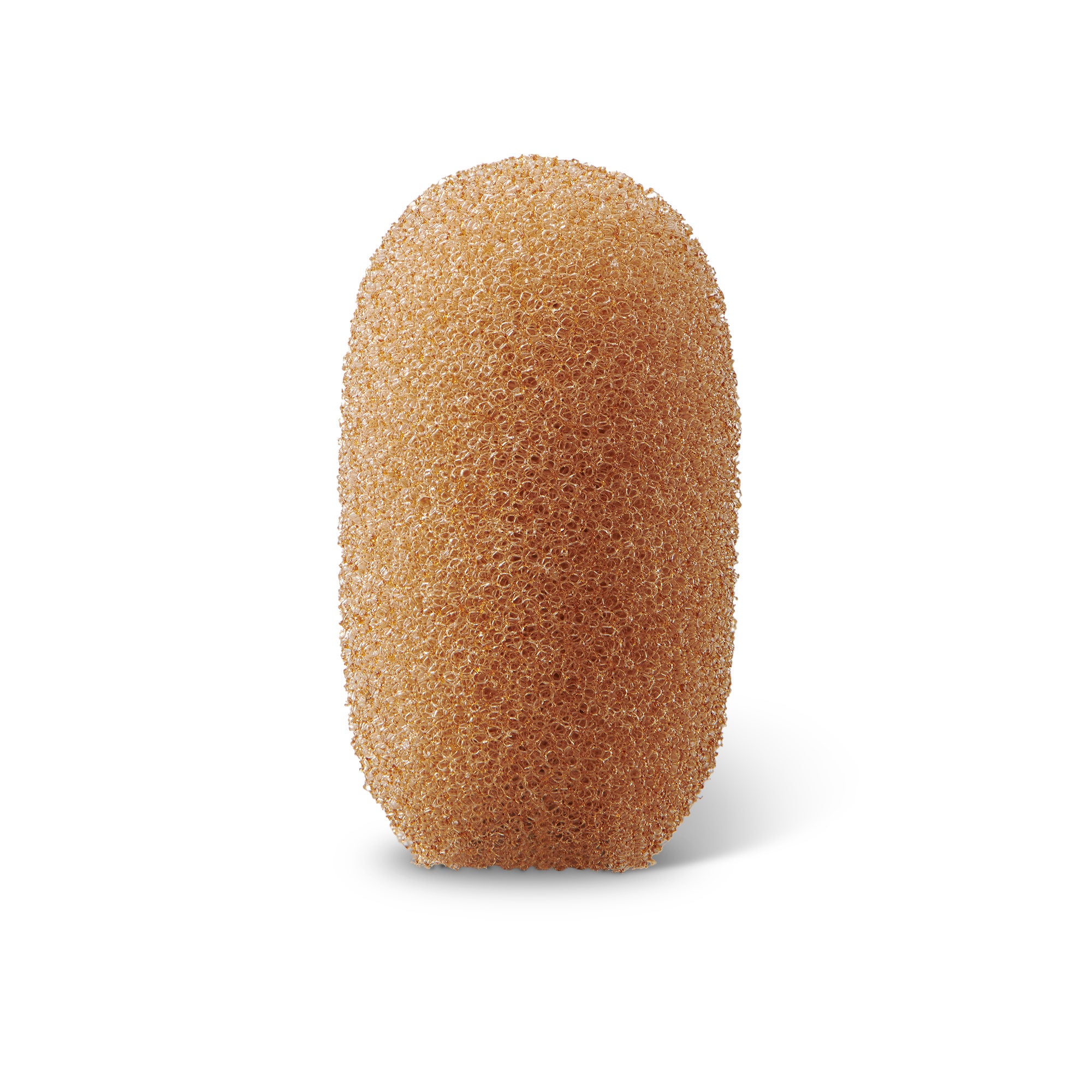

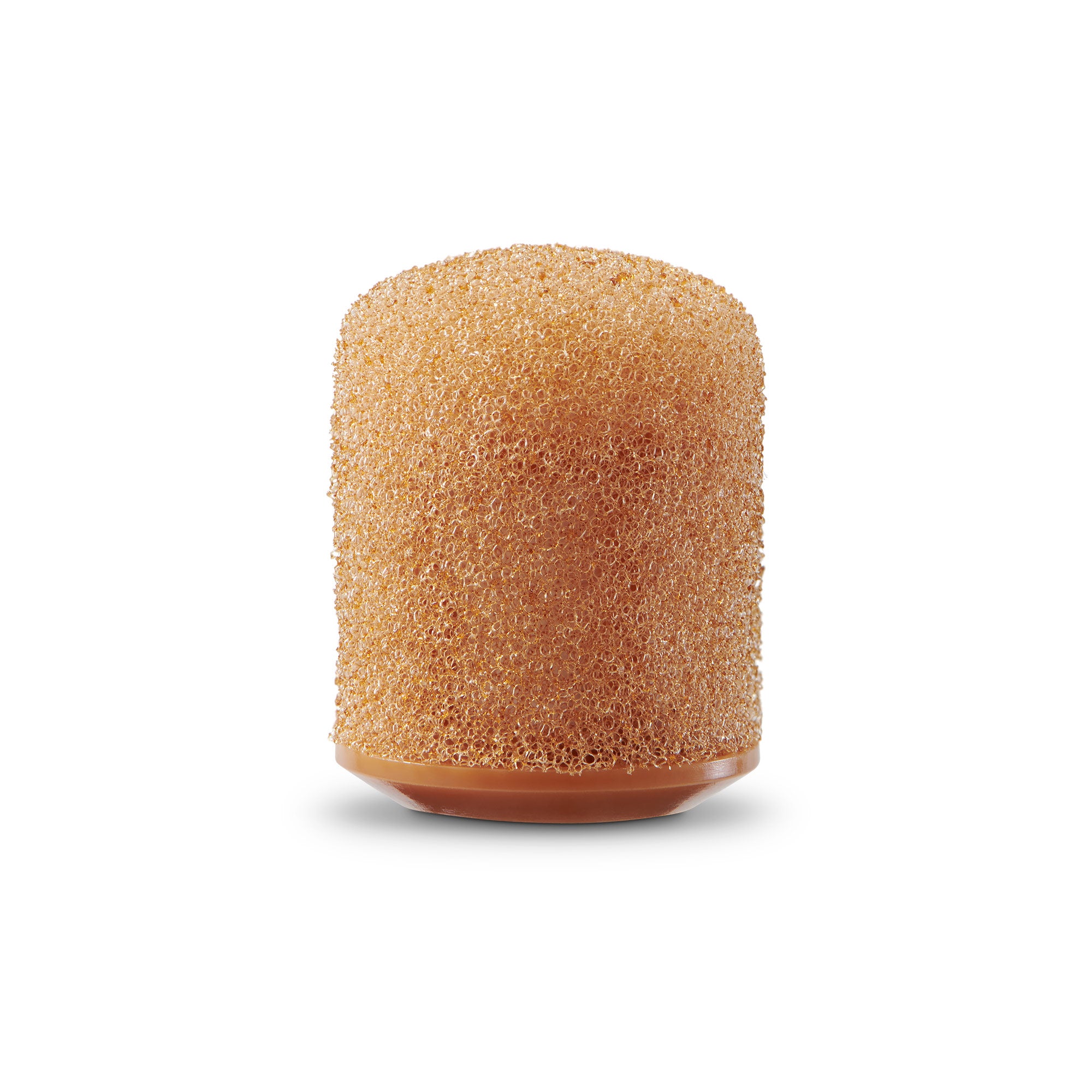

- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Microphone Capsule | MEMS |
Polar Pattern | Omnidirectional |
Frequency Response | 20 Hz to 20 kHz |
Sensitivity | -42.5 dBV at 1 kHz |
Self-Noise, A-Weighted, Equivalent Acoustical | 31 dB SPL-A |
Signal-To-Noise Ratio | 63.0 dB |
Maximum SPL | 132.0 dB SPL,1 kHz at 1% THD, typical |
Dynamic Range | 101.0 dB typical |
Microphone Current Draw |
220 µA, maximum |
Bias Voltage | Recommended Operating Voltage 5 V DC, 2.6 V DC minimum |
Housing | Molded ABS |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 |
Cable Diameter | 1.6 mm |
Cable Length | 66 in. (1.67 m) |
Net Weight | 20.0 g(0.7 oz.) |
With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won't kink, offers virtually zero "memory effect," is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.
In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.
Features:
- 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable:
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes
- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in four colors: Black, Cocoa, Tan, White
- Available in two connector types: TA4F (mTQG) and LEMO
- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Microphone Capsule | MEMS |
Polar Pattern | Omnidirectional |
Frequency Response | 20 Hz to 20 kHz |
Sensitivity | -42.5 dBV at 1 kHz |
Self-Noise, A-Weighted, Equivalent Acoustical | 31 dB SPL-A |
Signal-To-Noise Ratio | 63.0 dB |
Maximum SPL | 132.0 dB SPL,1 kHz at 1% THD, typical |
Dynamic Range | 101.0 dB typical |
Microphone Current Draw |
220 µA, maximum |
Bias Voltage | Recommended Operating Voltage 5 V DC, 2.6 V DC minimum |
Housing | Molded ABS |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 |
Cable Diameter | 1.6 mm |
Cable Length | 66 in. (1.67 m) |
Net Weight | 20.0 g(0.7 oz.) |
