Shure DH5 DuraPlex Series Headset Microphone (Tan / Lemo)

  • Dale #:

    SHUR-DH5TOMTQG
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclu... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

With an easy-to-wear headset frame, DuraPlex DH5 features a neutral, full sound quality that lives up to the highest audio standards on any stage or broadcast studio. Also available as a lavalier, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. The exclusive 1.6 mm Shure Plex cable with DuraPlex won’t kink, offers virtually zero “memory effect,” is fully paintable, and simply lasts longer due to a dual redundant ground, which doubles as a secondary shield.

In the theater, onstage, or on television, you can depend on the DuraPlex DH5 headset microphone for consistent professional sound, durability, and longevity.

Features:

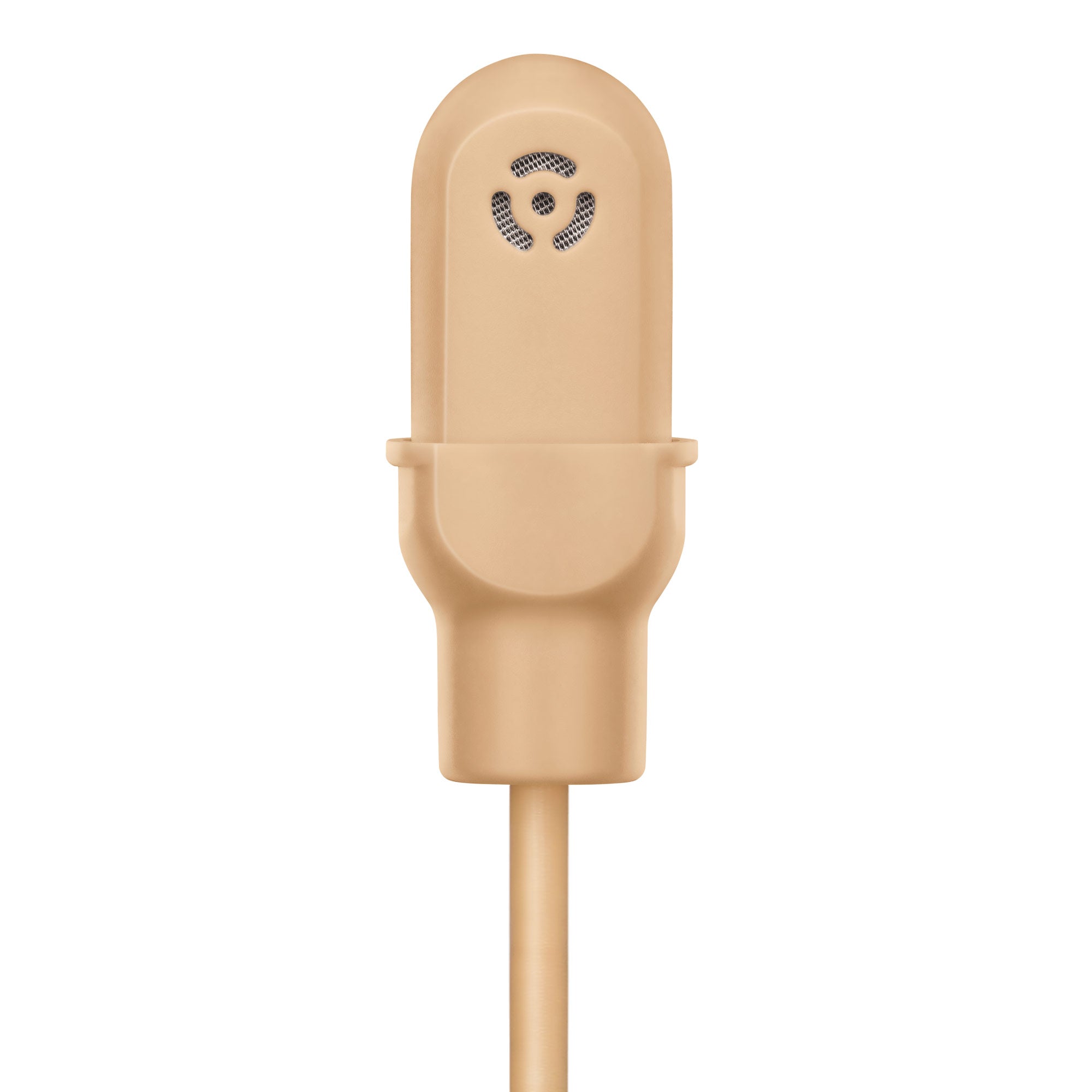

  • 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
  • IP57 dust-resistant, waterproof rated
  • Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
  • Advanced 1.6 mm Shure Plex cable:
    • Dual redundant ground in cable serves as secondary shield for unprecedented longevity
    • Immune to memory effect and kinks
    • Fully paintable with typical theater paints, pens, and polishes

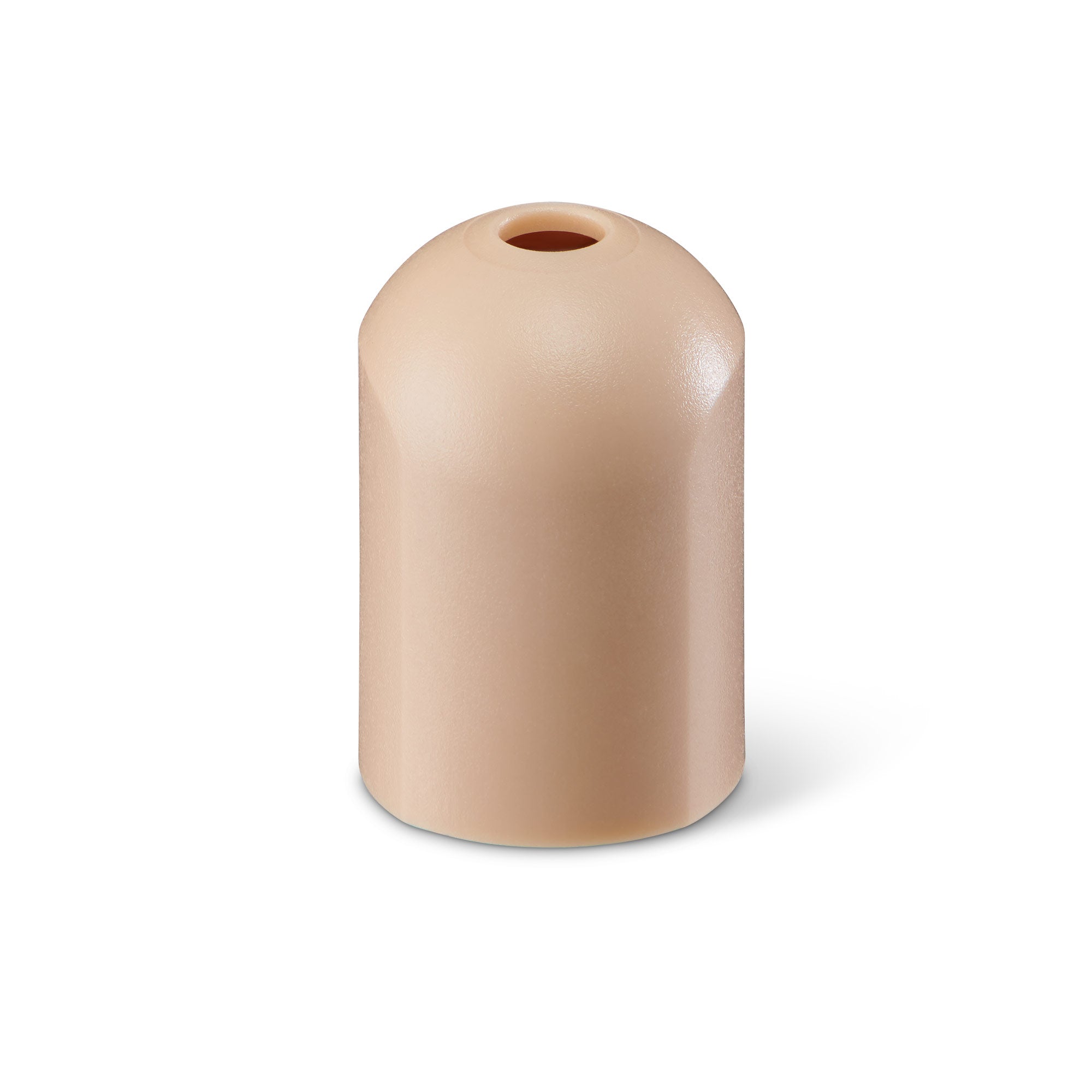

  • Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
  • Available in four colors: Black, Cocoa, Tan, White
  • Available in two connector types: TA4F (mTQG) and LEMO

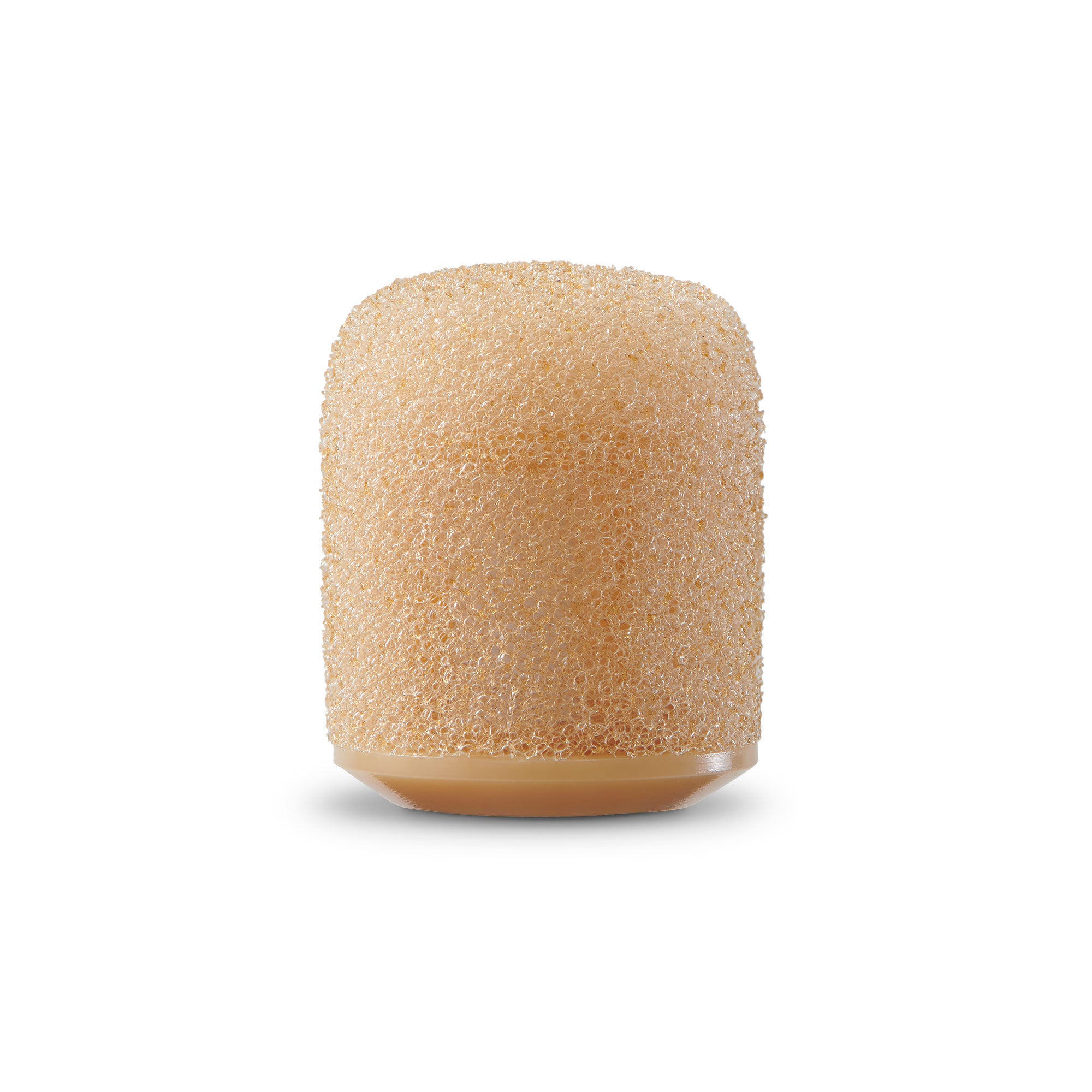

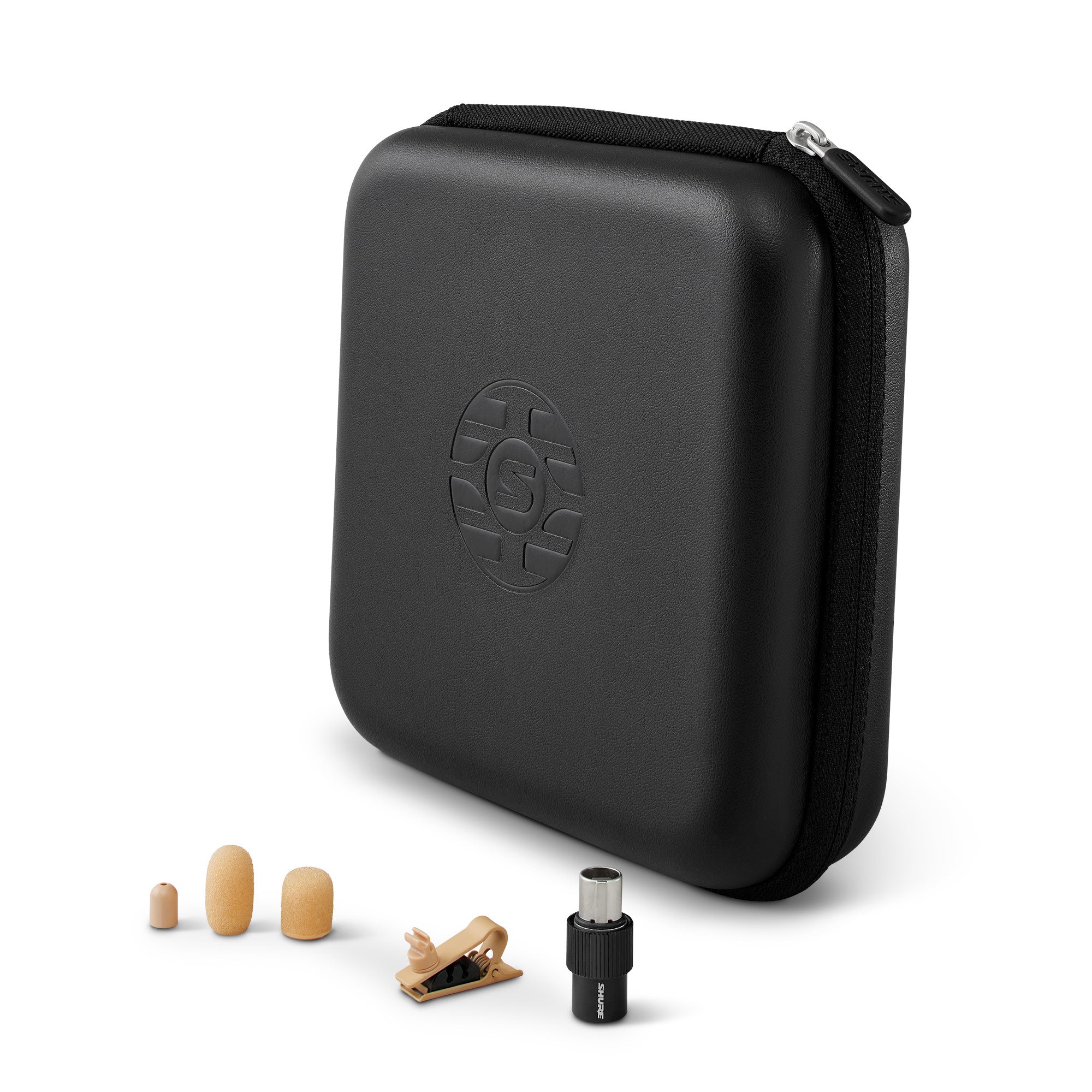

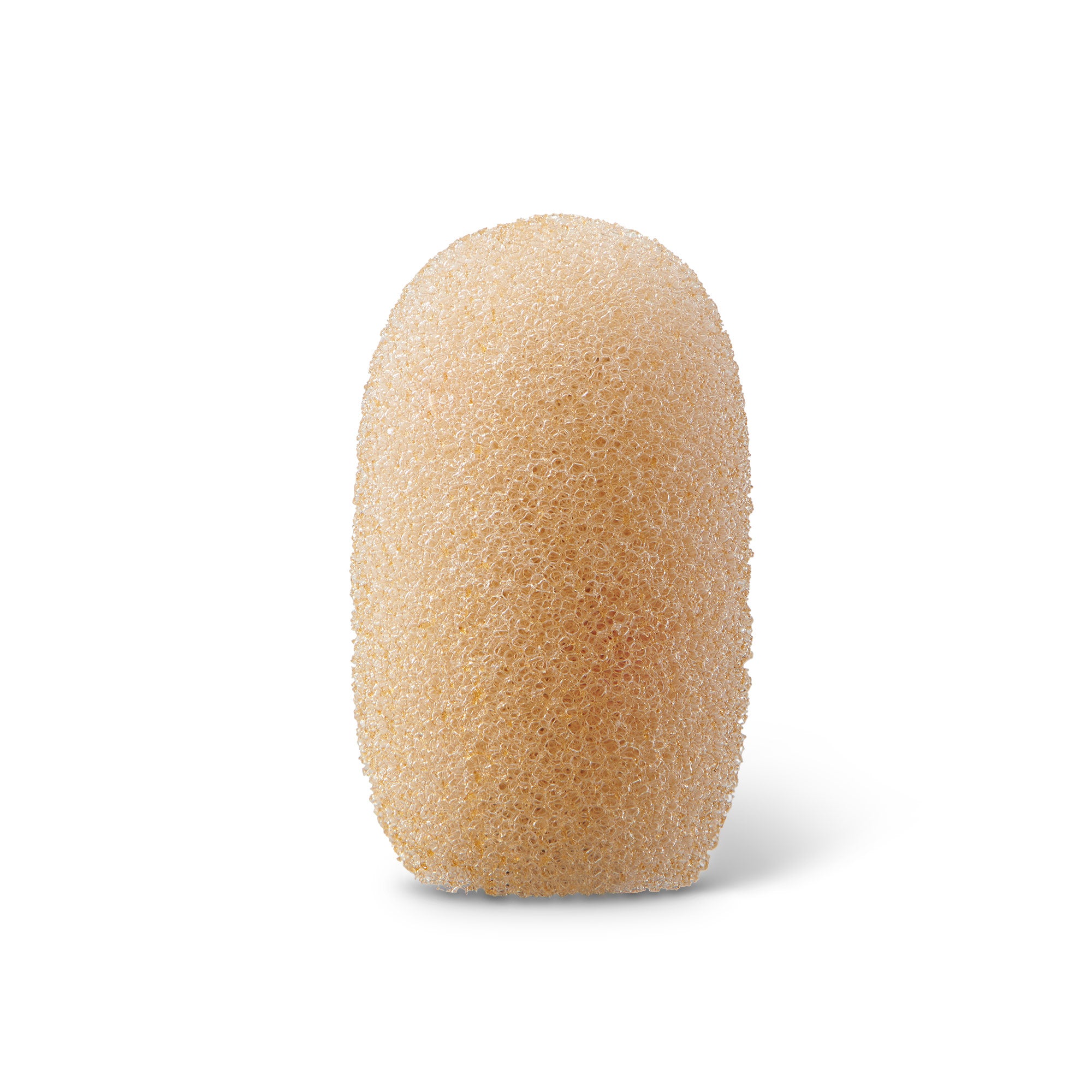

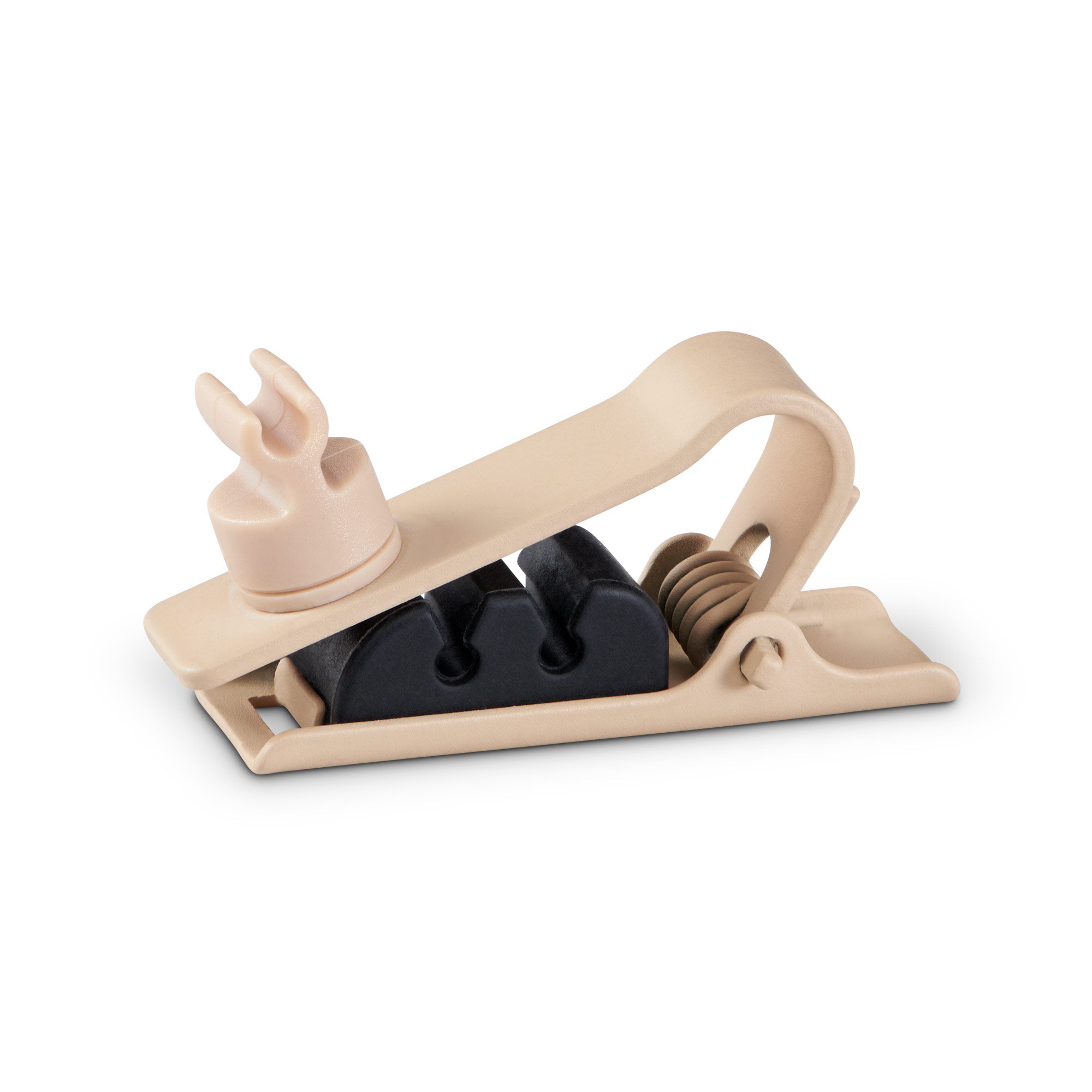

  • Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)

More +

Product Specs

Microphone Capsule MEMS
Polar Pattern Omnidirectional
Frequency Response 20 Hz to 20 kHz
Sensitivity -42.5 dBV at 1 kHz
Self-Noise, A-Weighted, Equivalent Acoustical 31 dB SPL-A
Signal-To-Noise Ratio 63.0 dB
Maximum SPL 132.0 dB SPL,1 kHz at 1% THD, typical
Dynamic Range 101.0 dB typical

Microphone Current Draw

220 µA, maximum
Bias Voltage Recommended Operating Voltage
5 V DC, 2.6 V DC minimum
Housing Molded ABS
Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable Diameter 1.6 mm
Cable Length 66 in. (1.67 m)
Net Weight 20.0 g(0.7 oz.)
