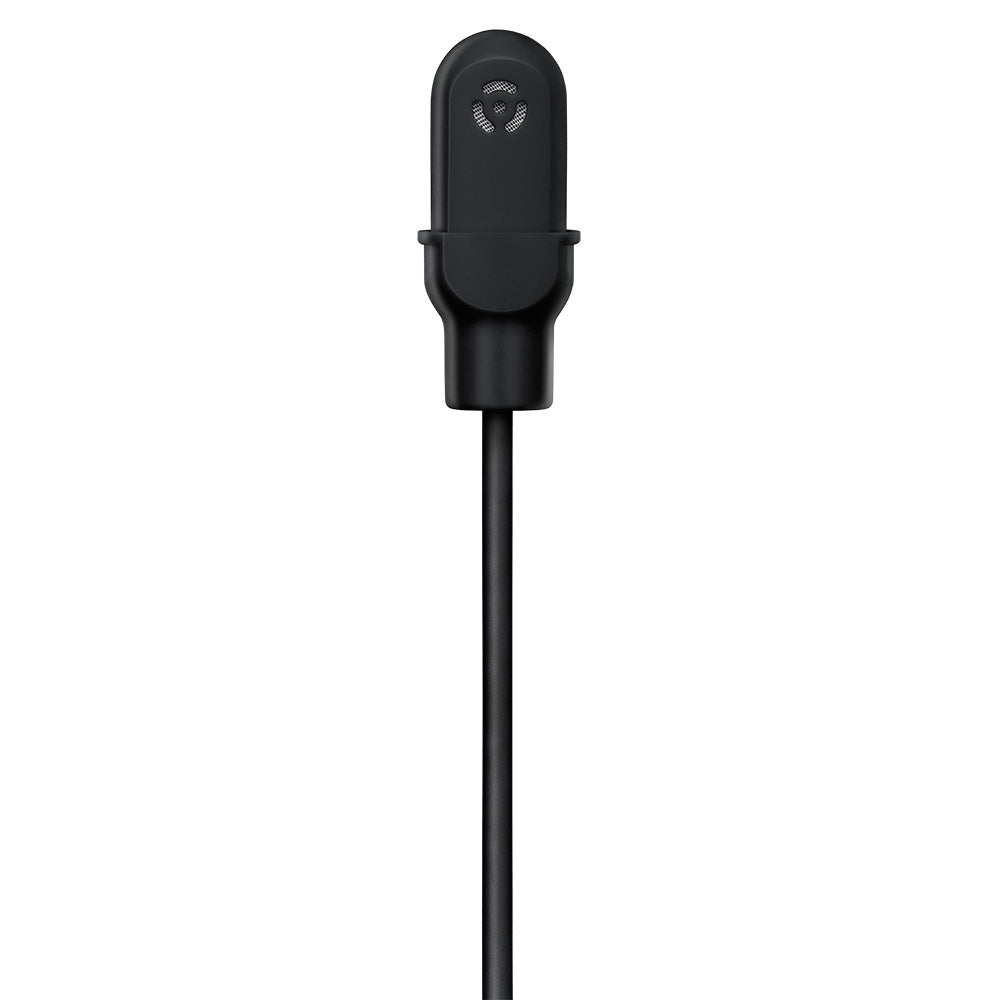

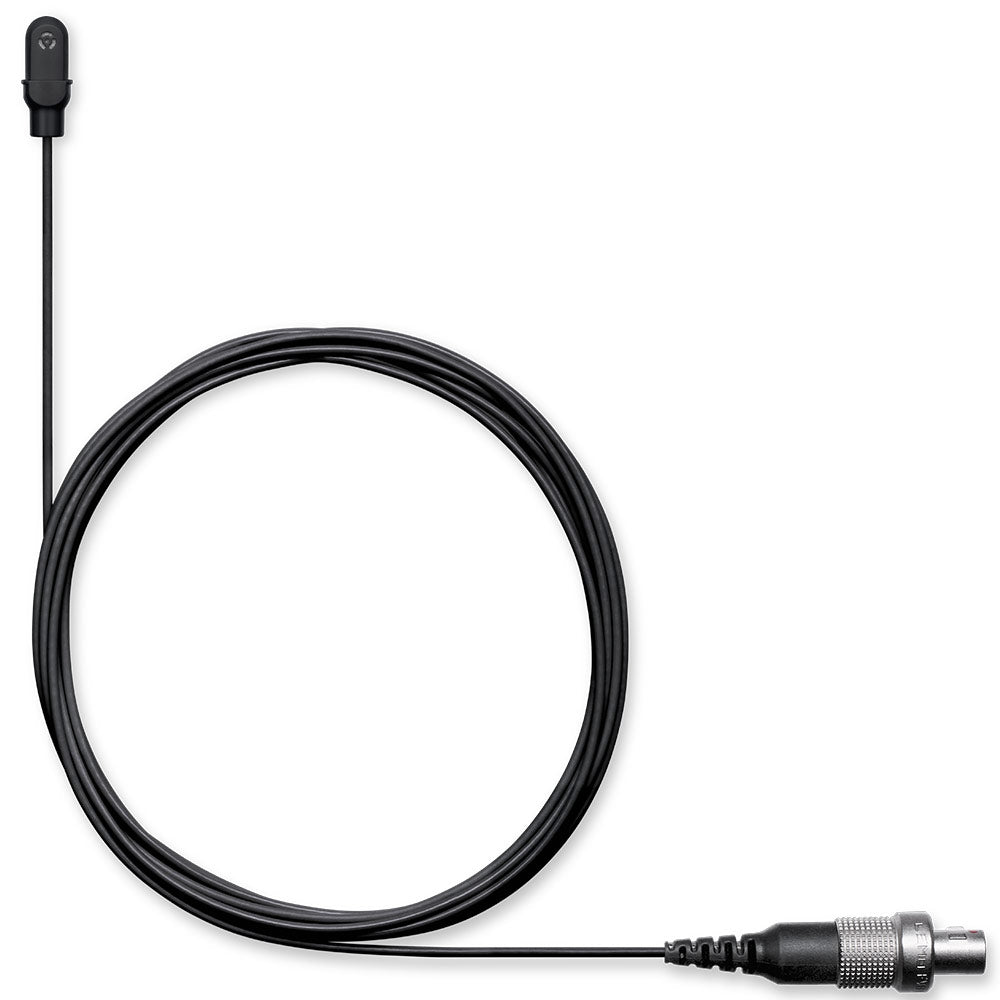

Shure DL4 DuraPlex Series Lavalier Microphone (Black / 3-Pin Lemo)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Defy the elements. DuraPlex subminiature lavalier and headset microphones are consistent, long-lasting, and resistant to dust, dirt, water, and sweat. Offering professional-quality audio for film, broadcast, speech, theater, and performance applications, DuraPlex is perfect for everyday situations but excels in the harshest environments. Capture every moment with confidence. Rain, or shine.
Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the elements won't slow you down. As comfortable on the beach as it is in a broadcast studio, DuraPlex features a neutral, full sound quality that lives up to the highest audio standards.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.
Features:
- 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable:
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes

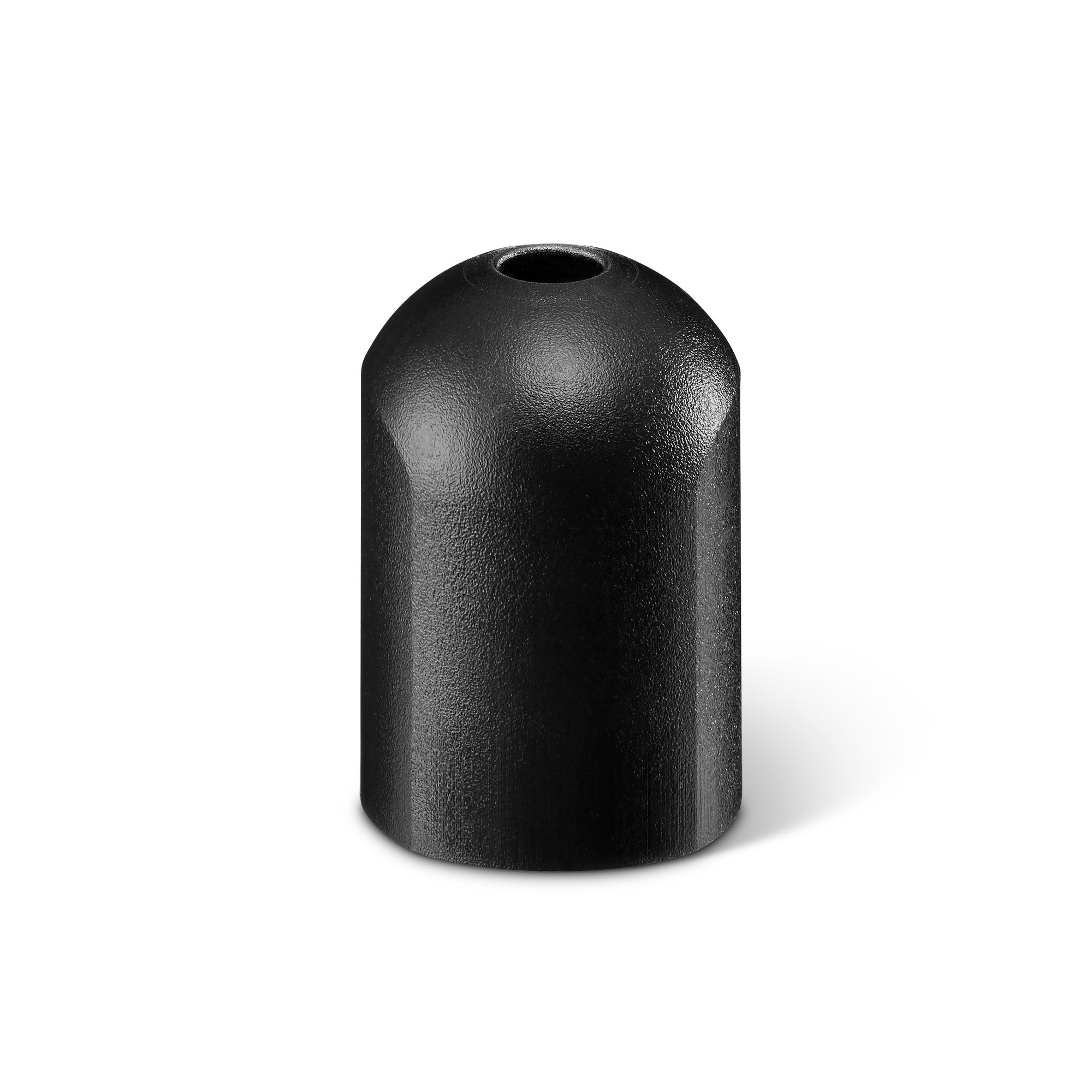

- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in four colors: Black, Cocoa, Tan, White
- Available in two connector types: TA4F (mTQG) and LEMO

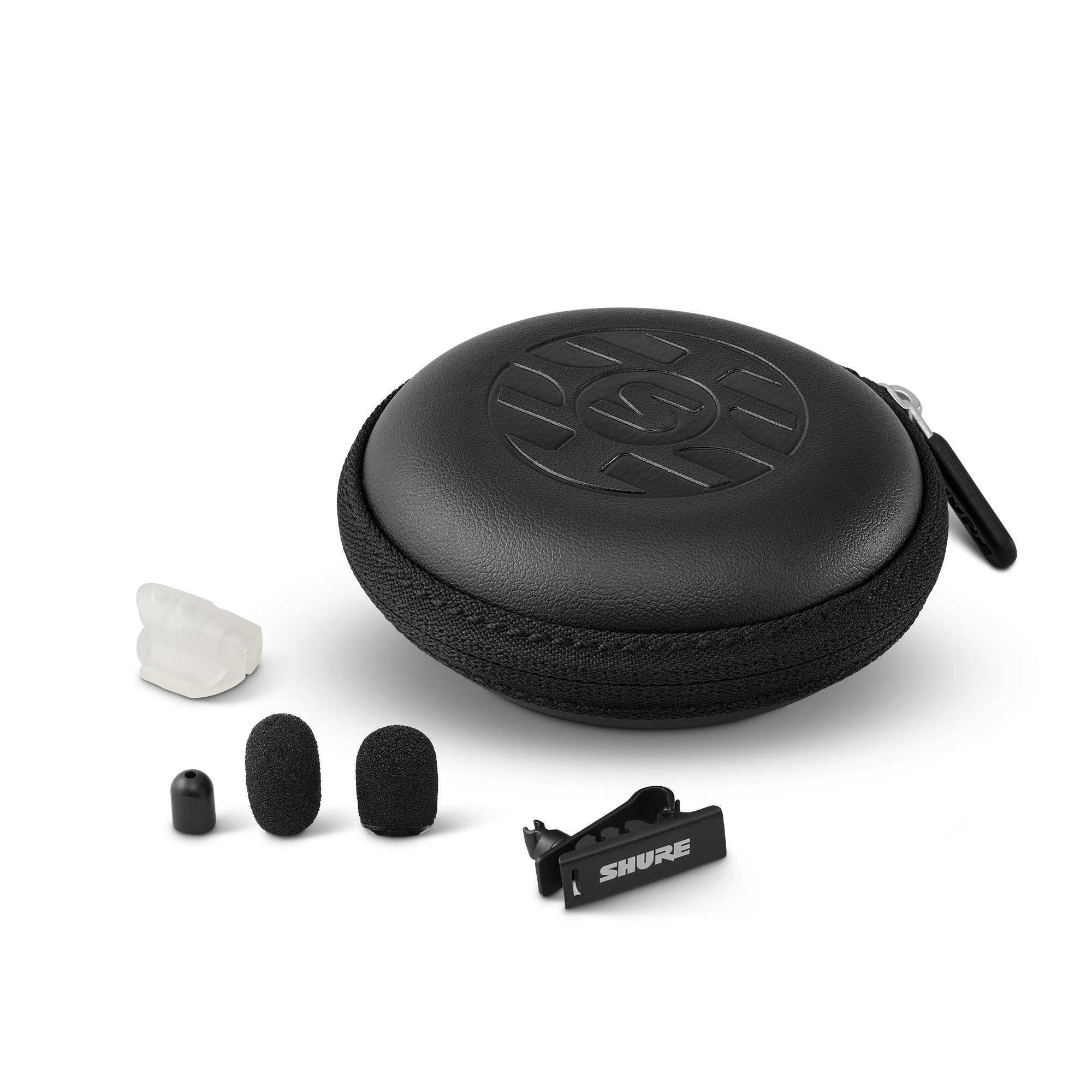

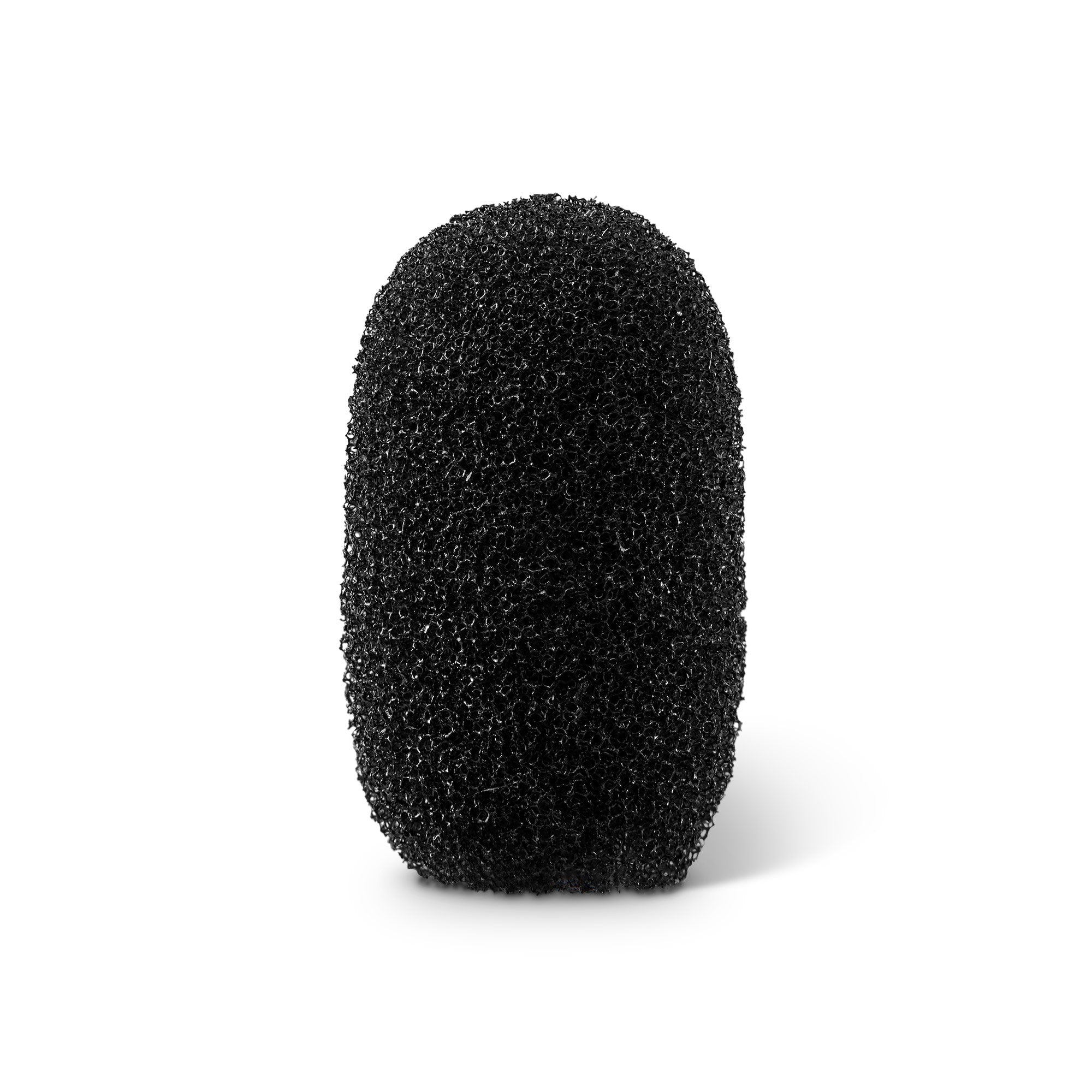

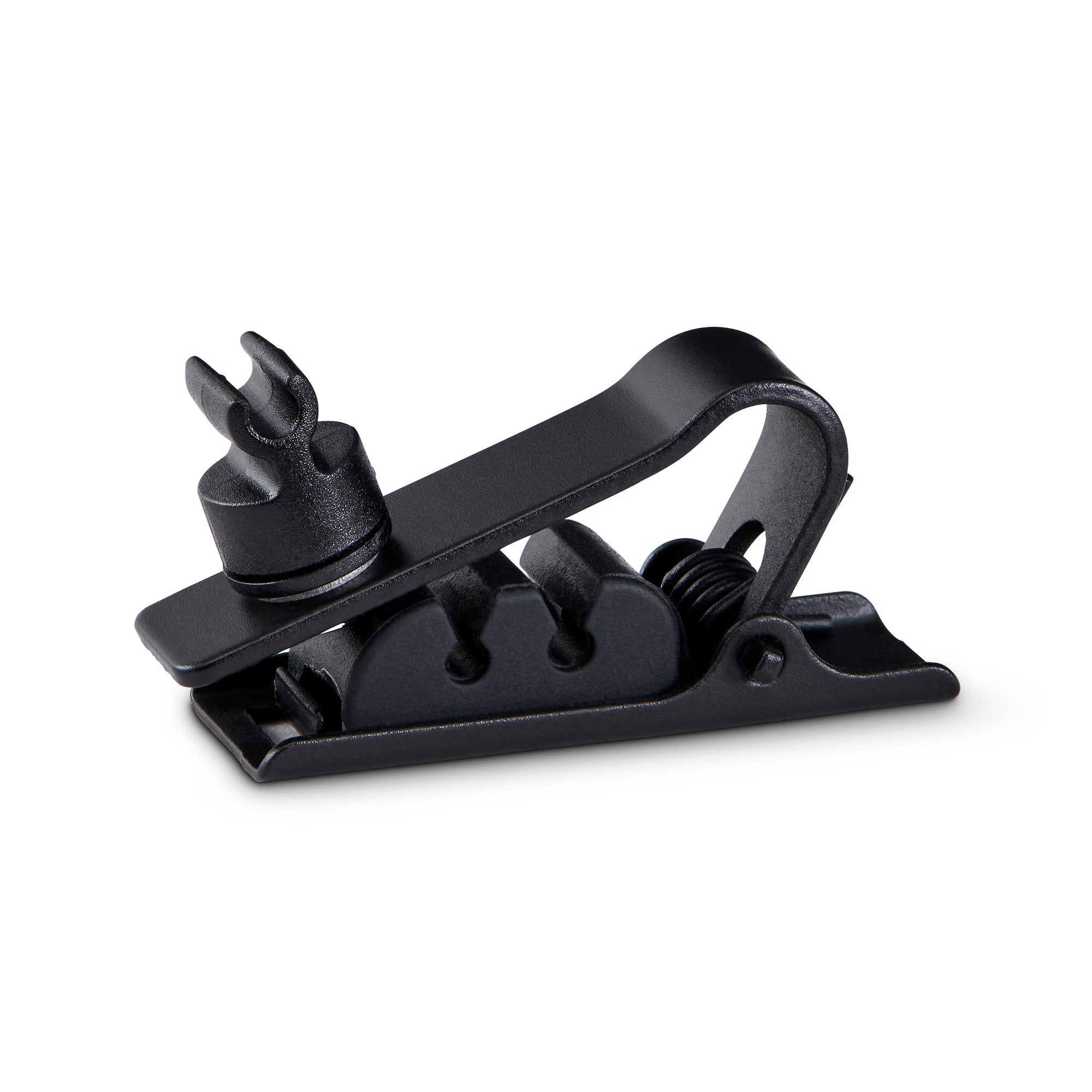

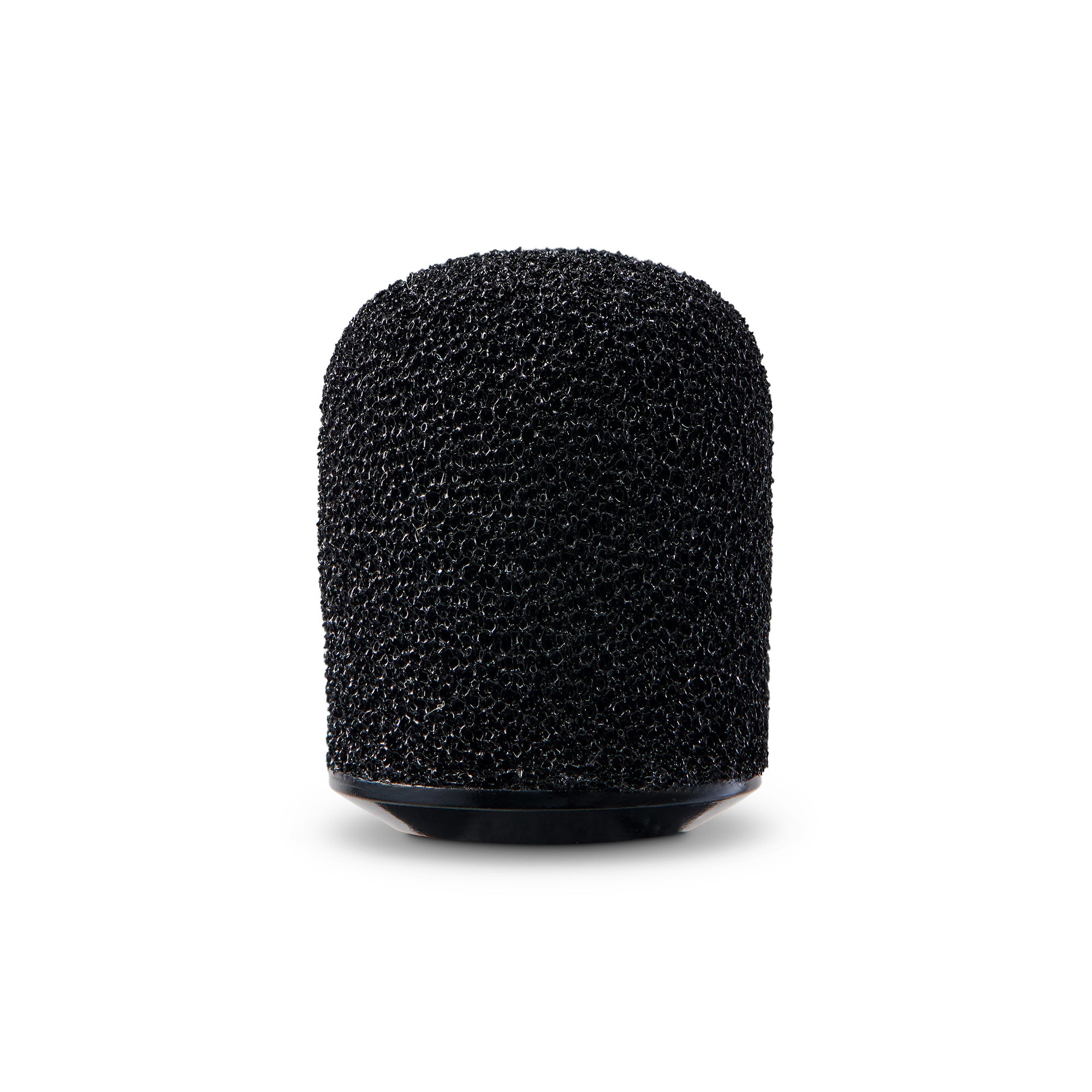

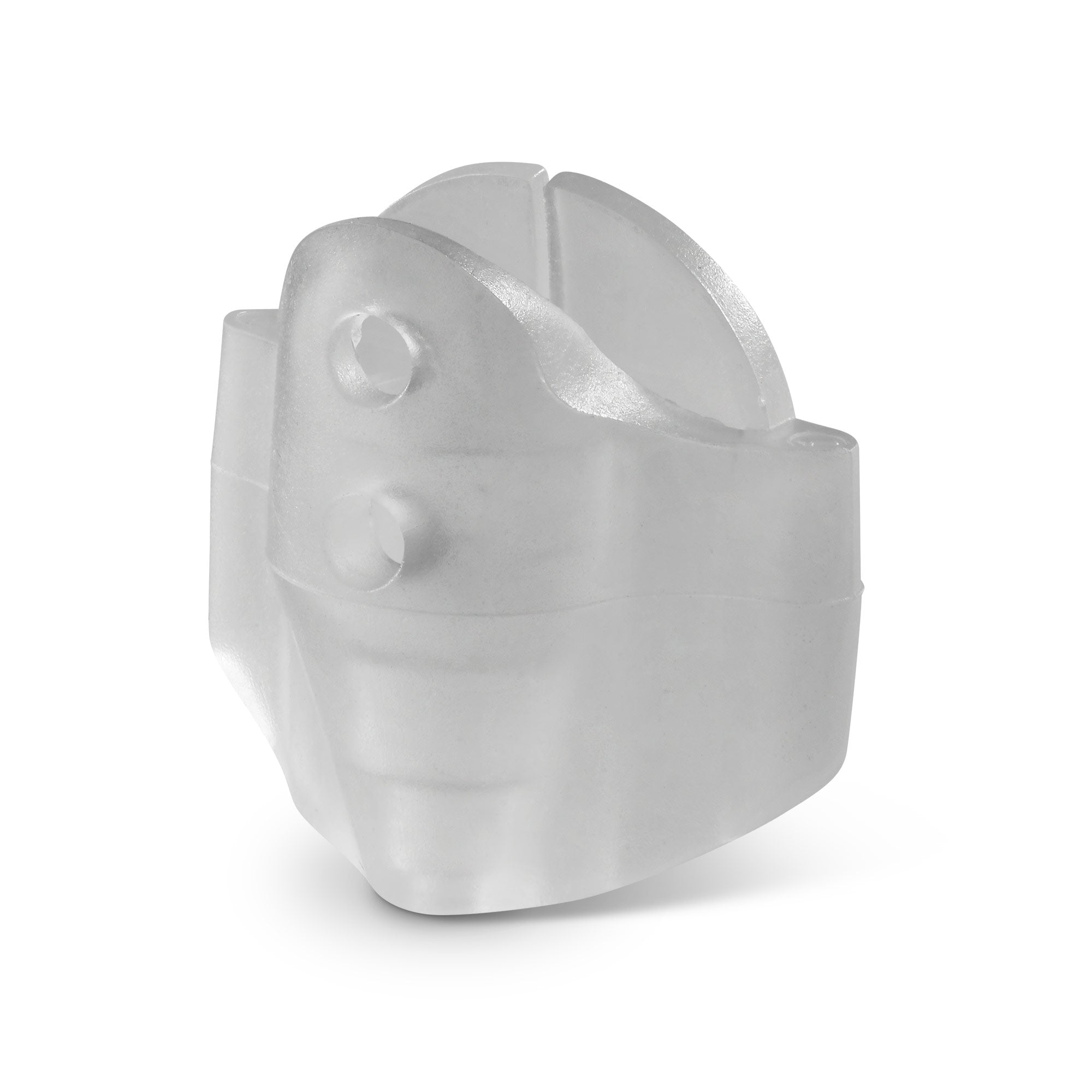

- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
| Microphone Capsule | MEMS |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -42.5 dBV at 1 kHz |
| Self-Noise, A-Weighted, Equivalent Acoustical | 31 dB SPL-A |
| Signal-To-Noise Ratio | 63.0 dB |
| Maximum SPL | 132.0 dB SPL,1 kHz at 1% THD, typical |
| Dynamic Range | 101.0 dB typical |
Microphone Current Draw |
220 µA, maximum |
| Bias Voltage | Recommended Operating Voltage 5 V DC, 2.6 V DC minimum |
| Housing | Molded ABS |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 |
| Cable Diameter | 1.6 mm |
| Cable Length | 66 in. (1.67 m) |
| Net Weight | 15.0Êg(0.53Êoz.) |
Defy the elements. DuraPlex subminiature lavalier and headset microphones are consistent, long-lasting, and resistant to dust, dirt, water, and sweat. Offering professional-quality audio for film, broadcast, speech, theater, and performance applications, DuraPlex is perfect for everyday situations but excels in the harshest environments. Capture every moment with confidence. Rain, or shine.
Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating*. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the elements won't slow you down. As comfortable on the beach as it is in a broadcast studio, DuraPlex features a neutral, full sound quality that lives up to the highest audio standards.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," won't kink, and is fully paintable.
Features:
- 5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
- Advanced 1.6 mm Shure Plex cable:
- Dual redundant ground in cable serves as secondary shield for unprecedented longevity
- Immune to memory effect and kinks
- Fully paintable with typical theater paints, pens, and polishes
- Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
- Available in four colors: Black, Cocoa, Tan, White
- Available in two connector types: TA4F (mTQG) and LEMO
- Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
| Microphone Capsule | MEMS |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -42.5 dBV at 1 kHz |
| Self-Noise, A-Weighted, Equivalent Acoustical | 31 dB SPL-A |
| Signal-To-Noise Ratio | 63.0 dB |
| Maximum SPL | 132.0 dB SPL,1 kHz at 1% THD, typical |
| Dynamic Range | 101.0 dB typical |
Microphone Current Draw |
220 µA, maximum |
| Bias Voltage | Recommended Operating Voltage 5 V DC, 2.6 V DC minimum |
| Housing | Molded ABS |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 |
| Cable Diameter | 1.6 mm |
| Cable Length | 66 in. (1.67 m) |
| Net Weight | 15.0Êg(0.53Êoz.) |
