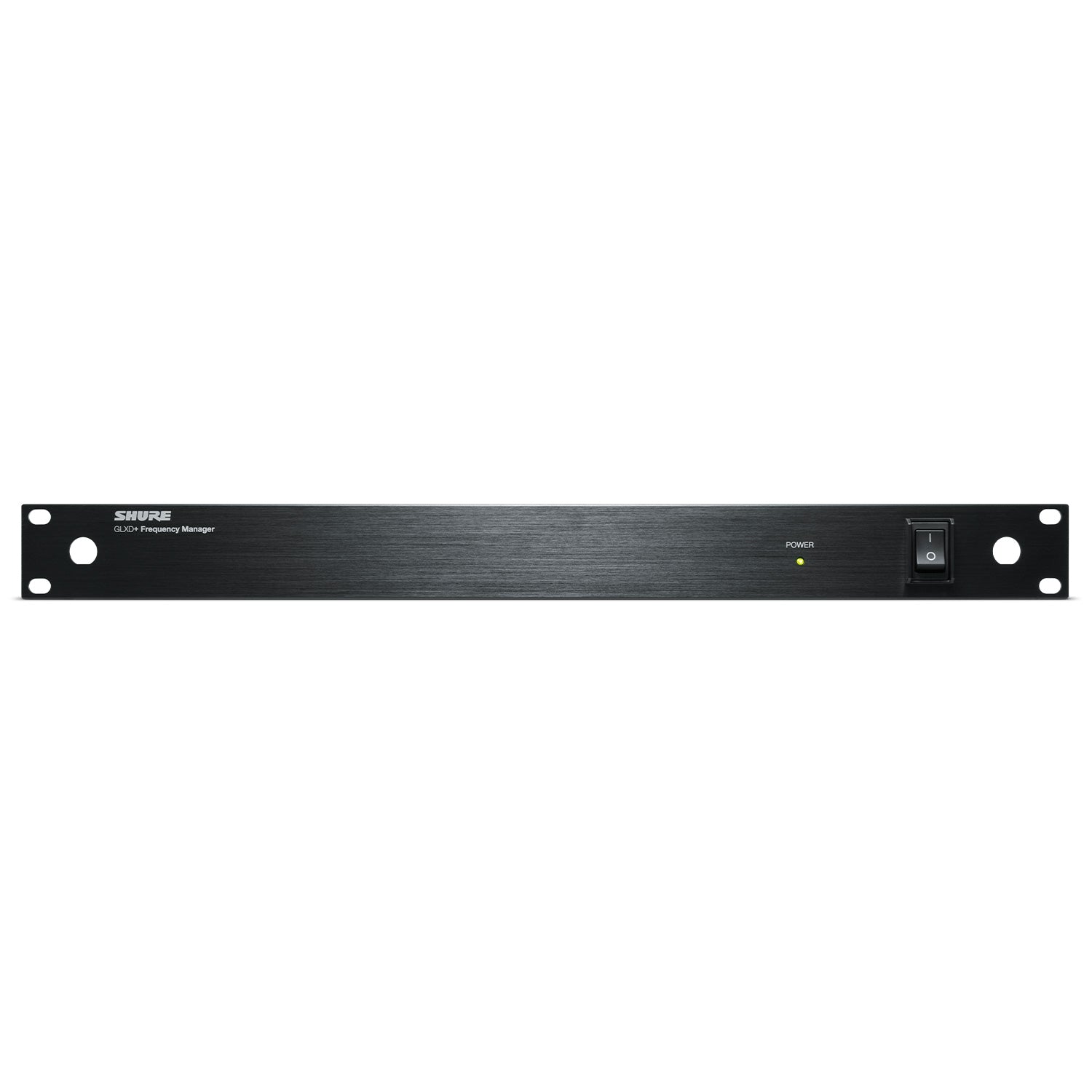

Shure GLXD+FM - Dual Band Frequency Manager
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.
Features:
- Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count

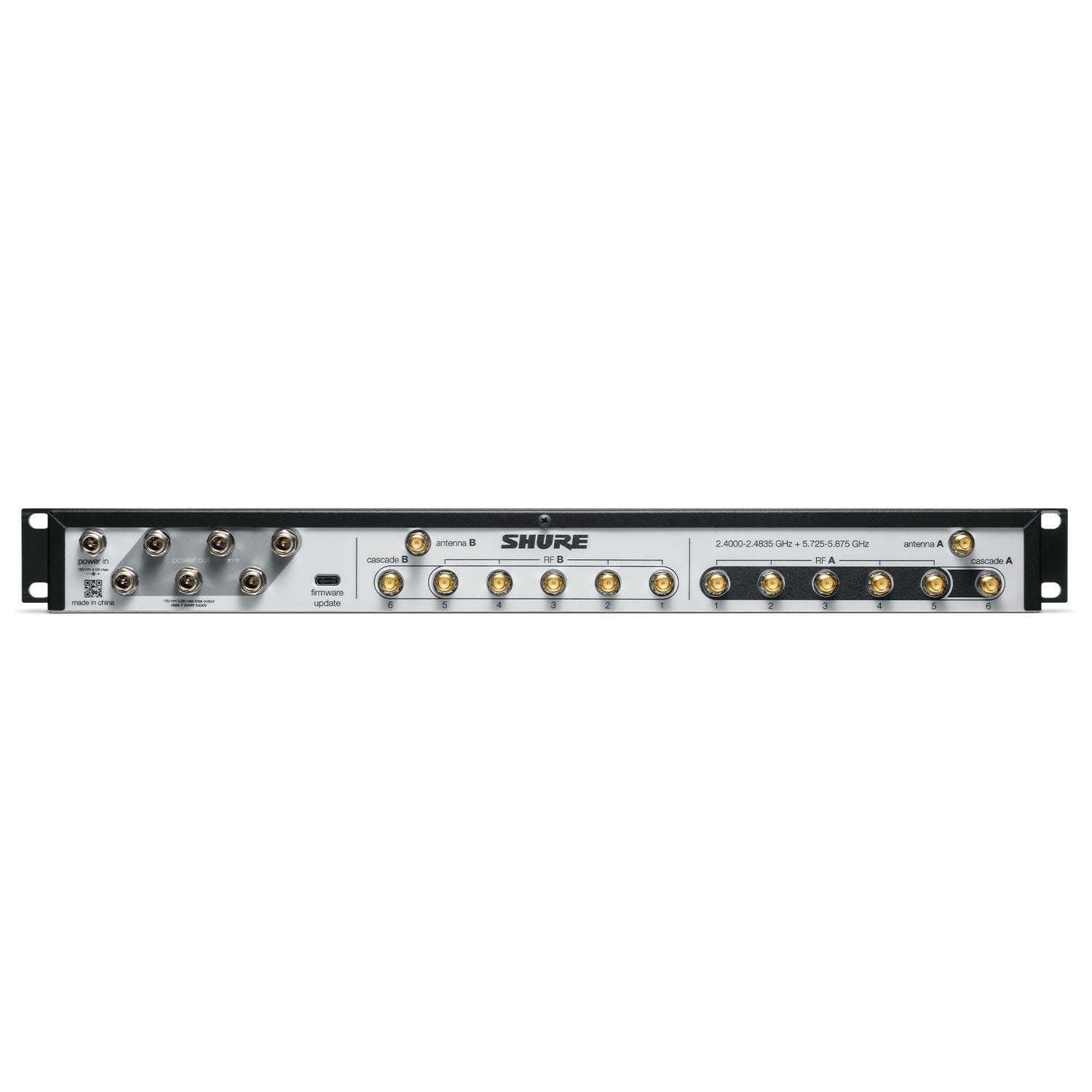

- Link up to 6 individual rack receivers via RF ports for traditional antenna distribution
- Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
- Intelligent frequency management quickly identifies the best frequencies
- Identifies and assigns optimal frequencies to receiver/transmitter pairs
- In case of interference, automatically and seamlessly transitions to backup frequencies
- Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets
- Globally?unlicensed 2.4GHz frequency band and 5.8 GHz frequency band
| Power Requirements | 15 V DC |
| DC Output | 15 V DC (x6) |
| Output Current | Combined total from all DC outputs 3.8 A, maximum |
| Operating Temperature Range | 0¡C (32¡F) to 60¡C (140¡F) |
| RF Frequency Range | 2400 - 2483.5 MHz and 5725 - 5875 MHz |
| Gain | Transmit Mode 2400 - 2483.5 MHz: 0.5 dB maximum; 5725 - 5875 MHz: 1.0 dB maximum Receive Mode 1 dB nominal |
| Maximum Antenna Input Power | -10 dBm |
| Maximum Receiver Port Input Power | 20 dBm (3 cascades) |
| Maximum Total Receiver Port Input Power | 22 dBm (3 cascades) |
| Connector Type | Reverse SMA (RP-SMA) |
| Impedance | 50 ? |
| Dimensions | 19 x 7.47 x 1.73 in. (482.6 x 189.82 x 43.94 mm) |
| Weight | 61 oz (1735 g) |
| Housing | Steel |
The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.
