Shure GLXD1+ - Digital Wireless Dual Band Bodypack Transmitter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

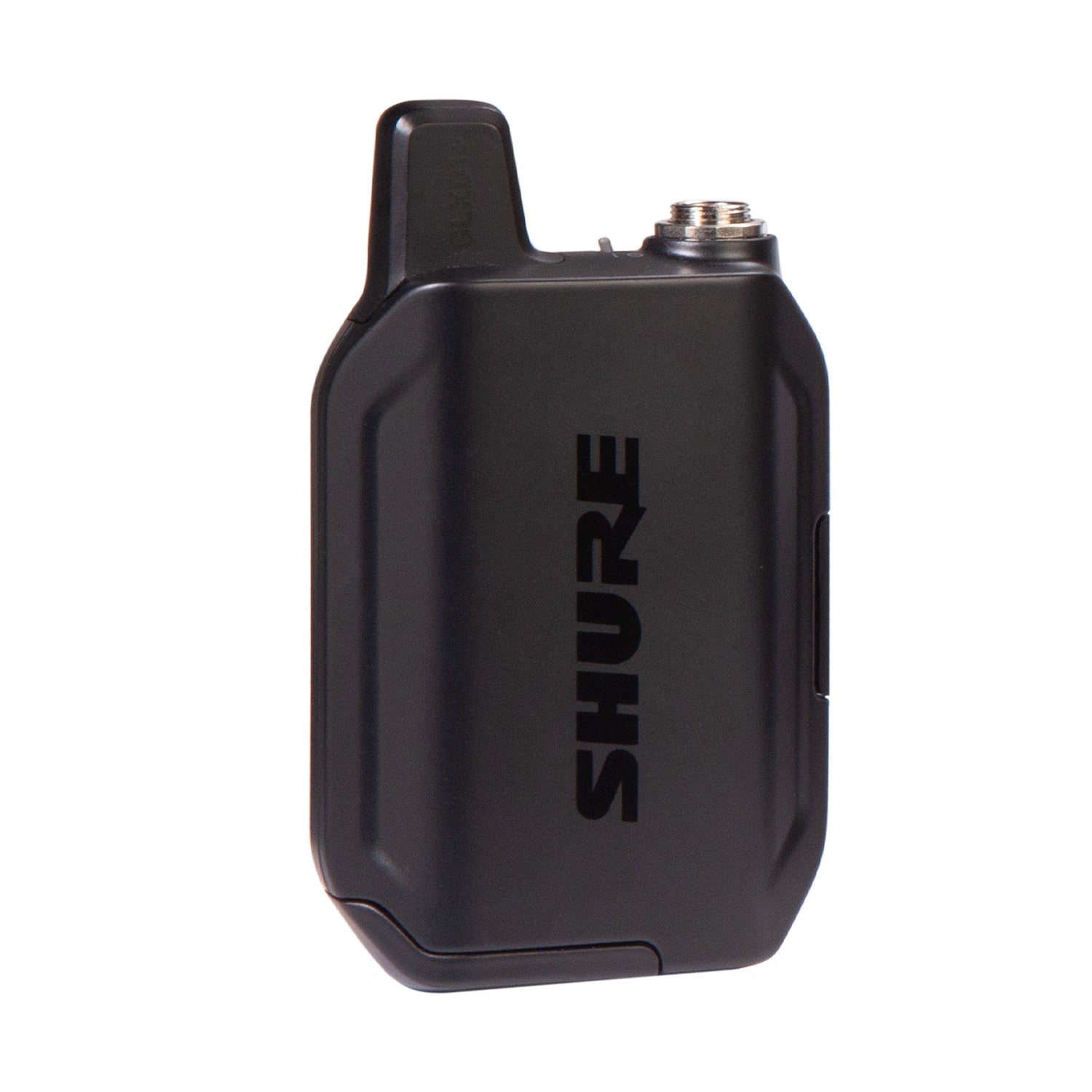

The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.
Includes 1 SB904 Lithium-Ion Rechargeable Battery.
| Power Requirements | Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ |
| Antenna Type | Dual-band Internal Monopole |
| Dimensions | 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D) |
| Weight | 5.4 oz (153.1 g), without battery |
| Housing | Aluminum alloy, ABS plastic |
| Input Impedance | 900 k? |

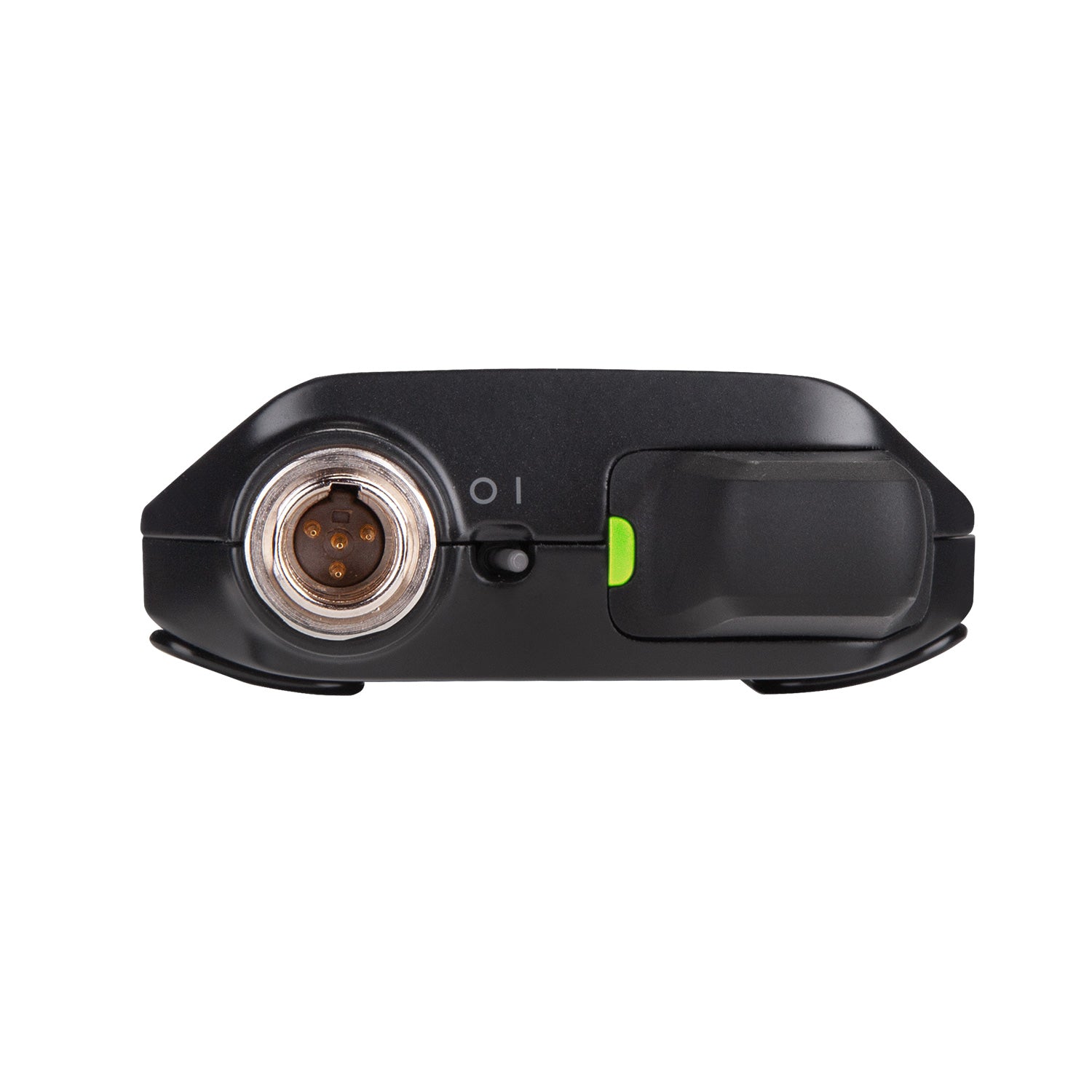

| TX INPUT Connector | 4-pin male mini connector (TA4M) |
| Maximum Input Level | +8.4 dBV (7.5 Vp-p) |
| Configuration | Unbalanced |
| Pin Assignments | 1 Ground (cable shield) 2 + 5 V bias 3 Audio 4 Tied through active load to ground (on instrument adapter cable, pin 4 floats) |
The GLXD1+ Dual Band Bodypack Transmitter has rugged, metal construction with ergonomic design and reversible belt clip to fit comfortably and snugly in various positions. Compatible with instrument cable, and a variety of headset and lavalier microphone options.
Includes 1 SB904 Lithium-Ion Rechargeable Battery.
| Power Requirements | Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ |
| Antenna Type | Dual-band Internal Monopole |
| Dimensions | 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D) |
| Weight | 5.4 oz (153.1 g), without battery |
| Housing | Aluminum alloy, ABS plastic |
| Input Impedance | 900 k? |
| TX INPUT Connector | 4-pin male mini connector (TA4M) |
| Maximum Input Level | +8.4 dBV (7.5 Vp-p) |
| Configuration | Unbalanced |
| Pin Assignments | 1 Ground (cable shield) 2 + 5 V bias 3 Audio 4 Tied through active load to ground (on instrument adapter cable, pin 4 floats) |
