Description

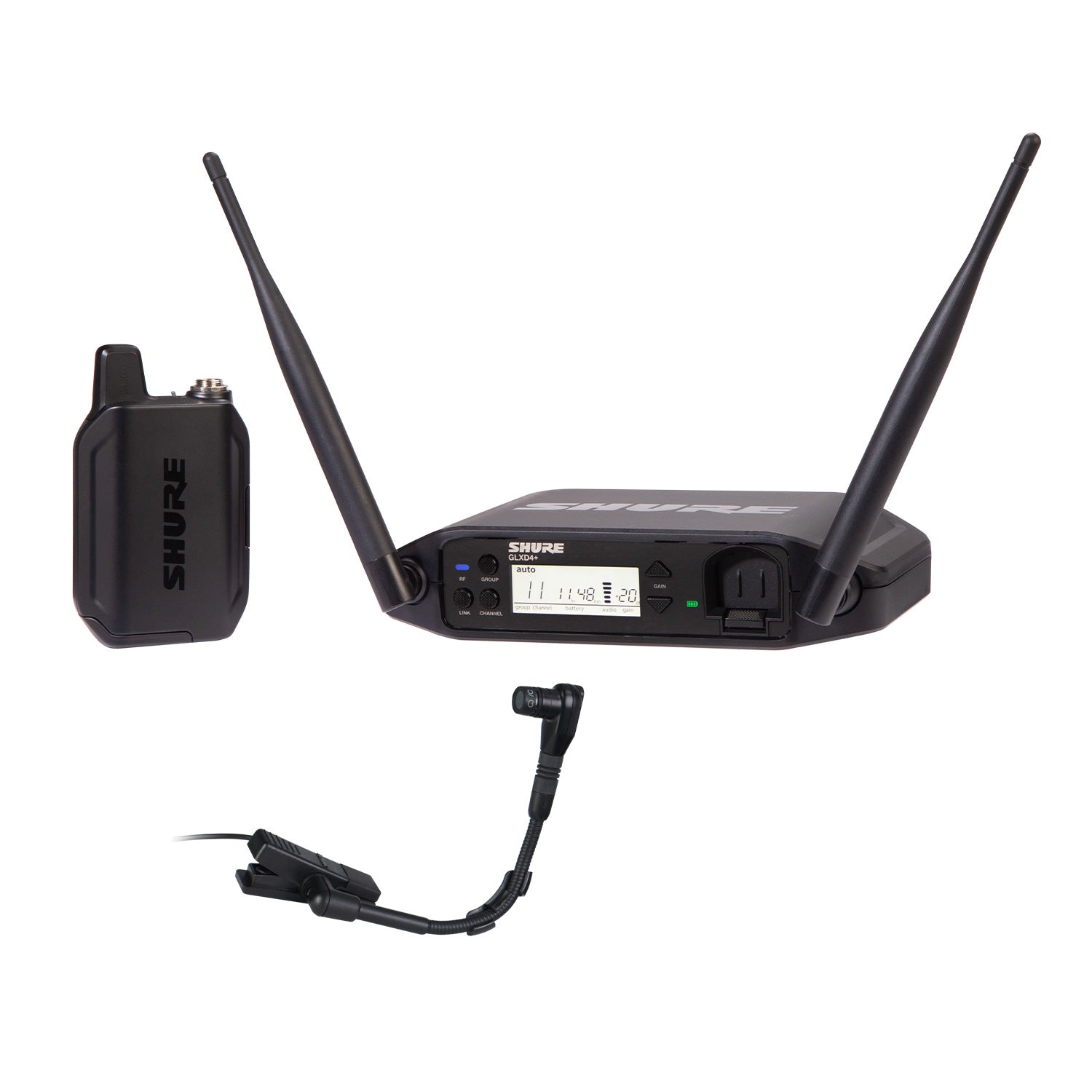

The new GLX-D+ Dual Band Wireless Presenter System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technol... Read MoreRetail Price: $824.00 Our Price: $659.00
Free Shipping (Continental US)
Suggested Accessories
Description
The new GLX-D+ Dual Band Wireless Presenter System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
Features:
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.
Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.
More +
Product Specs

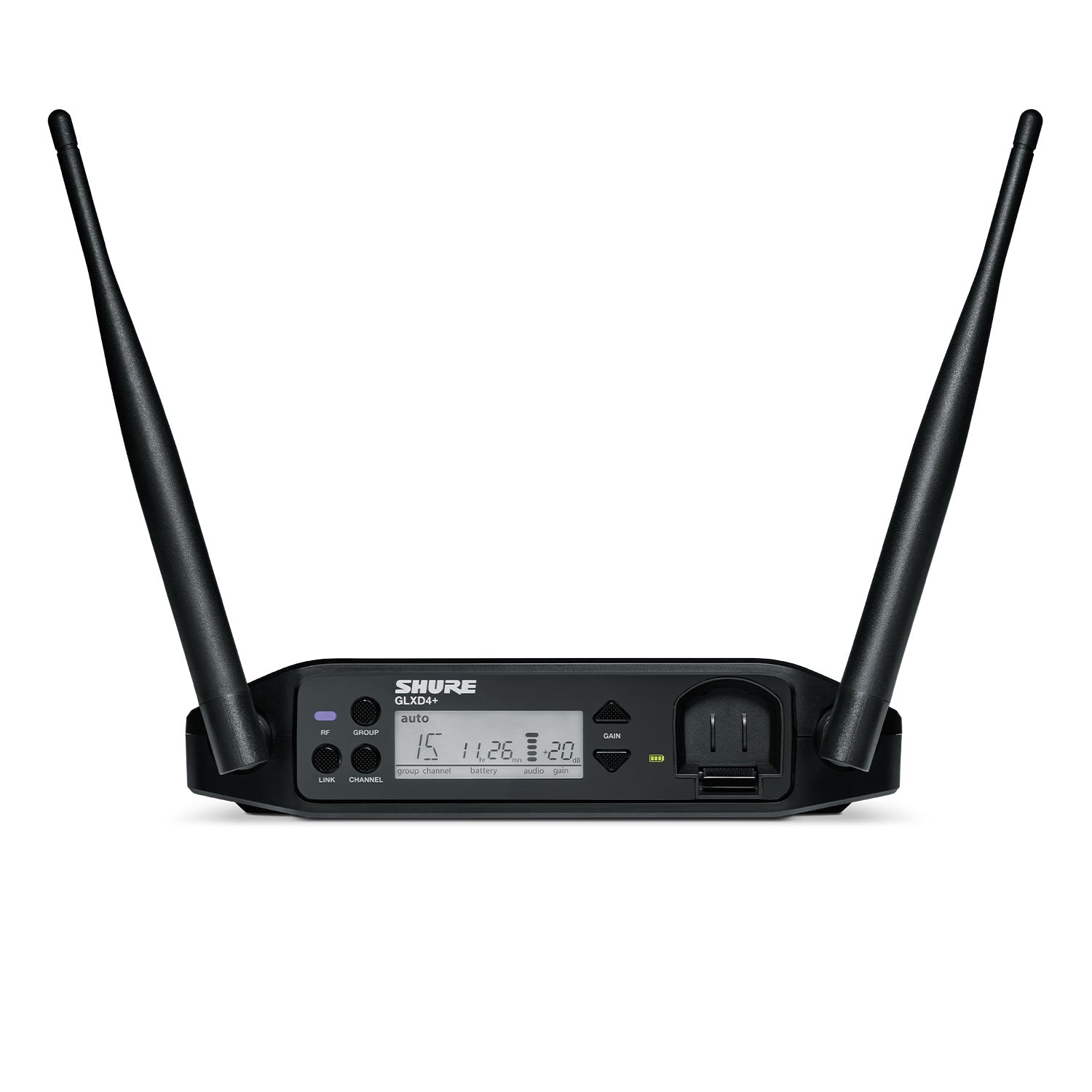

GLXD4+ Receiver | |
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Ambient Temperature Range | Charging: 0°C (32°F) to 40°C (104°F) Operating: 0°C (32°F) to 45°C (113°F) |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of lowimpedance output) and the tip of the high impedance 1/4-inch output. |
Audio Frequency Response | 20 Hz – 20 kHz |
Dynamic Range | 122 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.2%, typical |
Battery Life | Up to 11.5 hours |
Channel Count | Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal |
Power Requirements | 14.5 V – 17 V, 600 mA (efficiency level VI power supply) |
Antenna Type | Dual-band ½ Wave Sleeve Dipole, non-removable |
Dimensions | Antenna folded 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm) Antenna opened 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm) |
Weight | 10.9 oz (310 g) |
Housing | PC/ABS |
Spurious Rejection | over 35 dB, typical |
Gain Adjustment Range | -20 to 40 dB, 1 dB increments |
Phantom Power Protection | Yes |
AUDIO OUTPUT | |
Configuration | XLR Output Impedance balanced 6.35 mm (1/4") output Impedance balanced |
Impedance | XLR Output 100 ? 6.35 mm (1/4") output 100 ? (50 ?, Unbalanced) |
Maximum Audio Output Level | XLR connector +1 dBV 6.35 mm (1/4") connector +8.5 dBV |
Pin Assignments | XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |

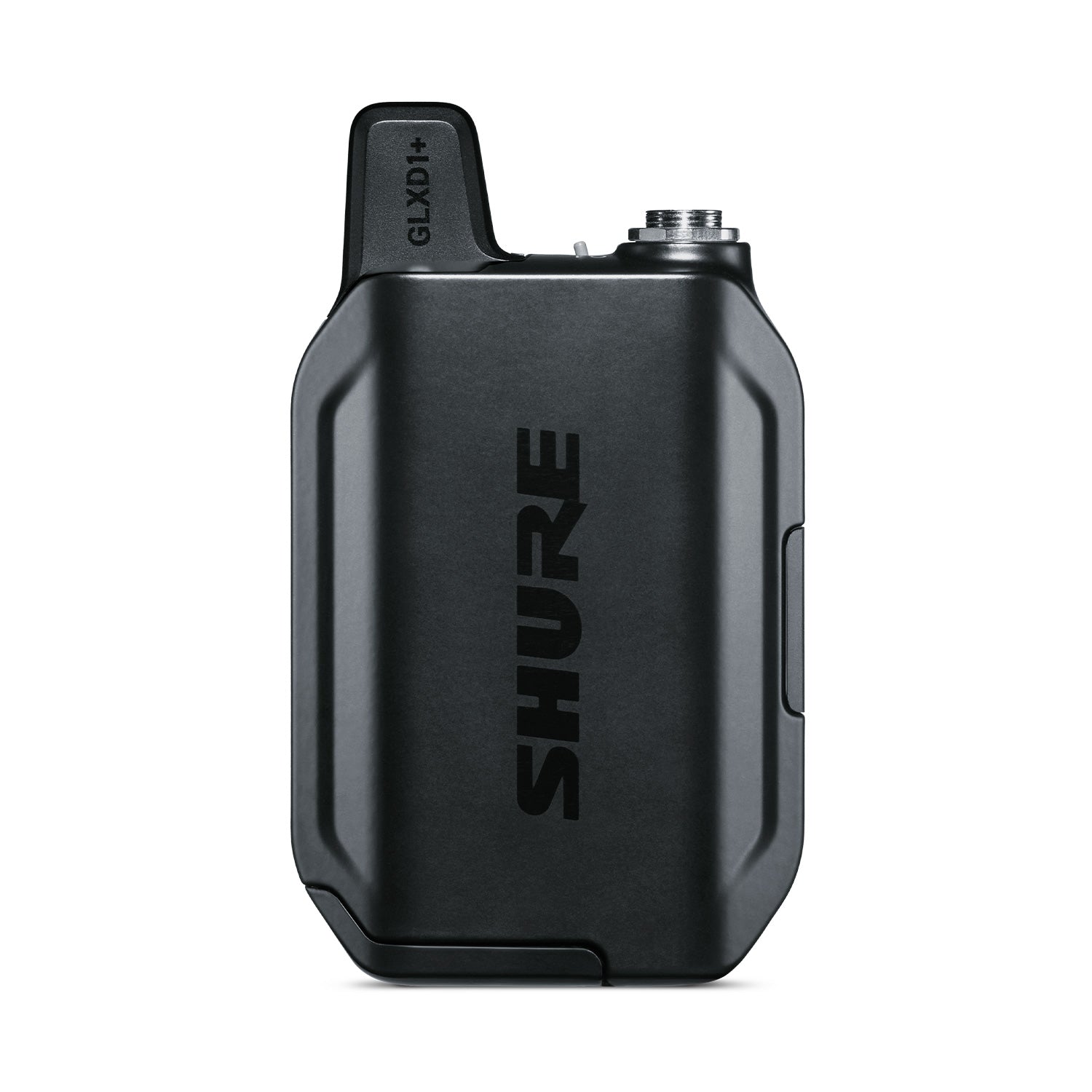

GLXD1+ Bodypack Transmitter | |
Power Requirements | Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ |
Antenna Type | Dual-band Internal Monopole |
Dimensions | 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D) |
Weight | 5.4 oz (153.1 g), without battery |
Housing | Aluminum alloy, ABS plastic |
Input Impedance | 900 k? |
TX INPUT Connector | 4-pin male mini connector (TA4M) |
Maximum Input Level | +8.4 dBV (7.5 Vp-p) |
Configuration | Unbalanced |
Pin Assignments | 1 Ground (cable shield) 2 + 5 V bias 3 Audio 4 Tied through active load to ground (on instrument adapter cable, pin 4 floats) |
