DALE SKU # SHUR-GLXD14PLUSSM35Z3

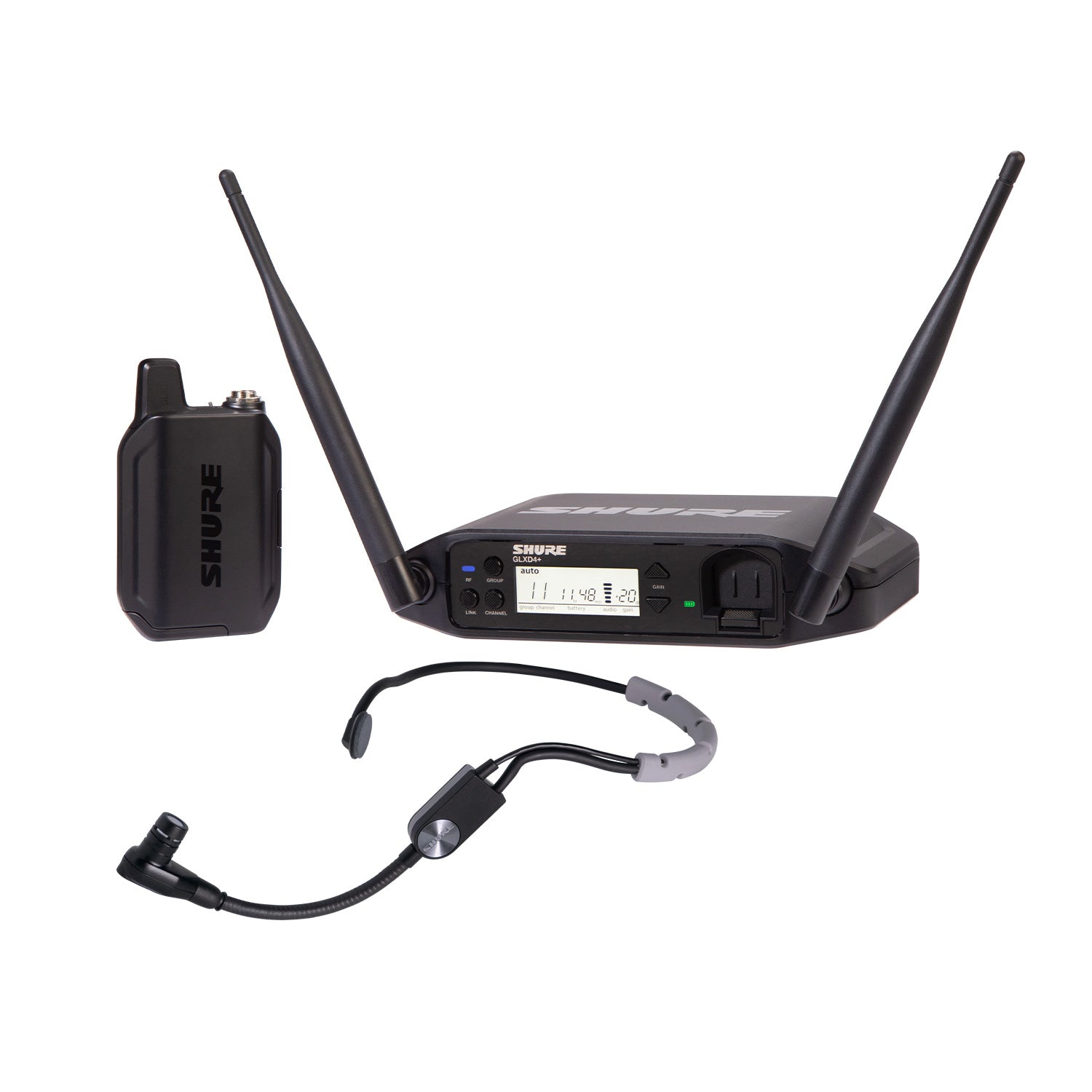

Shure GLXD14+/SM35 - Digital Wireless Headset System with SM35 Headset

Sale price$719.00 Regular price$899.00
Save $180.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The new GLX-D+ Dual Band Wireless Headset System features the durable SM35 Headset Microphone for high-quality headworn vocal performance applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

    Features:

    • Exceptional, Digital Wireless Audio: Always come through clear and captivate the audience with superior, transparent audio. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack-mount, tabletop and guitar pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58®.
    • New Dual Band Wireless Technology provides reliable and consistent signal by automatically scanning both 2.4 and 5.8GHz bands and selecting the cleanest channel. More than double the bandwidth ensures that dropouts won't stop the show.
    • Easy, Worry-free Setup and Management: Transmitters and receivers pair up automatically making setup as simple as possible - plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears. Go wireless without complication.
    • Smart Rechargeability: End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 battery can be charged directly on the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minutes charge.
    • Rock-Solid RF Performance for Multiple System Installations: GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available Frequency Manager (GLXD+FM) required.
    • License-Free Frequency Range allows you to travel without worrying about licenses, frequency coordination and other technical hurdles.


    GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

    Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

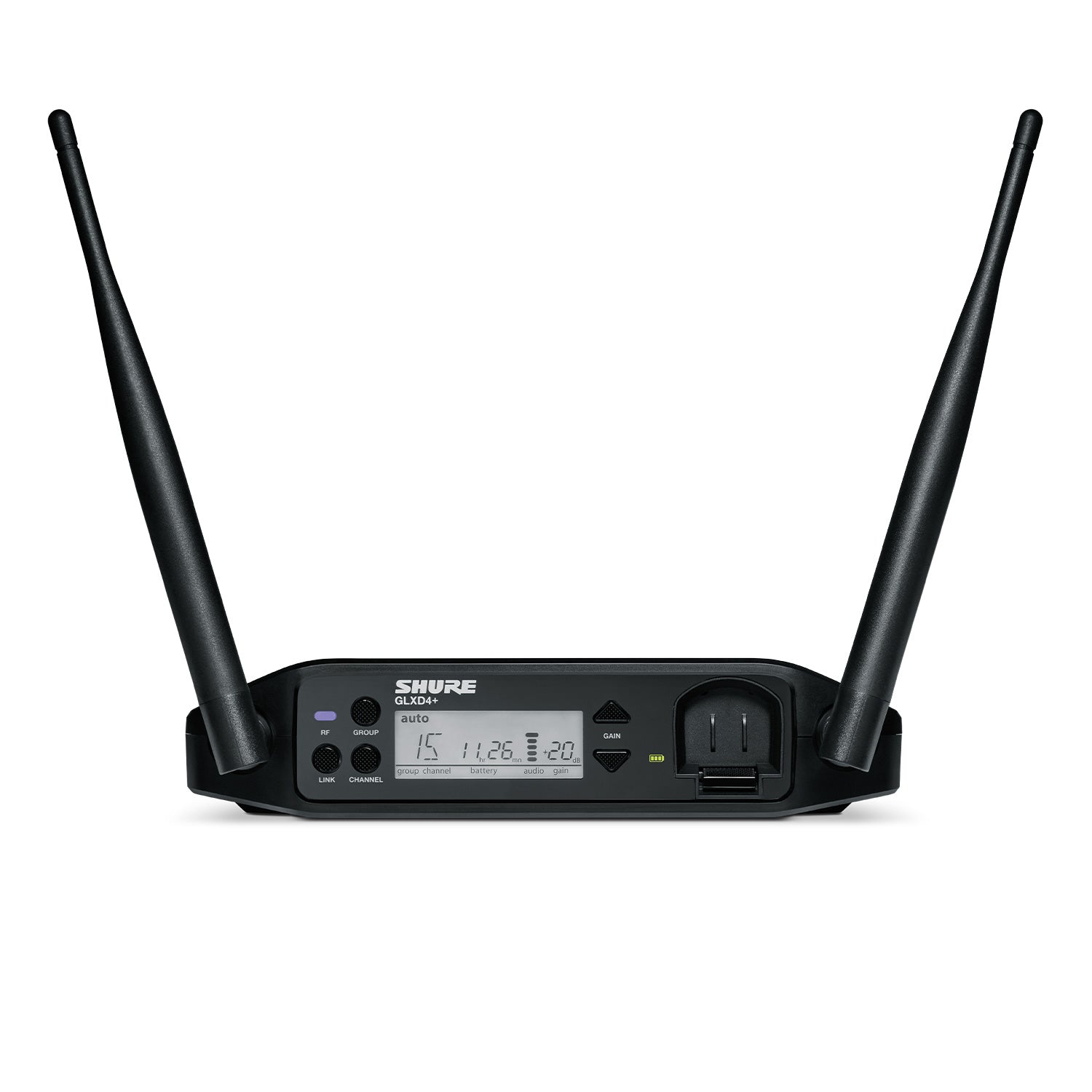

    GLXD4+ Receiver
    Tuning Bandwidth 2400 - 2483.5 MHz and 5725 - 5850 MHz
    Transmit Mode Shure proprietary digital
    RF Output Power 10 mW E.I.R.P. maximum
    Ambient Temperature Range Charging: 0¡C (32¡F) to 40¡C (104¡F)
    Operating: 0¡C (32¡F) to 45¡C (113¡F)
    Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low_impedance output) and the tip of the high impedance 1/4-inch output.
    Audio Frequency Response 20 Hz Ð 20 kHz
    Dynamic Range 122 dB, A-weighted
    RF Sensitivity -88 dBm, typical
    Total Harmonic Distortion 0.2%, typical
    Battery Life Up to 11.5 hours
    Channel Count Up to 4 typical, 8 optimal
    2.4 GHz only: Up to 4 typical, 5 optimal
    Power Requirements 14.5 V Ð 17 V, 600 mA (efficiency level VI power supply)
    Antenna Type Dual-band _ Wave Sleeve Dipole, non-removable
    Dimensions Antenna folded 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
    Antenna opened 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
    Weight 10.9 oz (310 g)
    Housing PC/ABS
    Spurious Rejection over 35 dB, typical
    Gain Adjustment Range -20 to 40 dB, 1 dB increments
    Phantom Power Protection Yes

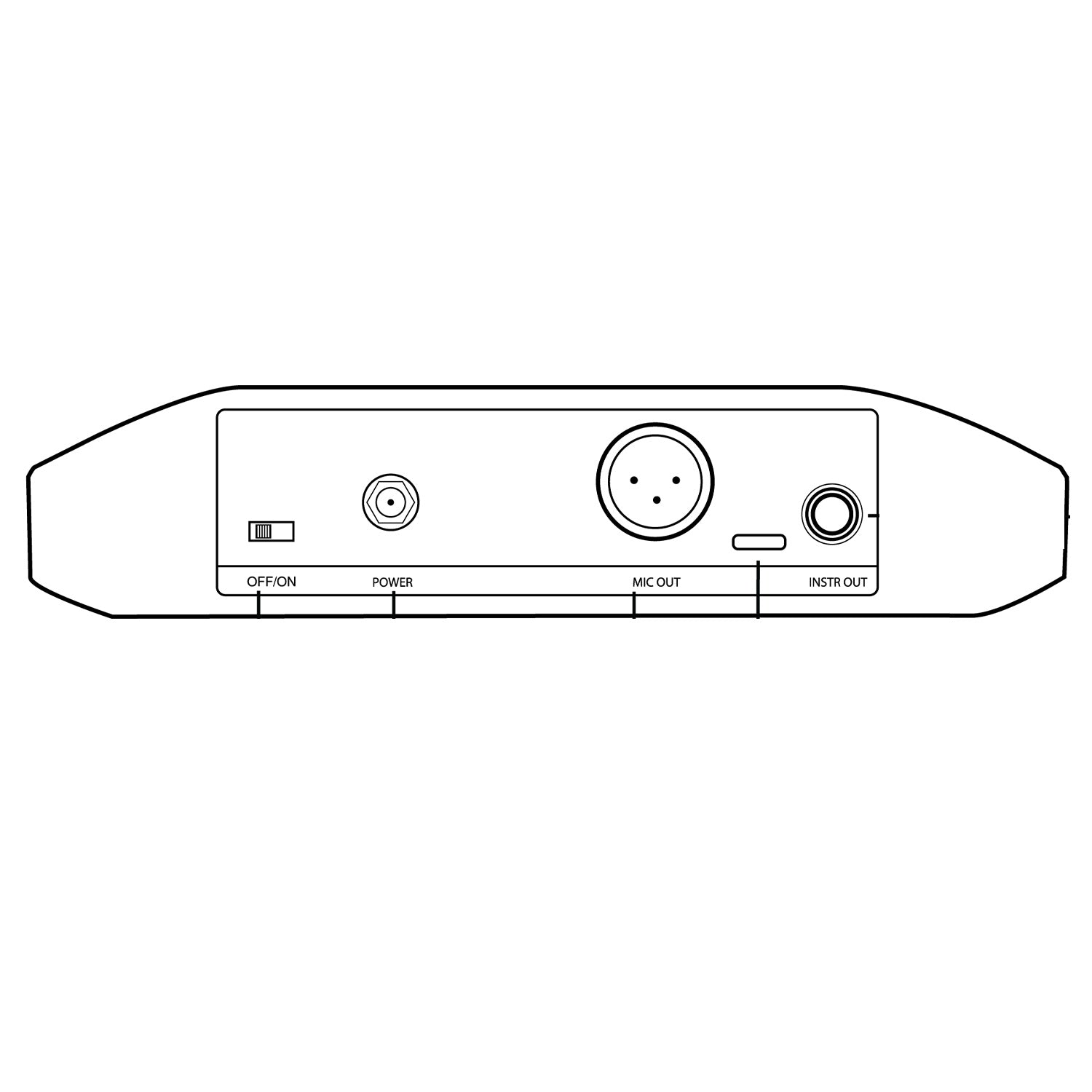

    AUDIO OUTPUT
    Configuration XLR Output Impedance balanced
    6.35 mm (1/4") output Impedance balanced
    Impedance XLR Output 100 ?
    6.35 mm (1/4") output 100 ? (50 ?, Unbalanced)
    Maximum Audio Output Level XLR connector +1 dBV
    6.35 mm (1/4") connector +8.5 dBV
    Pin Assignments XLR Output 1=ground, 2=hot, 3=cold
    6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
    RECEIVER ANTENNA INPUT
    Impedance 50 ?
    Maximum Input Level -20 dBm
    GLXD1+ Bodypack Transmitter
    Power Requirements Shure Rechargeable Li-Ion Battery SB904
    USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ
    Antenna Type Dual-band Internal Monopole
    Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
    Weight 5.4 oz (153.1 g), without battery
    Housing Aluminum alloy, ABS plastic
    Input Impedance 900 k?
    TX INPUT Connector 4-pin male mini connector (TA4M)
    Maximum Input Level +8.4 dBV (7.5 Vp-p)
    Configuration Unbalanced
    Pin Assignments 1 Ground (cable shield)
    2 + 5 V bias
    3 Audio
    4 Tied through active load to ground (on instrument adapter cable, pin 4 floats)

    The new GLX-D+ Dual Band Wireless Headset System features the durable SM35 Headset Microphone for high-quality headworn vocal performance applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

    Features:

    • Exceptional, Digital Wireless Audio: Always come through clear and captivate the audience with superior, transparent audio. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack-mount, tabletop and guitar pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58®.
    • New Dual Band Wireless Technology provides reliable and consistent signal by automatically scanning both 2.4 and 5.8GHz bands and selecting the cleanest channel. More than double the bandwidth ensures that dropouts won't stop the show.
    • Easy, Worry-free Setup and Management: Transmitters and receivers pair up automatically making setup as simple as possible - plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears. Go wireless without complication.
    • Smart Rechargeability: End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 battery can be charged directly on the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minutes charge.
    • Rock-Solid RF Performance for Multiple System Installations: GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available Frequency Manager (GLXD+FM) required.
    • License-Free Frequency Range allows you to travel without worrying about licenses, frequency coordination and other technical hurdles.


    GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

    Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

    GLXD4+ Receiver
    Tuning Bandwidth 2400 - 2483.5 MHz and 5725 - 5850 MHz
    Transmit Mode Shure proprietary digital
    RF Output Power 10 mW E.I.R.P. maximum
    Ambient Temperature Range Charging: 0¡C (32¡F) to 40¡C (104¡F)
    Operating: 0¡C (32¡F) to 45¡C (113¡F)
    Polarity Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low_impedance output) and the tip of the high impedance 1/4-inch output.
    Audio Frequency Response 20 Hz Ð 20 kHz
    Dynamic Range 122 dB, A-weighted
    RF Sensitivity -88 dBm, typical
    Total Harmonic Distortion 0.2%, typical
    Battery Life Up to 11.5 hours
    Channel Count Up to 4 typical, 8 optimal
    2.4 GHz only: Up to 4 typical, 5 optimal
    Power Requirements 14.5 V Ð 17 V, 600 mA (efficiency level VI power supply)
    Antenna Type Dual-band _ Wave Sleeve Dipole, non-removable
    Dimensions Antenna folded 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
    Antenna opened 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
    Weight 10.9 oz (310 g)
    Housing PC/ABS
    Spurious Rejection over 35 dB, typical
    Gain Adjustment Range -20 to 40 dB, 1 dB increments
    Phantom Power Protection Yes
    AUDIO OUTPUT
    Configuration XLR Output Impedance balanced
    6.35 mm (1/4") output Impedance balanced
    Impedance XLR Output 100 ?
    6.35 mm (1/4") output 100 ? (50 ?, Unbalanced)
    Maximum Audio Output Level XLR connector +1 dBV
    6.35 mm (1/4") connector +8.5 dBV
    Pin Assignments XLR Output 1=ground, 2=hot, 3=cold
    6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground
    RECEIVER ANTENNA INPUT
    Impedance 50 ?
    Maximum Input Level -20 dBm
    GLXD1+ Bodypack Transmitter
    Power Requirements Shure Rechargeable Li-Ion Battery SB904
    USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ
    Antenna Type Dual-band Internal Monopole
    Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
    Weight 5.4 oz (153.1 g), without battery
    Housing Aluminum alloy, ABS plastic
    Input Impedance 900 k?
    TX INPUT Connector 4-pin male mini connector (TA4M)
    Maximum Input Level +8.4 dBV (7.5 Vp-p)
    Configuration Unbalanced
    Pin Assignments 1 Ground (cable shield)
    2 + 5 V bias
    3 Audio
    4 Tied through active load to ground (on instrument adapter cable, pin 4 floats)
