Description
Featuring the industry standard BETA®87A vocal microphone, the new half-rack GLXD24+/B87A Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performan... Read MoreRetail Price: $986.00 Our Price: $789.00
Free Shipping (Continental US)
Suggested Accessories
Description
Featuring the industry standard BETA®87A vocal microphone, the new half-rack GLXD24+/B87A Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
Features:
GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.
Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.
More +
Product Specs

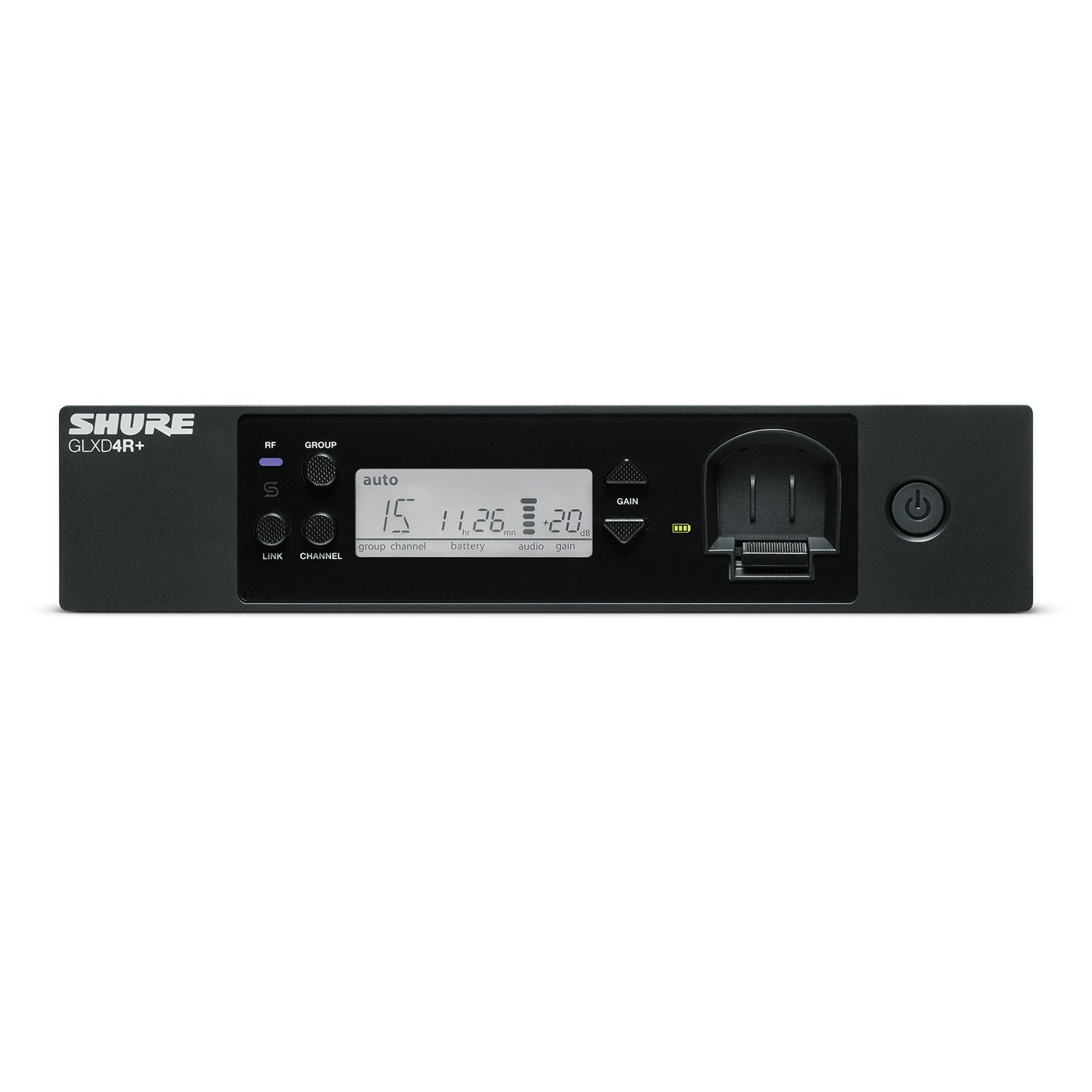

GLX4DR+ Receiver | |
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Ambient Temperature Range | Charging: 0°C (32°F) to 40°C (104°F) Operating: 0°C (32°F) to 45°C (113°F) |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of lowimpedance output) and the tip of the high impedance 1/4-inch output. |
Audio Frequency Response | 20 Hz – 20 kHz |
Dynamic Range | 120 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.07%, typical |
Battery Life | Up to 11.5 hours |
Channel Count | Without Frequency Manager Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal With Frequency Manager Up to 11 typical, 16 optimal 2.4 GHz only: Up to 9 typical, 11 optimal |
GLXD4R+ Power Requirements | 14.5 V – 17 V, 600 mA (efficiency level VI power supply) |
Antenna Type | Dual-band ½ Wave Sleeve Dipole |
Dimensions | 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna |
Weight | 30.5 oz (866 g) |
Housing | Steel |
Spurious Rejection | Over 35 dB, typical |
Gain Adjustment Range | -18 to 42 dB, 1 dB increments |
Phantom Power Protection | Yes |
AUDIO OUTPUT | |

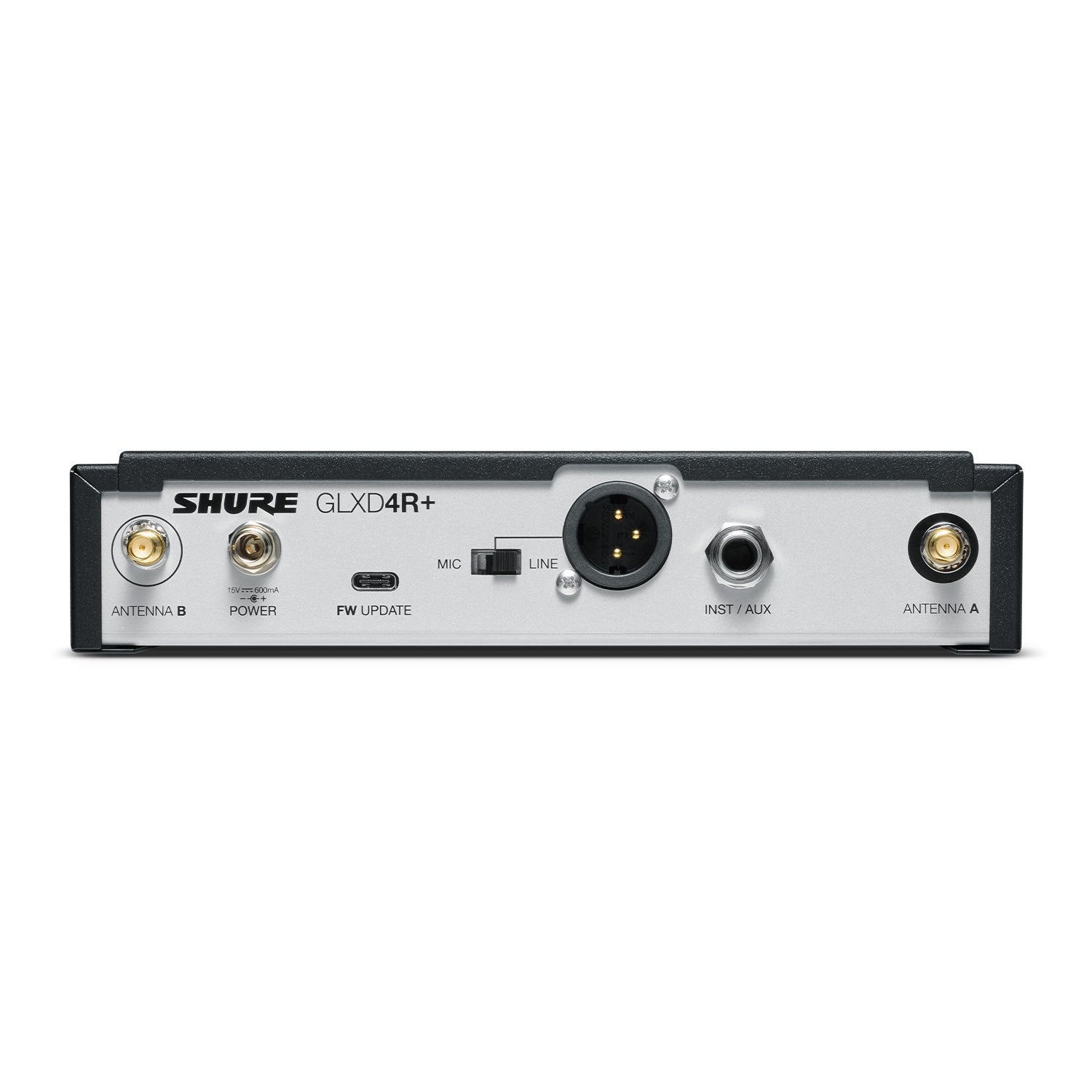

Configuration | XLR Output Balanced 6.35 mm (1/4") output Impedance balanced |
Impedance | XLR Output 100 ? 6.35 mm (1/4") output 100 ? (50 ?, Unbalanced) |
Full Scale Output | 6.35 mm (1/4") +12 dBV XLR LINE setting = +18 dBV, MIC setting = -12 dBV |
Mic/Line Switch | 30 dB pad |
Pin Assignments | XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |
GLX2D+ Handheld Transmitter | |
Power Requirements | Shure Rechargeable Li-Ion Battery SB904 USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ |
Dimensions | 9.69 in. (246 mm) |
Weight | SM58 9.7 oz (275 g), without battery BETA 58 7.9 oz (225 g), without battery BETA 87A 9.3 oz (265 g), without battery |
Housing | Aluminum alloy, ABS plastic |
Maximum Input Level | SM58 146 dB SPL BETA 58 147 dB SPL BETA 87A 147 dB SPL |
