Description

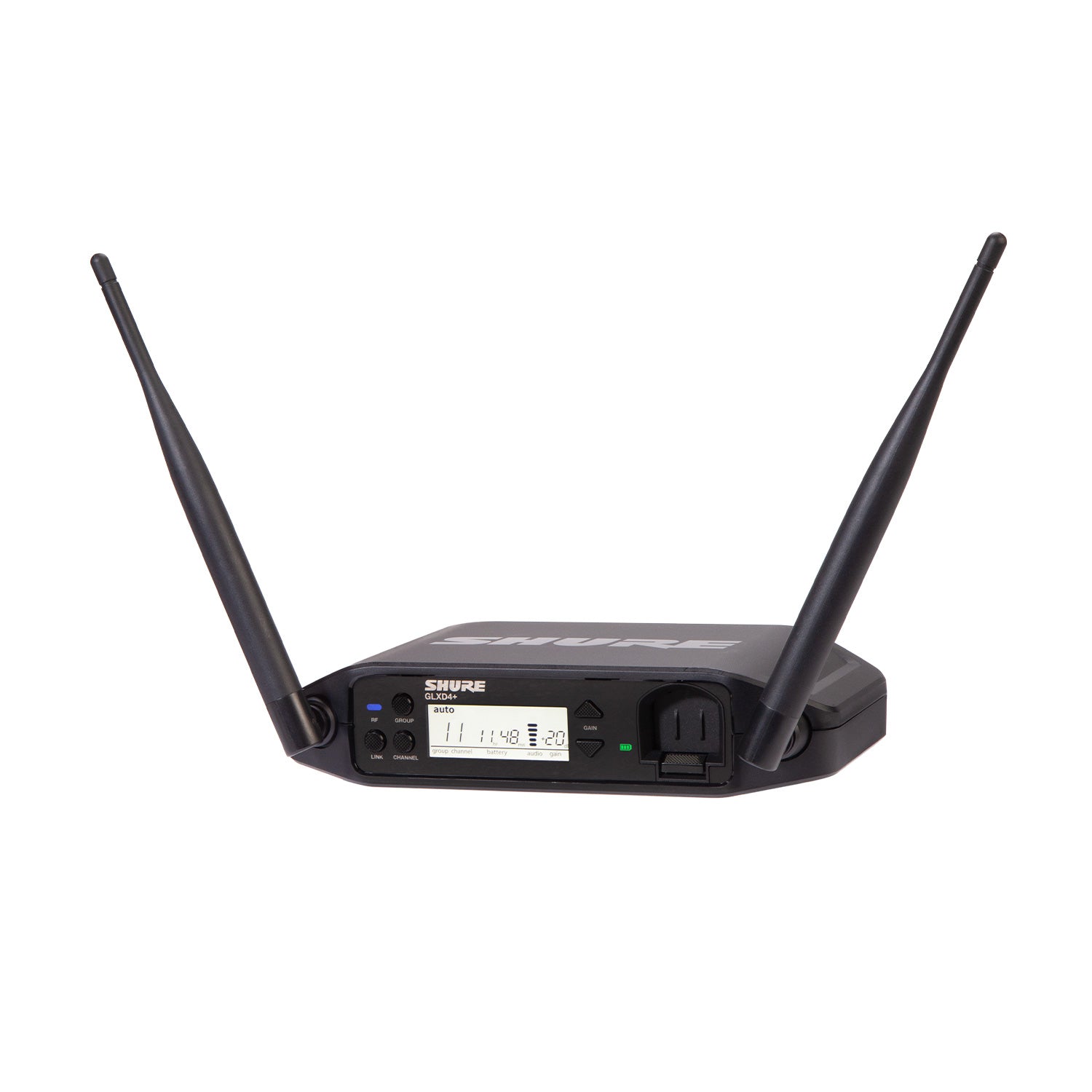

The new GLXD4+ Dual Band Tabletop Receiver delivers exceptional digital audio clarity. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Go wireless without complication.
In The Box:
- 1 PS43 Power Supply
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Ambient Temperature Range | Charging: 0¡C (32¡F) to 40¡C (104¡F) Operating: 0¡C (32¡F) to 45¡C (113¡F) |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low_impedance output) and the tip of the high impedance 1/4-inch output. |
Audio Frequency Response | 20 Hz Ð 20 kHz |
Dynamic Range | 122 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.2%, typical |
Battery Life | Up to 11.5 hours |
Channel Count | Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal |
Power Requirements | 14.5 V Ð 17 V, 600 mA (efficiency level VI power supply) |
Antenna Type | Dual-band _ Wave Sleeve Dipole, non-removable |
Dimensions | Antenna folded 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm) Antenna opened 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm) |
Weight | 10.9 oz (310 g) |
Housing | PC/ABS |
Spurious Rejection | over 35 dB, typical |
Gain Adjustment Range | -20 to 40 dB, 1 dB increments |
Phantom Power Protection | Yes |

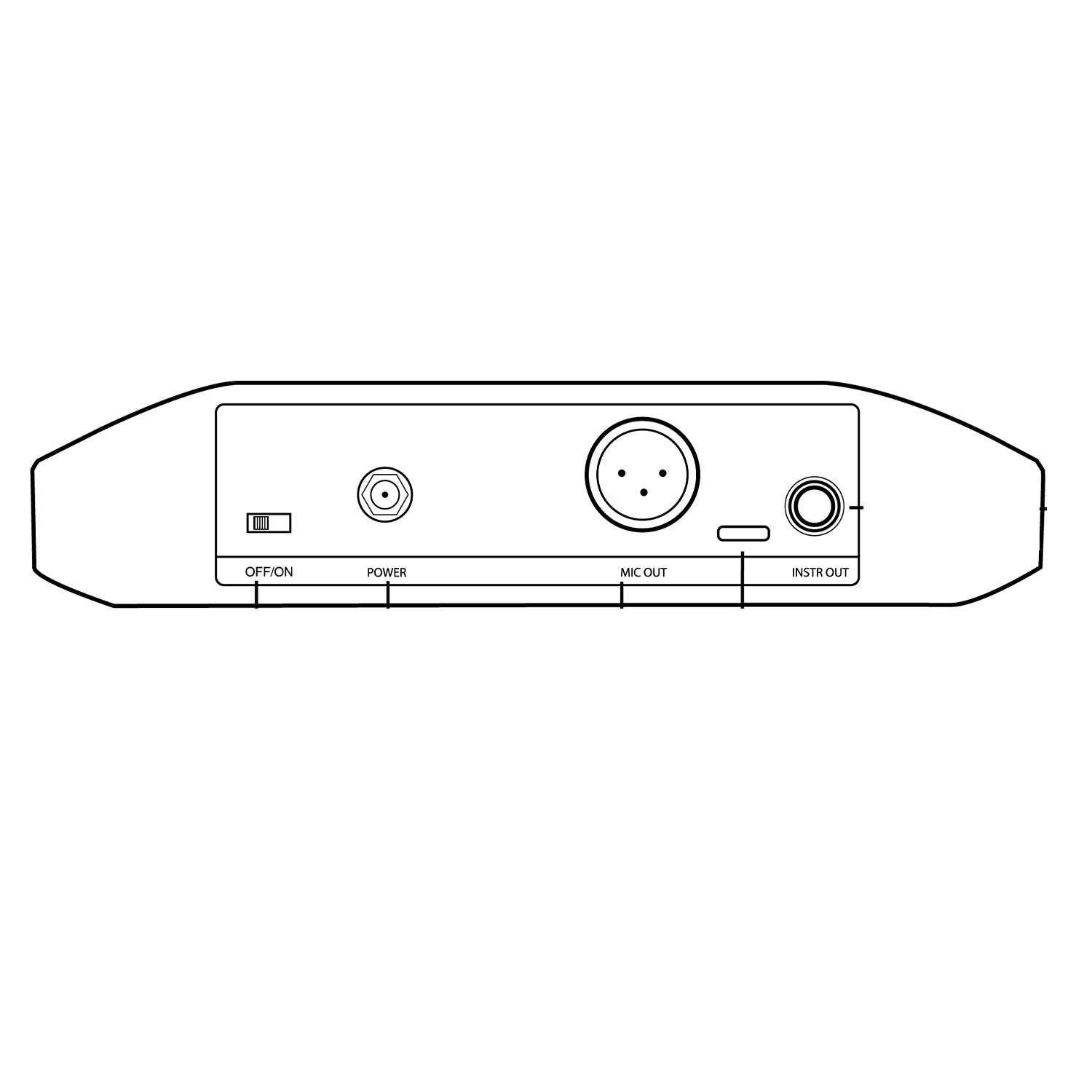

AUDIO OUTPUT | |
Configuration | XLR Output Impedance balanced 6.35 mm (1/4") output Impedance balanced |
Impedance | XLR Output 100 ? 6.35 mm (1/4") output 100 ? (50 ?, Unbalanced) |
Maximum Audio Output Level | XLR connector +1 dBV 6.35 mm (1/4") connector +8.5 dBV |
Pin Assignments | XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |
