Description

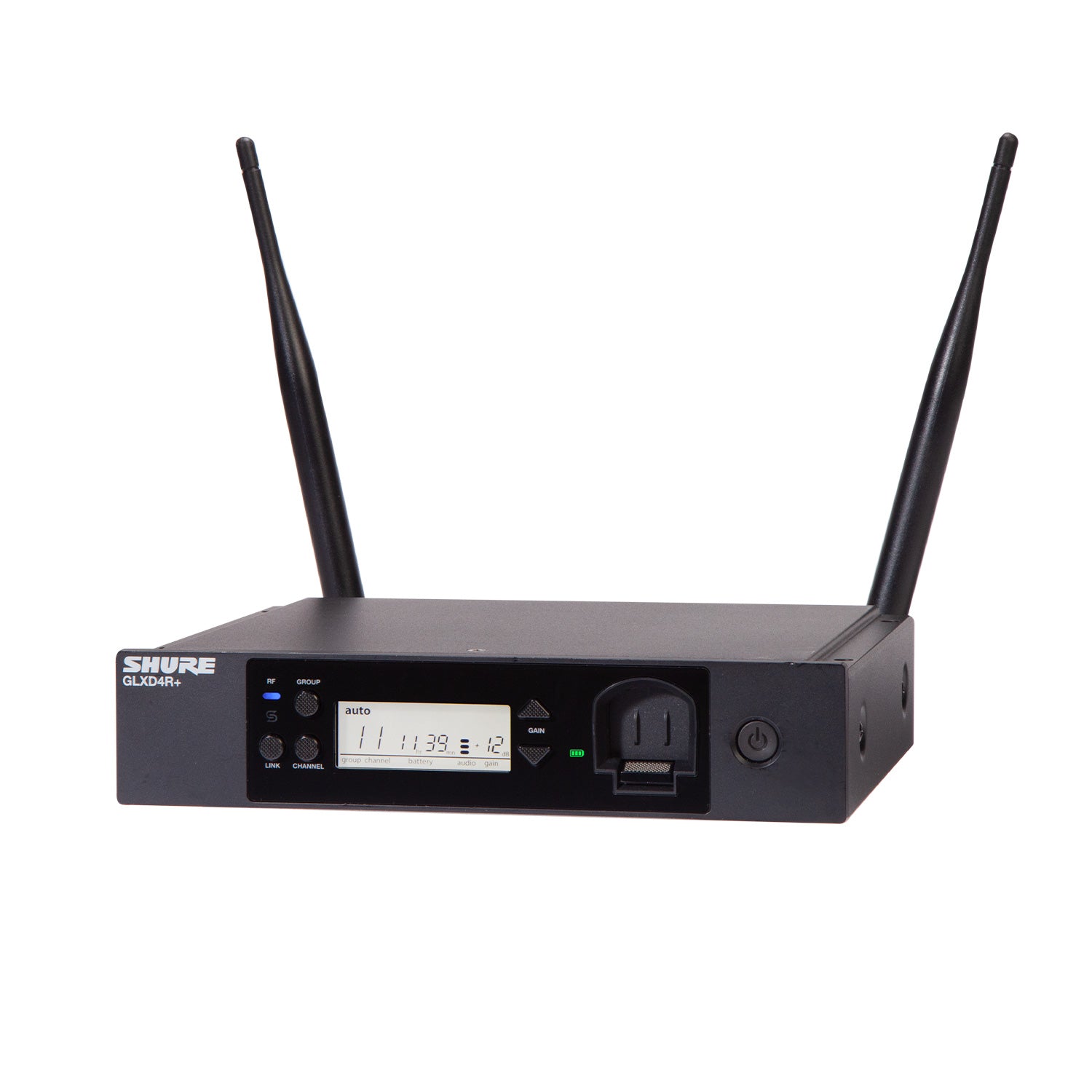

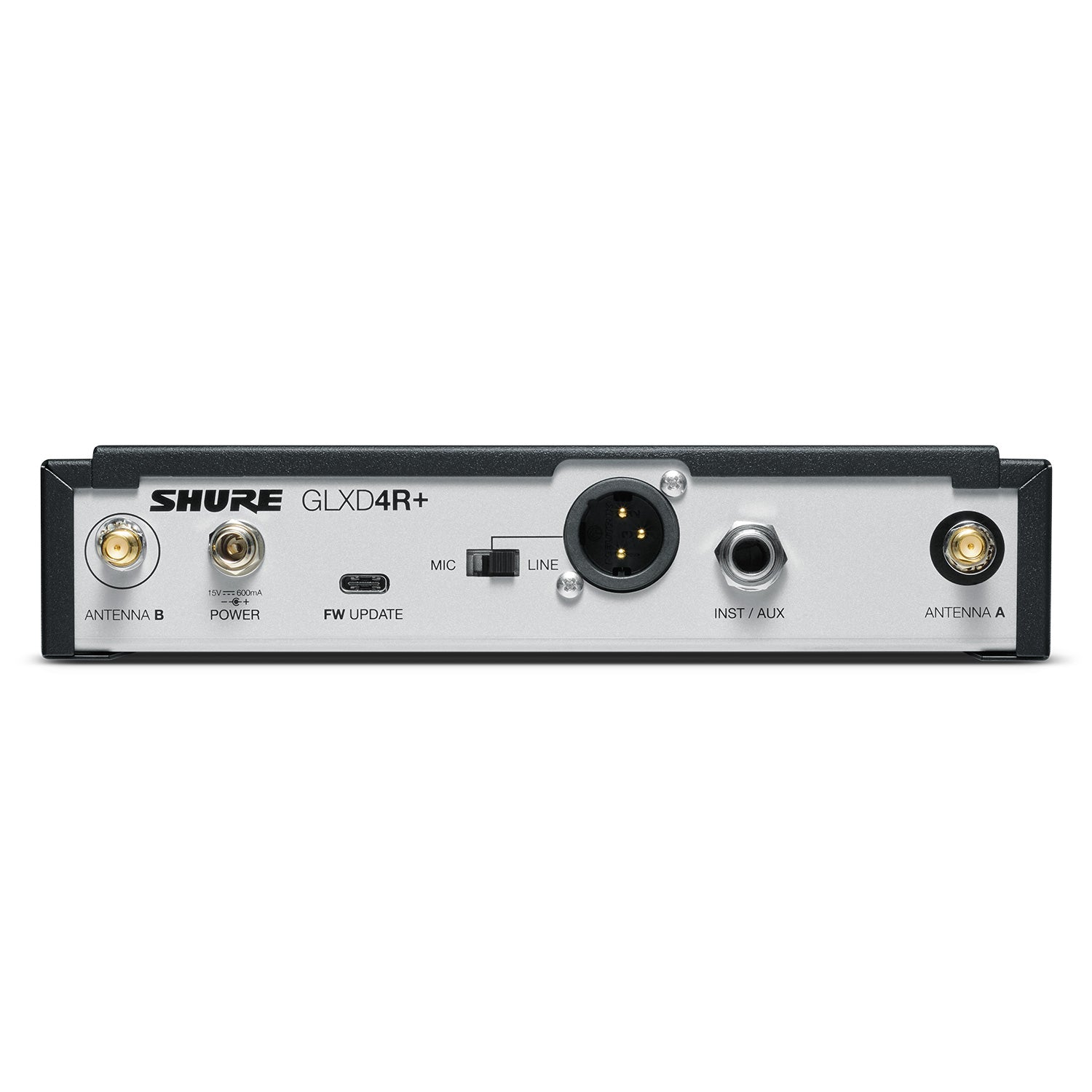

The new GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance for up to 16 simultaneous channels. Go wireless without complication.
In The Box:
- 1 PS43 Power Supply
- 1 Rack-mount Hardware Kit
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Ambient Temperature Range | Charging: 0¡C (32¡F) to 40¡C (104¡F) Operating: 0¡C (32¡F) to 45¡C (113¡F) |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low_impedance output) and the tip of the high impedance 1/4-inch output. |
Audio Frequency Response | 20 Hz Ð 20 kHz |
Dynamic Range | 120 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.07%, typical |
Battery Life | Up to 11.5 hours |
Channel Count | Without Frequency Manager Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal With Frequency Manager Up to 11 typical, 16 optimal 2.4 GHz only: Up to 9 typical, 11 optimal |
GLXD4R+ Power Requirements | 14.5 V Ð 17 V, 600 mA (efficiency level VI power supply) |
Antenna Type | Dual-band _ Wave Sleeve Dipole |
Dimensions | 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna |
Weight | 30.5 oz (866 g) |
Housing | Steel |
Spurious Rejection | Over 35 dB, typical |
Gain Adjustment Range | -18 to 42 dB, 1 dB increments |
Phantom Power Protection | Yes |
AUDIO OUTPUT | |
Configuration | XLR Output Balanced 6.35 mm (1/4") output Impedance balanced |
Impedance | XLR Output 100 ? 6.35 mm (1/4") output 100 ? (50 ?, Unbalanced) |
Full Scale Output | 6.35 mm (1/4") +12 dBV XLR LINE setting = +18 dBV, MIC setting = -12 dBV |
Mic/Line Switch | 30 dB pad |
Pin Assignments | XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |
The new GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance for up to 16 simultaneous channels. Go wireless without complication.
In The Box:
- 1 PS43 Power Supply
- 1 Rack-mount Hardware Kit
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Ambient Temperature Range | Charging: 0¡C (32¡F) to 40¡C (104¡F) Operating: 0¡C (32¡F) to 45¡C (113¡F) |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low_impedance output) and the tip of the high impedance 1/4-inch output. |
Audio Frequency Response | 20 Hz Ð 20 kHz |
Dynamic Range | 120 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.07%, typical |
Battery Life | Up to 11.5 hours |
Channel Count | Without Frequency Manager Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal With Frequency Manager Up to 11 typical, 16 optimal 2.4 GHz only: Up to 9 typical, 11 optimal |
GLXD4R+ Power Requirements | 14.5 V Ð 17 V, 600 mA (efficiency level VI power supply) |
Antenna Type | Dual-band _ Wave Sleeve Dipole |
Dimensions | 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna |
Weight | 30.5 oz (866 g) |
Housing | Steel |
Spurious Rejection | Over 35 dB, typical |
Gain Adjustment Range | -18 to 42 dB, 1 dB increments |
Phantom Power Protection | Yes |
AUDIO OUTPUT | |
Configuration | XLR Output Balanced 6.35 mm (1/4") output Impedance balanced |
Impedance | XLR Output 100 ? 6.35 mm (1/4") output 100 ? (50 ?, Unbalanced) |
Full Scale Output | 6.35 mm (1/4") +12 dBV XLR LINE setting = +18 dBV, MIC setting = -12 dBV |
Mic/Line Switch | 30 dB pad |
Pin Assignments | XLR Output 1=ground, 2=hot, 3=cold 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |
