Description

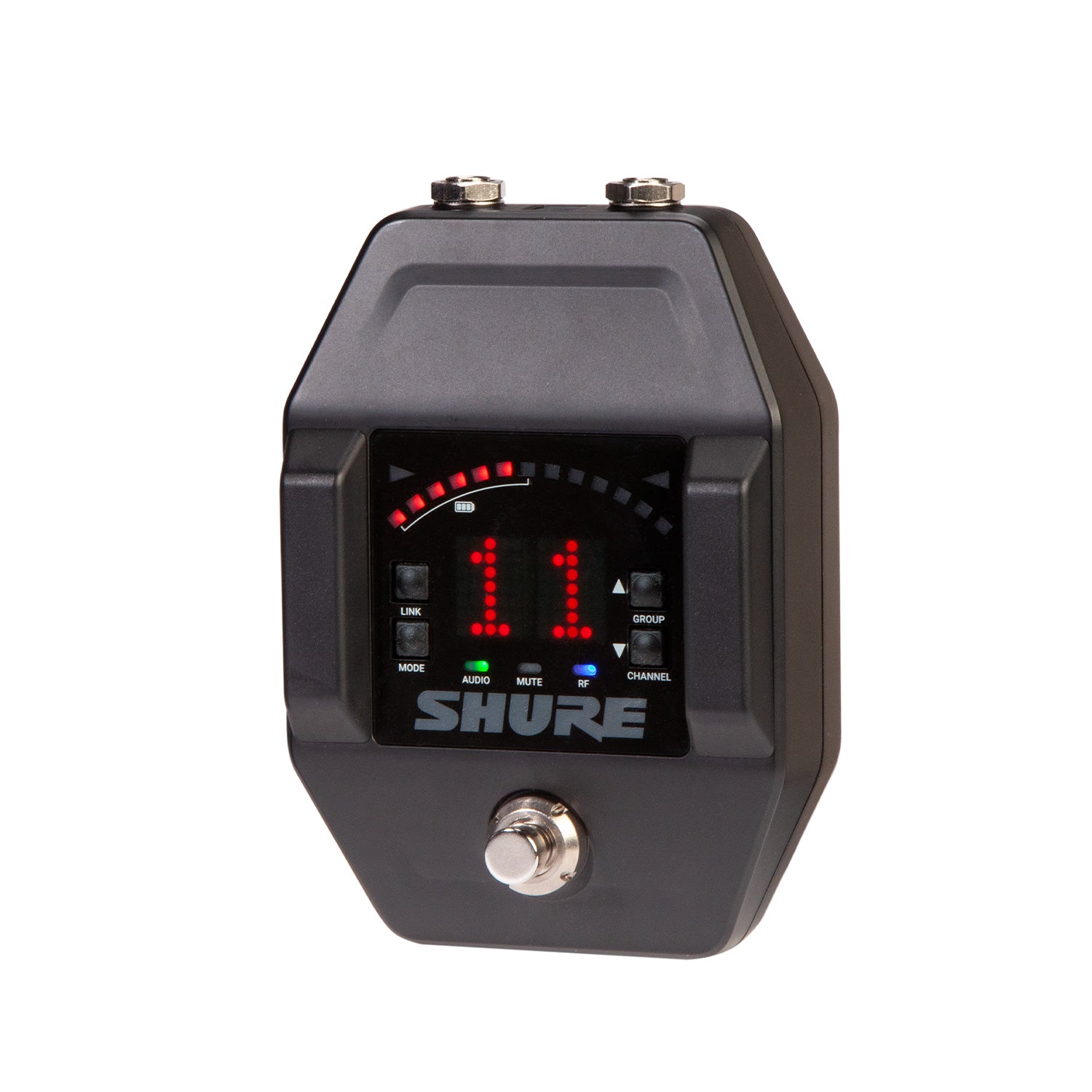

The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new 1/4" guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver. Go wireless without compromising your tone or complicating your rig.
Features:
- New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz
- Rugged metal chassis design that can be completely integrated into your pedalboard
- Compatible with 9V power supply in Pedalboards (minimum current: 400mA)
- Transmitter battery life monitoring via highly visible LED segment display
- Included Tuner with adjustable reference pitch (432 - 447 Hz)
- Easy powering from pedal boards
- New 1/4" input makes it easy to go from practice to live performance

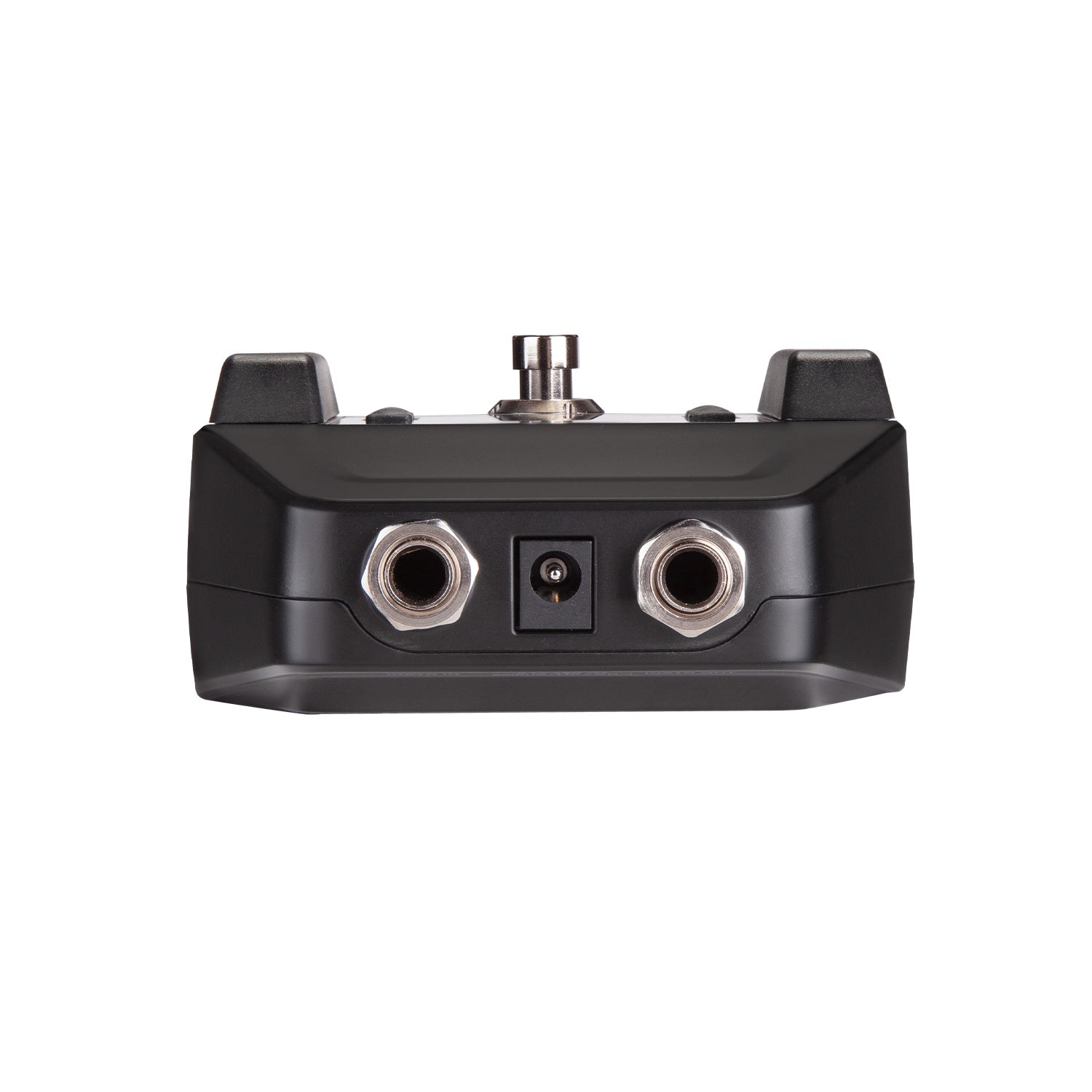

- Output 1/4" connector for easy daisy-chain connection with other pedals
- Includes PS24 Power Supply
Tuning Bandwidth | 2400 - 2483.5 MHz and 5725 - 5850 MHz |
Transmit Mode | Shure proprietary digital |
RF Output Power | 10 mW E.I.R.P. maximum |
Operating Temperature Range | 0¡C (32¡F) to 50¡C (122¡F) |
Polarity | Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance _-inch output |
Audio Frequency Response | 20 Hz Ð 20 kHz |
Dynamic Range | 120 dB, A-weighted |
RF Sensitivity | -88 dBm, typical |
Total Harmonic Distortion | 0.02%, typical |
Battery Life | Up to 11.5 hours |
Guitar Tuner | Tuning Accuracy ±1 cent Tuning Range F#0 to C8 |
Channel Count | Up to 4 typical, 8 optimal 2.4 GHz only: Up to 4 typical, 5 optimal |
Power Requirements | 9 V Ð 15 V, 400 mA (efficiency level VI power supply) |
Antenna Type | Dual-band PIFA |
Dimensions | 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm) |
Weight | 19.75 oz (560 g) |
Housing | Aluminum alloy |
Spurious Rejection | Over 35 dB, typical |
Gain Adjustment Range | -20 to 40 dB in 1 dB steps |
Audio Input Modes | Tuner or True Bypass |
AUDIO OUTPUT | |
Configuration | 6.35 mm (1/4") output: Impedance balanced |
Impedance | 6.35 mm (1/4") output: 100 ? (50 ?, Unbalanced) |
Maximum Audio Output Level | 6.35 mm (1/4") connector (into 3 k? load) +8.5 dBV |
Pin Assignments | 6.35 mm (1/4") connector Tip=audio, Ring=no audio, Sleeve=ground |
RECEIVER ANTENNA INPUT | |
Impedance | 50 ? |
Maximum Input Level | -20 dBm |
