Shure KSM11B/C - Cardioid Condenser Vocal Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

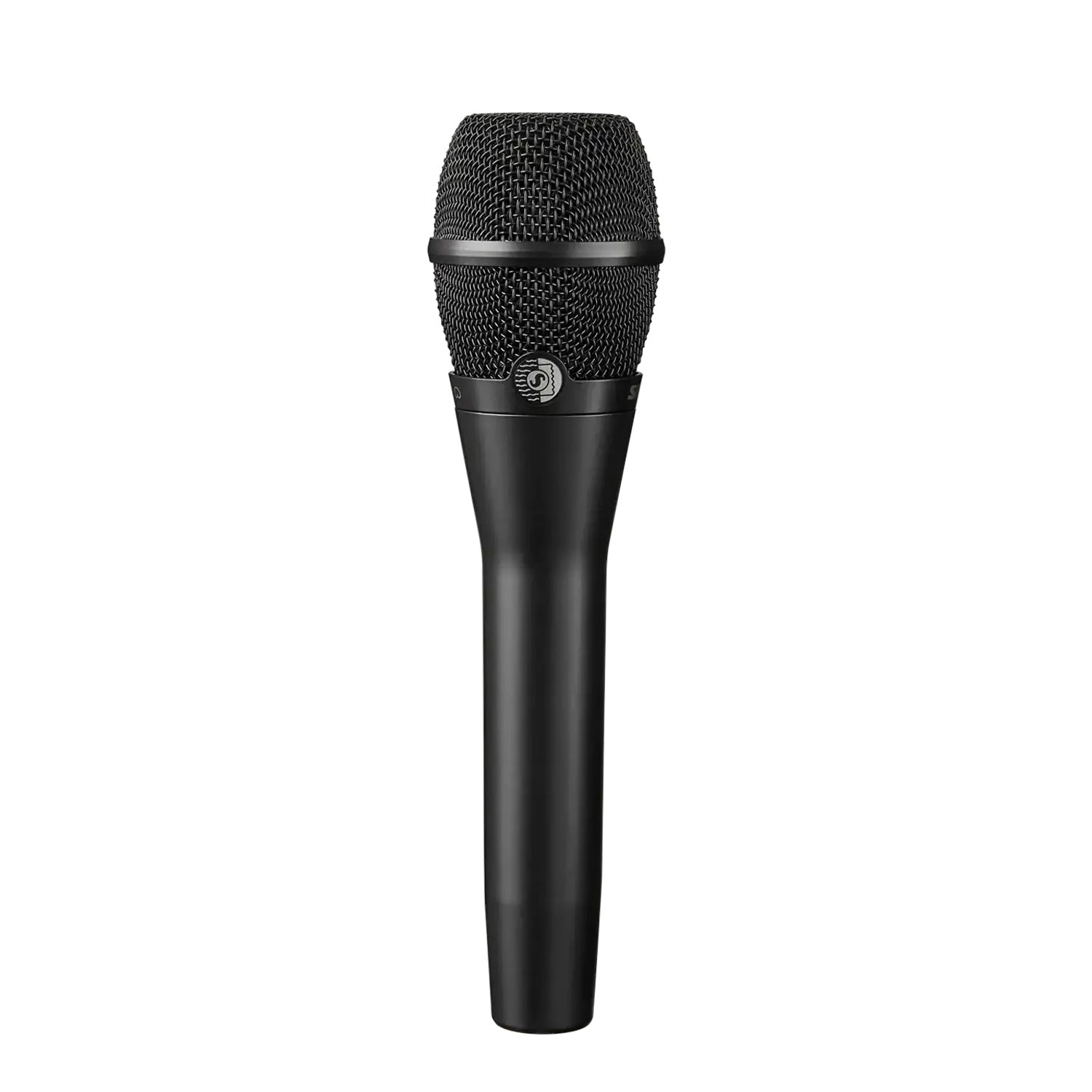

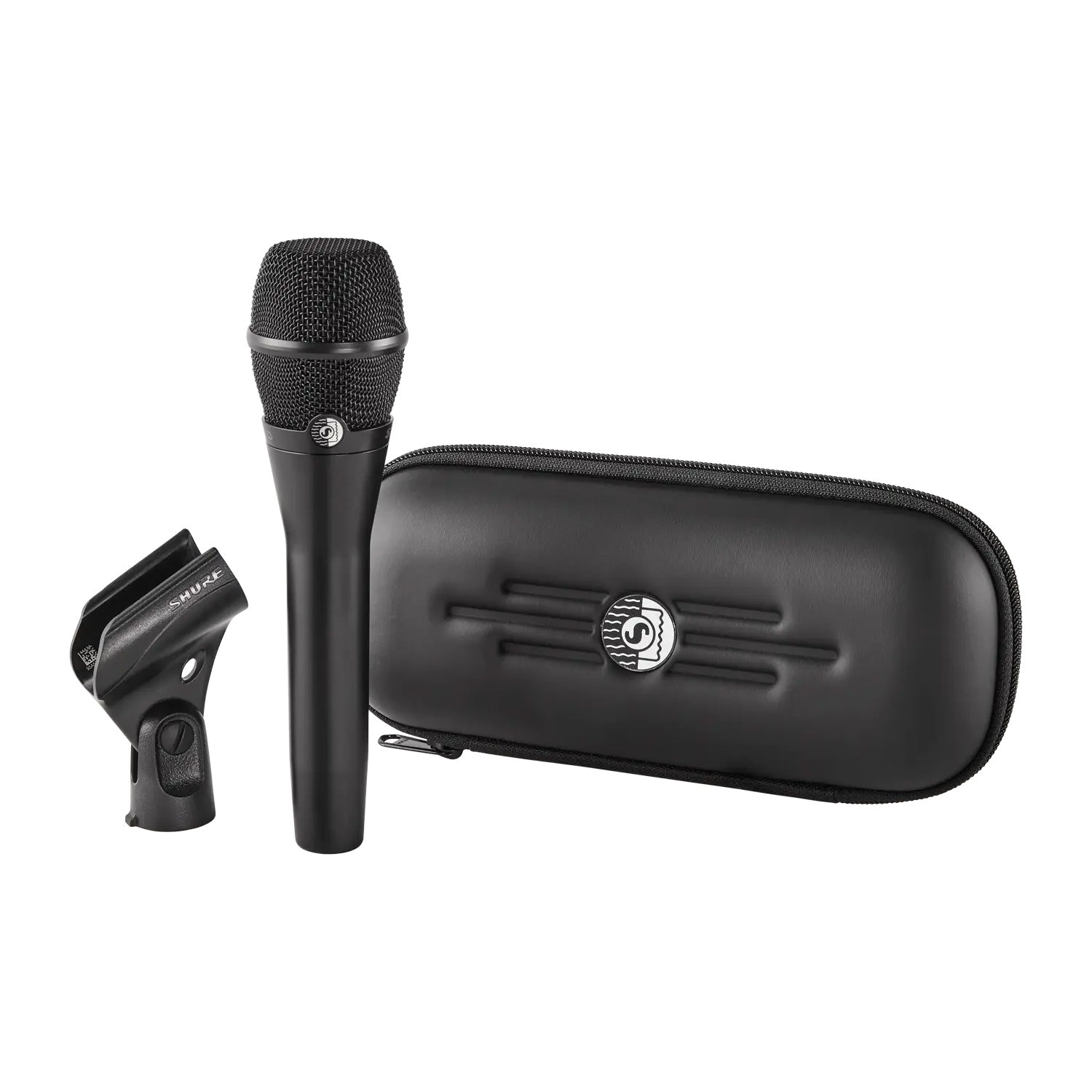

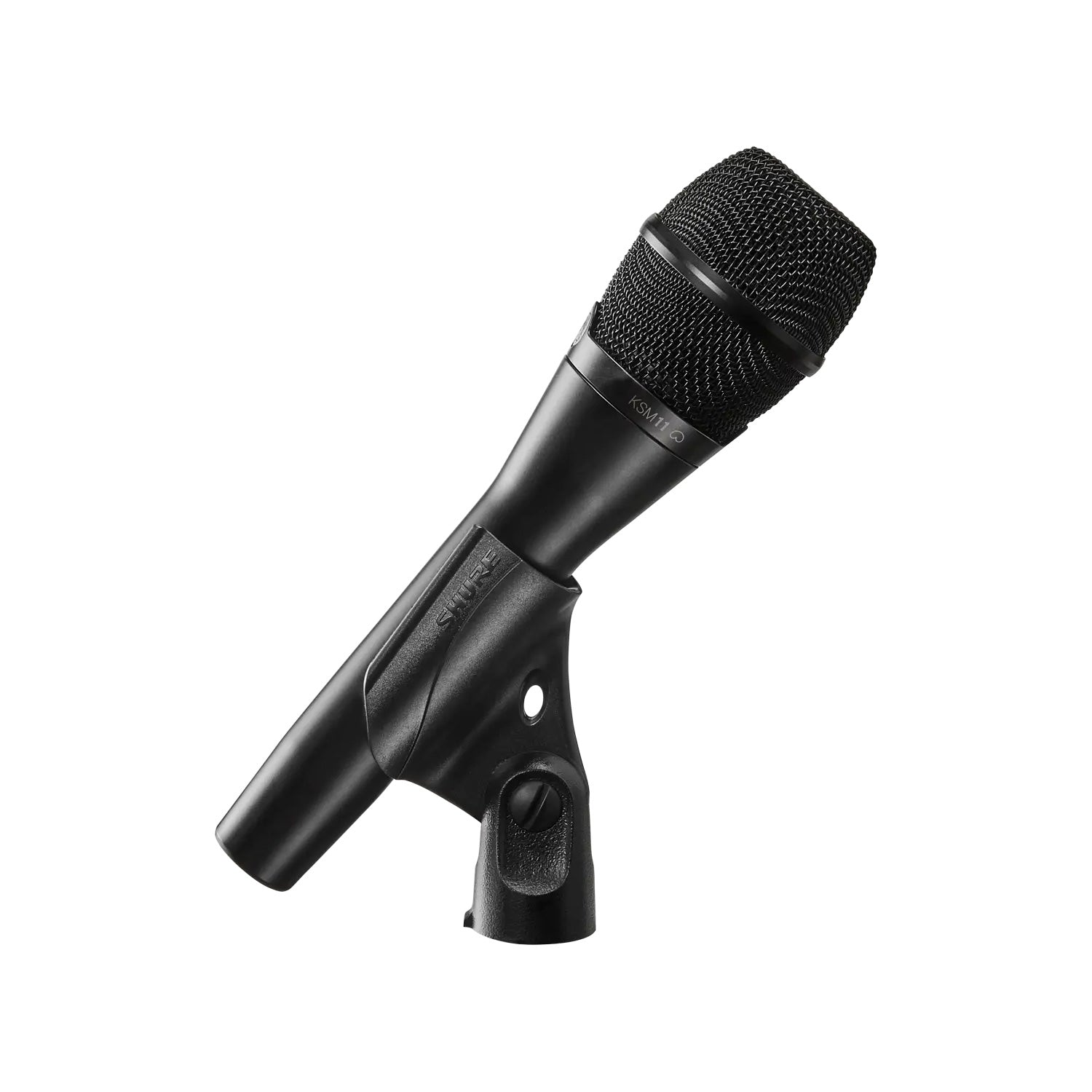

The KSM11 Vocal Microphone redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 presents live vocals that must be heard to be believed.
As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity – equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard vocals sound this good.
Features:
- Proprietary condenser cartridge utilizing a ¾" gold diaphragm and premium electronics for exceptional dynamic range.
- Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristine, focused vocal reproduction.
- Advanced suspended isolation system for virtually zero handling noise.
- Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals.
| Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Freqeuncy Response | 80 to 20,000ÊHz |
| Output Impedance (1 kHz) | 150 ½ |
| Sensitivity at 1 kHz, open circuit voltage | Ð46.5 dBV/Pa |
| Maximum SPL with 5 VDC | 151 dB SPL |
| Signal-to-Noise Ratio | 71.5 dB |
| Dynamic Range with 5 VDC | 128.5 dB |
| Clipping Level with 5 VDC | 10 dBV |
| Self Noise | 22.5 dB SPL typical, equivalent SPL, A-weighted |
| Polarity | Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground. |
| Power Requirements | 11 to 52 V DC phantom power (IEC-61938) 5.2 mA, maximum |
| Weight | 239 g (8.43 oz.) |
The KSM11 Vocal Microphone redefines vocal performance by providing a prized combination of full lows, clear mids and high-end detail, without the need for extensive EQ. A cardioid condenser designed specifically for live performance, event recording and premium streaming, the KSM11 presents live vocals that must be heard to be believed.
As modern live stages have transitioned to digital technology, the KSM11 cardioid condenser microphone was developed to take advantage of increased digital audio linearity – equal output across the frequency range. The KSM11 delivers an elegant balance of full low end, rich mid-range, essential high-end detail, and incredible off-axis rejection. Professional engineers have a near-perfect presentation of vocal performance to build their mixes around, EQing by choice and not default. You've simply never heard vocals sound this good.
Features:
- Proprietary condenser cartridge utilizing a ¾" gold diaphragm and premium electronics for exceptional dynamic range.
- Highly consistent, deep cardioid polar pattern reduces off-axis phase distortion for pristine, focused vocal reproduction.
- Advanced suspended isolation system for virtually zero handling noise.
- Dent-resistant hardened steel grille with 3-stage plosive reduction pop filtering for consistent, artifact-free vocals.
| Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Freqeuncy Response | 80 to 20,000ÊHz |
| Output Impedance (1 kHz) | 150 ½ |
| Sensitivity at 1 kHz, open circuit voltage | Ð46.5 dBV/Pa |
| Maximum SPL with 5 VDC | 151 dB SPL |
| Signal-to-Noise Ratio | 71.5 dB |
| Dynamic Range with 5 VDC | 128.5 dB |
| Clipping Level with 5 VDC | 10 dBV |
| Self Noise | 22.5 dB SPL typical, equivalent SPL, A-weighted |
| Polarity | Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground. |
| Power Requirements | 11 to 52 V DC phantom power (IEC-61938) 5.2 mA, maximum |
| Weight | 239 g (8.43 oz.) |
