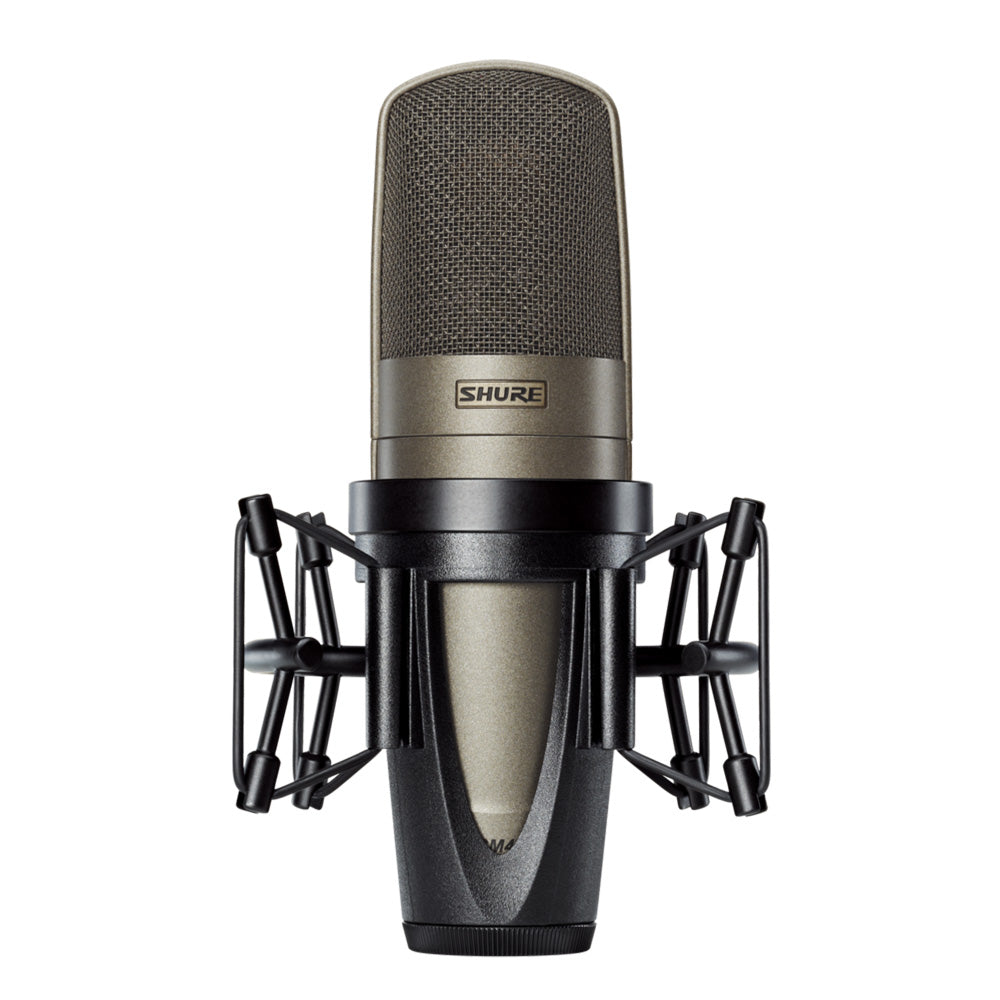

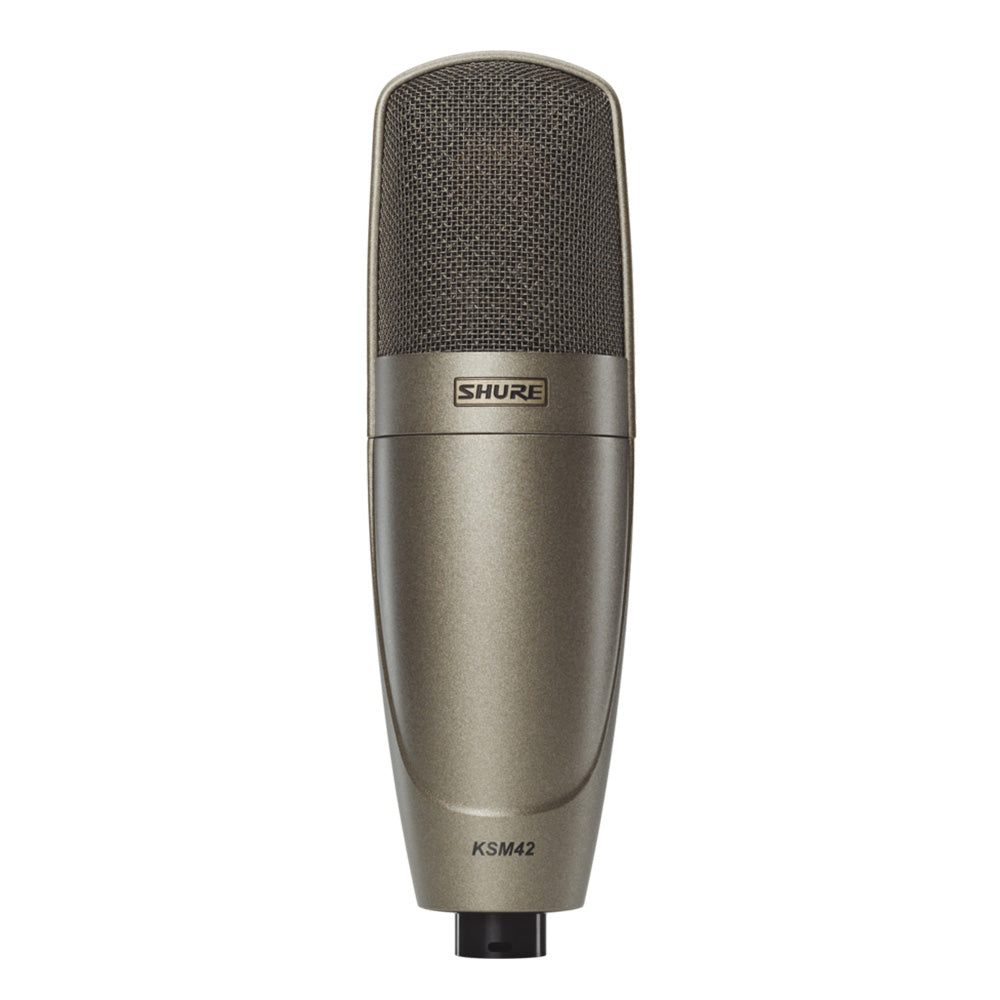

Shure KSM42/SG Large Dual-Diaphragm Side-Address Condenser Vocal Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This premium side-address, cardioid condenser microphone features a large dual-diaphragm capsule, optimized for world-class vocal recording and performance applications. With a tailored frequency response and extensive internal and external pop filtering, the single-pattern, dual-diaphragm design of the KSM42, featuring Prethos® Advanced Preamplifier Technology exhibits an exceptionally smooth proximity control and ultra-wide dynamic range. The KSM42 is the premier choice for capturing sophisticated, powerful and intimate vocal performances.
A milestone achievement in sound reinforcement, Prethos Advanced Preamplifier Technology employs transparent internal circuitry architectures that enable unprecedented audio quality and performance.
Features:
- Highly consistent cardioid polar pattern creates a broad sweet spot and natural off-axis response
- Prethos® Advanced Preamplifier Technology exhibits extremely low self-noise with superior dynamic range, transient response and ultra-low distortion for transparent recording
- Dual-diaphragm design with an active front, ultra thin (2.5 micron) 24-karat gold, low mass, 1-inch Mylar® diaphragm
- Passive back diaphragm delivers exceptional control of low frequency proximity effect
- Tailored low-frequency roll-off minimizes low frequency room noise
- Integrated three-stage mesh grille guards against wind and breath noise

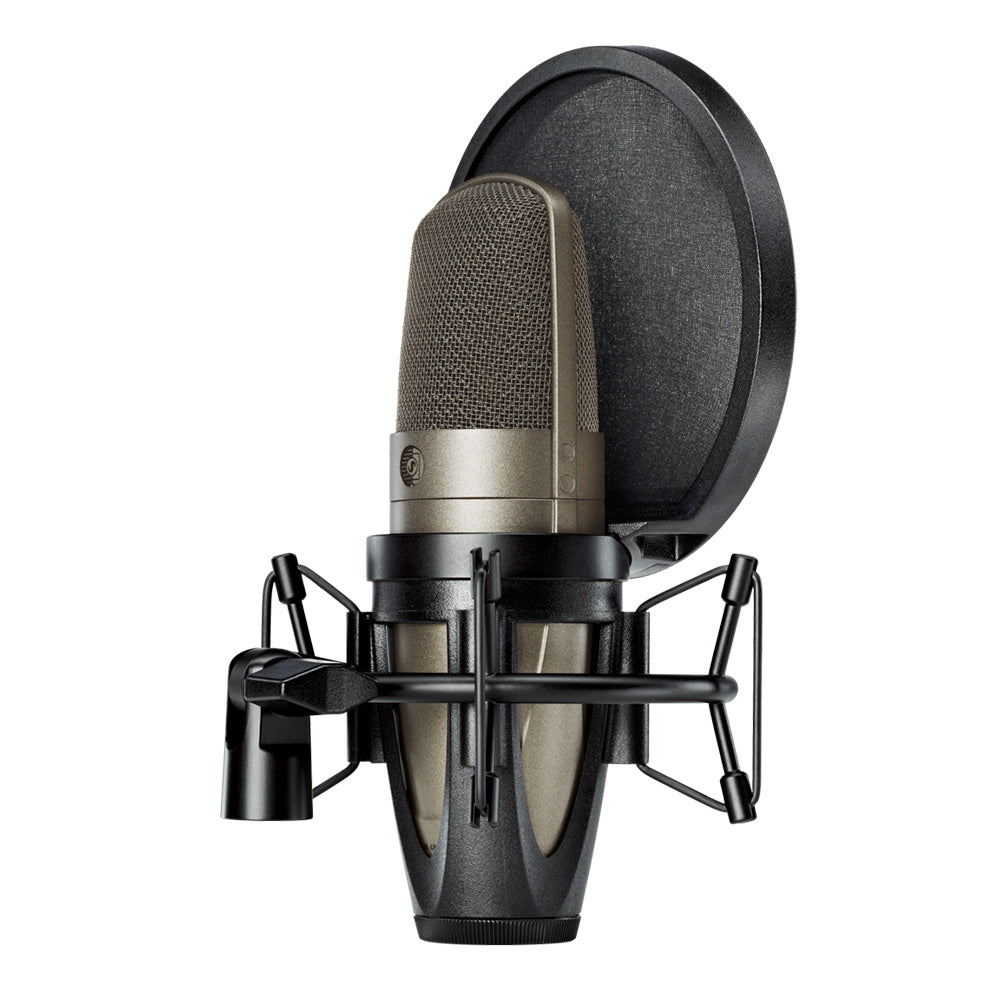

- Open cage ShureLock® rubber suspension shock mount with low-profile Popper Stopper™ magnetic pop filter produces a natural space between performer and microphone
- Extremely low self noise for critical studio vocal recording
- Premium electronic components and gold-plated internal and external connectors
- Durable zinc die-cast housing and hardened low carbon steel grille
- Internal shock mount to reduce unwanted handling and stand noise
What's In The Box:
- 1 - A42SM Shurelock Rubber Suspension Shock Mount
- 1 - A42PF Popper Stopper Magnetic Pop-Filter
- 1 - AK42C Zippered Carrying Case
- 1 - A42VB Protective Velveteen Pouch
- 1 - A42OR Spare Set of Rubber Suspension Shock Mount O Rings
| Transducer Type | Dual-Diaphragm, Front-Active, Externally Biased Condenser |
| Frequency Response | 60 to 20,000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 147 ohms |
| Sensitivity (at 1 kHz, open circuit voltage) |
_37 dBV/Pa (14.1 mV) 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD) |
1000 ohms load: 139 dB 2500 ohms load: 139 dB |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) |
86 dB S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted |
| Dynamic Range (at 1 kHz) |
1000 ohms load: 131 dB 2500 ohms load: 131 dB |
| Common Mode Rejection (10 Hz to 100 kHz) |
> 60 dB |
| Clipping Level (20Hz-20 kHz at 1% THD) |
1000 ohms load: 6.5 dBV 2500 ohms load: 8 dBV |
| Self Noise (typical, equivalent SPL, A-weighted) |
8.5 dB |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Weight | Net: 494 g. with shock mount and pop filter: 820 g |
| Connector | Three-pin professional audio (XLR), male |
| Power Requirements | 11 to 52 Vdc phantom, 6 mA |
This premium side-address, cardioid condenser microphone features a large dual-diaphragm capsule, optimized for world-class vocal recording and performance applications. With a tailored frequency response and extensive internal and external pop filtering, the single-pattern, dual-diaphragm design of the KSM42, featuring Prethos® Advanced Preamplifier Technology exhibits an exceptionally smooth proximity control and ultra-wide dynamic range. The KSM42 is the premier choice for capturing sophisticated, powerful and intimate vocal performances.
A milestone achievement in sound reinforcement, Prethos Advanced Preamplifier Technology employs transparent internal circuitry architectures that enable unprecedented audio quality and performance.
Features:
- Highly consistent cardioid polar pattern creates a broad sweet spot and natural off-axis response
- Prethos® Advanced Preamplifier Technology exhibits extremely low self-noise with superior dynamic range, transient response and ultra-low distortion for transparent recording
- Dual-diaphragm design with an active front, ultra thin (2.5 micron) 24-karat gold, low mass, 1-inch Mylar® diaphragm
- Passive back diaphragm delivers exceptional control of low frequency proximity effect
- Tailored low-frequency roll-off minimizes low frequency room noise
- Integrated three-stage mesh grille guards against wind and breath noise
- Open cage ShureLock® rubber suspension shock mount with low-profile Popper Stopper™ magnetic pop filter produces a natural space between performer and microphone
- Extremely low self noise for critical studio vocal recording
- Premium electronic components and gold-plated internal and external connectors
- Durable zinc die-cast housing and hardened low carbon steel grille
- Internal shock mount to reduce unwanted handling and stand noise
What's In The Box:
- 1 - A42SM Shurelock Rubber Suspension Shock Mount
- 1 - A42PF Popper Stopper Magnetic Pop-Filter
- 1 - AK42C Zippered Carrying Case
- 1 - A42VB Protective Velveteen Pouch
- 1 - A42OR Spare Set of Rubber Suspension Shock Mount O Rings
| Transducer Type | Dual-Diaphragm, Front-Active, Externally Biased Condenser |
| Frequency Response | 60 to 20,000 Hz |
| Polar Pattern | Cardioid |
| Output Impedance | 147 ohms |
| Sensitivity (at 1 kHz, open circuit voltage) |
_37 dBV/Pa (14.1 mV) 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD) |
1000 ohms load: 139 dB 2500 ohms load: 139 dB |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) |
86 dB S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted |
| Dynamic Range (at 1 kHz) |
1000 ohms load: 131 dB 2500 ohms load: 131 dB |
| Common Mode Rejection (10 Hz to 100 kHz) |
> 60 dB |
| Clipping Level (20Hz-20 kHz at 1% THD) |
1000 ohms load: 6.5 dBV 2500 ohms load: 8 dBV |
| Self Noise (typical, equivalent SPL, A-weighted) |
8.5 dB |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Weight | Net: 494 g. with shock mount and pop filter: 820 g |
| Connector | Three-pin professional audio (XLR), male |
| Power Requirements | 11 to 52 Vdc phantom, 6 mA |
