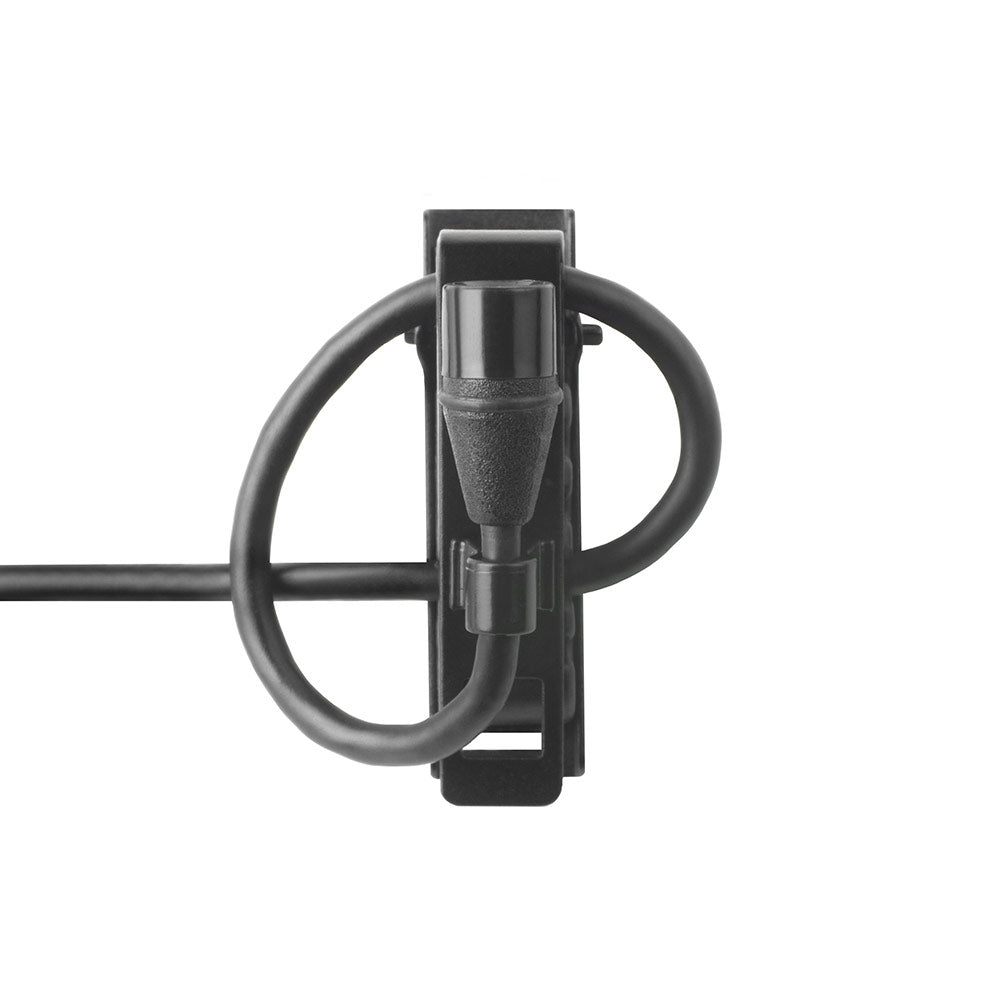

Shure MX150B/O-TQG Microflex Omni Subminiature Lavalier Microphone (with TQG Connection) - TA4F


  • Dale #:

    SHUR-MX150BOTQG
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Shure Microflex® MX150 is a professional electret condenser microphone ideal for applications requiring low-profile placement.Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate le... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Shure Microflex® MX150 is a professional electret condenser microphone ideal for applications requiring low-profile placement.Fully compatible with all Shure wireless systems, the discreet MX150 offers uncompromising sound quality and high reliability for television broadcasting, corporate lectures, A / V teleconferencing, houses of worship, and sound reinforcement.

Features

  • Available in cardioid or omnidirectional polar patterns and TQG (for use in Shure bodypacks) or wired XLR variations
  • CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Matte black, sleek design for inconspicuous placement
  • Multi-position tie clip allows for a variety of placement options and features an integrated cable management system for convenient cable dress with minimal handling noise
  • Kevlar®-reinforced soft-flex cable design further reduces handling noise while providing superior flexibility for routing and placement
  • User-changeable equalization caps for response shaping (omnidirectional only)
  • Snap-fit, concise windscreen provides protection from plosives and wind noise with minimal visibility
  • Legendary Shure quality, ruggedness, and reliability

More +

Product Specs

Transducer TypeElectret condenser
Polar PatternMX150/C: Cardioid
MX150/O: Omnidirectional
Frequency Response20 to 20,000 Hz
Output ImpedanceMX150/C: TQG: N/A, XLR: 165.5O
MX150/O: TQG: N/A, XLR: 165.0O
Sensitivity (open circuit voltage, @ 1 kHz, typical)TQG: -51.0 dBV/Pa (3.0 mV)
XLR: -39.0 dBV/Pa (11.0 mV)
Maximum SPL (1 kHz at 1% THD)TQG: 147.5 dB SPL
XLR: 129.5 dB SPL
Signal-To-Noise RatioTQG: 57.5 dB
XLR: 57.0 dB
Dynamic Range @ 1 kHzTQG: 111.0 dB SPL
XLR: 92.5 dB SPL
Self-Noise (equivalent SPL, A-weighted, typical)TQG: 36.5 dB
XLR: 37.0 dB
Operating Temperature Range-18°C (0°F) to 57°C (135°F)
PolarityTQG: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
XLR: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power RequirementsTQG: 5 V DC (0.04 – 0.18 mA)
XLR: 11-52 V DC phantom power (IEC-61938), < 2.2 mA
WeightTQG: 21 g (0.7 oz.)
XLR: 121 g (4.3 oz.)
