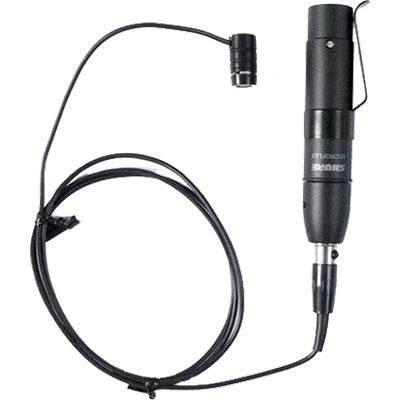

Shure MX183 Microflex Omni Condenser Lavalier Microphone TA4F with XLR Beltpack Preamp


  • Dale #:

    SHUR-MX183
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available i... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job.

The Microflex Lavaliers are completely compatible with all Shure Wireless transmitters, and their high sensitivity and wide frequency response guarantee great sound with a minimum of RF interference or electromagnetic hum. Plus, each Microflex Lavalier features the same Shure quality sound that has become an industry standard.

Features:

  • Pivoting, Single-Microphone Tie Clip, included
  • Dual Microphone Tie Clip, included
  • Black, Snap-fit Foam Windscreen, included
  • XLR Belt-Clip Preamp 4-foot cable with 4-pin TA4F Connector, included
  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal choice for each application
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Supplied dual tie clip holds two microphones for dual miking applications

More +

Product Specs

TypeCondenser (electret bias)
Frequency Response50-17,000 Hz
Polar PatternOmnidirectional
Output ImpedanceEIA rated at 150 ohms (180 ohms actual)
Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pa)-27.5 dB (42.2 mV)
Max SPL (1kHz at 1% THD, 1 kohm load)116.7 dB
Equivalent Output Noise (A-weighted)20.5 dB
Signal to Noise Ratio (referenced at 94 dB SPL)73.5 dB
Dynamic Range at 1 kohm load96.2 dB
Power Requirements11-52V DC Phantom, 2.0 mA
Common Mode Rejection45.0 dB minimum
PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Environmental ConditionsOperating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F), Storage Temperature Range: -29 to 74 degrees C (-20 to 164 degrees F)
CableShielded 1.2 meter (4 ft.) cable terminated with a 4-Pin Female Mini Connector (TA4F)
Dimensions
  • Capsule: approx. 12mm (0.46") diameter, 22mm (0.85") length, TA4F
  • Connector: approx. 20mm (0.79") diameter, 99mm (3.89") length
  • More +
