Shure MX185 Microflex Cardioid Condenser Lavalier Microphone TA4F with XLR Beltpack Preamp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

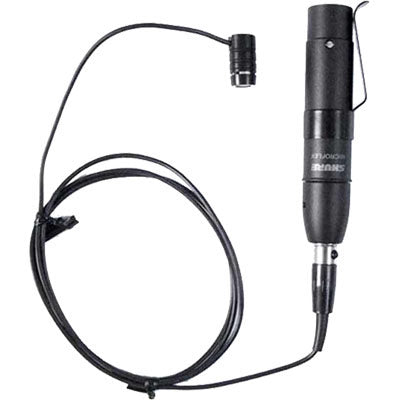

Models MX183, MX184, and MX185 are wired lavalier electret condenser microphones designed for speech and vocal pickup, general purpose sound reinforcement, recording, and remote monitoring applications. They can be clipped to neckties, lapels, and other articles of clothing. Interchangeable cartridges make it possible to easily reconfigure microphone coverage as the need arises.
FEATURES :- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrumInterchangeable cartridges that provide an optimal choice for each applicationRotatable tie-clip that pivots in 90° increments for placement flexibilitySupplied snap-fit foam windscreen that controls breath noise and stays on securelyBalanced, transformerless output for increased immunity to noise over long cable runsSupplied dual tie clip holds two microphones for dual miking applications
- New RF filtering
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17,000 Hz |
| Polar Pattern | |
| MX183 | Omnidirectional |
| MX184 | Supercardioid |
| MX185 | Cardioid |
| Output Impedance | EIA rated at 150 ohm (180 ohm actual) |
| Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*) | |
| MX183 | -27.5 dB (42.2 mV) |
| MX184 | -33.5 dB (21.1 mV) |
| MX185 | -35.0 dB (17.0 mV) |
| Max SPL (1kHz at 1%THD, 1 kohm load) | |
| MX183 | 116.7 dB |
| MX184 | 122.7 dB |
| MX185 | 124.2 dB |
| Equivalent Output Noise (A-weighted) | |
| MX183 | 20.5 dB |
| MX184 | 26.5 dB |
| MX185 | 28.0 dB |
| Signal to Noise Ratio (referenced at 94 dB SPL) | |
| MX183 | 73.5 dB |
| MX184 | 67.5 dB |
| MX185 | 66.0 dB |
| Dynamic Range at 1 kohm load | 96.2 dB |
| Power Requirements | 11 to 52 Vdc phantom, 2.0 mA |
Models MX183, MX184, and MX185 are wired lavalier electret condenser microphones designed for speech and vocal pickup, general purpose sound reinforcement, recording, and remote monitoring applications. They can be clipped to neckties, lapels, and other articles of clothing. Interchangeable cartridges make it possible to easily reconfigure microphone coverage as the need arises.
FEATURES :- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrumInterchangeable cartridges that provide an optimal choice for each applicationRotatable tie-clip that pivots in 90° increments for placement flexibilitySupplied snap-fit foam windscreen that controls breath noise and stays on securelyBalanced, transformerless output for increased immunity to noise over long cable runsSupplied dual tie clip holds two microphones for dual miking applications
- New RF filtering
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17,000 Hz |
| Polar Pattern | |
| MX183 | Omnidirectional |
| MX184 | Supercardioid |
| MX185 | Cardioid |
| Output Impedance | EIA rated at 150 ohm (180 ohm actual) |
| Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*) | |
| MX183 | -27.5 dB (42.2 mV) |
| MX184 | -33.5 dB (21.1 mV) |
| MX185 | -35.0 dB (17.0 mV) |
| Max SPL (1kHz at 1%THD, 1 kohm load) | |
| MX183 | 116.7 dB |
| MX184 | 122.7 dB |
| MX185 | 124.2 dB |
| Equivalent Output Noise (A-weighted) | |
| MX183 | 20.5 dB |
| MX184 | 26.5 dB |
| MX185 | 28.0 dB |
| Signal to Noise Ratio (referenced at 94 dB SPL) | |
| MX183 | 73.5 dB |
| MX184 | 67.5 dB |
| MX185 | 66.0 dB |
| Dynamic Range at 1 kohm load | 96.2 dB |
| Power Requirements | 11 to 52 Vdc phantom, 2.0 mA |
