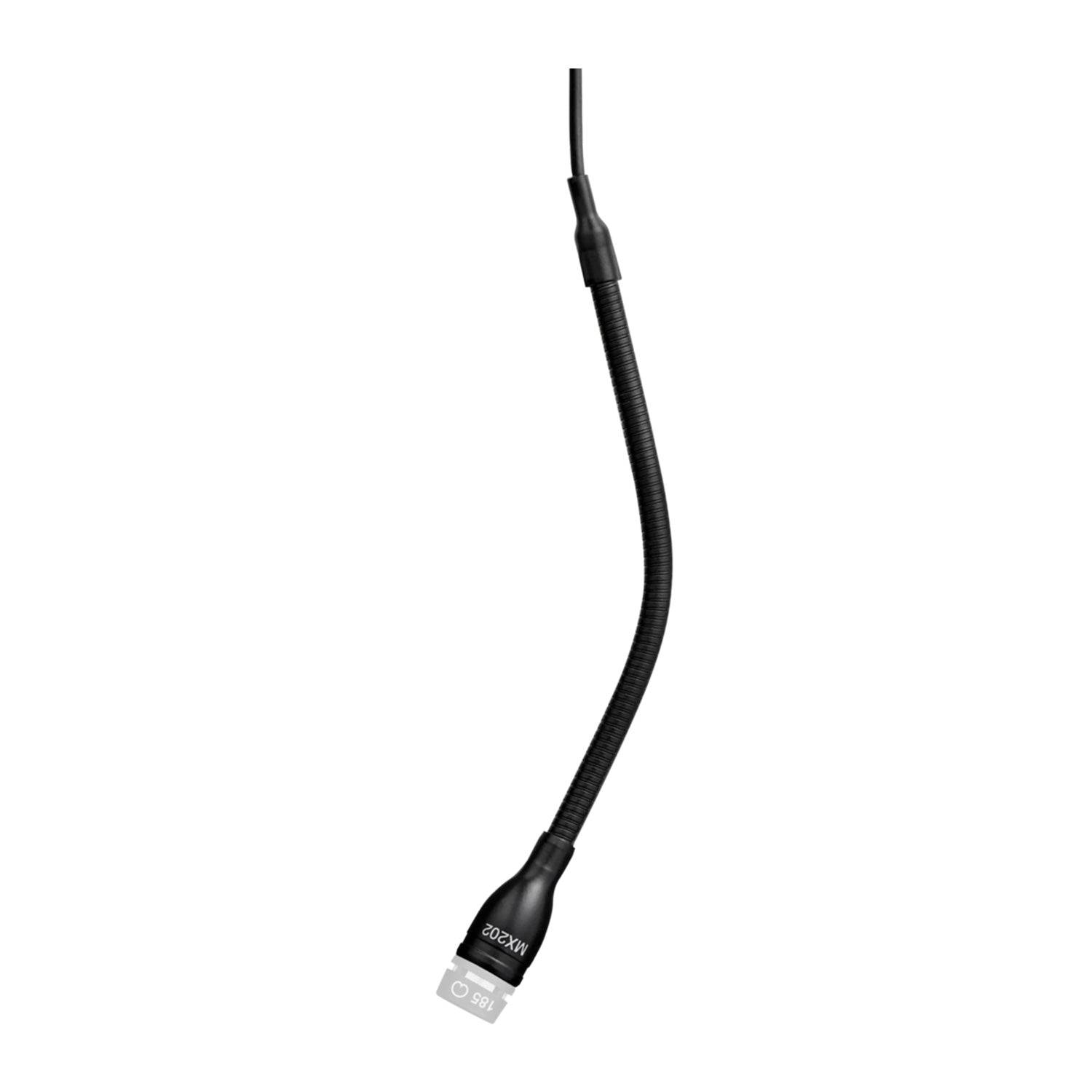

Shure MX202B/N - Microflex Condenser Hanging Microphone (Black / No Capsule)


  • Dale #:

    SHUR-MX202BN
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or bright-white finishes, and with in-line or plate mount preamps, MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable pac... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or bright-white finishes, and with in-line or plate mount preamps, MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid, supercardioid, or mini-shotgun condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.

Cartridge polar pattern indicated by model number suffix:
C = Cardioid, S = Supercardioid, N = No cartridge

Features:

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges that provide an optimal polar pattern choice for each application
  • Balanced, transformerless output for increased immunity to noise over long cable runs
  • Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
  • Bright-white or black finish that blends unobtrusively with most surroundings
  • Preamp options available offer easy installation in ceilings or microphone stands
  • When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum

More +

Product Specs

Frequency Response50 to 17,000 Hz
Output Impedance180 ohms actual (EIA rated at 150 ohms)
Sensitivity (At 1,000 Hz, open circuit voltage)-35.0 dBV/Pa (17.8 mV), All values -12 dB at 0 gain; 1 Pascal = 94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 k ohm load)124.2 dB, All values +6 dB at 0 gain
Equivalent Output Noise (A-weighted)28.0 dB SPL
Signal to Noise Ratio (referenced at 94 dB SPL)66.0 dB
Dynamic Range at 1 k ohm load96.2 dB
100 dB at 0 gain
Common Mode Rejection45.0 dB minimum
Preamplifier Output Clipping Level (1% THD)-6.0 dBV (0.5 V)
-12 dBV at 0 gain
PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
Power Requirements11 to 52 Vdc phantom, 2.0 mA
Environmental RequirementsOperating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity: 0 to 95%
