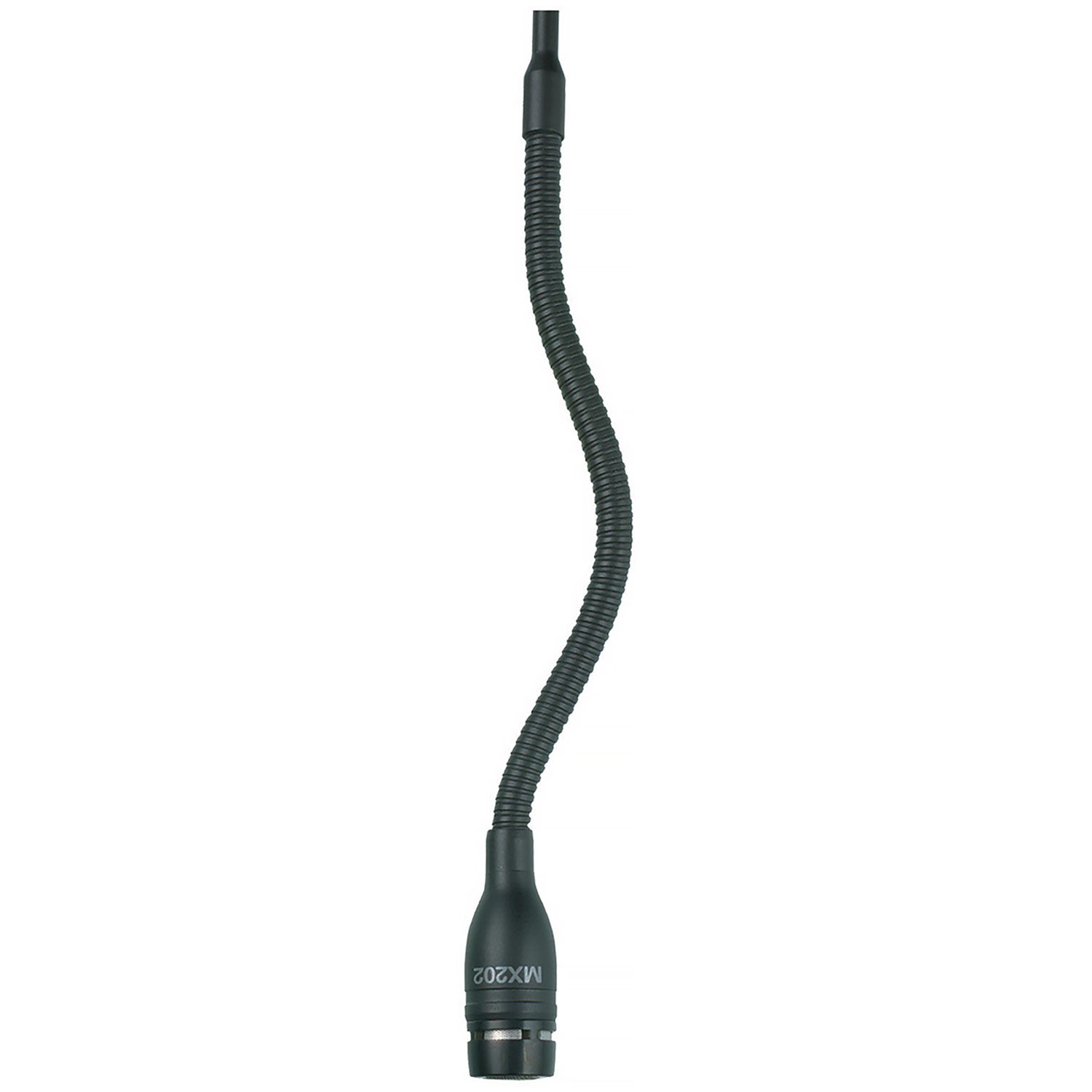

Shure MX202BP/N Microflex Condenser Overhead Microphone (Black, No Cartridge, No Connector)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or white finishes, and with in-line or plate mount preamps, MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid or supercardioid condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.
Features
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal polar pattern choice for each application
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
- White or black finish that blends unobtrusively with most surroundings
- Preamp options available offer easy installation in ceilings or microphone stands
- When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum
| Frequency Response | 50 to 17,000 Hz |
| Output Impedance | 180 ohms actual (EIA rated at 150 ohms) |
| Sensitivity (At 1,000 Hz, open circuit voltage*) | Cardioid: -35.0 dBV/Pa (17.8 mV) Supercardioid: -33.5 dBV/Pa (21.1 mV) Omnidirectional: -27.5 dBV/Pa (42.2 mV) All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 k ohm load) | Cardioid: 124.2 dB Supercardioid: 122.7 dB Omnidirectional: 116.7 dB All values +6 dB at 0 gain |
| Equivalent Output Noise (A-weighted) | Cardioid: 28.0 dB SPL Supercardioid: 26.5 dB SPL Omnidirectional: 20.5 dB SPL |
| Signal to Noise Ratio (referenced at 94 dB SPL) | Cardioid: 66.0 dB Supercardioid: 67.5 dB Omnidirectional: 73.5 dB |
| Dynamic Range at 1 k ohm load | 96.2 dB 100 dB at 0 gain |
| Common Mode Rejection | 45.0 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | -6.0 dBV (0.5 V) -12 dBV at 0 gain |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector. |
| Power Requirements | 11 to 52 Vdc phantom, 2.0 mA |
| Environmental Requirements | Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F) Relative Humidity: 0 to 95% |
It is hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available in black or white finishes, and with in-line or plate mount preamps, MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid or supercardioid condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable.
Features
- Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
- Interchangeable cartridges that provide an optimal polar pattern choice for each application
- Balanced, transformerless output for increased immunity to noise over long cable runs
- Supplied stand-mount adapter for portable applications (in-line preamplifier versions only)
- White or black finish that blends unobtrusively with most surroundings
- Preamp options available offer easy installation in ceilings or microphone stands
- When combined with the high sensitivity cartridge's wide frequency response, these microphones provide accurate sound reproduction with minimum RF interference or electromagnetic hum
| Frequency Response | 50 to 17,000 Hz |
| Output Impedance | 180 ohms actual (EIA rated at 150 ohms) |
| Sensitivity (At 1,000 Hz, open circuit voltage*) | Cardioid: -35.0 dBV/Pa (17.8 mV) Supercardioid: -33.5 dBV/Pa (21.1 mV) Omnidirectional: -27.5 dBV/Pa (42.2 mV) All values -12 dB at 0 gain; *1 Pascal = 94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 k ohm load) | Cardioid: 124.2 dB Supercardioid: 122.7 dB Omnidirectional: 116.7 dB All values +6 dB at 0 gain |
| Equivalent Output Noise (A-weighted) | Cardioid: 28.0 dB SPL Supercardioid: 26.5 dB SPL Omnidirectional: 20.5 dB SPL |
| Signal to Noise Ratio (referenced at 94 dB SPL) | Cardioid: 66.0 dB Supercardioid: 67.5 dB Omnidirectional: 73.5 dB |
| Dynamic Range at 1 k ohm load | 96.2 dB 100 dB at 0 gain |
| Common Mode Rejection | 45.0 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | -6.0 dBV (0.5 V) -12 dBV at 0 gain |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector. |
| Power Requirements | 11 to 52 Vdc phantom, 2.0 mA |
| Environmental Requirements | Operating Temperature Range: -18 to 57 degrees C (0 to 135 degrees F) Relative Humidity: 0 to 95% |
