Availability:Not in Stock - Reserve Yours
This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
DescriptionEquipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex® Boundary Microphones are the high-quality solution for a range of applications such as altars, boardrooms and distance learning centers. Every Microflex Boundary microphone... Read More
Retail Price: $320.00 Our Price: $229.00
Free Shipping (Continental US)

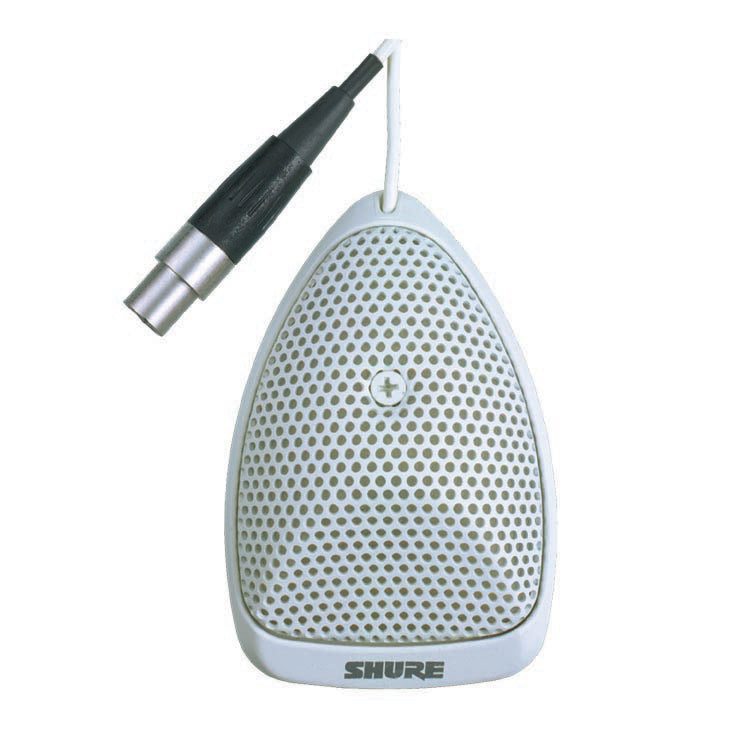

Equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex® Boundary Microphones are the high-quality solution for a range of applications such as altars, boardrooms and distance learning centers. Every Microflex Boundary microphone features a choice of interchangeable condenser cartridges.
MX391: Includes attached 4 meter (12 ft) cable terminated with a 4-pin mini connector and separate preamplifier. A rubber strain relief is provided for applications that require removing the 4-pin mini connector and connecting the mic cable directly to screw terminals in the preamplifier.
|Polar Pattern||Supercardioid (MX391/S, MX391W/S)|
|Operating Temperature Range||-18 to 57 degrees C (0 to 135 degrees F)|
|Relative Humidity||0 to 95%|
|Frequency Response||50 to 17,000 Hz|
|Output Impedance (at 1000 Hz)||180 ohms actual (rated at 150 ohms)|
|Open Circuit Sensitivity 1 kHz ref. 1 V per Pascal *||Cardioid: –29.6 dB (33.5 mV)|
All settings -12 dB at 0 gain; *1 Pascal = 94 dB SPL
|Maximum Sound Pressure Level (1 kHz at 1% Total Harmonic Distortion, 1 k ohm load)||Cardioid: 118.8 dB|
All settings +6 dB at 0 gain
|Signal to Noise Ratio (referenced at 94 dB SPL)||Cardioid: 71.4 dB|
|Equivalent Output Noise (A-weighted)||Cardioid: 22.6 dB SPL|
|Dynamic Range at 1 k ohm Load||96.2 dB|
100 dB at 0 gain
|Common Mode Rejection||45 dB minimum, 10 Hz to 100 kHz|
|Preamplifier Output Clipping Level||-6 dBV (0.5 V)|
12 dB at 0 gain
|Polarity||Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the preamplifier XLR output connector.|
|Power Requirements||11 to 52 Vdc phantom|
2.0 mA current consumption
