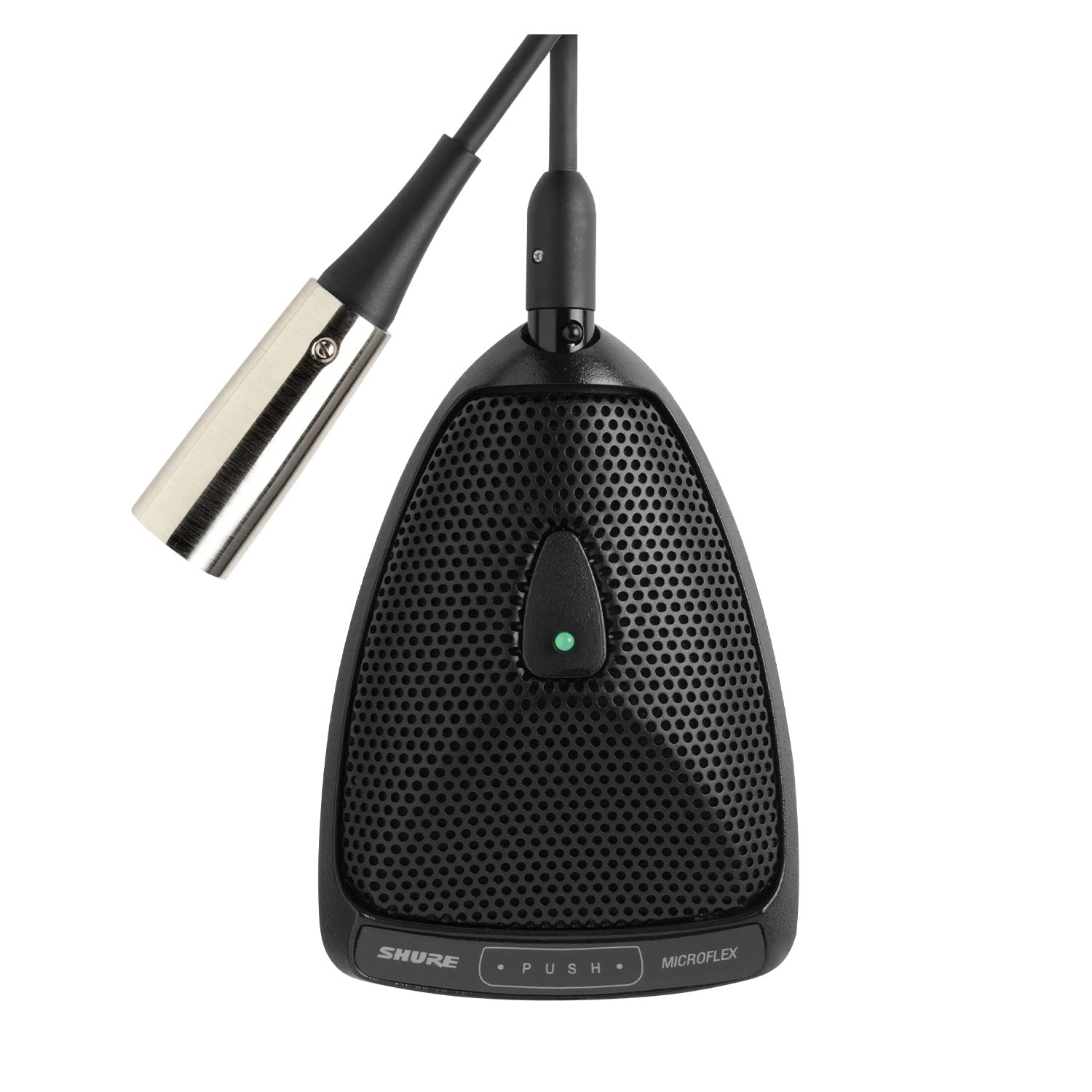

Shure MX393/O - Microflex Condenser Boundary Microphone (Omnidirectional)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Boundary microphone provides high-quality sound for a wide range of applications due to its interchangeable condenser cartridge. It features programmable, silent membrane switches, LED indicators, and a low-profile design.
There's never been smarter boundary microphones than the Microflex models from Shure. With many models to choose from, equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex Boundary microphones are the high-quality solution for a range of applications, such as altars, boardrooms and distance learning centers.
Every Microflex Boundary microphone features one of the new interchangeable condenser cartridges. Available in cardioid, supercardioid and omnidirectional polar patterns, the Microflex cartridges give you superior Shure quality sound options for every installation. In addition, their programmable switches offer the flexibility to be set for Push to Talk, Push to Mute or Push On/Push Off modes. Attractively designed with a low profile, professional appearance, the Microflex Boundary microphones come with an easy to use paint mask for your custom-color installations.
Features:
- Flat frequency response across the vocal range for uncolored sound
- Interchangeable cartridges that provide a choice of polar pattern for each application
- Sleek, low-profile design for surface mounting
- Programmable mute button
- LED indicator
- Logic input/output for remote control or use with automatic mixers
- RF filtering
The polar pattern of the included cartridge is indicated by a model number suffix:
- /C Cardioid
- /S Supercardioid
- /O Omnidirectional
| Type | Electret Condenser |
| Frequency Response | 50Ð17000 Hz |
| Polar Pattern | MX392/C, MX392BE/C, MX393/C Cardioid MX392/S, MX392BE/S, MX393/S Supercardioid MX392/O, MX392BE/O, MX393/O Omnidirectional |
| Output Impedance | 180 ½ |
| Output Configuration | Active Balanced |
| Sensitivity @ 1 kHz, open circuit voltage | Cardioid Ð30 dBV/Pa Supercardioid Ð28 dBV/Pa Omnidirectional Ð22 dBV/Pa 1 Pa=94 dB SPL |
| Maximum SPL 1 kHz at 1% THD, 1 k½ load |
Cardioid 119 dB Supercardioid 118 dB Omnidirectional 111 dB |
| Self Noise, A-weighted | Cardioid 23 dB SPL Supercardioid 21 dB SPL Omnidirectional 15 dB SPL |
| Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz |
Cardioid 71 dB Supercardioid 73 dB Omnidirectional 80 dB |
| Dynamic Range 1 k½ load, @ 1 kHz |
96 dB |
| Common Mode Rejection, 10 Hz to 100 kHz | 45 dB, minimum |
| Clipping Level at 1% THD | Ð6 dBV (0.5 V) |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Mute Switch | 50Ð20000 Hz Ð50 dB minimum |
| Logic Connections | LED IN Active low (²1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC-OUT Active low (²0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3k½). |
| Cable | MX392 3_ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated MX392BE 3_ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated, bottom exit MX393 3_ m (12 ft) detachable cable with 3-pin audio connector |
| Weight | 172 g (0.38 lbs) |
| Environmental Conditions | Operating Temperature -18-57 ¡C(0-135 ¡F) Storage Temperature -29-74 ¡C(-20-165 ¡F) Relative Humidity 0-95% |
| Power Requirements | 11-52V DC , 2.0 mA |
| FURNISHED ACCESSORIES | Paint Mask 80C514 Switch Paint Mask 80A541 Set of 5 rubber pads with adhesive RPM470 |
Boundary microphone provides high-quality sound for a wide range of applications due to its interchangeable condenser cartridge. It features programmable, silent membrane switches, LED indicators, and a low-profile design.
There's never been smarter boundary microphones than the Microflex models from Shure. With many models to choose from, equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex Boundary microphones are the high-quality solution for a range of applications, such as altars, boardrooms and distance learning centers.
Every Microflex Boundary microphone features one of the new interchangeable condenser cartridges. Available in cardioid, supercardioid and omnidirectional polar patterns, the Microflex cartridges give you superior Shure quality sound options for every installation. In addition, their programmable switches offer the flexibility to be set for Push to Talk, Push to Mute or Push On/Push Off modes. Attractively designed with a low profile, professional appearance, the Microflex Boundary microphones come with an easy to use paint mask for your custom-color installations.
Features:
- Flat frequency response across the vocal range for uncolored sound
- Interchangeable cartridges that provide a choice of polar pattern for each application
- Sleek, low-profile design for surface mounting
- Programmable mute button
- LED indicator
- Logic input/output for remote control or use with automatic mixers
- RF filtering
The polar pattern of the included cartridge is indicated by a model number suffix:
- /C Cardioid
- /S Supercardioid
- /O Omnidirectional
| Type | Electret Condenser |
| Frequency Response | 50Ð17000 Hz |
| Polar Pattern | MX392/C, MX392BE/C, MX393/C Cardioid MX392/S, MX392BE/S, MX393/S Supercardioid MX392/O, MX392BE/O, MX393/O Omnidirectional |
| Output Impedance | 180 ½ |
| Output Configuration | Active Balanced |
| Sensitivity @ 1 kHz, open circuit voltage | Cardioid Ð30 dBV/Pa Supercardioid Ð28 dBV/Pa Omnidirectional Ð22 dBV/Pa 1 Pa=94 dB SPL |
| Maximum SPL 1 kHz at 1% THD, 1 k½ load |
Cardioid 119 dB Supercardioid 118 dB Omnidirectional 111 dB |
| Self Noise, A-weighted | Cardioid 23 dB SPL Supercardioid 21 dB SPL Omnidirectional 15 dB SPL |
| Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz |
Cardioid 71 dB Supercardioid 73 dB Omnidirectional 80 dB |
| Dynamic Range 1 k½ load, @ 1 kHz |
96 dB |
| Common Mode Rejection, 10 Hz to 100 kHz | 45 dB, minimum |
| Clipping Level at 1% THD | Ð6 dBV (0.5 V) |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Mute Switch | 50Ð20000 Hz Ð50 dB minimum |
| Logic Connections | LED IN Active low (²1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC-OUT Active low (²0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3k½). |
| Cable | MX392 3_ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated MX392BE 3_ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated, bottom exit MX393 3_ m (12 ft) detachable cable with 3-pin audio connector |
| Weight | 172 g (0.38 lbs) |
| Environmental Conditions | Operating Temperature -18-57 ¡C(0-135 ¡F) Storage Temperature -29-74 ¡C(-20-165 ¡F) Relative Humidity 0-95% |
| Power Requirements | 11-52V DC , 2.0 mA |
| FURNISHED ACCESSORIES | Paint Mask 80C514 Switch Paint Mask 80A541 Set of 5 rubber pads with adhesive RPM470 |
