DescriptionThe Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized tab... Read More
Retail Price: $312.00 Our Price: $223.00
Free Shipping (Continental US)

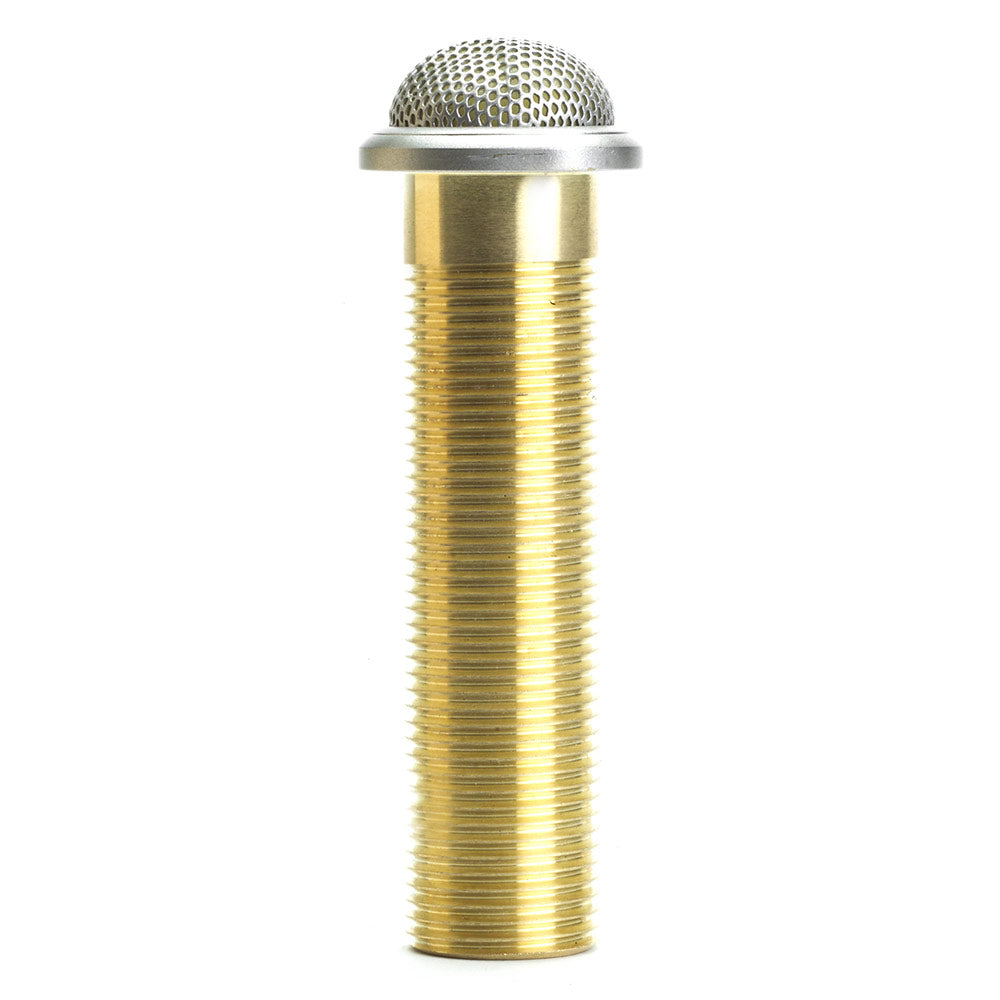

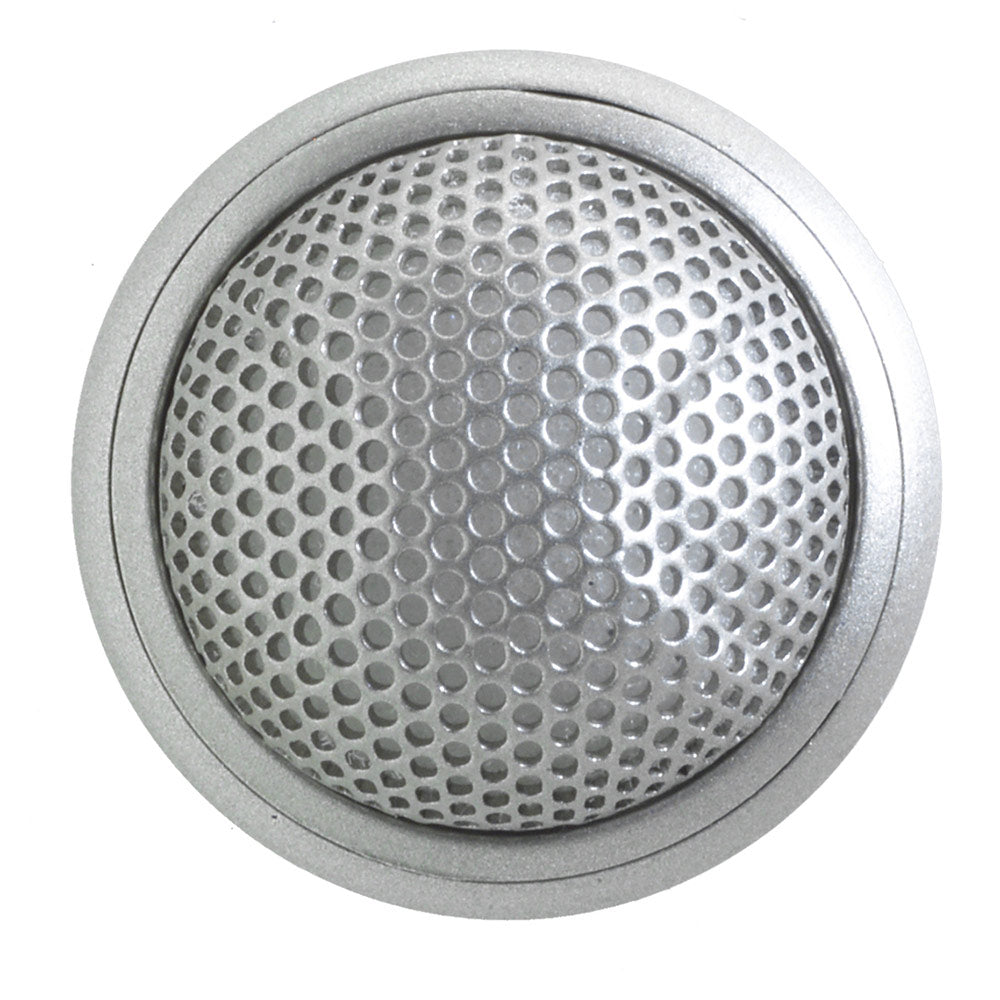

The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
|Type||Condenser (electret bias)|
|Frequency Response||50 to 17000 Hz|
|Polar Pattern||MX395/BI: Bidirectional|
|Output Impedance||EIA Rated at 150 Ohms (170 Ohms actual)|
|Output Configuration||Active balanced|
|Sensitivity (at 1 kHz , open circuit voltage)||Bidirectional: -37 dBV/Pa (14 mV) |
1 Pascal=94 dB SPL
|Maximum SPL (1 kHz at 1% THD, 1 kilohms load)||Bidirectional: 123 dB|
|Equivalent output Noise (A-weighted)||Bidirectional: 29 dB SPL|
|Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)||Bidirectional: 65 dB|
|Dynamic Range (1 kilohm load at 1 kHz)||Bidirectional: 94 dB|
|Common Mode Rejection (10 Hz - 100 kHz)||45 dB minimum|
|Preamplifier output Clipping level (1% THD)||-8 dBV (0.4 V)|
|Polarity||3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. |
5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
|Weight||Net: 0.136 kg (0.30 lbs.)|
Packaged: 0.374 kg (0.825 lbs.)
|Logic Connections||LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.|
|Environmental Conditions||Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F)|
Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
Relative Humidity: 0 to 95%
|Power Requirements||MX395: 11 - 52 Vdc phantom, 2.0 mA|
MX395-LED: 48 - 52 Vdc phantom, 8.0 mA
