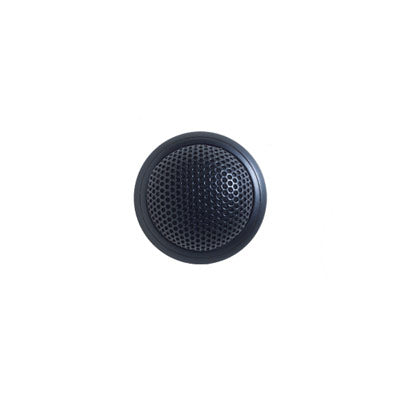

Shure MX395B/BI Black Microflex Bi-Directional Low Profile Boundry Table Microphone


  • Dale #:

    SHUR-MX395BBI
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized tab... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.

Features

  • Only 1.25 inch (3.8 cm) in diameter
  • Cardioid, omni and bidirectional polar patterns
  • Wide dynamic range and smooth frequency response
  • Available in black, white and aluminum
  • Bi-color status indicator available with -LED models
  • Logic input for remote LED control
  • CommShield® Technology

More +

Product Specs

TypeCondenser (electret bias)
Frequency Response50 to 17000 Hz
Polar PatternMX395/BI: Bidirectional
Output ImpedanceEIA Rated at 150 Ohms (170 Ohms actual)
Output ConfigurationActive balanced
Sensitivity (at 1 kHz , open circuit voltage)Bidirectional: -37 dBV/Pa (14 mV)
1 Pascal=94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 kilohms load)Bidirectional: 123 dB
Equivalent output Noise (A-weighted)Bidirectional: 29 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)Bidirectional: 65 dB
Dynamic Range (1 kilohm load at 1 kHz)Bidirectional: 94 dB
Common Mode Rejection (10 Hz - 100 kHz)45 dB minimum
Preamplifier output Clipping level (1% THD)-8 dBV (0.4 V)
Polarity3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
WeightNet: 0.136 kg (0.30 lbs.)
Packaged: 0.374 kg (0.825 lbs.)
Logic ConnectionsLED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
Environmental ConditionsOperating Temperature: -18 to 57 deg. C (0 to 135 deg. F)
Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F)
Relative Humidity: 0 to 95%
Power RequirementsMX395: 11 - 52 Vdc phantom, 2.0 mA
MX395-LED: 48 - 52 Vdc phantom, 8.0 mA
