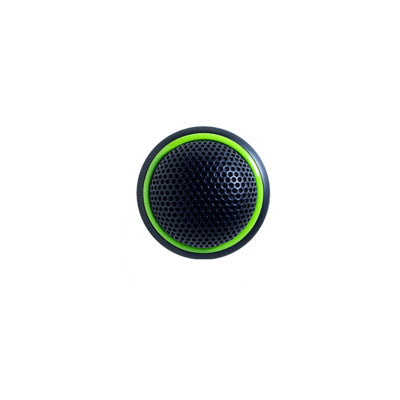

Shure MX395B/C-LED Black Microflex Cardioid Low Profile Boundry Table Microphone with LED
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
Features
- Only 1.25 inch (3.8 cm) in diameter
- Cardioid, omni and bidirectional polar patterns
- Wide dynamic range and smooth frequency response
- Available in black, white and aluminum
- Bi-color status indicator available with -LED models
- Logic input for remote LED control
- CommShield® Technology
| Type | >Condenser (electret bias) |
| Frequency Response | >50 to 17000 Hz |
| Polar Pattern | >MX395/C: Cardioid |
| Output Impedance | >EIA Rated at 150 Ohms (170 Ohms actual) |
| Output Configuration | >Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | >Cardioid: Ð35 dBV/Pa (18 mV) 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kilohms load) | >Cardioid: 121 dB |
| Equivalent output Noise (A-weighted) | >Cardioid: 28 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | >Cardioid: 66 dB |
| Dynamic Range (1 kilohm load at 1 kHz) | >Cardioid: 93 dB |
| Common Mode Rejection (10 Hz - 100 kHz) | >45 dB minimum |
| Preamplifier output Clipping level (1% THD) | >-8 dBV (0.4 V) |
| Polarity | >3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Weight | >Net: 0.136 kg (0.30 lbs.) Packaged: 0.374 kg (0.825 lbs.) |
| Logic Connections | >LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. |
| Environmental Conditions | >Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F) Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F) Relative Humidity: 0 to 95% |
| Power Requirements | >MX395: 11 - 52 Vdc phantom, 2.0 mA MX395-LED: 48 - 52 Vdc phantom, 8.0 mA |
The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.
Features
- Only 1.25 inch (3.8 cm) in diameter
- Cardioid, omni and bidirectional polar patterns
- Wide dynamic range and smooth frequency response
- Available in black, white and aluminum
- Bi-color status indicator available with -LED models
- Logic input for remote LED control
- CommShield® Technology
| Type | >Condenser (electret bias) |
| Frequency Response | >50 to 17000 Hz |
| Polar Pattern | >MX395/C: Cardioid |
| Output Impedance | >EIA Rated at 150 Ohms (170 Ohms actual) |
| Output Configuration | >Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | >Cardioid: Ð35 dBV/Pa (18 mV) 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kilohms load) | >Cardioid: 121 dB |
| Equivalent output Noise (A-weighted) | >Cardioid: 28 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | >Cardioid: 66 dB |
| Dynamic Range (1 kilohm load at 1 kHz) | >Cardioid: 93 dB |
| Common Mode Rejection (10 Hz - 100 kHz) | >45 dB minimum |
| Preamplifier output Clipping level (1% THD) | >-8 dBV (0.4 V) |
| Polarity | >3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Weight | >Net: 0.136 kg (0.30 lbs.) Packaged: 0.374 kg (0.825 lbs.) |
| Logic Connections | >LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. |
| Environmental Conditions | >Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F) Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F) Relative Humidity: 0 to 95% |
| Power Requirements | >MX395: 11 - 52 Vdc phantom, 2.0 mA MX395-LED: 48 - 52 Vdc phantom, 8.0 mA |
