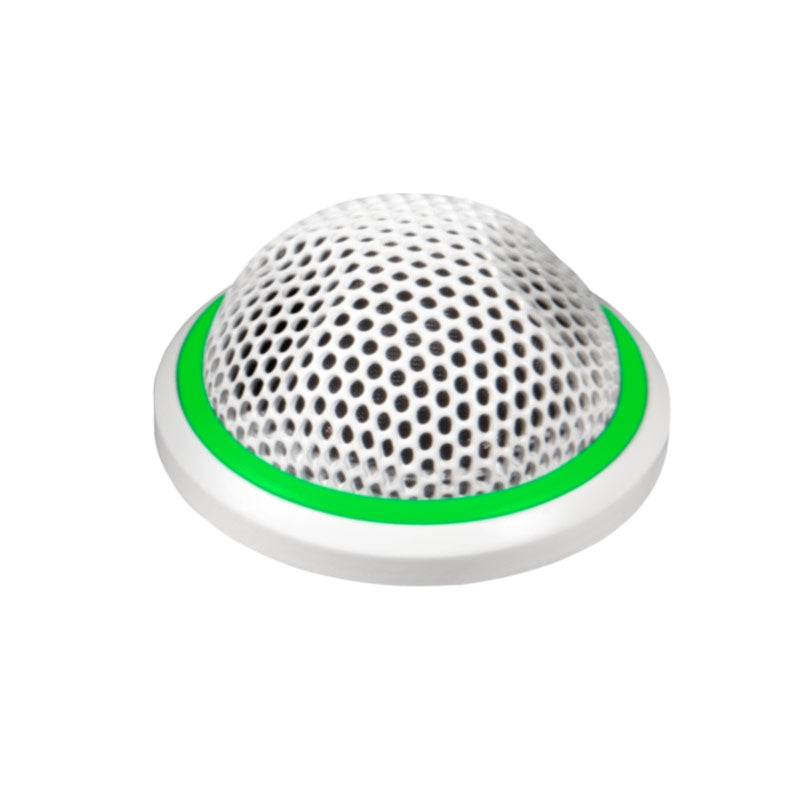

Shure MX395W/BI-LED White Bidirectional Miniature Boundary Mic, Bi-Color LED Status Indicator


  • Dale #:

    SHUR-MX395WBILED
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room. It features wide dynamic range and smooth frequency response, remote LED control, and 3 color options. Features: Only 1.25 inch (3.8 cm) in diameter ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room. It features wide dynamic range and smooth frequency response, remote LED control, and 3 color options.

Features:

  • Only 1.25 inch (3.8 cm) in diameter
  • Cardioid, omni and bidirectional polar patterns
  • Wide dynamic range and smooth frequency response
  • Available in black, white and aluminum
  • Bi-color status indicator available with -LED models
  • Logic input for remote LED control
  • CommShield® Technology

The Microflex® Low Profile Boundary microphone is an ideal table microphone when minimal presence is of high priority. Perfect for meeting rooms, these microphones deliver exceptional sound pickup while barely being noticed. Choose from a selection of colors and pickup patterns for customized table installations.

Cartridge polar pattern indicated by model number suffix:

  • C = Cardioid
  • BI = Bidirectional
  • O = Omnidirectional

More +

Product Specs

TypeCondenser (electret bias)
Frequency Response50-17000 Hz
Polar Pattern (at 1 kHz)
MX395/OOmnidirectional
MX395/CCardioid
MX395/BIBidirectional
Output ImpedanceEIA Rated at 150 ? (170 ? actual)
Output ConfigurationActive Balanced
Sensitivity (at 1 kHz , open circuit voltage) 1 Pascal=94 dB SPL
Cardioid-35 dBV/Pa (18 mV)
Omnidirectional-28 dBV/Pa (42 mV)
Bidirectional-37 dBV/Pa (14 mV)
Maximum SPL (1 kHz at 1% THD, 1 k? load)
Cardioid121 dB
Omnidirectional114 dB
Bidirectional123 dB
Equivalent Output Noise (A-weighted)
Cardioid28 dB SPL
Omnidirectional21 dB SPL
Bidirectional29 dB
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Cardioid66 dB
Omnidirectional75 dB
Bidirectional65 dB
Dynamic Range (1 k? load at 1 kHz)
Cardioid93 dB
Omnidirectional93 dB
Bidirectional94 dB
Common Mode Rejection45 dB minimum (10 Hz to 100 kHz)
Preamplifier Output Clipping Level-8 dBV (0.4 V) (1% THD)
Polarity
3-Pin XLRPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLRPositive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
Weight
Net.136 kg (.30 lb)
Packaged0.374 kg (0.825 lbs)
Logic Connections
LED INActive low (?1.0V), TTL compatible.
Absolute maximum voltage-0.7V to 50V
Environmental Conditions
Operating Temperature-18-57 °C (0-135 °F)
Storage Temperature-29-74 °C (-20-165 °F)
Relative Humidity0-95%
Power Requirements
MX39511-52 Vdc phantom, 2.0 mA
MX395-LED48-52 Vdc phantom, 8.0 mA
