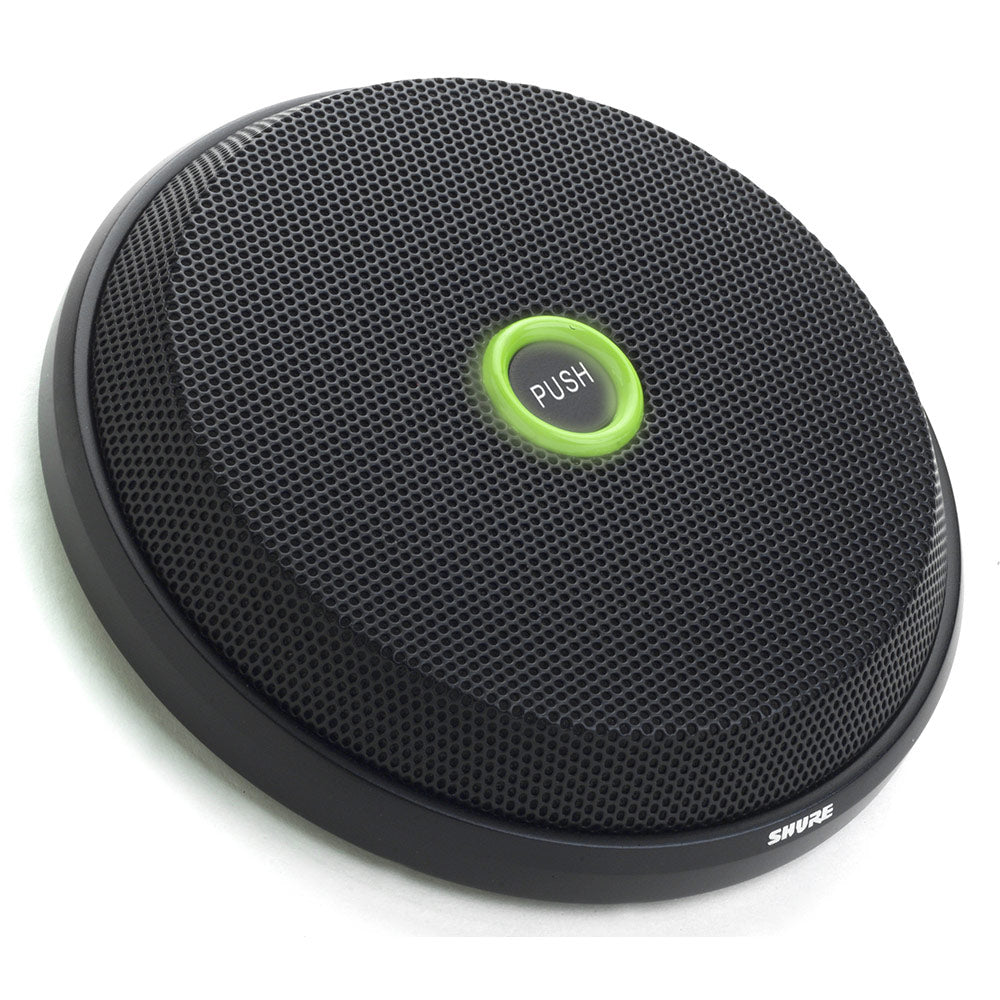

Shure MX396/C-DUAL Microflex Dual Element Boundary Mic (0-180 Degrees)
Dale #:
SHUR-MX396CDUALAvailability:
Not in Stock - Reserve YoursThis item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.
Description
The Microflex® Multi-Element Boundary microphone delivers a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact ... Read MoreRetail Price: $702.00 Our Price: $501.00
Free Shipping (Continental US)
Suggested Accessories
Description
The Microflex® Multi-Element Boundary microphone delivers a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Features
- End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
- Individual audio output for each element
- Bi-color status indicator
- Programmable mute switch
- Logic input/output for remote LED and mute control
- CommShield® Technology
More +
Product Specs
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17000 Hz |
| Polar Pattern | MX396/C-DUAL: 2 x Cardioid |
| Output Impedance | EIA Rated at 150 Ohms (170 Ohms actual) |
| Output Configuration | Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | -35 dBV/Pa (18 mV) 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kilohms load) | 122 dB |
| Equivalent Output Noise (A-weighted) | 28 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | 66 dB |
| Dynamic Range (1 kilohm load at 1 kHz) | 94 dB |
| Common Mode Rejection (10 Hz to 100 kHz) | 45 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | -7 dBV (0.5 V) |
| Weight | Net: 0.587 kg (1.29 lbs.) Packaged: 0.916 kg (2.02 lbs.) |
| Logic Connections | LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms) |
| Mute Switch Attenuation | -50 dB minimum |
| Cable | 6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control |
| Environmental Conditions | Operating Temperature: -18 to 57 deg. C (0 to 135 deg. F) Storage Temperature: -29 to 74 deg. C (-20 to 165 deg. F) Relative Humidity: 0 to 95% |
| Power Requirements | MX396/C-DUAL: 48–52 Vdc phantom, 10.0 mA |
