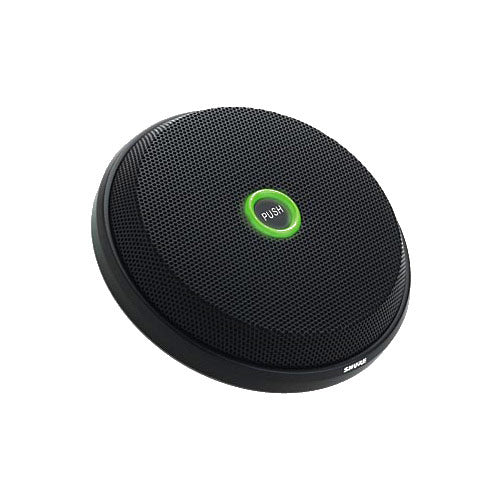

Shure MX396/C-TRI Microflex Multi-Element Boundary Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Microflex® Multi-Element Boundary microphone delivers a unique and versatile tool for conference room installations.
Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Features:
- End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
- Individual audio output for each element
- Bi-color status indicator
- Programmable mute switch
- Logic input/output for remote LED and mute control
- CommShield® Technology
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17000 Hz |
| Polar Pattern | |
| MX396/C-DUAL | 2 x Cardioid |
| MX396/C-TRI | 3 x Cardioid |
| Output Impedance | EIA Rated at 150 Ohms (170 Ohms actual) |
| Output Configuration | Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | -35 dBV/Pa (18 mV) ; 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kilohms load) | 122 dB |
| Equivalent Output Noise (A-weighted) | 28 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | 66 dB |
| Dynamic Range (1 kilohm load at 1 kHz) | 94 dB |
| Common Mode Rejection (10 Hz to 100 kHz) | 45 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | -7 dBV (0.5 V) |
| Weight | |
| Net | 0.587 kg (1.29 lbs.) |
| Packaged | 0.916 kg (2.02 lbs.) |
| Logic Connections | |
| LED IN | Active low (=1.0V), TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V. |
| LOGIC OUT | Active low (=1.0V), sinks up to 20mA, TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V (up to 50V through 3 kilohms) |
| Mute Switch Attenuation | -50 dB minimum |
| Cable | 6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control |
| Environmental Conditions | |
| Operating Temperature | -18 to 57 deg. C (0 to 135 deg. F) |
| Storage Temperature | -29 to 74 deg. C (-20 to 165 deg. F) |
| Relative Humidity | 0 to 95% |
| Power Requirements | |
| MX396/C-DUAL | 48Ð52 Vdc phantom, 10.0 mA |
| MX396/C-TRI | 48Ð52 Vdc phantom, 12.0 mA |
The Microflex® Multi-Element Boundary microphone delivers a unique and versatile tool for conference room installations.
Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Features:
- End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
- Individual audio output for each element
- Bi-color status indicator
- Programmable mute switch
- Logic input/output for remote LED and mute control
- CommShield® Technology
| Type | Condenser (electret bias) |
| Frequency Response | 50 to 17000 Hz |
| Polar Pattern | |
| MX396/C-DUAL | 2 x Cardioid |
| MX396/C-TRI | 3 x Cardioid |
| Output Impedance | EIA Rated at 150 Ohms (170 Ohms actual) |
| Output Configuration | Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | -35 dBV/Pa (18 mV) ; 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kilohms load) | 122 dB |
| Equivalent Output Noise (A-weighted) | 28 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | 66 dB |
| Dynamic Range (1 kilohm load at 1 kHz) | 94 dB |
| Common Mode Rejection (10 Hz to 100 kHz) | 45 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | -7 dBV (0.5 V) |
| Weight | |
| Net | 0.587 kg (1.29 lbs.) |
| Packaged | 0.916 kg (2.02 lbs.) |
| Logic Connections | |
| LED IN | Active low (=1.0V), TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V. |
| LOGIC OUT | Active low (=1.0V), sinks up to 20mA, TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V (up to 50V through 3 kilohms) |
| Mute Switch Attenuation | -50 dB minimum |
| Cable | 6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control |
| Environmental Conditions | |
| Operating Temperature | -18 to 57 deg. C (0 to 135 deg. F) |
| Storage Temperature | -29 to 74 deg. C (-20 to 165 deg. F) |
| Relative Humidity | 0 to 95% |
| Power Requirements | |
| MX396/C-DUAL | 48Ð52 Vdc phantom, 10.0 mA |
| MX396/C-TRI | 48Ð52 Vdc phantom, 12.0 mA |
