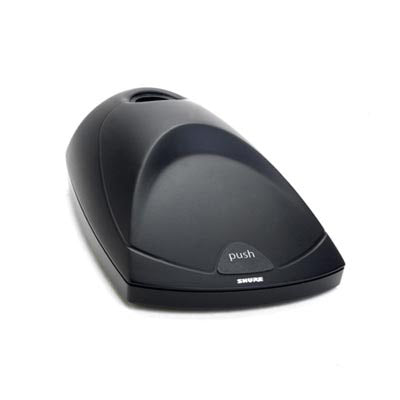

Shure MX400DP Wired Desktop Base for MX405 and MX410 Microflex Gooseneck Microphones with Mute
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Desktop Base for MX405 and MX410 models
Features:- Available in 5 inch (127 mm) and 10 inch (254 mm) lengths
- Cardioid and supercardioid polar patterns
- Bi-color status indicator or single color light ring
- Programmable mute switch (desktop models only)
- Logic input/output for remote LED and mute control
- Surface-mount and wired or wireless desktop base options
- CommShield Technology for improved RF filtering`
Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it's easy to get the perfect fit for your conferencing installation. Fully compatible with SLX wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality
| Polar Pattern | MX405/C, MX410/C: Cardioid; MX405/S, MX410/S: Supercardioid |
| Output Impedance | EIA Rated at 150 ohms (170 ohms actual) |
| Output Configuration | Active balanced |
| Sensitivity (at 1 kHz , open circuit voltage) | Cardioid: Ð35 dBV/Pa (18 mV); Supercardioid: Ð34 dBV/Pa (21 mV); 1 Pascal=94 dB SPL |
| Maximum SPL (1 kHz at 1% THD, 1 kohms load) | Cardioid: 121 dB; Supercardioid: 120 dB |
| Equivalent Output Noise (A-weighted) | Cardioid: 28 dB SPL; Supercardioid: 27 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | Cardioid: 66 dB; Supercardioid: 68 dB |
| Dynamic Range (1 kohms load at 1 kHz) | 93 dB |
| Common Mode Rejection (10 Hz to 100 kHz) | 45 dB minimum |
| Preamplifier Output Clipping Level (1% THD) | Ð8 dBV (0.4 V) |
| Polarity | |
| 3-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. |
| 5-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Net Weight | 0.125 kg (0.275 lbs) |
| Logic Connections | LED IN: Active low (<=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V; LOGIC OUT: Active low (<=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kohms). |
| Mute Switch Attenuation | Ð50 dB minimum |
| Cable | 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control |
| Environmental Conditions | |
| Operating Temperature | -18Ð57 ¡C (0Ð135 ¡F) |
| Storage Temperature | -29Ð74 ¡C (-20Ð165 ¡F) |
| Relative Humidity | 0Ð95% |
| Power Requirements | 48Ð52 Vdc phantom, 8.0 mA |
