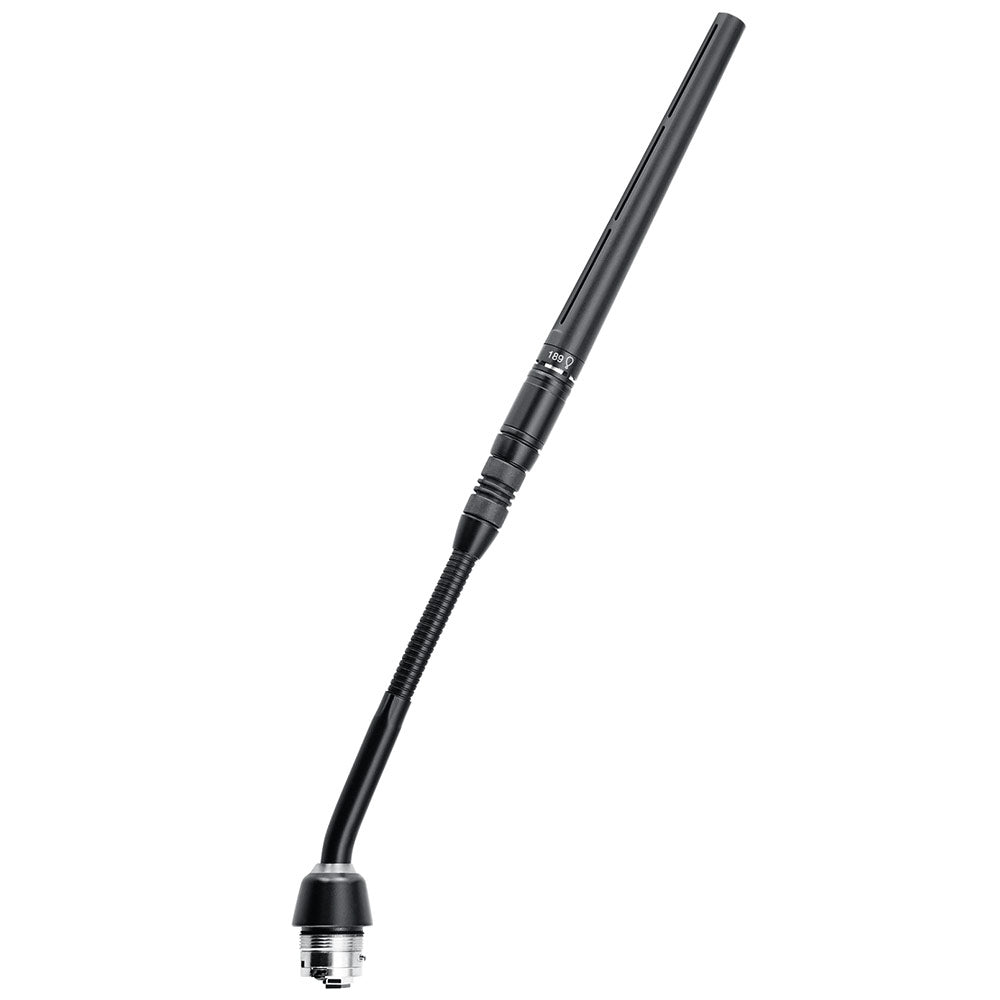

Shure MX405RLP/S 5" Supercardioid Gooseneck Microphone with LED Ring


  • Dale #:

    SHUR-MX405RLPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.Features: Gooseneck length: 5 inch / 12.7 cm) Low profile, aesthetic design Wide dynamic rang... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

Features:

  • Gooseneck length: 5 inch / 12.7 cm)
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield™ technology
  • Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
  • Capsule options: None, Cardioid, Supercardioid
  • Preamplifier Options
    • MX400DP
      • Desktop Base for MX405 and MX410 models
    • MX890
      • Wireless Desktop Base for MX405 and MX410 models
    • MX400SMP
      • Surface Mount Preamp for MX405 and MX410 models
    • MXW8
      • Wireless Desktop Base for MX405, MX410 and MX415 models
    • ULXD8
      • Wireless Desktop Base for MX405, MX410 and MX415 models

Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it’s easy to get the perfect fit for your conferencing installation. Fully compatible with SLX® wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.

More +

Product Specs

TypeCondenser (electret bias)
Frequency Response50-17000 Hz
Polar Pattern (at 1 kHz)
MX405/C, MX410/CCardioid
MX405/S, MX410/SSupercardioid
Output ImpedanceEIA Rated at 150 ? (170 ? actual)
Output ConfigurationActive Balanced
Sensitivity (at 1 kHz , open circuit voltage) 1 Pascal=94 dB SPL
Cardioid-35 dBV/Pa (18 mV)
Supercardioid-34 dBV/Pa (21 mV)
Maximum SPL (1 kHz at 1% THD, 1 k? load)
Cardioid121 dB
Supercardioid120 dB
Equivalent Output Noise (A-weighted)
Cardioid28 dB SPL
Supercardioid27 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz)
Cardioid66 dB
Supercardioid68 dB
Dynamic Range (1 k? load at 1 kHz)93 dB
Common Mode Rejection45 dB minimum
Preamplifier Output Clipping Level-8 dBV (0.4 V)
Polarity
3-Pin XLRPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
5-Pin XLRPositive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
Weight
MX4050.054 kg (0.119 lbs)
MX4100.068 kg (0.150 lbs)
MX400DP0.516 kg (1.138 lbs)
MX400SMP (w/ Kit)0.125 kg (0.275 lbs)
Logic Connections
LED INActive low (?1.0V), TTL compatible.
Absolute maximum voltage-0.7V to 50V
LED OUTActive low (?1.0V), sinks up to 20mA, TTL compatible.
Absolute maximum voltage-0.7V to 50V (up to 50V through 3k?)
Cable
MX400DP6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental Conditions
Operating Temperature-18-57 °C (0-135 °F)
Storage Temperature-29-74 °C (-20-165 °F)
Relative Humidity0-95%
Power Requirements48-52 Vdc phantom, 8.0 mA
