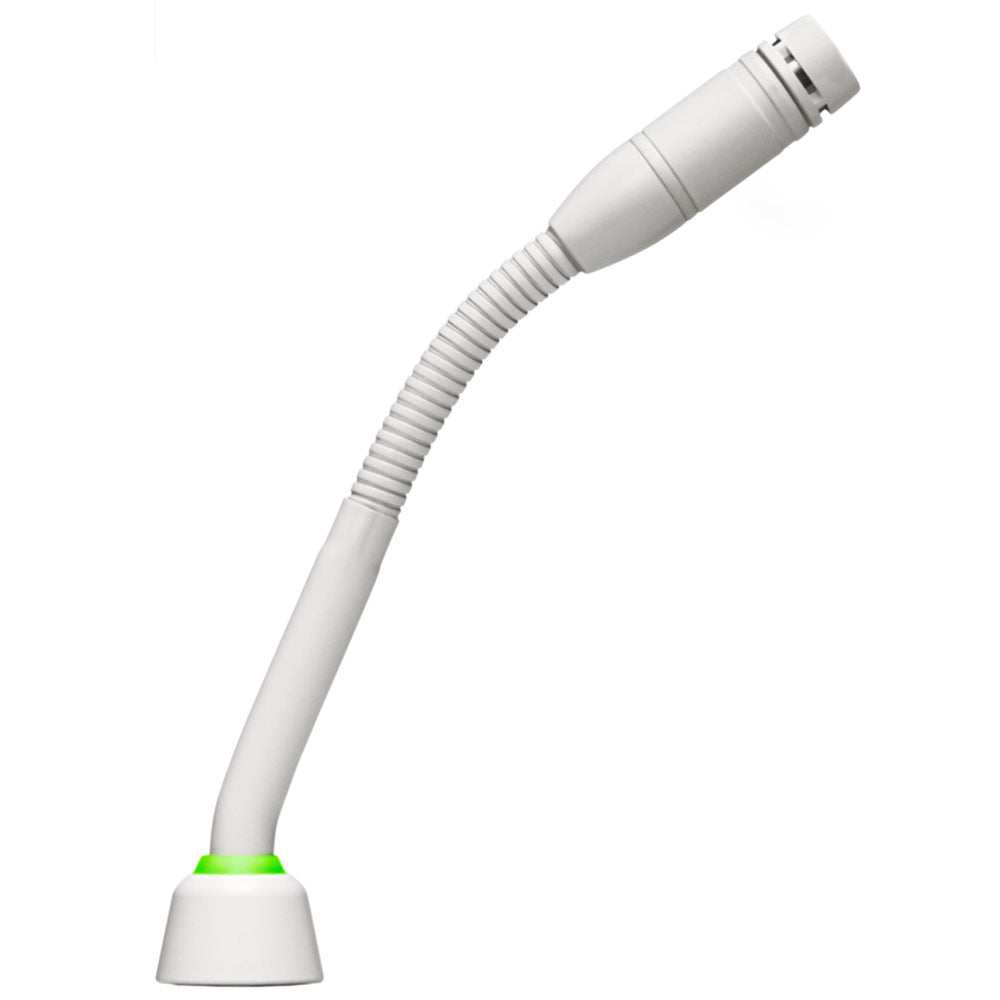

Shure MX405WLP/N 5" White Gooseneck Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Features:
- Gooseneck length: 5 inch / 12.7 cm)
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield™ technology
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
- Capsule options: None, Cardioid, Supercardioid
-
Preamplifier Options
-
MX400DP
- Desktop Base for MX405 and MX410 models
-
MX890
- Wireless Desktop Base for MX405 and MX410 models
-
MX400SMP
- Surface Mount Preamp for MX405 and MX410 models
-
MXW8
- Wireless Desktop Base for MX405, MX410 and MX415 models
-
ULXD8
- Wireless Desktop Base for MX405, MX410 and MX415 models
-
MX400DP
Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it’s easy to get the perfect fit for your conferencing installation. Fully compatible with SLX® wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.
| Type | Condenser (electret bias) |
| Frequency Response | 50-17000 Hz |
| Polar Pattern (at 1 kHz) | |
| MX405/C, MX410/C | Cardioid |
| MX405/S, MX410/S | Supercardioid |
| Output Impedance | EIA Rated at 150 ? (170 ? actual) |
| Output Configuration | Active Balanced |
| Sensitivity (at 1 kHz , open circuit voltage) 1 Pascal=94 dB SPL | |
| Cardioid | -35 dBV/Pa (18 mV) |
| Supercardioid | -34 dBV/Pa (21 mV) |
| Maximum SPL (1 kHz at 1% THD, 1 k? load) | |
| Cardioid | 121 dB |
| Supercardioid | 120 dB |
| Equivalent Output Noise (A-weighted) | |
| Cardioid | 28 dB SPL |
| Supercardioid | 27 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | |
| Cardioid | 66 dB |
| Supercardioid | 68 dB |
| Dynamic Range (1 k? load at 1 kHz) | 93 dB |
| Common Mode Rejection | 45 dB minimum |
| Preamplifier Output Clipping Level | -8 dBV (0.4 V) |
| Polarity | |
| 3-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. |
| 5-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Weight | |
| MX405 | 0.054 kg (0.119 lbs) |
| MX410 | 0.068 kg (0.150 lbs) |
| MX400DP | 0.516 kg (1.138 lbs) |
| MX400SMP (w/ Kit) | 0.125 kg (0.275 lbs) |
| Logic Connections | |
| LED IN | Active low (?1.0V), TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V |
| LED OUT | Active low (?1.0V), sinks up to 20mA, TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V (up to 50V through 3k?) |
| Cable | |
| MX400DP | 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control |
| Environmental Conditions | |
| Operating Temperature | -18-57 ¡C (0-135 ¡F) |
| Storage Temperature | -29-74 ¡C (-20-165 ¡F) |
| Relative Humidity | 0-95% |
| Power Requirements | 48-52 Vdc phantom, 8.0 mA |
The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Features:
- Gooseneck length: 5 inch / 12.7 cm)
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield™ technology
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top
- Capsule options: None, Cardioid, Supercardioid
-
Preamplifier Options
-
MX400DP
- Desktop Base for MX405 and MX410 models
-
MX890
- Wireless Desktop Base for MX405 and MX410 models
-
MX400SMP
- Surface Mount Preamp for MX405 and MX410 models
-
MXW8
- Wireless Desktop Base for MX405, MX410 and MX415 models
-
ULXD8
- Wireless Desktop Base for MX405, MX410 and MX415 models
-
MX400DP
Flexible in more ways than one, Microflex Miniature Gooseneck microphones deliver unsurpassed style and performance for conference rooms and similar applications. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, it’s easy to get the perfect fit for your conferencing installation. Fully compatible with SLX® wireless systems, including the SLX4L wireless receiver with logic output for applications requiring logic functionality.
| Type | Condenser (electret bias) |
| Frequency Response | 50-17000 Hz |
| Polar Pattern (at 1 kHz) | |
| MX405/C, MX410/C | Cardioid |
| MX405/S, MX410/S | Supercardioid |
| Output Impedance | EIA Rated at 150 ? (170 ? actual) |
| Output Configuration | Active Balanced |
| Sensitivity (at 1 kHz , open circuit voltage) 1 Pascal=94 dB SPL | |
| Cardioid | -35 dBV/Pa (18 mV) |
| Supercardioid | -34 dBV/Pa (21 mV) |
| Maximum SPL (1 kHz at 1% THD, 1 k? load) | |
| Cardioid | 121 dB |
| Supercardioid | 120 dB |
| Equivalent Output Noise (A-weighted) | |
| Cardioid | 28 dB SPL |
| Supercardioid | 27 dB SPL |
| Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz) | |
| Cardioid | 66 dB |
| Supercardioid | 68 dB |
| Dynamic Range (1 k? load at 1 kHz) | 93 dB |
| Common Mode Rejection | 45 dB minimum |
| Preamplifier Output Clipping Level | -8 dBV (0.4 V) |
| Polarity | |
| 3-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector. |
| 5-Pin XLR | Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector. |
| Weight | |
| MX405 | 0.054 kg (0.119 lbs) |
| MX410 | 0.068 kg (0.150 lbs) |
| MX400DP | 0.516 kg (1.138 lbs) |
| MX400SMP (w/ Kit) | 0.125 kg (0.275 lbs) |
| Logic Connections | |
| LED IN | Active low (?1.0V), TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V |
| LED OUT | Active low (?1.0V), sinks up to 20mA, TTL compatible. |
| Absolute maximum voltage | -0.7V to 50V (up to 50V through 3k?) |
| Cable | |
| MX400DP | 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control |
| Environmental Conditions | |
| Operating Temperature | -18-57 ¡C (0-135 ¡F) |
| Storage Temperature | -29-74 ¡C (-20-165 ¡F) |
| Relative Humidity | 0-95% |
| Power Requirements | 48-52 Vdc phantom, 8.0 mA |
