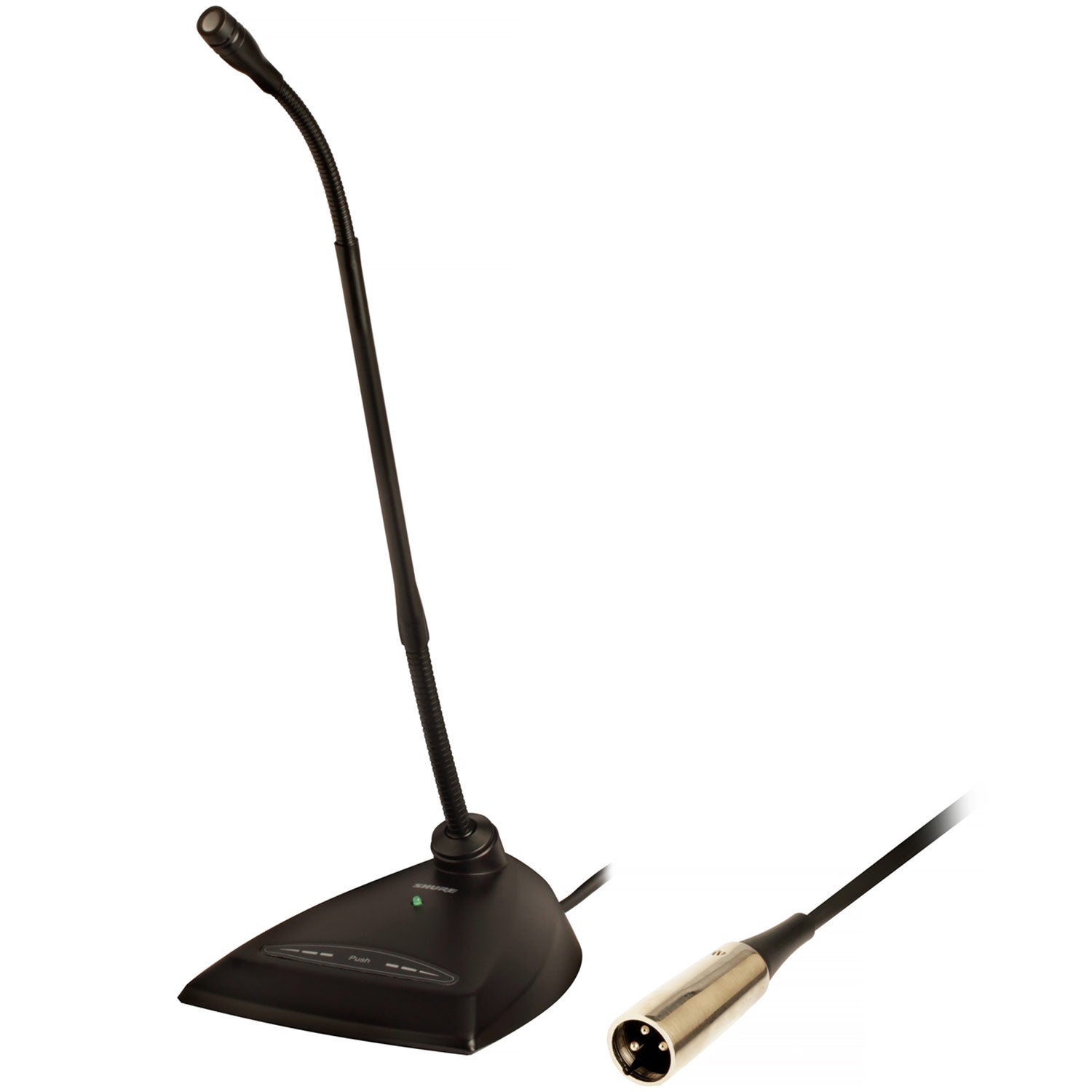

Shure MX412D/N Microflex 12 Inch Gooseneck Microphone (No Cartridge, Desk Mount)


  • Dale #:

    SHUR-MX412DN
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Microflex® Standard Gooseneck microphones bring a whole new meaning to the word flexible with their fully adjustable gooseneck. Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Microflex® Standard Gooseneck microphones bring a whole new meaning to the word flexible with their fully adjustable gooseneck. Designed for easy replacement and available in cardioid, supercardioid and omnidirectional polar patterns, the interchangeable cartridges offer wide frequency response and accurate sound reproduction for a wide variety of applications, such as houses of worship, courtrooms and conference centers. Plus, the condenser cartridges fit every model in the Microflex product line for enhanced convenience and consistent sound.

MX412D/N: No Cartridge, 12, Desktop Base with 10' Cable, Logic Functions, Programmable Switch, LED Indicator, Snap-Fit Foam Windscreen

Features:

  • Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
  • Interchangeable cartridges provide the right polar pattern for every application
  • Balanced, transformerless output for increased immunity to electromagnetic hum and RF interference over long cable runs
  • Shock mount provides over 20 dB isolation from surface vibration noise
  • Locking flange mount for permanently securing microphone to lecterns, pulpits, or conference tables
  • Snap-fit foam windscreen
  • Programmable on/off switch and LED on/off indicator (MX412D/MX418D)
  • New brighter LED improves visibility under strong ambient lighting (MX412D/MX418D)
  • Logic input and output terminals for remote control or use with automatic microphone mixers (MX412D/MX418D)
  • Supplied shock mount for more than 20 dB isolation from surface transmitted noise (MX412SE/MX418SE)
  • Supplied threaded flange mount for permanently securing the microphone to a lectern, pulpit, or conference table (MX412SE/MX418SE)

More +

Product Specs

Frequency Response50 to 17,000 Hz
Output Impedance (at 1000 Hz)180 ohms actual (rated at 150 ohms)
Sensitivity (At 1,000 Hz, open circuit voltage)Cardioid: -35.0 dBV/Pa (17.8 mV)
Supercardioid: -33.5 dBV/Pa (21.1 mV)
Omnidirectional: -27.5 dBV/Pa (42.2 mV)
All values -12 dB at 0 gain; 1 Pascal = 94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 k ohm load)Cardioid: 124.2 dB
Supercardioid: 122.7 dB
Omnidirectional: 116.7 dB
All values +6 dB at 0 gain
Signal to Noise Ratio (referenced at 94 dB SPL)Cardioid: 66.0 dB
Supercardioid: 67.5 dB
Omnidirectional: 73.5 dB
Equivalent Output Noise (A-weighted)Cardioid: 28.0 dB SPL
Supercardioid: 26.5 dB SPL
Omnidirectional: 20.5 dB SPL
Dynamic Range at 1 k ohm Load96.2 dB
100 dB at 0 gain
Common Mode Rejection45 dB minimum
Preamplifier Output Clipping Level (1% THD)-6.0 dBV (0.5 V)
-12 dBV at 0 gain
PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the preamplifier XLR output connector.
Power Requirements11 to 52 Vdc phantom
2.0 mA current consumption
Operating Temperature Range-18 to 57 degrees C (0 to 135 degrees F)
Relative Humidity0 to 95%
