Description

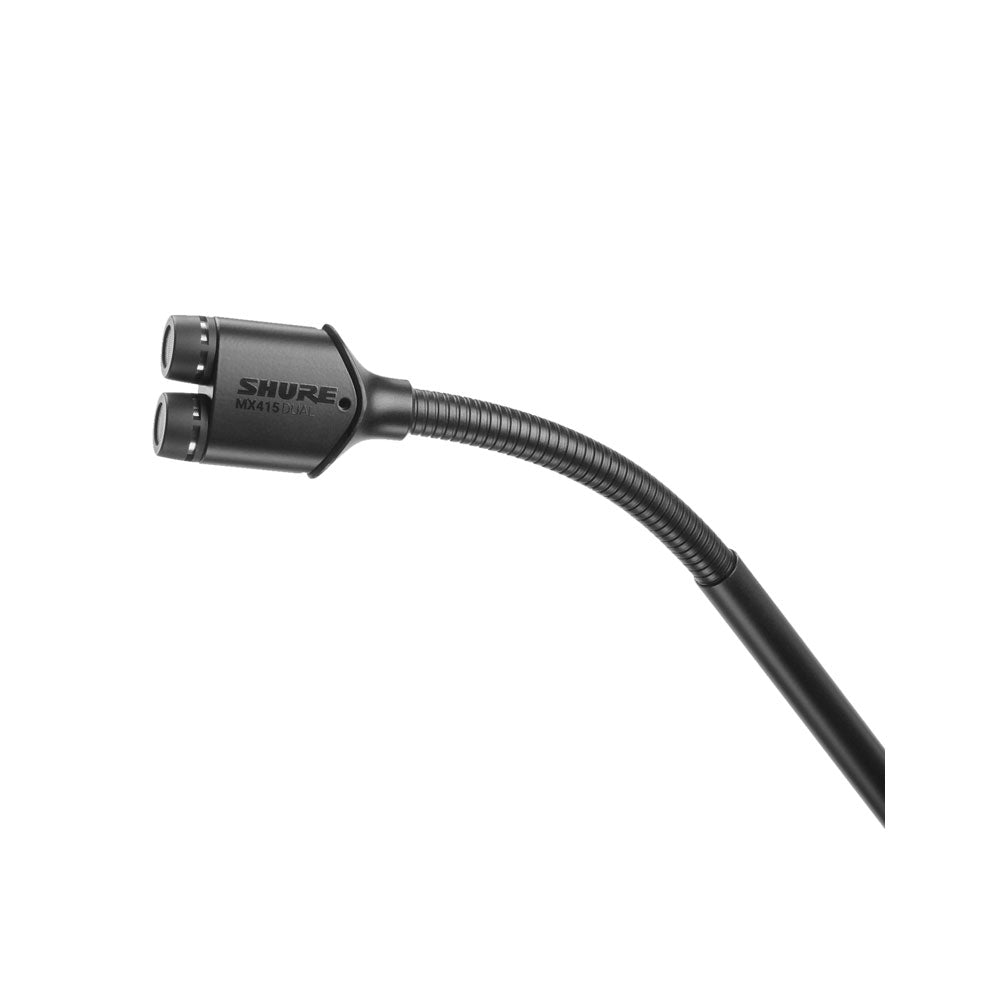

When important issues are on the line, the MX415DUAL/C captures it all - twice. The microphone features two electret condenser cartridges mounted in a single low-profile housing and two preamp-equipped outputs providing redundant audio for critical, multi-feed live sound and professional broadcast applications. The MXA415D has a 15" overall length and equipped with a flexible top gooseneck section for optimal placement.
Features:
- 15-inch gooseneck
- Low-profile dual cardioid capsule design
- Single-flex gooseneck provides optimal mic adjustment
- Mounts on table, lectern, podium or similar surface
The MX415DUAL/C delivers redundant audio capture for applications that require premium results when failure isn’t an option. With a unique dual capsule design, every word is captured simultaneously by two cardioid cartridges, each to a separate output preamp – providing reliable multi-feed audio for a variety of applications.
All the details are captured
Low profile dual cartridge, dual-feed design ensures the signal gets through.
Everything Is Covered
A complete set of included accessories are included to meet a variety of placement needs – from lectern, to table, to podium.
Clean signal
Shure Commshield® technology is built into Microflex to reject RF interference from mobile devices, keeping focus on the speech.
Cartridge Type | Electret Condenser |
Frequency Response | 50Ð17000 Hz |
Polar Pattern | Cardioid |
Output Impedance | 180 ½ |
Output Configuration | Active Balanced |
Sensitivity @ 1 kHz, open circuit voltage |
Ð35 dBV/Pa (18 mV) |
Maximum SPL, 1 kHz at 1% THD, 1 k½ load | 124 dB |
Self Noise, A-weighted | 28 dB SPL |
Signal-to-Noise Ratio, Ref. 94 dB SPL at 1 kHz | 66 dB |
Dynamic Range, 1 k½ load, @ 1 kHz | 96 dB |
Common Mode Rejection, 10 Hz to 100 kHz | 45 dB, minimum |
Clipping Level at 1% THD | -6 dBV |
Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Weight | 205 g (7.23 oz) |
Operating Temperature | -18 Ð 57¡C (0 Ð 135¡F) |
Storage Temperature | -29 Ð 74¡C (-20 Ð 165¡F) |
Relative Humidity | 0 Ð 95% |
Power Requirements | 11Ð52 V DC, 2.0 mA |
When important issues are on the line, the MX415DUAL/C captures it all - twice. The microphone features two electret condenser cartridges mounted in a single low-profile housing and two preamp-equipped outputs providing redundant audio for critical, multi-feed live sound and professional broadcast applications. The MXA415D has a 15" overall length and equipped with a flexible top gooseneck section for optimal placement.
Features:
- 15-inch gooseneck
- Low-profile dual cardioid capsule design
- Single-flex gooseneck provides optimal mic adjustment
- Mounts on table, lectern, podium or similar surface
The MX415DUAL/C delivers redundant audio capture for applications that require premium results when failure isn’t an option. With a unique dual capsule design, every word is captured simultaneously by two cardioid cartridges, each to a separate output preamp – providing reliable multi-feed audio for a variety of applications.
All the details are captured
Low profile dual cartridge, dual-feed design ensures the signal gets through.
Everything Is Covered
A complete set of included accessories are included to meet a variety of placement needs – from lectern, to table, to podium.
Clean signal
Shure Commshield® technology is built into Microflex to reject RF interference from mobile devices, keeping focus on the speech.
Cartridge Type | Electret Condenser |
Frequency Response | 50Ð17000 Hz |
Polar Pattern | Cardioid |
Output Impedance | 180 ½ |
Output Configuration | Active Balanced |
Sensitivity @ 1 kHz, open circuit voltage |
Ð35 dBV/Pa (18 mV) |
Maximum SPL, 1 kHz at 1% THD, 1 k½ load | 124 dB |
Self Noise, A-weighted | 28 dB SPL |
Signal-to-Noise Ratio, Ref. 94 dB SPL at 1 kHz | 66 dB |
Dynamic Range, 1 k½ load, @ 1 kHz | 96 dB |
Common Mode Rejection, 10 Hz to 100 kHz | 45 dB, minimum |
Clipping Level at 1% THD | -6 dBV |
Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
Weight | 205 g (7.23 oz) |
Operating Temperature | -18 Ð 57¡C (0 Ð 135¡F) |
Storage Temperature | -29 Ð 74¡C (-20 Ð 165¡F) |
Relative Humidity | 0 Ð 95% |
Power Requirements | 11Ð52 V DC, 2.0 mA |
