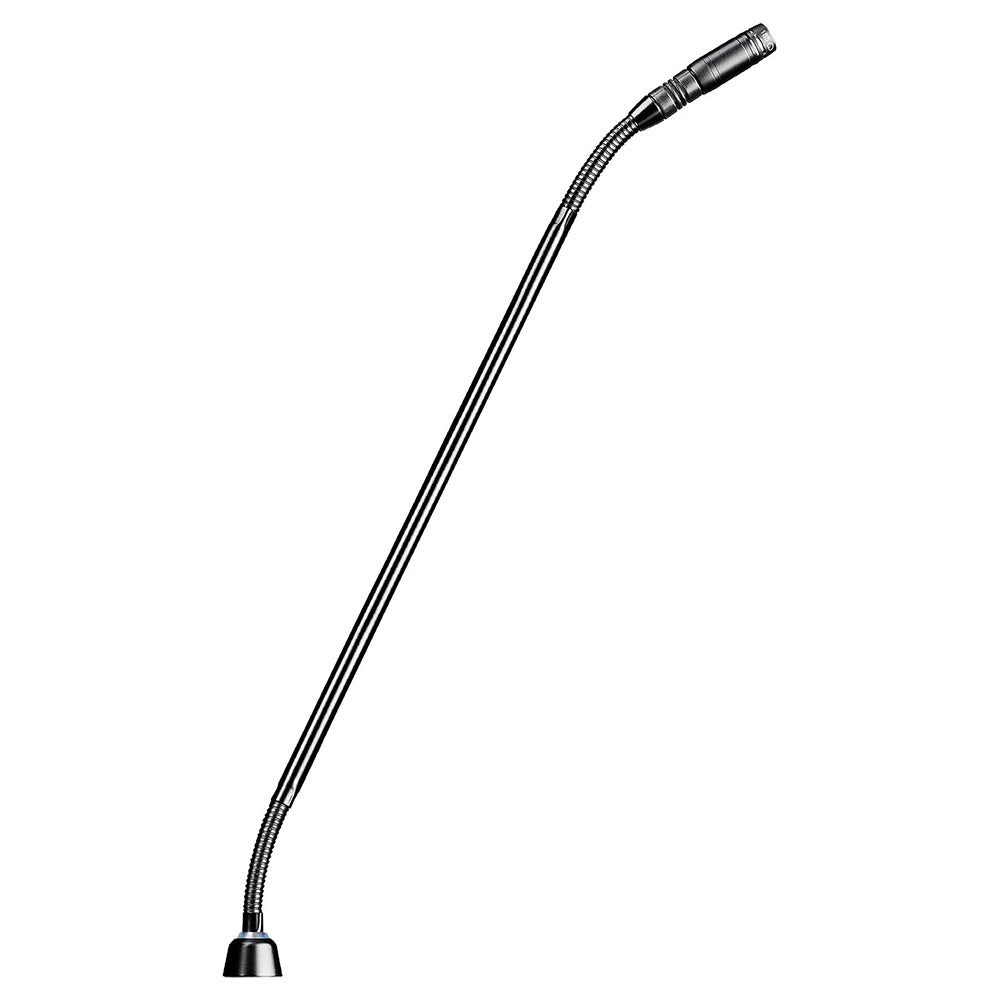

Shure MX415LPDF/C 15-Inch Dualflex Cardioid Gooseneck Microphone with Bi-Color LED Ring
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Microflex® Dualflex Gooseneck Microphones deliver unsurpassed style, control, and performance for meetings and conferences. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, Microflex Dualflex microphones make it easy to get the perfect fit for your conferencing installation.
Fully compatible with ULX-D® and QLX-D® Digital Wireless Systems when used with the ULXD8 Gooseneck Base Transmitter.
Features:
- Available in 10" (25.4 cm) and 15" (38.1 cm) lengths
- Cardioid and supercardioid polar patterns
- Bi-color status indicator or single color light ring
- Surface-mount and wired or wireless desktop base options
- CommShield® Technology for improved RF filtering
Mounting Options:
- ULXD8: Gooseneck Base Transmitter
- MX400DP: Desktop Base for MX405, MX410, and MX415 models
- MX890: Wireless Desktop Base for MX405, MX410, and MX415 models
- MX400SMP: Surface Mount Preamp for MX405, MX410, and MX415 models
| Cartridge Type | Electret Condenser |
| Frequency Response | 50Ð17000 Hz |
| Polar Pattern | MX405/C, MX410/C, MX415/C Cardioid MX405/S, MX410/S, MX415/S Supercardioid |
| Output Impedance | 170 ½ |
| Output Configuration | Active Balanced |
| Sensitivity @ 1 kHz, open circuit voltage |
Cardioid _35 dBV/Pa (18 mV) Supercardioid _34 dBV/Pa (21 mV) 1 Pa=94 dB SPL |
| Maximum SPL, 1 kHz at 1% THD, 1 k½ load | Cardioid 121 dB Supercardioid 120 dB |
| Equivalent Output Noise A-weighted |
Cardioid 28 dB SPL Supercardioid 27 dB SPL |
| Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz |
Cardioid 66 dB Supercardioid 68 dB |
| Dynamic Range, 1 k½ load, @ 1 kHz | 93 dB |
| Common Mode Rejection, 10 to 100,000 kHz | 45 dB, minimum |
| Preamplifier Output Clipping Level at 1% THD |
_8 dBV (0.4 V) |
| Polarity | 3-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector 5-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector |
| Net Weight | MX405 0.054 kg (0.119 lbs) MX410 0.068 kg (0.150 lbs) MX415 0.07 kg (0.154 lbs) MX400DP 0.516 kg (1.138 lbs) MX400SMP 0.125 kg (0.275 lbs) |
| Logic Connections | LED IN Active low (²1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT Active low (²1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3k½) |
| Mute Switch Attenuation | -50 dB minimum |
| Cable (MX400DP) | 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control |
| Environmental Conditions | Operating Temperature Ð18Ð57¡C (0Ð135¡F) Storage Temperature Ð29Ð74¡C (Ð20Ð165¡F) Relative Humidity 0Ð95% |
| Power Requirements | Phantom Power, 48Ð52 V DC, 8.0 mA |
Microflex® Dualflex Gooseneck Microphones deliver unsurpassed style, control, and performance for meetings and conferences. Offering desktop or mounted bases, wired or wireless options, and even interchangeable cartridges, Microflex Dualflex microphones make it easy to get the perfect fit for your conferencing installation.
Fully compatible with ULX-D® and QLX-D® Digital Wireless Systems when used with the ULXD8 Gooseneck Base Transmitter.
Features:
- Available in 10" (25.4 cm) and 15" (38.1 cm) lengths
- Cardioid and supercardioid polar patterns
- Bi-color status indicator or single color light ring
- Surface-mount and wired or wireless desktop base options
- CommShield® Technology for improved RF filtering
Mounting Options:
- ULXD8: Gooseneck Base Transmitter
- MX400DP: Desktop Base for MX405, MX410, and MX415 models
- MX890: Wireless Desktop Base for MX405, MX410, and MX415 models
- MX400SMP: Surface Mount Preamp for MX405, MX410, and MX415 models
| Cartridge Type | Electret Condenser |
| Frequency Response | 50Ð17000 Hz |
| Polar Pattern | MX405/C, MX410/C, MX415/C Cardioid MX405/S, MX410/S, MX415/S Supercardioid |
| Output Impedance | 170 ½ |
| Output Configuration | Active Balanced |
| Sensitivity @ 1 kHz, open circuit voltage |
Cardioid _35 dBV/Pa (18 mV) Supercardioid _34 dBV/Pa (21 mV) 1 Pa=94 dB SPL |
| Maximum SPL, 1 kHz at 1% THD, 1 k½ load | Cardioid 121 dB Supercardioid 120 dB |
| Equivalent Output Noise A-weighted |
Cardioid 28 dB SPL Supercardioid 27 dB SPL |
| Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz |
Cardioid 66 dB Supercardioid 68 dB |
| Dynamic Range, 1 k½ load, @ 1 kHz | 93 dB |
| Common Mode Rejection, 10 to 100,000 kHz | 45 dB, minimum |
| Preamplifier Output Clipping Level at 1% THD |
_8 dBV (0.4 V) |
| Polarity | 3-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector 5-pin XLR Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector |
| Net Weight | MX405 0.054 kg (0.119 lbs) MX410 0.068 kg (0.150 lbs) MX415 0.07 kg (0.154 lbs) MX400DP 0.516 kg (1.138 lbs) MX400SMP 0.125 kg (0.275 lbs) |
| Logic Connections | LED IN Active low (²1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT Active low (²1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3k½) |
| Mute Switch Attenuation | -50 dB minimum |
| Cable (MX400DP) | 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control |
| Environmental Conditions | Operating Temperature Ð18Ð57¡C (0Ð135¡F) Storage Temperature Ð29Ð74¡C (Ð20Ð165¡F) Relative Humidity 0Ð95% |
| Power Requirements | Phantom Power, 48Ð52 V DC, 8.0 mA |
