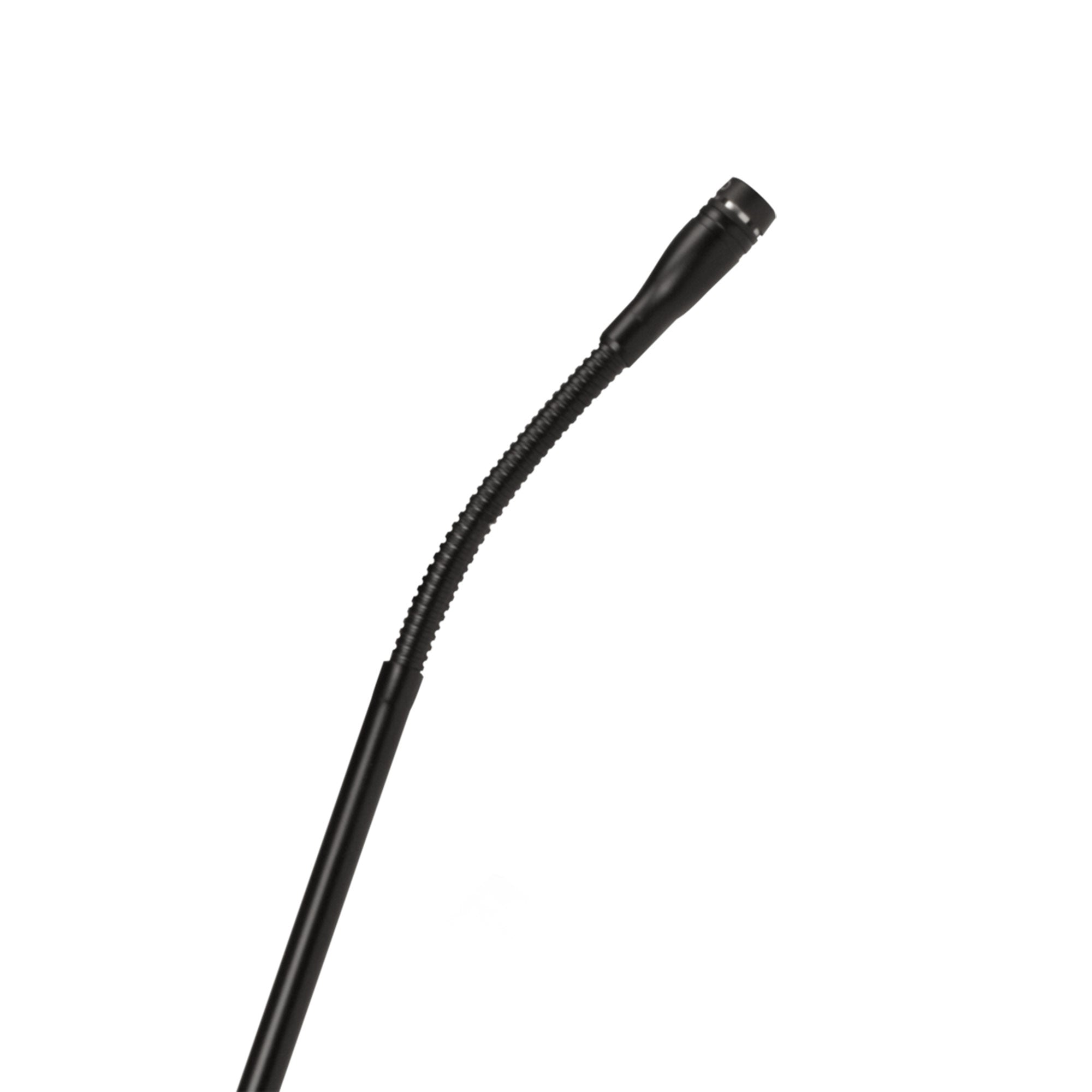

Shure MX424/C - 24-Inch MicroFlex Standard Gooseneck Microphone (Cardioid Capsule)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The right speech doesn’t just inform. It can excite and even transform those who hear it. So, Shure designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive work surfaces.
Features:
- 24-inch dual-flex gooseneck for maximum reach and easy adjustment
- 3-pin male XLR connector
- Mounts on table, lectern, podium or similar surface with included mounting flange
- Included shock mount reduces vibration noise
- Interchangeable cartridges ensure detailed audio in any environment
- Snap-fit foam windscreen keeps breath noise and plosives from being a distraction
The MX424 allows articulate speech capture to be placed precisely where you need it. Its 24-inch gooseneck provides maximum reach in situations where the microphone is located farther from the talker. Compatibility with interchangeable Microflex cartridges allows a choice of polar patterns to match coverage areas or acoustic conditions.
In tune with speech
Microflex microphone cartridges are tailored specifically to capture the human voice, so the talker always comes through clearly.
No installation headaches
The included mounting accessories make the MX424 easy to install on a table, podium, or lectern in any space.
Clean signal
Shure Commshield® is built into Microflex to reject RF interference from ever-present smart phones, keeping the focus on the performance.
| Type | Condenser (electret bias) |
| Frequency Response | 50 Hz Ð 17 kHz |
| Polar Pattern | MX412/C, MX418/C, MX424/C: Cardioid MX412/S, MX418/S, MX424/S: Supercardioid Omnidirectional cartridge available separately |
| Output Impedance | EIA rated at 150 ½ (170 ½ actual) |
| Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL | Cardioid: Ð35 dBV/Pa (17.8 mV) Supercardioid: Ð33.5 dBV/Pa (21.1 mV) Omnidirectional: Ð27.5 (42.2 mV) |
| Maximum SPL 1 kHz at 1% THD, 1 k½ load | Cardioid: 124.2 dB Supercardioid: 122.7 dB Omnidirectional: 116.7 dB |
| Equivalent Output Noise A-weighted | Cardioid: 28 dB SPL Supercardioid: 26.5 dB SPL Omnidirectional: 20.5 dB SPL |
| Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz | Cardioid: 66 dB Supercardioid: 67.5 dB Omnidirectional: 73.5 dB |
| Dynamic Range 1 k½ load at 1 kHz | 96.2 dB 100 dB at 0 gain (internal modification) |
| Common Mode Rejection | 45 dB minimum (10 Hz Ð 100 kHz) |
| Preamplifier Output Clipping Level 1% THD | Ð6 dBV (0.5 V) |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Mute Switch Attenuation | Ð50 dB minimum |
| Environmental Conditions | Operating temperature range: -18¡ Ð 57¡ C Relative humidity: 0 Ð 95% |
| Power Requirements | 11 Ð 52 Vdc phantom, 8.0 mA |
The right speech doesn’t just inform. It can excite and even transform those who hear it. So, Shure designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive work surfaces.
Features:
- 24-inch dual-flex gooseneck for maximum reach and easy adjustment
- 3-pin male XLR connector
- Mounts on table, lectern, podium or similar surface with included mounting flange
- Included shock mount reduces vibration noise
- Interchangeable cartridges ensure detailed audio in any environment
- Snap-fit foam windscreen keeps breath noise and plosives from being a distraction
The MX424 allows articulate speech capture to be placed precisely where you need it. Its 24-inch gooseneck provides maximum reach in situations where the microphone is located farther from the talker. Compatibility with interchangeable Microflex cartridges allows a choice of polar patterns to match coverage areas or acoustic conditions.
In tune with speech
Microflex microphone cartridges are tailored specifically to capture the human voice, so the talker always comes through clearly.
No installation headaches
The included mounting accessories make the MX424 easy to install on a table, podium, or lectern in any space.
Clean signal
Shure Commshield® is built into Microflex to reject RF interference from ever-present smart phones, keeping the focus on the performance.
| Type | Condenser (electret bias) |
| Frequency Response | 50 Hz Ð 17 kHz |
| Polar Pattern | MX412/C, MX418/C, MX424/C: Cardioid MX412/S, MX418/S, MX424/S: Supercardioid Omnidirectional cartridge available separately |
| Output Impedance | EIA rated at 150 ½ (170 ½ actual) |
| Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL | Cardioid: Ð35 dBV/Pa (17.8 mV) Supercardioid: Ð33.5 dBV/Pa (21.1 mV) Omnidirectional: Ð27.5 (42.2 mV) |
| Maximum SPL 1 kHz at 1% THD, 1 k½ load | Cardioid: 124.2 dB Supercardioid: 122.7 dB Omnidirectional: 116.7 dB |
| Equivalent Output Noise A-weighted | Cardioid: 28 dB SPL Supercardioid: 26.5 dB SPL Omnidirectional: 20.5 dB SPL |
| Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz | Cardioid: 66 dB Supercardioid: 67.5 dB Omnidirectional: 73.5 dB |
| Dynamic Range 1 k½ load at 1 kHz | 96.2 dB 100 dB at 0 gain (internal modification) |
| Common Mode Rejection | 45 dB minimum (10 Hz Ð 100 kHz) |
| Preamplifier Output Clipping Level 1% THD | Ð6 dBV (0.5 V) |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector |
| Mute Switch Attenuation | Ð50 dB minimum |
| Environmental Conditions | Operating temperature range: -18¡ Ð 57¡ C Relative humidity: 0 Ð 95% |
| Power Requirements | 11 Ð 52 Vdc phantom, 8.0 mA |
