Shure MX424/N - 24-Inch MicroFlex Standard Gooseneck Microphone (Requires Capsule)


  • Dale #:

    SHUR-MX424N
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The right speech doesn’t just inform. It can excite and even transform those who hear it. So, Shure designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive wo... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

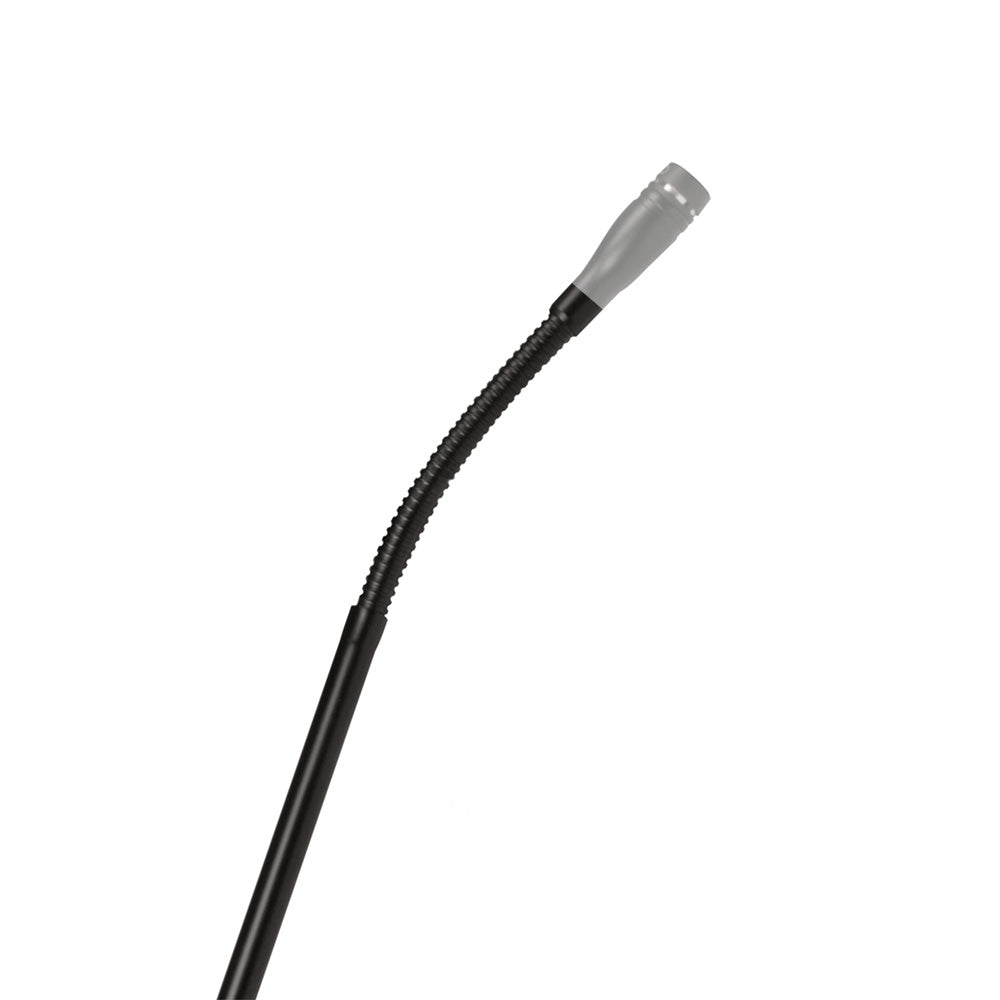

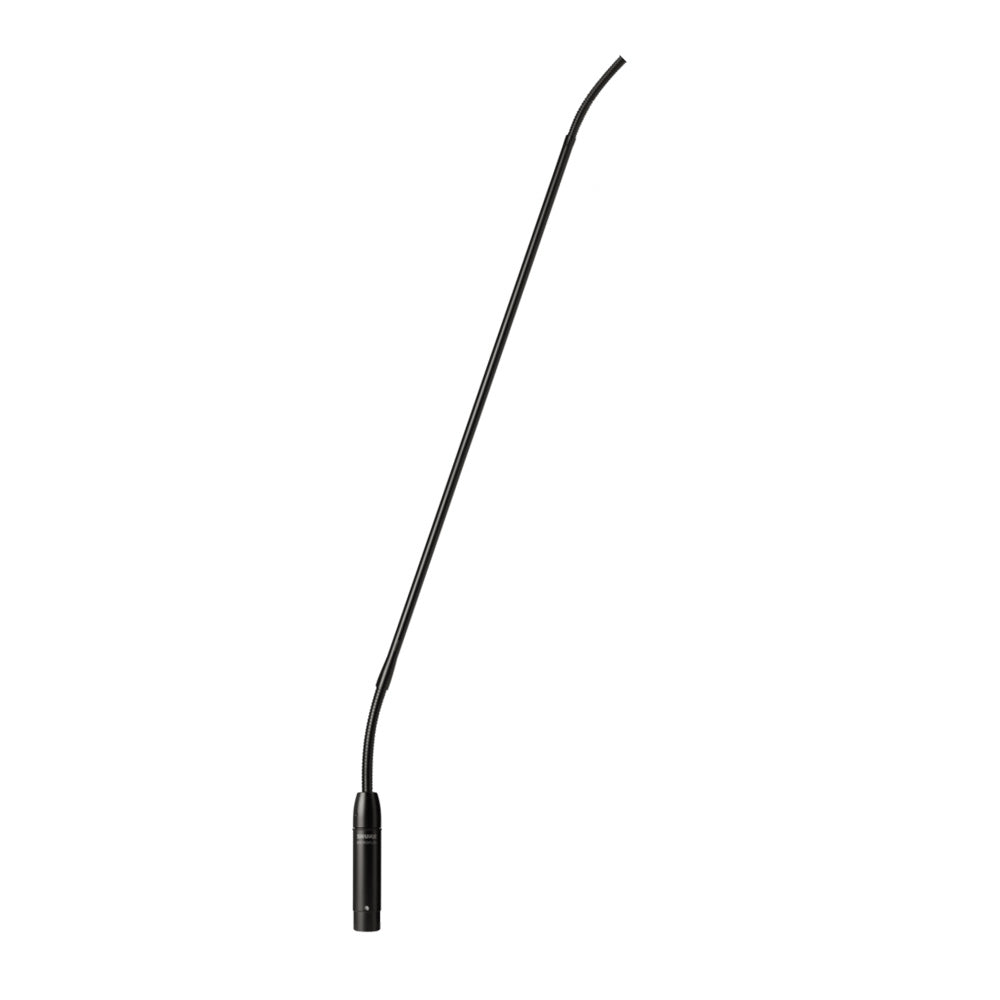

The right speech doesn’t just inform. It can excite and even transform those who hear it. So, Shure designed the MX424 to treat spoken audio with the detail and respect it deserves. The MX424 provides clarity that commands attention, with maximum length to accommodate deep tables and expansive work surfaces.

Features:

  • 24-inch dual-flex gooseneck for maximum reach and easy adjustment
  • 3-pin male XLR connector
  • Mounts on table, lectern, podium or similar surface with included mounting flange
  • Included shock mount reduces vibration noise
  • Interchangeable cartridges ensure detailed audio in any environment
  • Snap-fit foam windscreen keeps breath noise and plosives from being a distraction


The MX424 allows articulate speech capture to be placed precisely where you need it. Its 24-inch gooseneck provides maximum reach in situations where the microphone is located farther from the talker. Compatibility with interchangeable Microflex cartridges allows a choice of polar patterns to match coverage areas or acoustic conditions.

In tune with speech
Microflex microphone cartridges are tailored specifically to capture the human voice, so the talker always comes through clearly.

No installation headaches
The included mounting accessories make the MX424 easy to install on a table, podium, or lectern in any space.

Clean signal
Shure Commshield® is built into Microflex to reject RF interference from ever-present smart phones, keeping the focus on the performance.

More +

Product Specs

Type Condenser (electret bias)
Frequency Response 50 Hz – 17 kHz
Polar Pattern MX412/C, MX418/C, MX424/C: Cardioid
MX412/S, MX418/S, MX424/S: Supercardioid
Omnidirectional cartridge available separately
Output Impedance EIA rated at 150 Ω (170 Ω actual)
Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL Cardioid: –35 dBV/Pa (17.8 mV)
Supercardioid: –33.5 dBV/Pa (21.1 mV)
Omnidirectional: –27.5 (42.2 mV)
Maximum SPL 1 kHz at 1% THD, 1 kΩ load Cardioid: 124.2 dB
Supercardioid: 122.7 dB
Omnidirectional: 116.7 dB
Equivalent Output Noise A-weighted Cardioid: 28 dB SPL
Supercardioid: 26.5 dB SPL
Omnidirectional: 20.5 dB SPL
Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz Cardioid: 66 dB
Supercardioid: 67.5 dB
Omnidirectional: 73.5 dB
Dynamic Range 1 kΩ load at 1 kHz 96.2 dB 100 dB at 0 gain (internal modification)
Common Mode Rejection 45 dB minimum (10 Hz – 100 kHz)
Preamplifier Output Clipping Level 1% THD –6 dBV (0.5 V)
Polarity Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Mute Switch Attenuation –50 dB minimum
Environmental Conditions Operating temperature range: -18° – 57° C
Relative humidity: 0 – 95%
Power Requirements 11 – 52 Vdc phantom, 8.0 mA
