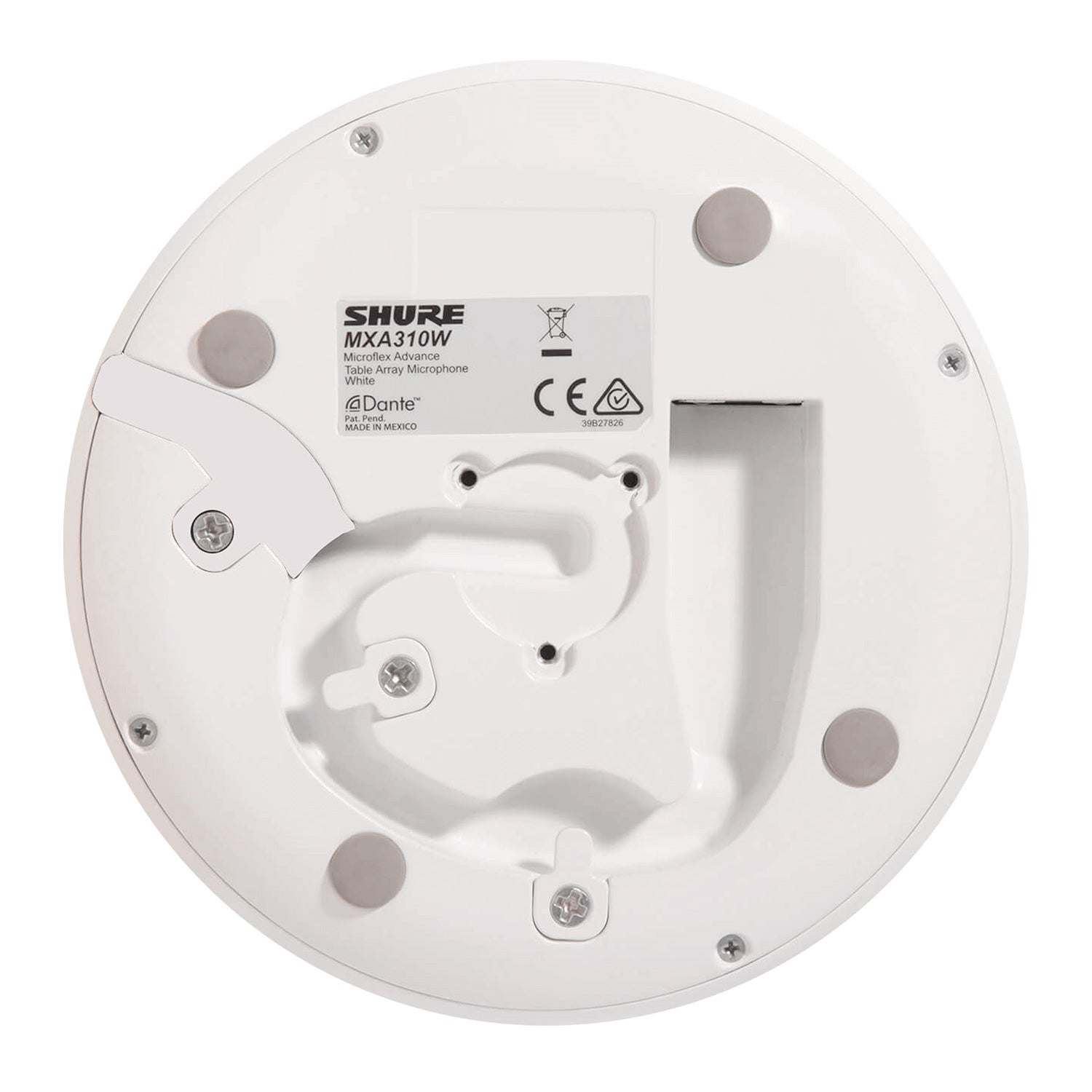

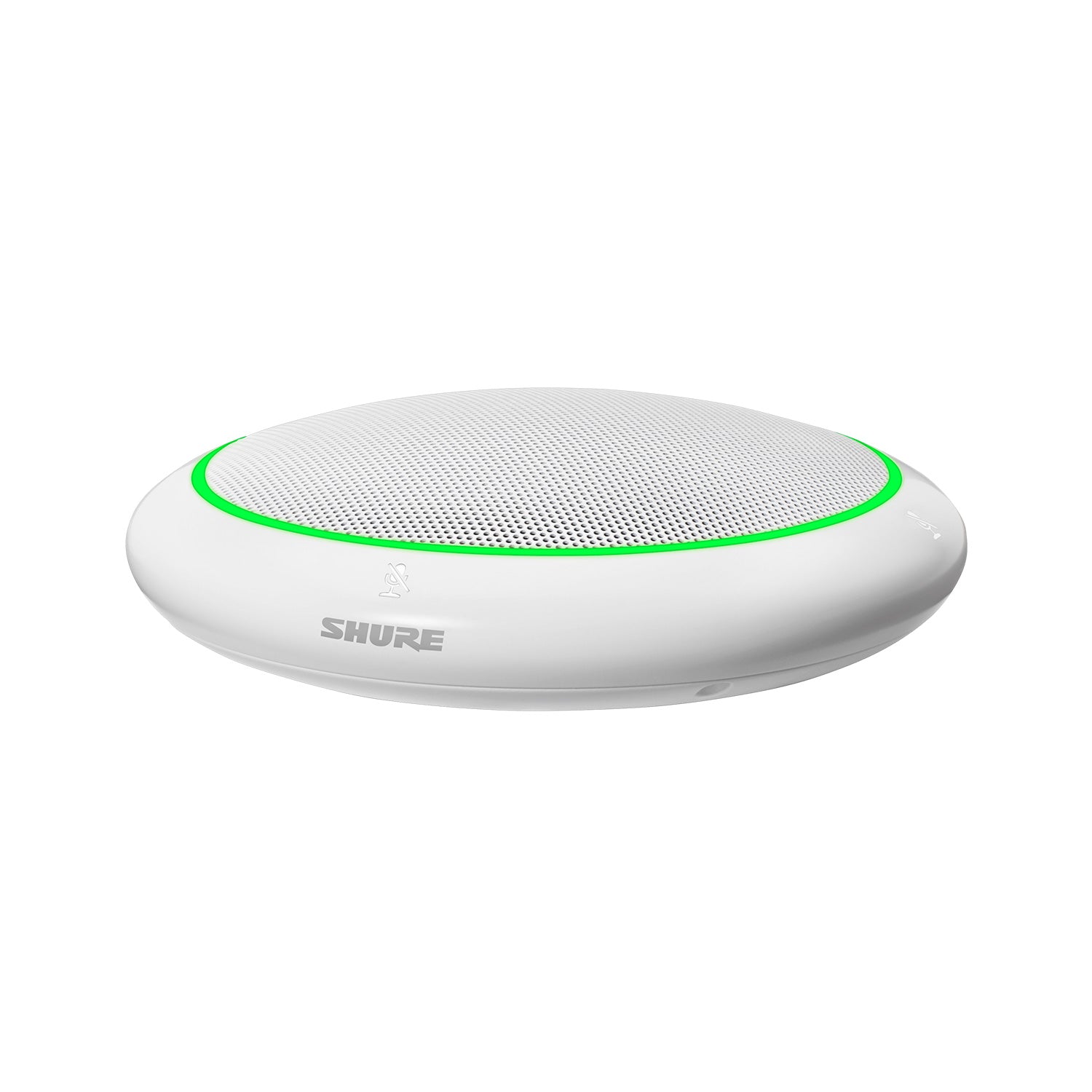

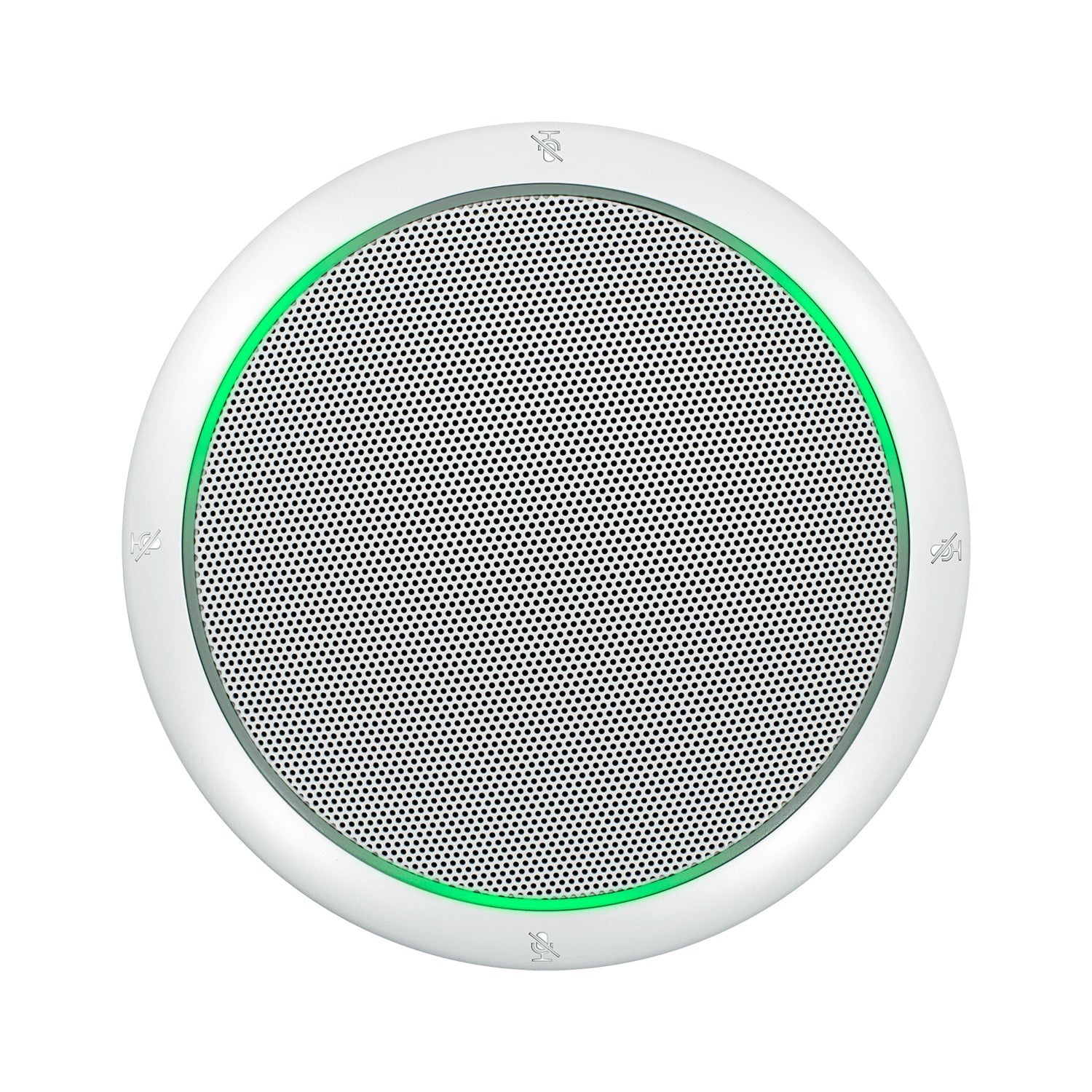

Shure MXA310W - Table Array Microphone with Shure Intellimix DSP Suite (White)

  • Dale #:

    SHUR-MXA310W
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The Microflex® Advance™ MXA310 Table Array Microphone. Organizational clarity takes focused discussion. But how can you conference effectively if you can't be heard clearly on the call? The MXA310 maximizes audio quality so voice comes through cleanly.Features: Available in three colors LED light... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Microflex® Advance™ MXA310 Table Array Microphone. Organizational clarity takes focused discussion. But how can you conference effectively if you can't be heard clearly on the call? The MXA310 maximizes audio quality so voice comes through cleanly.

Features:

  • Available in three colors
  • LED light ring with configurable colors and brightness control
  • Programming-free mute sync with P300
  • Discreet design integrates easily into your room. Available with two mounting options: mounts on the table or A310-FM flush mount
  • Programmable button offers easy mute control of the MXA310 or a remote device, such as the P300

HOW IT WORKS
The MXA310 integrates smartly into any space. Boardrooms. Huddle rooms. Multi-purpose areas. You can ensure speech is captured accurately and reproduced intelligibly. With Steerable Coverage™ and a low profile design, it removes unnecessary clutter, giving you even more clarity.

WHY IT'S BETTER

  • Focused conversation
    • With Steerable Coverage™ and built-in automatic mixing, you can capture every voice with pinpoint accuracy anywhere in the room.
  • No unwanted ambience
    • Office HVAC systems can add overpowering background noise to the call. The Shure-exclusive “toroid” polar pattern only captures table-level sound, helping to reduce unwanted distractions from fan or HVAC noise.
  • Dante™ integration
    • The MXA310 can easily connect to the vast ecosystem of Shure and third-party networked audio devices.
  • Encryption
    • Shure Network Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilize AES-256 technology to protect confidential content.

More +

Product Specs

All specifications measured from cardioid polar pattern. Values for all patterns are within ± 3 dB of these specifications unless otherwise noted
Polar Pattern All channels independently adjustableCardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
Connector TypeRJ45
Power RequirementsPower over Ethernet (PoE), Class 0
Power Consumption4W, maximum
Weight362 g (0.8 lbs)
Dimensions H x W x D3.6 x 13.4 x 13.4 cm
(1.4 x 5.3 x 5.3 in.)
control applicationHTML5 Browser-based
Operating Temperature Range-6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
Audio
Frequency Response100 to 20,000 Hz
Dante Digital Output
Channel Count5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
Sampling Rate48 kHz
Bit Depth24
Sensitivity at 1 kHz, , -15 dB Gain Setting-21 dBFS/Pa
Maximum SPL 1 kHz at 1% THD, -15 dB Gain Setting115.2 dB SPL
Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting
Cardioid75 dB
Toroid67 dB
Latency Not including Dante latency<1 ms
Self Noise -15 dB Gain Setting
Cardioid19.2 dB SPL-A
Toroid26.8 dB SPL-A
Dynamic Range -15 dB Gain Setting
Cardioid96 dB
Toroid90 dB SPL
Built-in Digital Signal Processing
Per ChannelEqualizer (4-band Parametric), Mute, Gain (140 dB range)
SystemAutomatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
Networking
Cable RequirementsCat 5e or higher (shielded cable recommended)
