Description
The MXA920 is the premier ceiling array microphone for contemporary meeting spaces. Automatic Coverage technology covers up to a 30 x 30 ft (9 x 9 m) area automatically, or place coverage in specific areas for more precise control of audio capture. With next generation array architecture for enha... Read MoreSuggested Accessories
Description

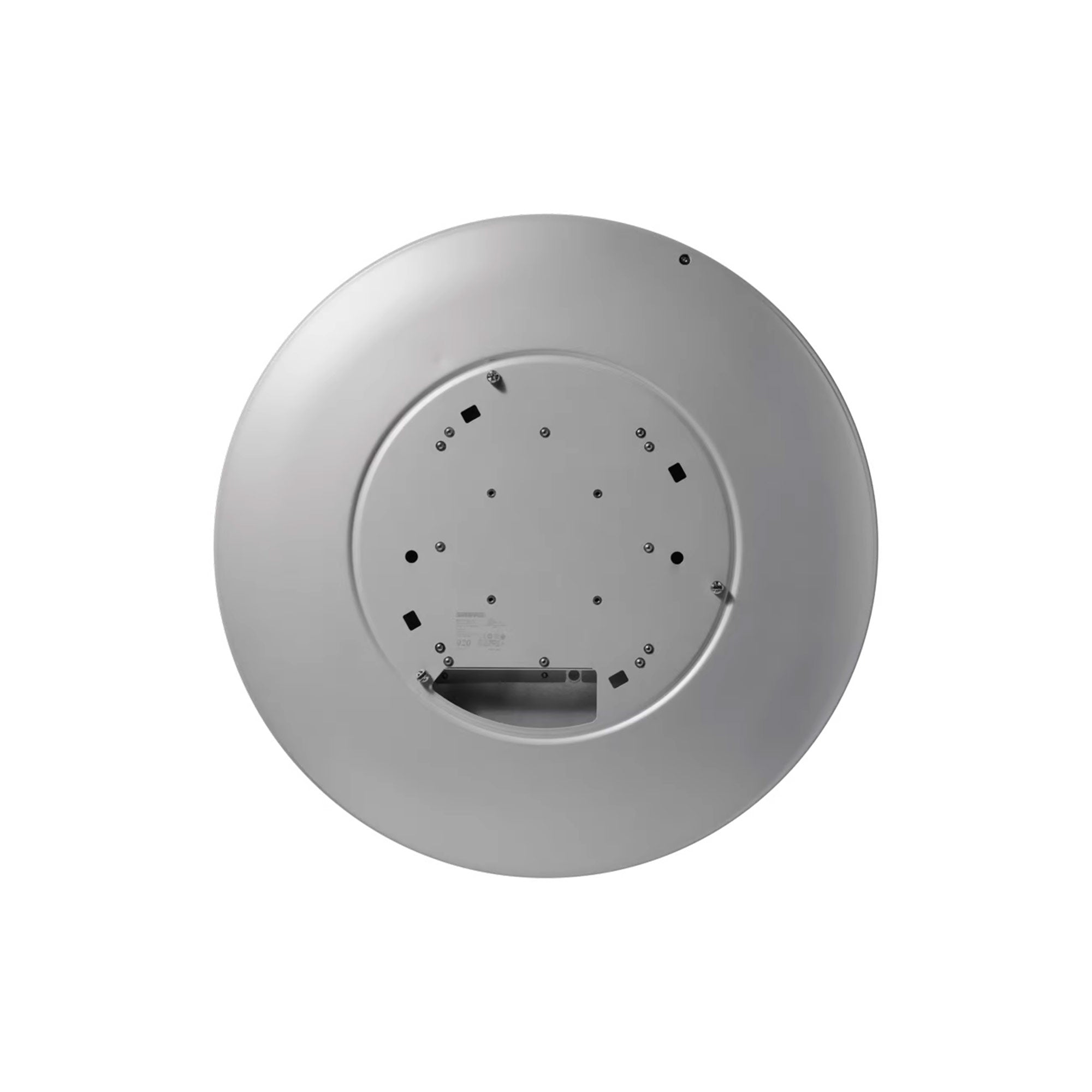

The MXA920 is the premier ceiling array microphone for contemporary meeting spaces. Automatic Coverage technology covers up to a 30 x 30 ft (9 x 9 m) area automatically, or place coverage in specific areas for more precise control of audio capture. With next generation array architecture for enhanced directional pickup and more natural speech, the MXA920 is even easier to use and faster to deploy than the MXA910 for AV conferencing, camera tracking, voice lift, or sound reinforcement.
COVERAGE WHERE YOU WANT IT
Automatic Coverage technology captures up to a 30 x 30 foot (9 x 9 m) area automatically for great sound out of the box. You can also place coverage areas in specific locations to limit audio capture to seating areas, a podium, or whiteboard.
SEAMLESS INTEGRATION
Next-generation array architecture delivers more directional pickup at low frequencies for more natural sounding voice. Onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction, and automatic gain control provides a pristine audio mix.
FITS YOUR ROOM DESIGN
Square or round form factors suit your interior design. Choose white, black, or aluminum finish (square available in white only), or paint to match room aesthetics. Versatile hardware options support in-ceiling, on-ceiling, pole, or wirerope mounting.
READY FOR ANYTHING
Camera Tracking: Precise talker localization reports the position of simultaneous talkers for more accurate camera tracking.
Voice Lift: Highly directional pickup allows audience members across the room to interact without the need for roving microphones.
Sound Reinforcement: Precise coverage control enables presenters to be amplified without lavalier or gooseneck microphones.

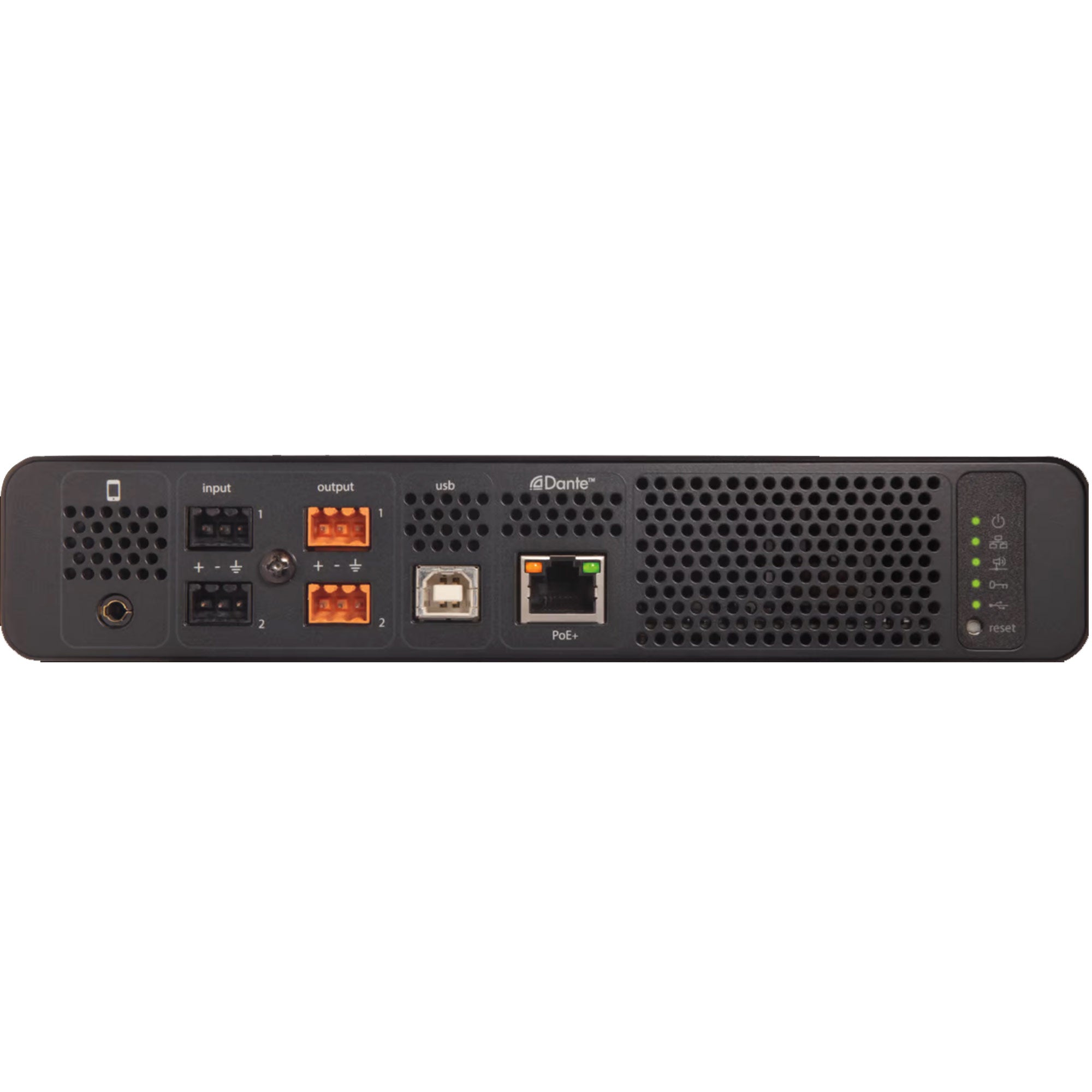

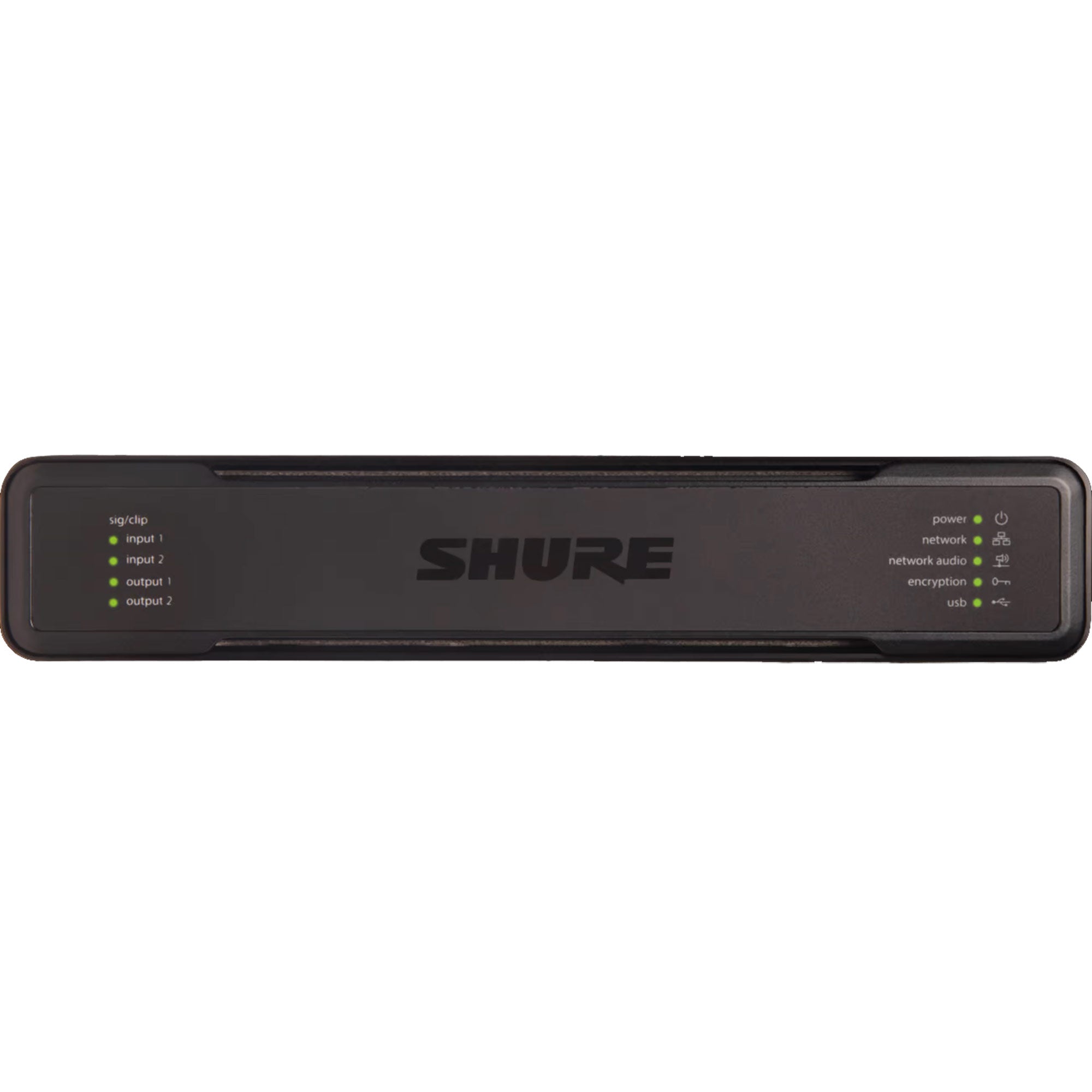

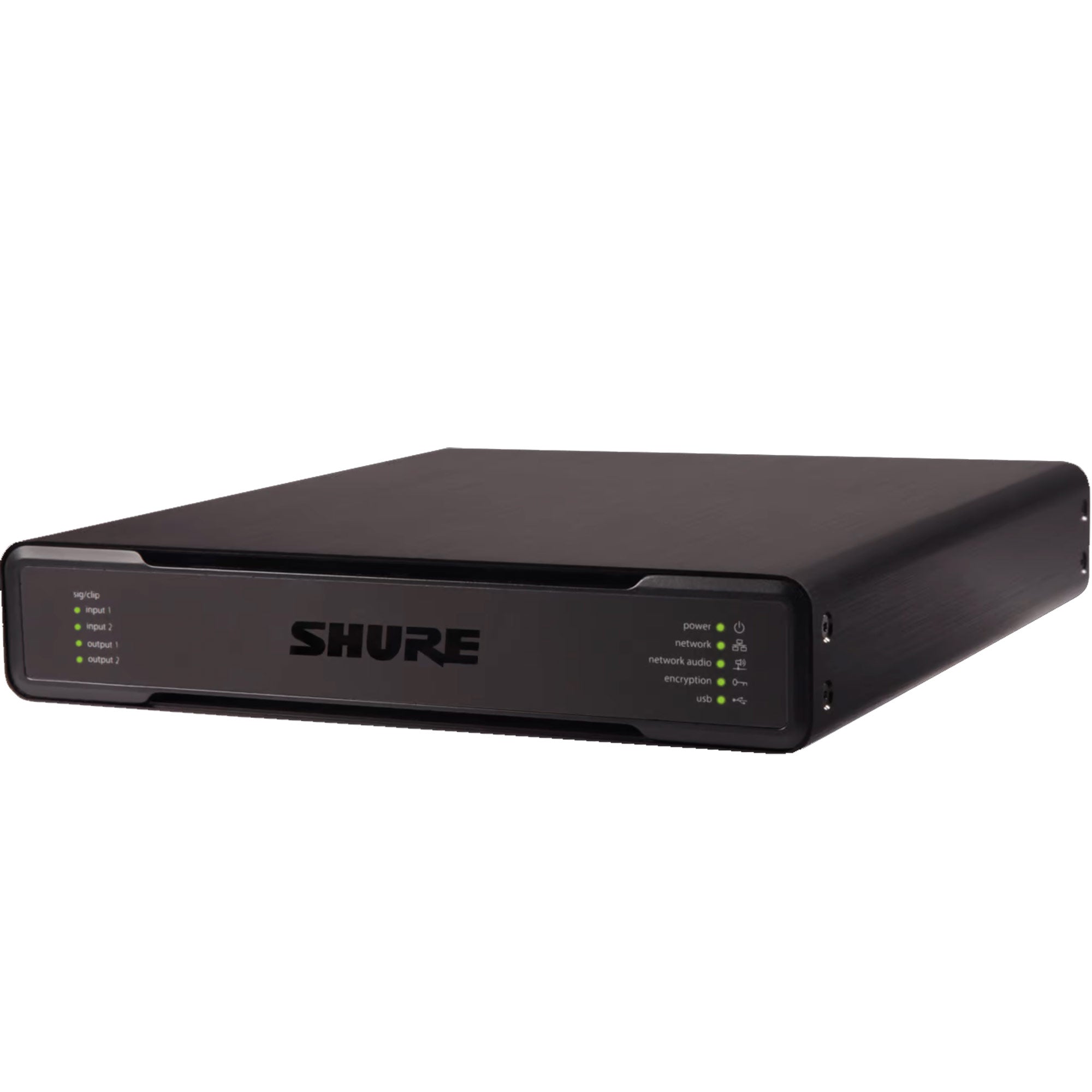

Don’t let echo, noise, or distortion take over the meeting. The IntelliMix® P300 enhances every aspect of conference audio. Combined with Microflex® Advance™ or Microflex® Wireless microphones, the clear sound reproduction and intelligent mixing keeps the agenda on track with clear communication.
Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza. The IntelliMix P300 makes sound smarter, faster.
More +
Product Specs
Coverage Type | Automatic or steerable |
Power Requirements | Power over Ethernet (PoE), Class 0 |
Power Consumption | 10.1 W maximum |
Control Software | Designer or web application |
Plenum Rating | MXA920-S UL2043 (Suitable for Air Handling Spaces) MXA920-R Not rated |
Dust Protection | IEC 60529 IP5X Dust Protected |
Operating Temperature Range | −6.7°C (20°F) to 40°C (104°F) |
Storage Temperature Range | −29°C (−20°F) to 74°C (165°F) |
Networking | |
Cable Requirements | Cat5e or higher (shielded cable recommended) |
Connector Type | RJ45 |
Audio | AES67 or Dante Digital Output |
Channel Count | Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel) |
Sampling Rate | 48 kHz |
Bit Depth | 24 |
Sensitivity at 1 kHz | −1.74 dBFS/Pa |
Maximum SPL Relative to 0 dBFS overload |
95.74 dBSPL |
Signal-to-Noise Ratio Ref. 94 dBSPL at 1 kHz |
75.76 dB A-weighted |
Latency Does not include Dante latency |
Direct outputs (Automatic coverage off) 15.9 ms Automix output (Includes IntelliMix processing) 26.6 ms |
Self Noise | 18.24 dB SPL-A |
Dynamic Range | 77.5 dB |
Digital Signal Processing | Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range) |
Acoustic Echo Cancellation Tail Length | Up to 250 ms |
Frequency Response | 125 Hz to 20,000 Hz |
MXA920 Frequency Response | 100 Hz - 20kHz Frequency response measured directly on-axis from a distance of 6 feet (1.83 m). |
Weight | MXA920-S: 11.8 lbs (5.4 kg) MXA920-R: 12.7 lbs (5.8 kg) |
Dimensions | A (Microphone flange): 0.41 in. (10.5 mm) B (Edge to edge): 23.77 in. (603.8 mm) C (Height): 2.15 in. (54.69 mm) MXA920-S-60CM A (Edge to edge): 23.38 in. (593.8 mm) B (Height): 2.15 in. (54.69 mm) MXA920-R A (Height to top of eyelets): 2.4 in. (61.3 mm) B (Outer diameter): 25 in. (635.4 mm) |
