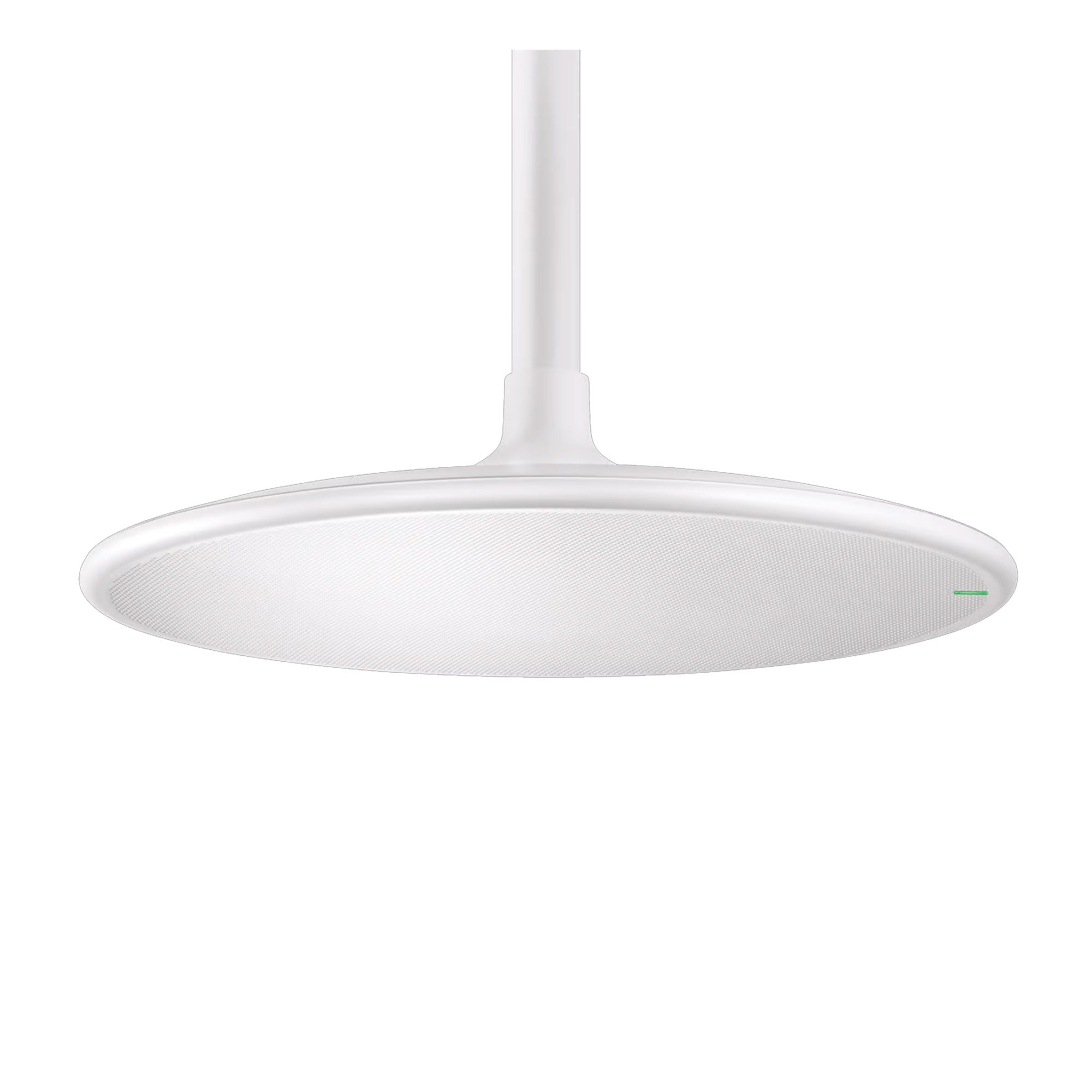

Shure MXA920W-R - MicroFlex Advance Ceiling Mount Conferencing Microphone (White)


  • Dale #:

    SHUR-MXA920WR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The MXA920 is the premier ceiling array microphone for contemporary meeting spaces. Automatic Coverage technology covers up to a 30 x 30 ft (9 x 9 m) area automatically, or place coverage in specific areas for more precise control of audio capture. With next generation array architecture for enha... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The MXA920 is the premier ceiling array microphone for contemporary meeting spaces. Automatic Coverage technology covers up to a 30 x 30 ft (9 x 9 m) area automatically, or place coverage in specific areas for more precise control of audio capture. With next generation array architecture for enhanced directional pickup and more natural speech, the MXA920 is even easier to use and faster to deploy than the MXA910 for AV conferencing, camera tracking, voice lift, or sound reinforcement.

COVERAGE WHERE YOU WANT IT
Automatic Coverage technology captures up to a 30 x 30 foot (9 x 9 m) area automatically for great sound out of the box. You can also place coverage areas in specific locations to limit audio capture to seating areas, a podium, or whiteboard.

SEAMLESS INTEGRATION
Next-generation array architecture delivers more directional pickup at low frequencies for more natural sounding voice. Onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction, and automatic gain control provides a pristine audio mix.

FITS YOUR ROOM DESIGN
Square or round form factors suit your interior design. Choose white, black, or aluminum finish (square available in white only), or paint to match room aesthetics. Versatile hardware options support in-ceiling, on-ceiling, pole, or wirerope mounting.

READY FOR ANYTHING
Camera Tracking: Precise talker localization reports the position of simultaneous talkers for more accurate camera tracking.
Voice Lift: Highly directional pickup allows audience members across the room to interact without the need for roving microphones.
Sound Reinforcement: Precise coverage control enables presenters to be amplified without lavalier or gooseneck microphones.

More +

Product Specs

Coverage Type Automatic or steerable
Power Requirements Power over Ethernet (PoE), Class 0
Power Consumption 10.1 W maximum
Control Software Designer or web application
Plenum Rating MXA920-S UL2043 (Suitable for Air Handling Spaces)
MXA920-R Not rated
Dust Protection IEC 60529 IP5X Dust Protected
Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range −29°C (−20°F) to 74°C (165°F)
Networking
Cable Requirements Cat5e or higher (shielded cable recommended)
Connector Type RJ45
Audio AES67 or Dante Digital Output
Channel Count Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel)
Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
Sampling Rate 48 kHz
Bit Depth 24
Sensitivity at 1 kHz −1.74 dBFS/Pa
Maximum SPL
Relative to 0 dBFS overload
95.74 dBSPL
Signal-to-Noise Ratio
Ref. 94 dBSPL at 1 kHz
75.76 dB A-weighted
Latency
Does not include Dante latency
Direct outputs (Automatic coverage off) 15.9 ms
Automix output (Includes IntelliMix processing) 26.6 ms
Self Noise 18.24 dB SPL-A
Dynamic Range 77.5 dB
Digital Signal Processing Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
Acoustic Echo Cancellation Tail Length Up to 250 ms
Frequency Response 125 Hz to 20,000 Hz
MXA920 Frequency Response 100 Hz - 20kHz
Frequency response measured directly on-axis from a distance of 6 feet (1.83 m).
Weight MXA920-S: 11.8 lbs (5.4 kg)
MXA920-R: 12.7 lbs (5.8 kg)
Dimensions A (Microphone flange): 0.41 in. (10.5 mm)
B (Edge to edge): 23.77 in. (603.8 mm)
C (Height): 2.15 in. (54.69 mm)
MXA920-S-60CM
A (Edge to edge): 23.38 in. (593.8 mm)
B (Height): 2.15 in. (54.69 mm)
MXA920-R
A (Height to top of eyelets): 2.4 in. (61.3 mm)
B (Outer diameter): 25 in. (635.4 mm)

More +
