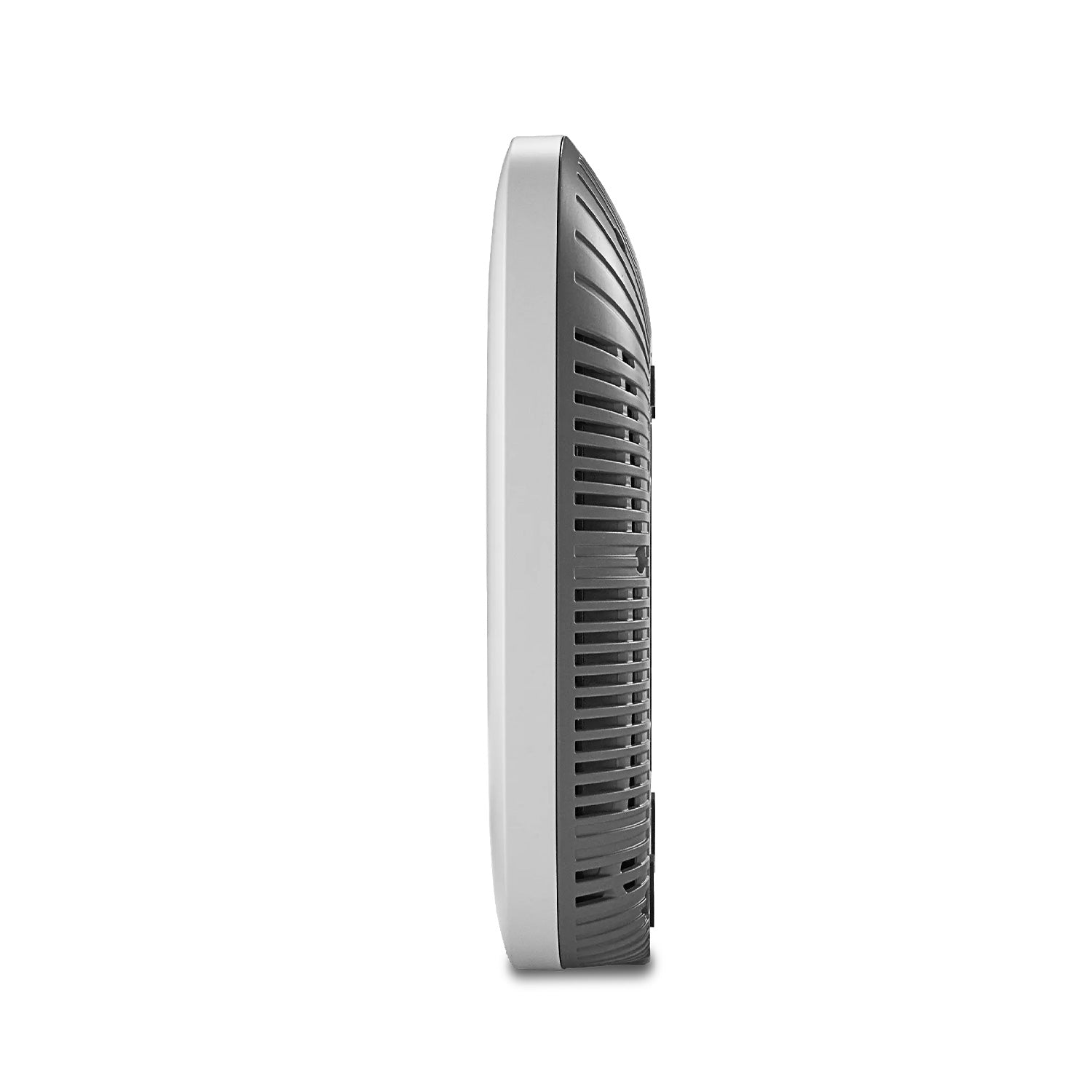

Shure MXCWAPT-B - Access Point Transceiver for MicroFlex Complete
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MXCWAPT Access Point Transceiver is the hub of the Microflex Complete Wireless conference system. It manages audio routing, frequency coordination, and system control for up to 125 wireless conference units.

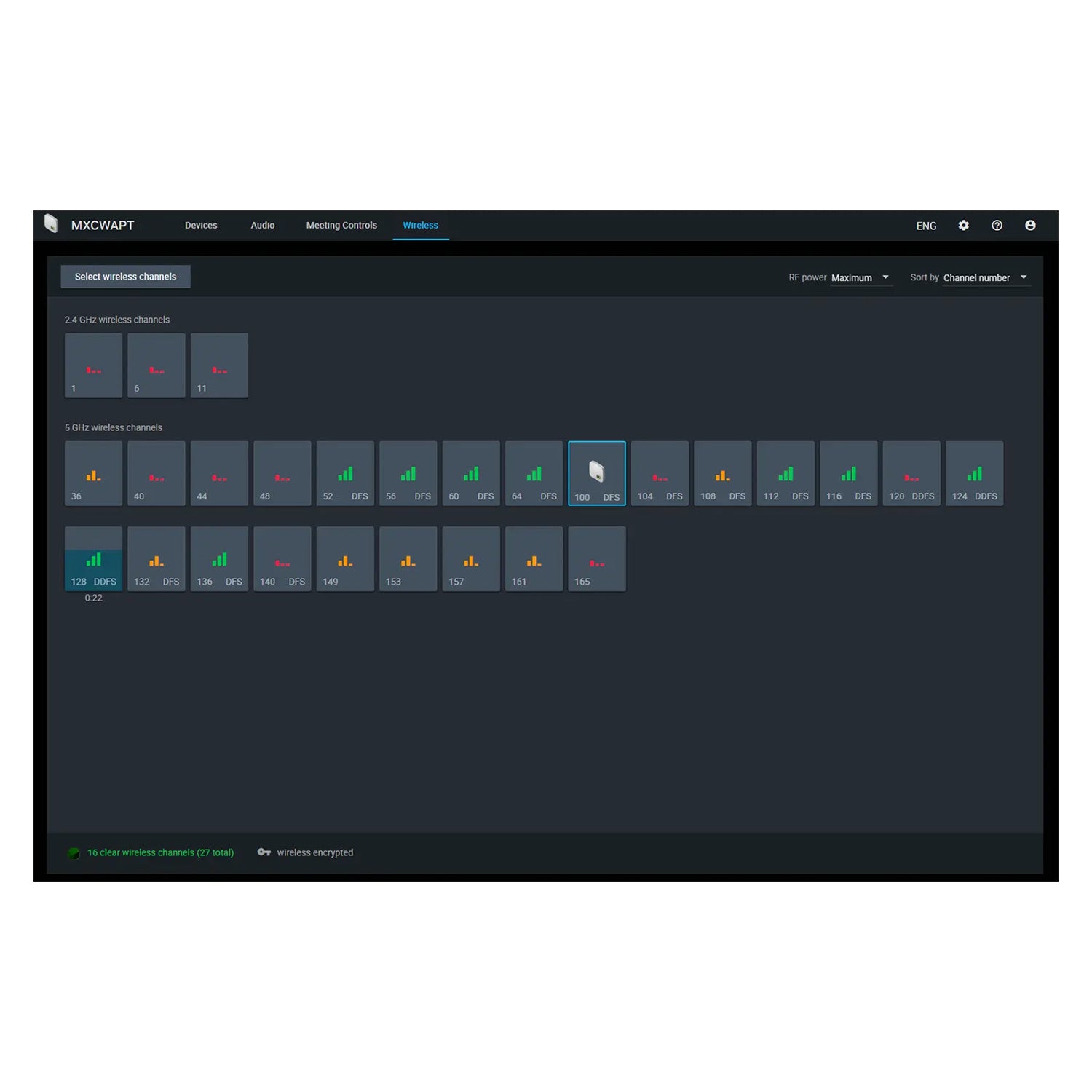

During setup, the MXCWAPT scans the 2.4 GHz and 5 GHz frequency bands to identify the clearest channel and conveys that information to the conference units. The system can take advantage of limited-access DFS spectrum to expand the number of available channels.If a potential conflict is identified, the Access Point immediately instructs all conference units to change channels seamlessly, without interruption.The wireless connection features AES-128 encryption for enhanced privacy.

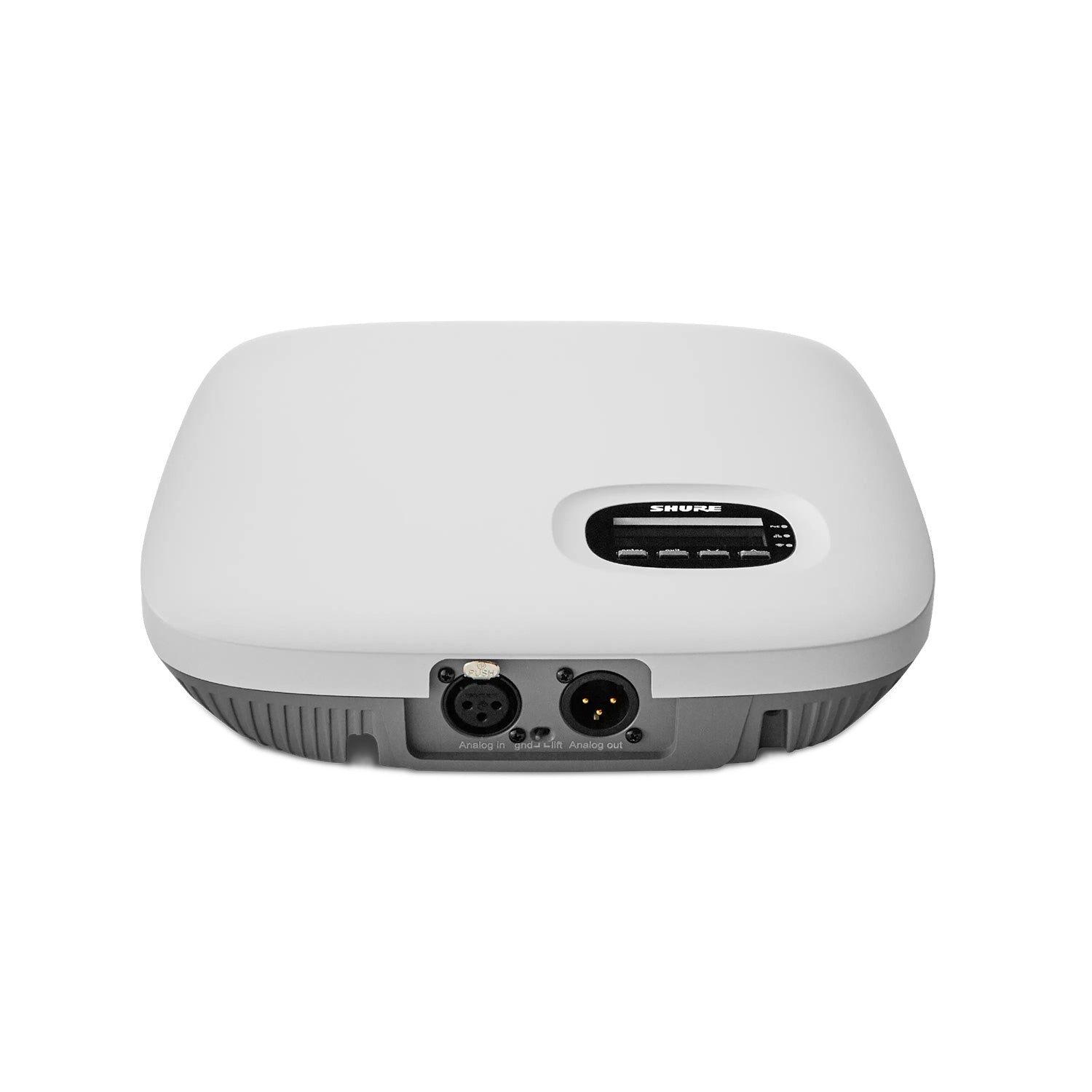

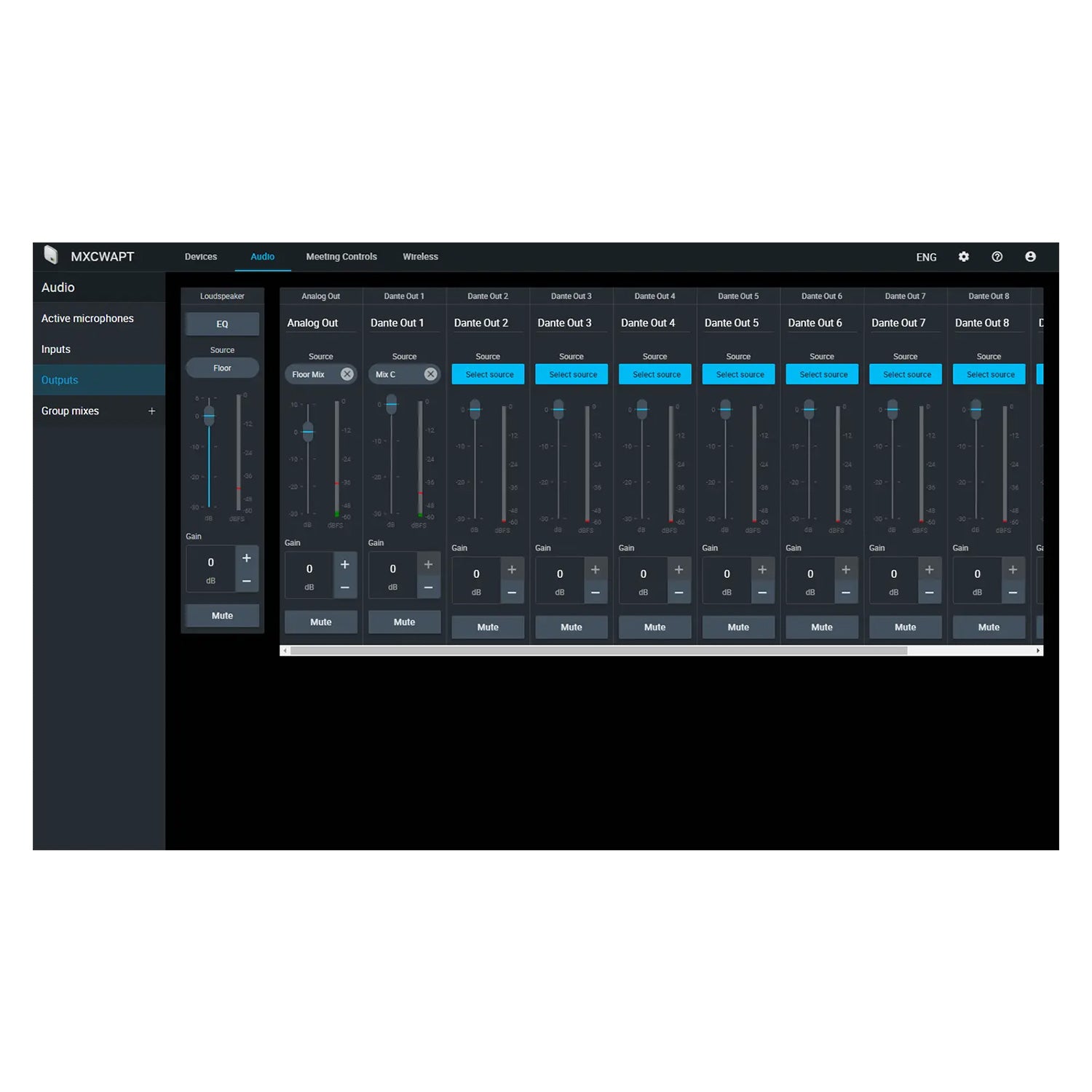

The Access Point includes a Dante networked audio connection that supports up to 10 input channels and 10 output channels.In addition, an analog XLR audio input and output permits connection of a wireless microphone for a presenter or an external sound reinforcement system for an audience.

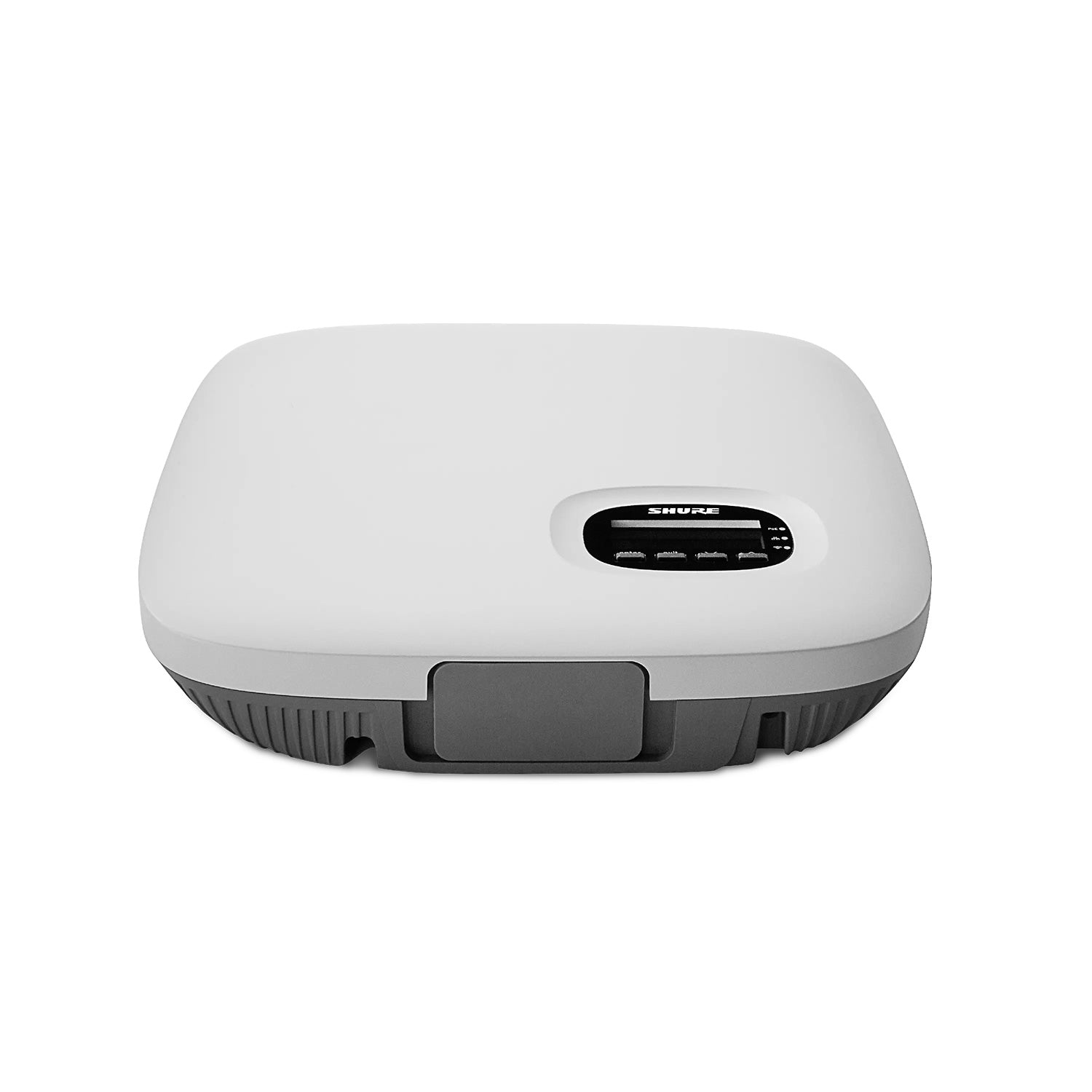

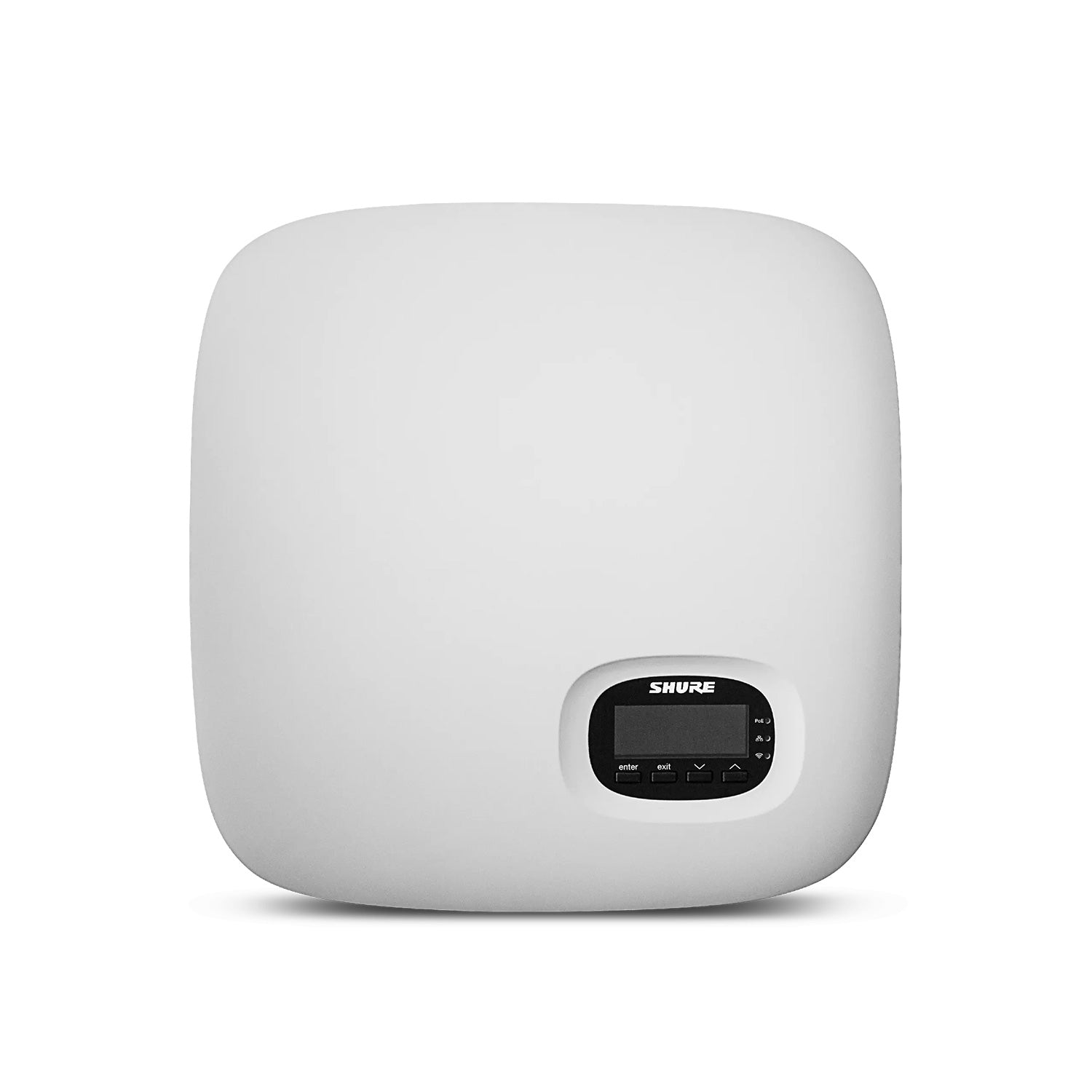

The MXCWAPT includes an information display and controls for basic system configuration without a laptop.The unit is powered by a standard PoE switch or power injector.The access point can be mounted on the wall or ceiling with the included mounting bracket and paintable cover, or placed on a table for temporary meetings.
Features:
- Controls up to 125 MXCW640 wireless conference units
- Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
- Operates in 2.4 GHz / 5 GHz frequency bands, including DFS spectrum
- Automatic frequency coordination, interference detection and avoidance
- Dante digital audio (10 inputs/10 outputs)
- Analog audio input and output (XLR)
- One Ethernet cable for audio, control, and PoE power
- AES-128 encryption for enhanced privacy
- Display for basic system configuration without a laptop
- LEDs indicate power, wireless connection, and network status

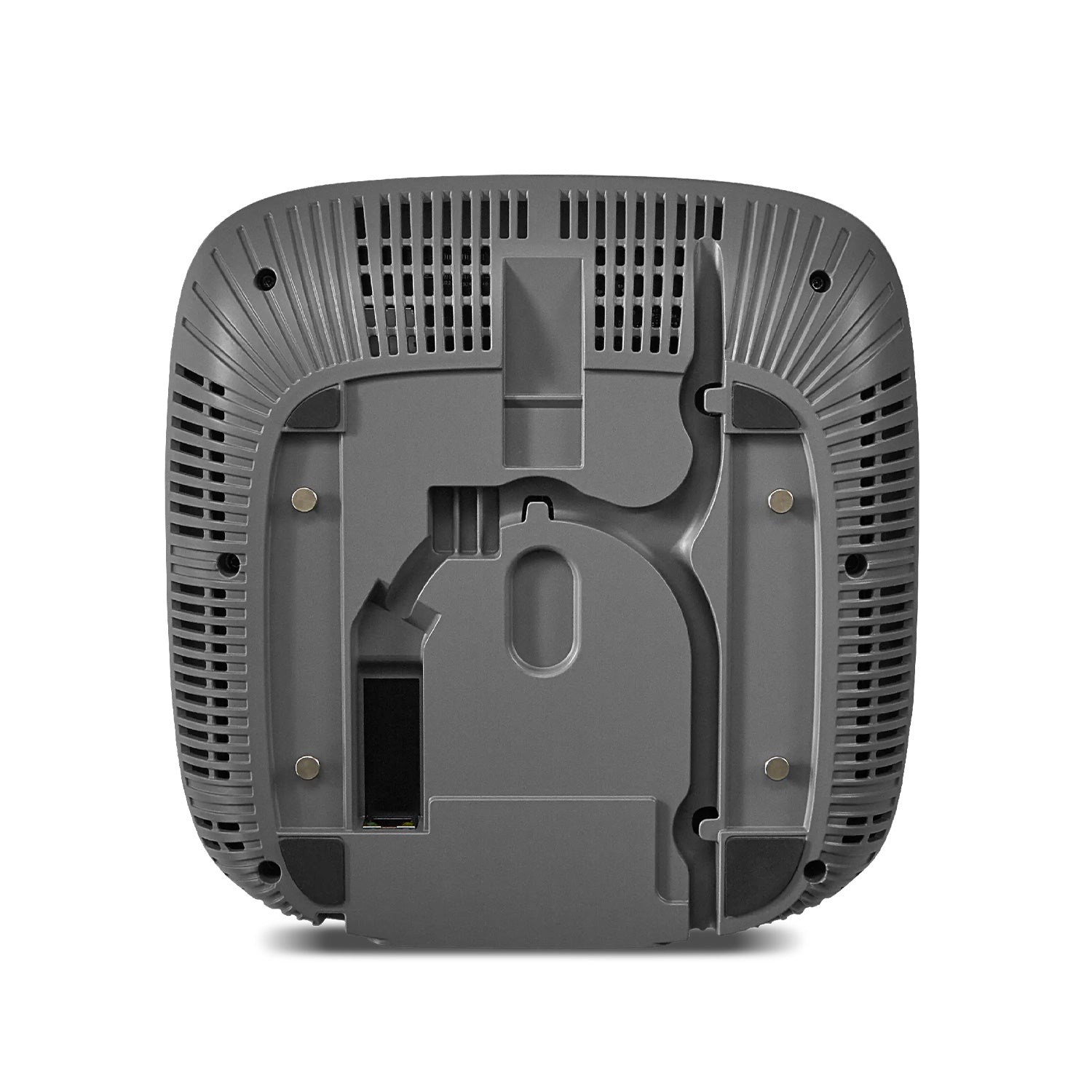

- Includes wall / ceiling mounting plate
| AUDIO INPUTS | |
| Analog Input | |
| Maximum Input Level | 24.9dBV 1% THD+N. Measured at Dante Output. Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB 10.3dBV 1% THD+N. Measured at Dante Output. Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB |
| Frequency Response | 22Hz - 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB 22Hz - 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB |
| Total Harmonic Distortion + Noise | 0.03%, typical Measured at Dante Output. -6dBFS input, 1kHz, Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW 0.02%, typical Measured at Dante Output. -6dBFS input, 1kHz, Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW |
| Dynamic Range | 115dB (A-weighted), 113dB (unweighted), typical Measured at Dante Output. Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW 112dB (A-weighted), 110dB (unweighted), typical Measured at Dante Output. Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW |
| Preamplifier Equivalent Input Noise | -92dBV (A-weighted), typical Line Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW |
| Connector Type | XLR-3-pin female Pin 1 = ground, Pin 2 = Audio +, Pin 3 = Audio |
| AUDIO OUPUTS | |
| Analog Output | |
| Maximum Output Level | 4.3dBV 1% THD+N. Audio Injected at Dante Input. Dante Input Gain = 0dB, Analog Output Gain = 0dB |
| Frequency Response | 1Hz - 20kHz (+0.5dB/-3dB) Audio Injected at Dante Input. -6dBFS input, Dante Input Gain = 0dB, Analog Output Gain = 0dB |
| Total Harmonic Distortion + Noise | 0.01%, typical Audio Injected at Dante Input. -6dBFS input, 1kHz, Dante Input Gain = 0dB, Analog Output Gain = 0dB, 22Hz - 22kHz BW |
| Dynamic Range | 100dB (A-weighted), 97dB (unweighted), typical Audio Injected at Dante Input. Dante Input Gain = 0dB, Analog Output Gain = 0dB, 22Hz - 22kHz BW |
| Load Impedance | >600½, typical |
| Type | Three-pin Male XLR |
| Pinout | Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -) |
| XLR GND Lift Switch Position | Left (Pin 1-GND connected) Right (Pin1-GND disconnected) |
| Noise | -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW |
| Input Impedance | 10k½ Line Level 12k½ Aux Level |
| Configuration | Balanced |
The MXCWAPT Access Point Transceiver is the hub of the Microflex Complete Wireless conference system. It manages audio routing, frequency coordination, and system control for up to 125 wireless conference units.
During setup, the MXCWAPT scans the 2.4 GHz and 5 GHz frequency bands to identify the clearest channel and conveys that information to the conference units. The system can take advantage of limited-access DFS spectrum to expand the number of available channels.If a potential conflict is identified, the Access Point immediately instructs all conference units to change channels seamlessly, without interruption.The wireless connection features AES-128 encryption for enhanced privacy.
The Access Point includes a Dante networked audio connection that supports up to 10 input channels and 10 output channels.In addition, an analog XLR audio input and output permits connection of a wireless microphone for a presenter or an external sound reinforcement system for an audience.
The MXCWAPT includes an information display and controls for basic system configuration without a laptop.The unit is powered by a standard PoE switch or power injector.The access point can be mounted on the wall or ceiling with the included mounting bracket and paintable cover, or placed on a table for temporary meetings.
Features:
- Controls up to 125 MXCW640 wireless conference units
- Bi-directional wireless connection provides audio to and from conference units and enables real-time control of all settings
- Operates in 2.4 GHz / 5 GHz frequency bands, including DFS spectrum
- Automatic frequency coordination, interference detection and avoidance
- Dante digital audio (10 inputs/10 outputs)
- Analog audio input and output (XLR)
- One Ethernet cable for audio, control, and PoE power
- AES-128 encryption for enhanced privacy
- Display for basic system configuration without a laptop
- LEDs indicate power, wireless connection, and network status
- Includes wall / ceiling mounting plate
| AUDIO INPUTS | |
| Analog Input | |
| Maximum Input Level | 24.9dBV 1% THD+N. Measured at Dante Output. Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB 10.3dBV 1% THD+N. Measured at Dante Output. Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB |
| Frequency Response | 22Hz - 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB 22Hz - 20kHz (+0.5dB/-3dB) Measured at Dante Output. -6dBFS input, Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB |
| Total Harmonic Distortion + Noise | 0.03%, typical Measured at Dante Output. -6dBFS input, 1kHz, Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW 0.02%, typical Measured at Dante Output. -6dBFS input, 1kHz, Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW |
| Dynamic Range | 115dB (A-weighted), 113dB (unweighted), typical Measured at Dante Output. Line Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW 112dB (A-weighted), 110dB (unweighted), typical Measured at Dante Output. Aux Level, Analog Input Gain = 0dB, Dante Output Gain = 0dB, 22Hz - 22kHz BW |
| Preamplifier Equivalent Input Noise | -92dBV (A-weighted), typical Line Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW |
| Connector Type | XLR-3-pin female Pin 1 = ground, Pin 2 = Audio +, Pin 3 = Audio |
| AUDIO OUPUTS | |
| Analog Output | |
| Maximum Output Level | 4.3dBV 1% THD+N. Audio Injected at Dante Input. Dante Input Gain = 0dB, Analog Output Gain = 0dB |
| Frequency Response | 1Hz - 20kHz (+0.5dB/-3dB) Audio Injected at Dante Input. -6dBFS input, Dante Input Gain = 0dB, Analog Output Gain = 0dB |
| Total Harmonic Distortion + Noise | 0.01%, typical Audio Injected at Dante Input. -6dBFS input, 1kHz, Dante Input Gain = 0dB, Analog Output Gain = 0dB, 22Hz - 22kHz BW |
| Dynamic Range | 100dB (A-weighted), 97dB (unweighted), typical Audio Injected at Dante Input. Dante Input Gain = 0dB, Analog Output Gain = 0dB, 22Hz - 22kHz BW |
| Load Impedance | >600½, typical |
| Type | Three-pin Male XLR |
| Pinout | Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -) |
| XLR GND Lift Switch Position | Left (Pin 1-GND connected) Right (Pin1-GND disconnected) |
| Noise | -104dBV (A-weighted), typical Aux Level, Analog Input Gain = 0dB, 22Hz - 22kHz BW |
| Input Impedance | 10k½ Line Level 12k½ Aux Level |
| Configuration | Balanced |
