Shure MXN-AMP - PoE+ Powered Multichannel Amplifier for Microflex Systems
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Multichannel PoE+ powered amplifier designed for speech and program audio reproduction in meeting rooms. The Microflex® Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.
Powerfully Simple
- Can power up to 4 MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
- Rated at 14.5 watts of combined output power.
Unmatched I/O Flexibility
- Four Dante inputs and four Dante outputs.
- Unbalanced stereo analog audio input.
- Logic input (switches between presets 1 and 2 as defined in web UI).
Dial In Great Sound
- Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator.
- Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP control software.
Easy Installation
- Can be rack mounted with available CRT-1 rack tray.
- Can also be wall or ceiling mounted. (Note: Shure recommends the use of an additional safety tether for overhead components).
- UL 2043 Plenum rated.
Confident Communication
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
- Shure Audio Encryption keeps audio content protected between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.
Certified For Success
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams
| Power Input | Power over Ethernet (PoE) or PoE+ over RJ45 (48 V = 25.5 W MAX) |
| Weight | 2.43 Ibs (1.1kg) |
| Product Dimensions | 7.95 x 7.01 x 1.57 in. (202 x 178 x 40 mm) L x W x H |
| Amplifier Class | D |

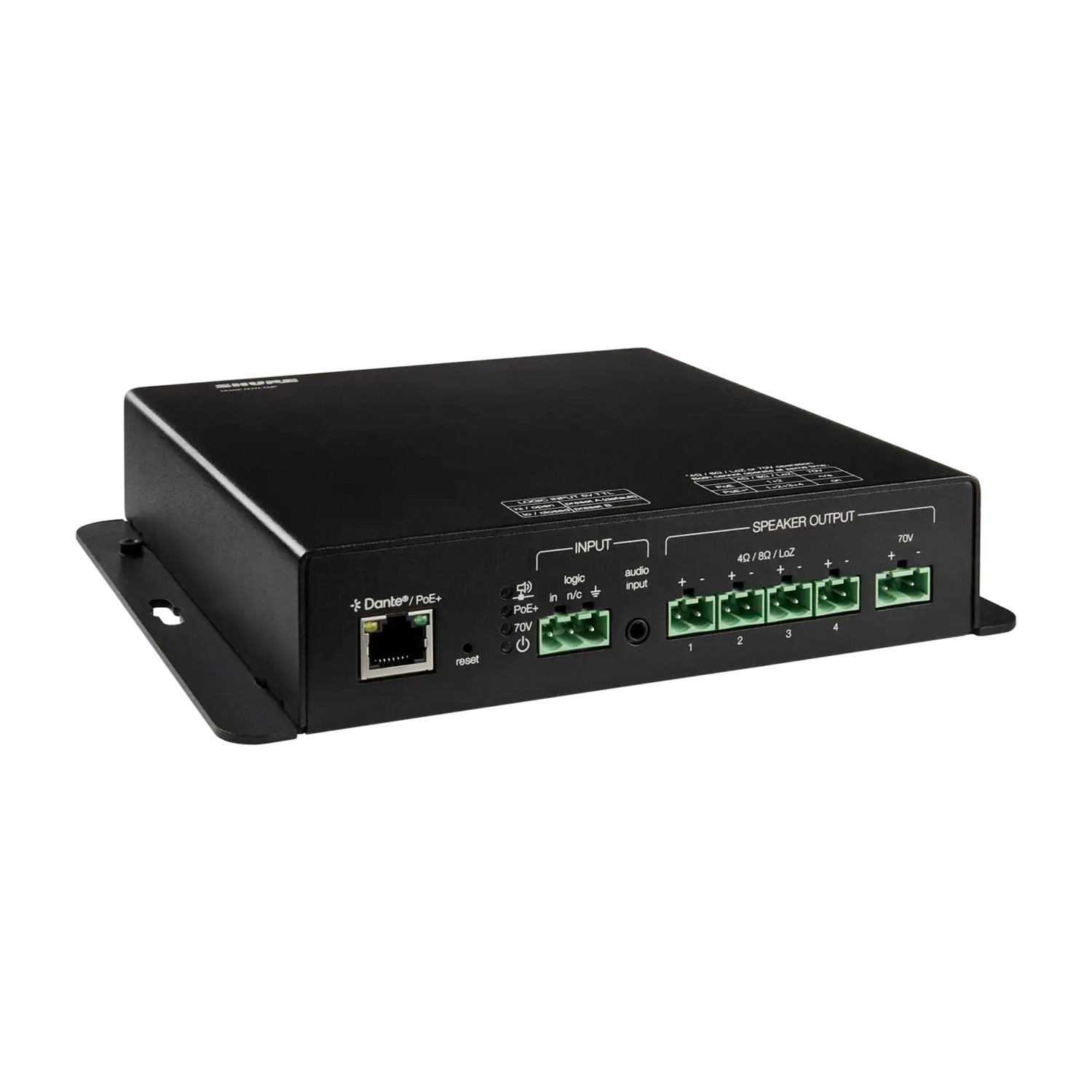

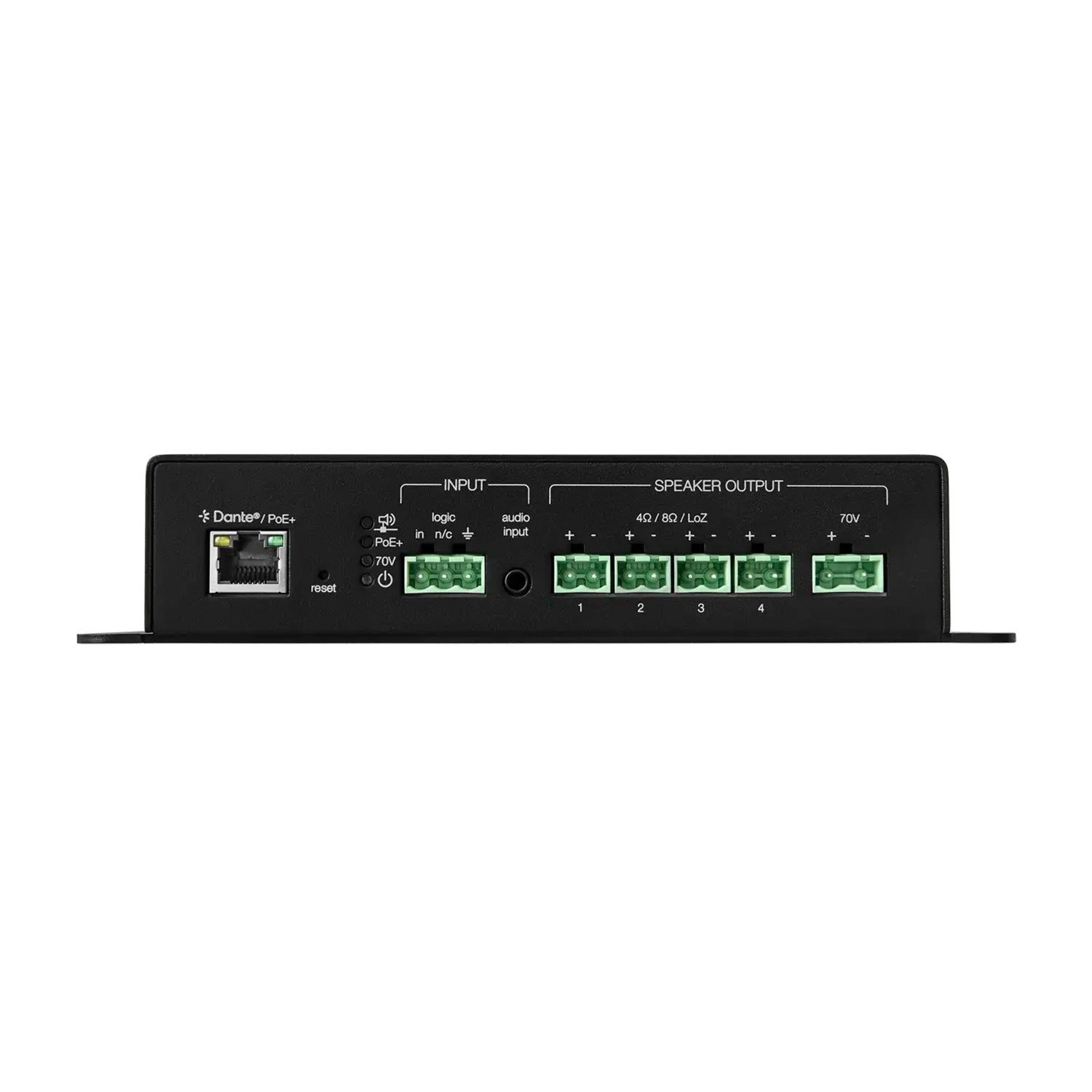

| Audio Inputs | 4 Dante in, 1 3.5 mm TRS connector with two audio line level inputs |
| Control Input | 1 logic in |
| Audio Outputs | 4 Dante output channels, 4 LoZ loudspeaker outputs, 1 70V loudspeaker output |
| Frequency Response | 20 Hz to 20 kHz |
| Sample Rate | 48 kHz |
| Bit Depth | 24 |
| Latency, Analog to analog | 2.2 ms typical, 2.5 ms max (add 1 ms for Dante) |
| Signal-To-Noise Ratio | 110 dB max |
| Output Level/Total Harmonic Distortion (THD) | at 1 kHz THD less than 0.05% (0.01% typical) |
| Power Consumption | PoE 12.95 W max PoE+ 25.5 W max |
| Power Requirements | PoE (Class 0) or PoE+ (Class 4) |
| Output Power per Channel | LoZ Mode 3.25 W 70V Mode 14.5 W |
| Operating Temperature Range | -7 to 40¡C (19.4 to 104¡F) |
| Storage Temperature Range | -29 to 74¡C (-20 to 165¡F) |
| Plenum Rating | Suitable for use in air plenums per NEC section 300.22(c) and/or IMC section 602. |
| Cable Requirements | Cat 5e or higher (shielded cable recommended) |
| Block Connector Type | Logic Input 3-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-03P LoZ Output 2-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-02P 70V Output 2-pin connector, 0.295 in. (7.5mm) pitch, Dinkle 7ESDV-02P |
| Control Software | Shure Designer |

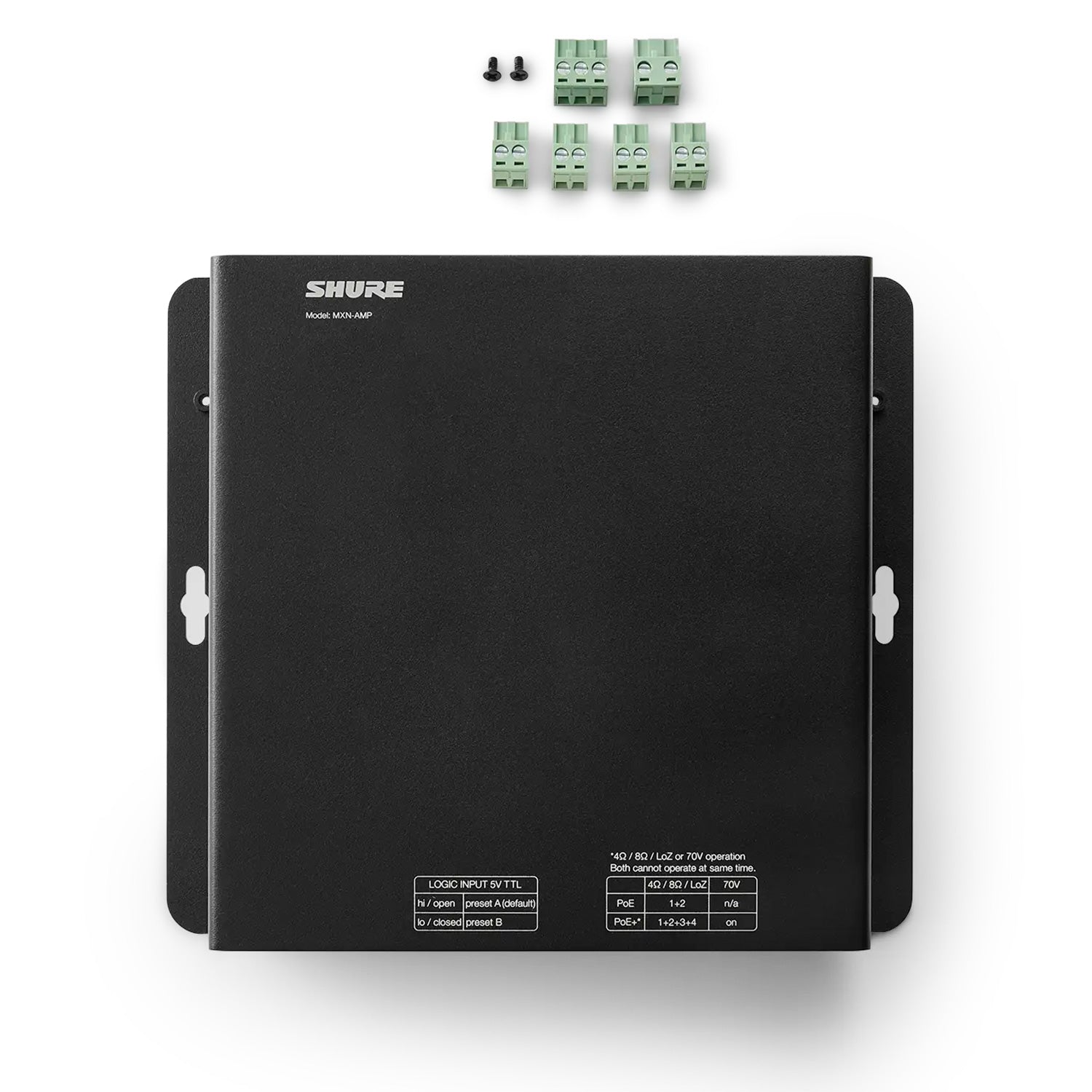

| Includes | 1 Microflex¨ MXN-AMP PoE Powered Amplifier 1 Logic input block connector 4 LoZ output block connectors 1 70V output connector 2 1/4" screws, #4-40 UNC thread |
