Shure MXN5W-C - MicroFlex Dante-Networked Ceiling Loudspeaker
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Features:
Software-based configuration and control
- Design and deploy every device in your audio chain with Shure Designer System Configuration software
- SystemOn Audio Asset Management software for remote management and troubleshooting
- Shure Audio Encryption
- Dante Domain Manager compatible
- AES67 compatible
Loudspeaker technical elements
- Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
- Low-profile, shallow-can design compatible with most drop ceiling installations

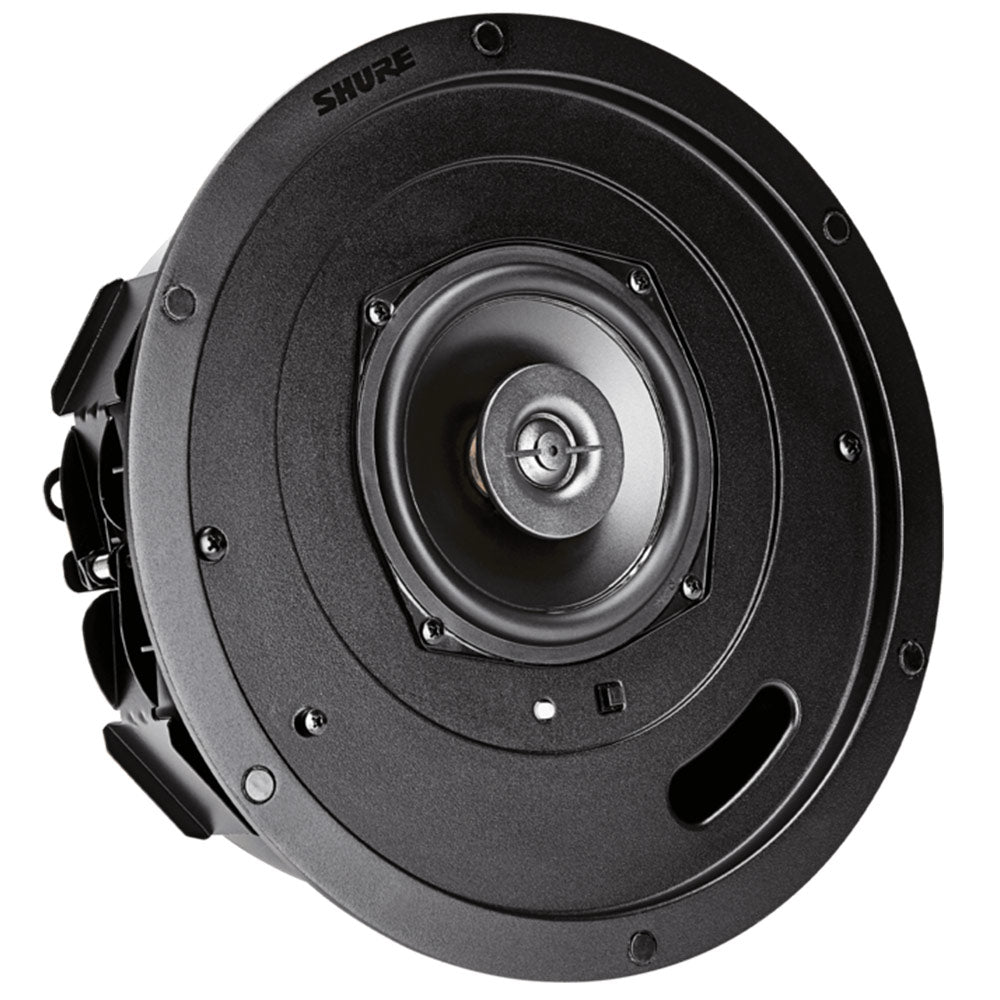

- 2-way driver system with 5.25 in (13.3cm) woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output
Clean design elements
- Aesthetic design subtly blends into drop ceiling environments

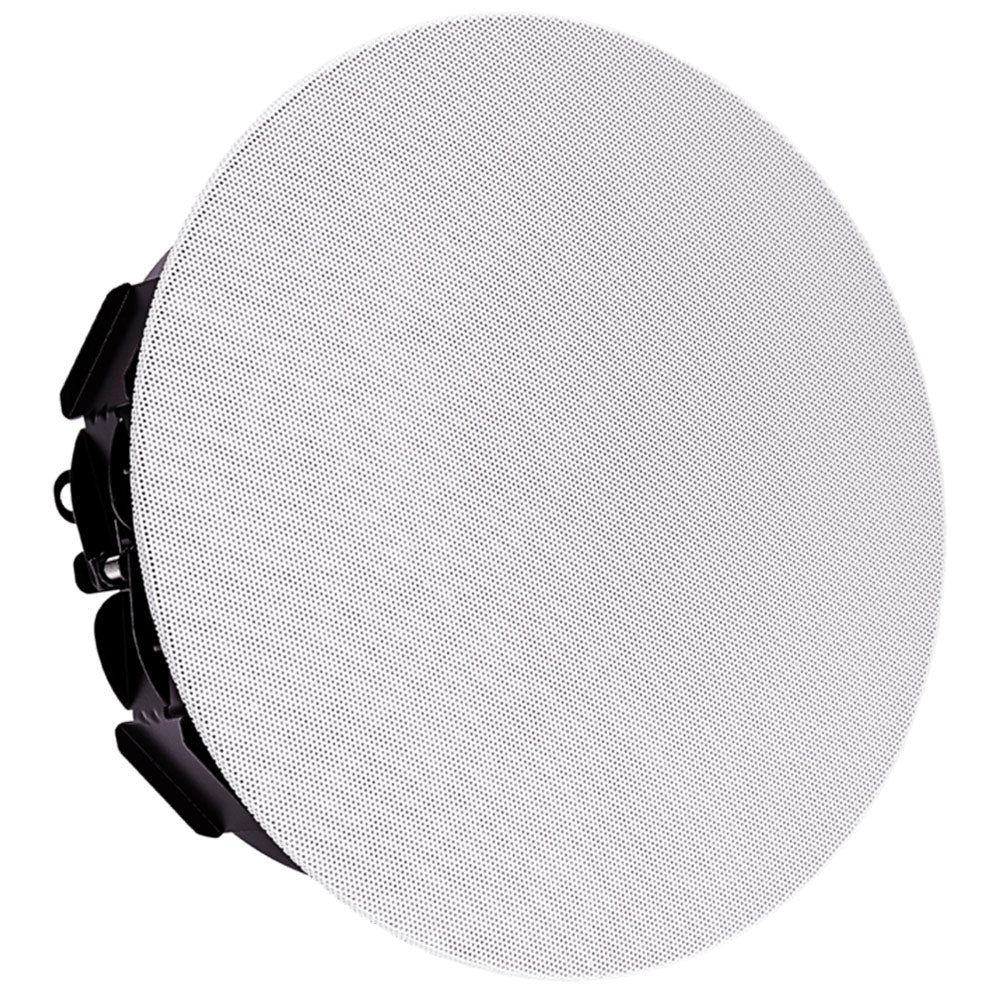

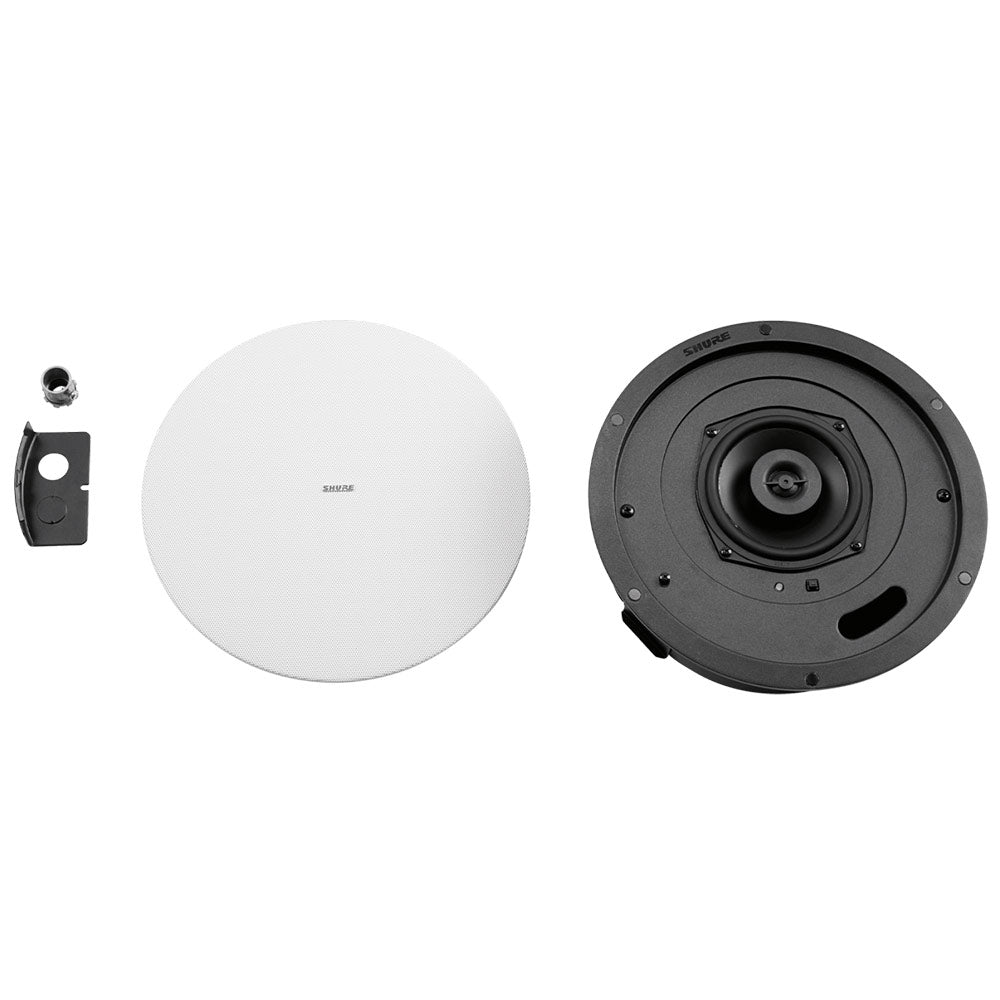

- Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
- Removable magnetic Shure logo
- UL 2043 plenum rated
- Tile bridge or New Construction Bracket accessories for quick and easy mounting

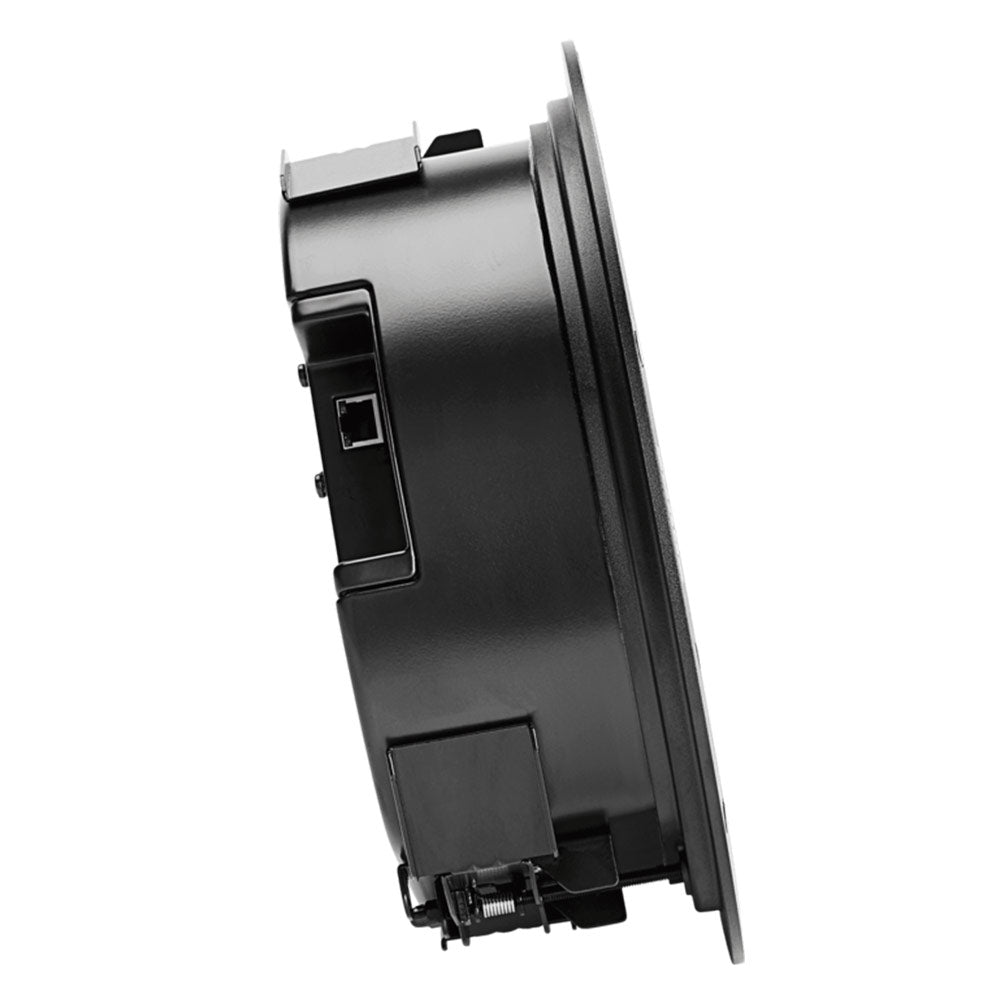

| Connector Type | RJ45 |
| Power Requirements | Power over Ethernet (PoE Class 0) or PoE Plus (Class 4) |
| Weight | 6.5 lbs (2.95 kg) |
| Product Dimensions | 12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm) H x W x D |
| Control Software | Shure Designer |
| Plenum Rating | UL 2043 (Suitable for Air Handling Spaces) |
| Operating Temperature Range | _6.7¡C (20¡F) to 40¡C (104¡F) |
| Storage Temperature Range | _29¡C (20¡F) to 74¡C (165¡F) |
| Frequency Response | (-3 dB) 120 Hz to 20 kHz |
| Digital Signal Processing | Delay, Limiter, Signal Generator, Equalizer (4-band Parametric) |
| Latency | 1.5 ms (Not including Dante latency) |
| POWER CONSUMPTION | |
| Power over Ethernet (PoE) | 12 W maximum (11 W typical) |
| PoE Plus | 24 W maximum (23 W typical) |
| MAXIMUM OUTPUT LEVEL | |
| Power over Ethernet (PoE) | 92 dB SPL |
| PoE Plus | 98 dB SPL |
| COVERAGE ANGLE | |
| -6 dB at 2 kHz | 180 degrees |
| -6 dB at 10 kHz | 107 degrees |
The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.
Features:
Software-based configuration and control
- Design and deploy every device in your audio chain with Shure Designer System Configuration software
- SystemOn Audio Asset Management software for remote management and troubleshooting
- Shure Audio Encryption
- Dante Domain Manager compatible
- AES67 compatible
Loudspeaker technical elements
- Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
- Low-profile, shallow-can design compatible with most drop ceiling installations
- 2-way driver system with 5.25 in (13.3cm) woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output
Clean design elements
- Aesthetic design subtly blends into drop ceiling environments
- Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
- Removable magnetic Shure logo
- UL 2043 plenum rated
- Tile bridge or New Construction Bracket accessories for quick and easy mounting
| Connector Type | RJ45 |
| Power Requirements | Power over Ethernet (PoE Class 0) or PoE Plus (Class 4) |
| Weight | 6.5 lbs (2.95 kg) |
| Product Dimensions | 12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm) H x W x D |
| Control Software | Shure Designer |
| Plenum Rating | UL 2043 (Suitable for Air Handling Spaces) |
| Operating Temperature Range | _6.7¡C (20¡F) to 40¡C (104¡F) |
| Storage Temperature Range | _29¡C (20¡F) to 74¡C (165¡F) |
| Frequency Response | (-3 dB) 120 Hz to 20 kHz |
| Digital Signal Processing | Delay, Limiter, Signal Generator, Equalizer (4-band Parametric) |
| Latency | 1.5 ms (Not including Dante latency) |
| POWER CONSUMPTION | |
| Power over Ethernet (PoE) | 12 W maximum (11 W typical) |
| PoE Plus | 24 W maximum (23 W typical) |
| MAXIMUM OUTPUT LEVEL | |
| Power over Ethernet (PoE) | 92 dB SPL |
| PoE Plus | 98 dB SPL |
| COVERAGE ANGLE | |
| -6 dB at 2 kHz | 180 degrees |
| -6 dB at 10 kHz | 107 degrees |
