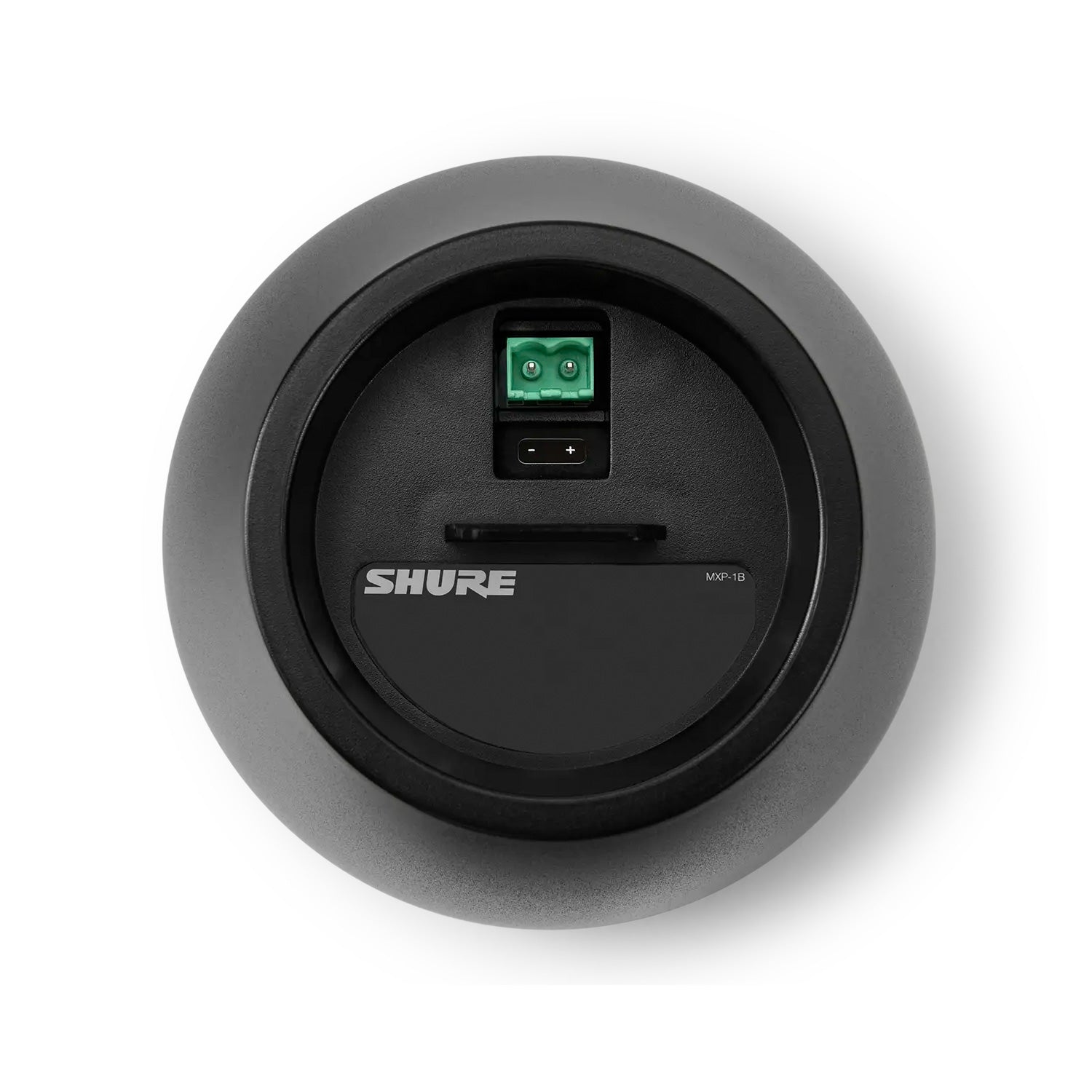

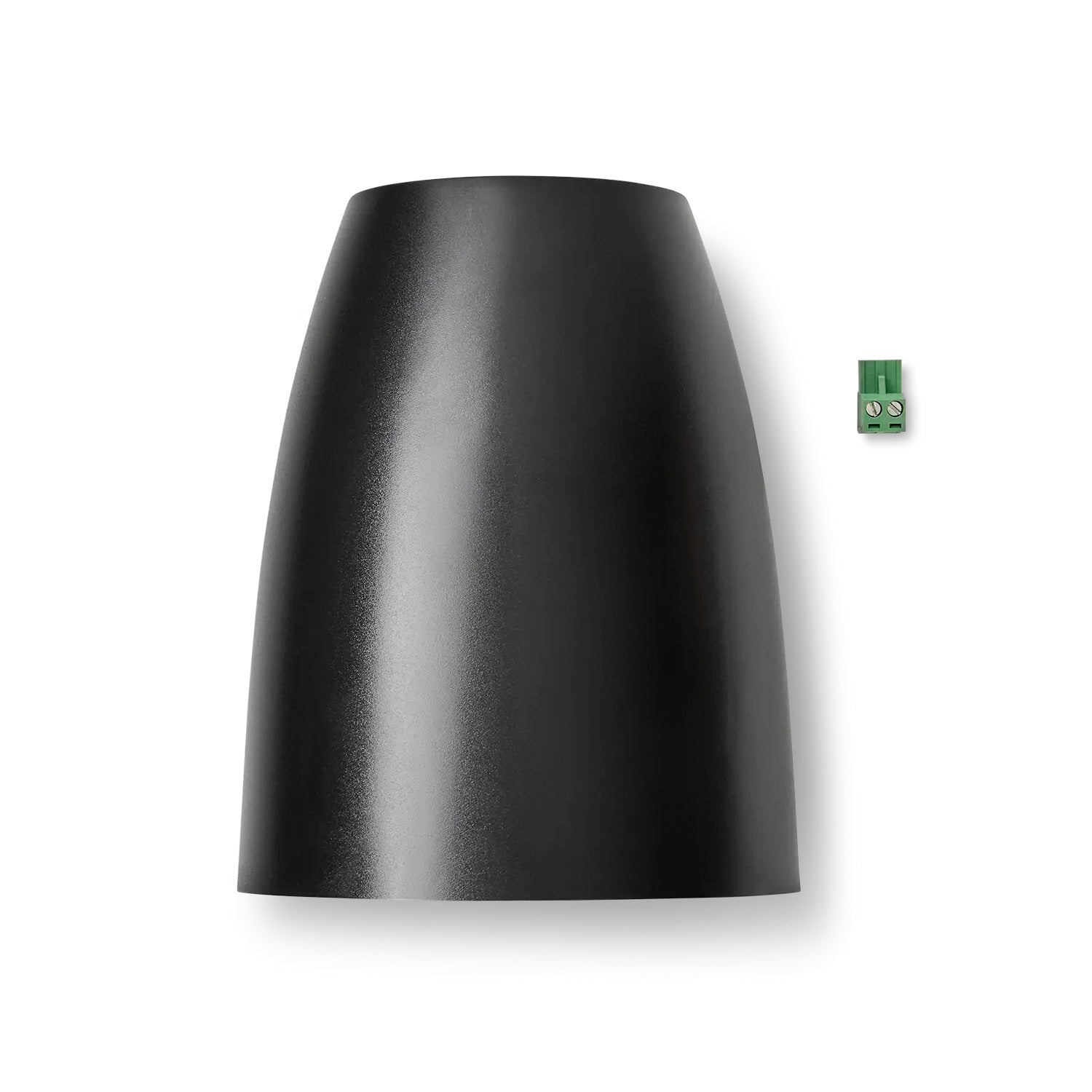

Shure MXP-1 - Mini Pendant Passive Loudspeaker (Black)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Compact pendant-style passive loudspeaker for speech and program audio reproduction in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, IntelliMix DSP, and Microflex amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-manufacturer solution.
Features:
- Innovative Balanced Mode Radiator (BMR) driver is voiced specifically for speech intelligibility in conferencing and meeting applications
- Wide dispersion for complete room coverage and consistent sound quality for every listener
- Flat-disc diaphragm provides more natural sound than conventional cone-shaped diaphragms and a more compact size
- Eliminates the need for a crossover in the critical 1-3 kHz speech frequency range and delivers sound from a single point source for maximum clarity
Dial In Great Sound
- Up to four MXP-1 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier
- MXN-AMP provides optimized presets and user-configurable EQ for each speaker output
Quick and Easy Installation
- Compact pendant form factor is perfect for open architecture, acoustical clouds, or wood slat ceilings
- Available in black or white finish, paintable to match room décor
Confident Communication
- Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room
Certified For Success
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom
| Weight | 1.48 lbs (0.67 kg) |
| Dimensions | 6.18 x 5 x 5 in. (157 x 127 x 127 mm) |
| Connector Type | 2-pin connector, 0.2 in. (5.08 mm) pitch, Jiekle 2EDG-5.08 V/R |
| Coverage Angle | Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4: 88¡ |
| Frequency Response | ~120Hz Ð 20kHz |
| Nominal Impedance | 8½ |
| Maximum Input Power, IEC standard 60268-5 | 20 W |
| Maximum SPL at an RMS input level of 28 dBV | AES75 max linear sound levels: 93 dBZ, 111 dBZpk, 93 dBA |
| Sensitivity at 2.83 V | 85 dB SPL 1W/1 meter |
| Operating Temperature Range | -7 to 40¡C (19.4 to 104¡F) |
| Storage Temperature Range | -29 to 74¡C (-20 to 165¡F) |
Compact pendant-style passive loudspeaker for speech and program audio reproduction in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, IntelliMix DSP, and Microflex amplifiers, they deliver room-filling sound, quick installation in a variety of room types, end-to-end audio encryption, and the efficiency of a single-manufacturer solution.
Features:
- Innovative Balanced Mode Radiator (BMR) driver is voiced specifically for speech intelligibility in conferencing and meeting applications
- Wide dispersion for complete room coverage and consistent sound quality for every listener
- Flat-disc diaphragm provides more natural sound than conventional cone-shaped diaphragms and a more compact size
- Eliminates the need for a crossover in the critical 1-3 kHz speech frequency range and delivers sound from a single point source for maximum clarity
Dial In Great Sound
- Up to four MXP-1 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier
- MXN-AMP provides optimized presets and user-configurable EQ for each speaker output
Quick and Easy Installation
- Compact pendant form factor is perfect for open architecture, acoustical clouds, or wood slat ceilings
- Available in black or white finish, paintable to match room décor
Confident Communication
- Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room
Certified For Success
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams and Zoom
| Weight | 1.48 lbs (0.67 kg) |
| Dimensions | 6.18 x 5 x 5 in. (157 x 127 x 127 mm) |
| Connector Type | 2-pin connector, 0.2 in. (5.08 mm) pitch, Jiekle 2EDG-5.08 V/R |
| Coverage Angle | Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4: 88¡ |
| Frequency Response | ~120Hz Ð 20kHz |
| Nominal Impedance | 8½ |
| Maximum Input Power, IEC standard 60268-5 | 20 W |
| Maximum SPL at an RMS input level of 28 dBV | AES75 max linear sound levels: 93 dBZ, 111 dBZpk, 93 dBA |
| Sensitivity at 2.83 V | 85 dB SPL 1W/1 meter |
| Operating Temperature Range | -7 to 40¡C (19.4 to 104¡F) |
| Storage Temperature Range | -29 to 74¡C (-20 to 165¡F) |
