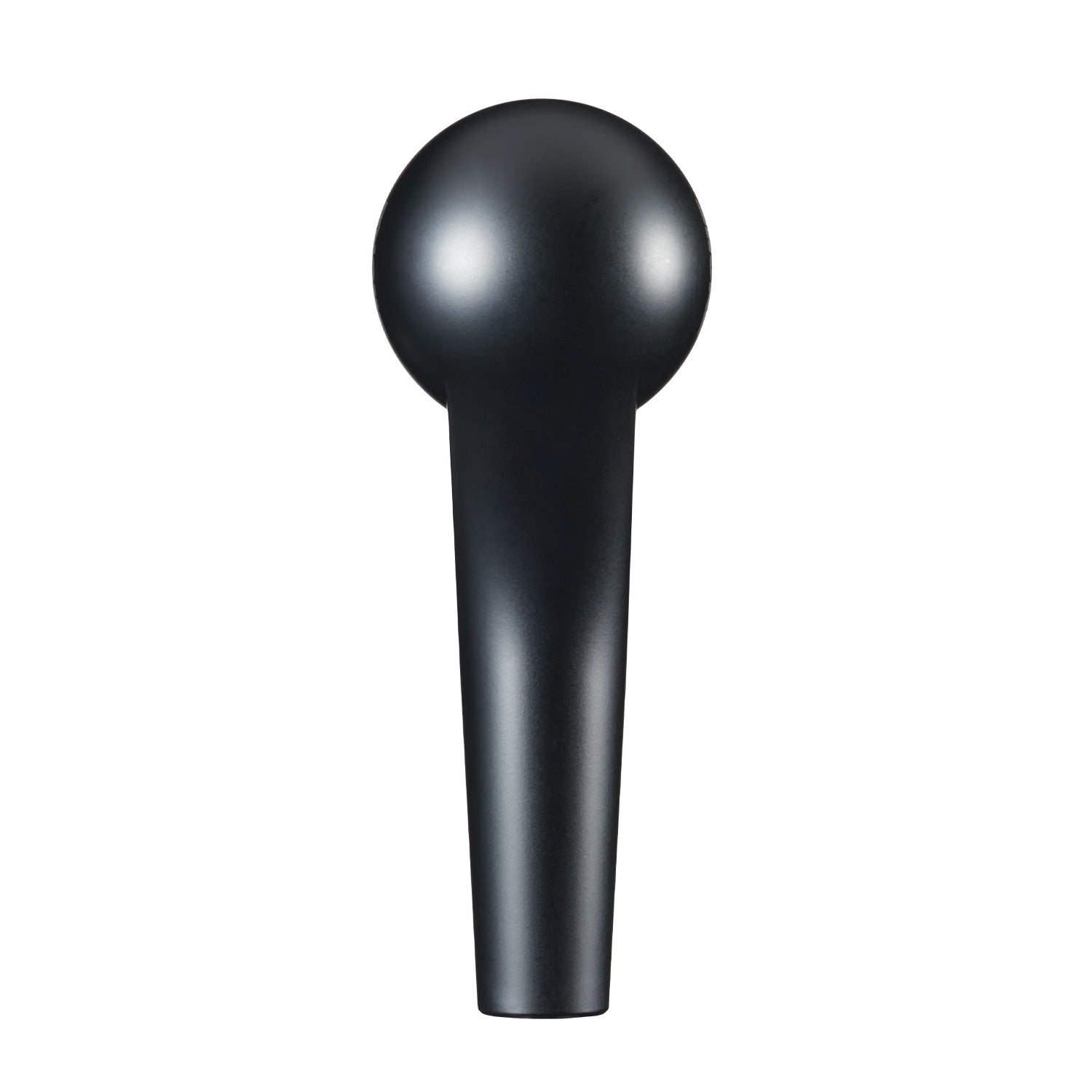

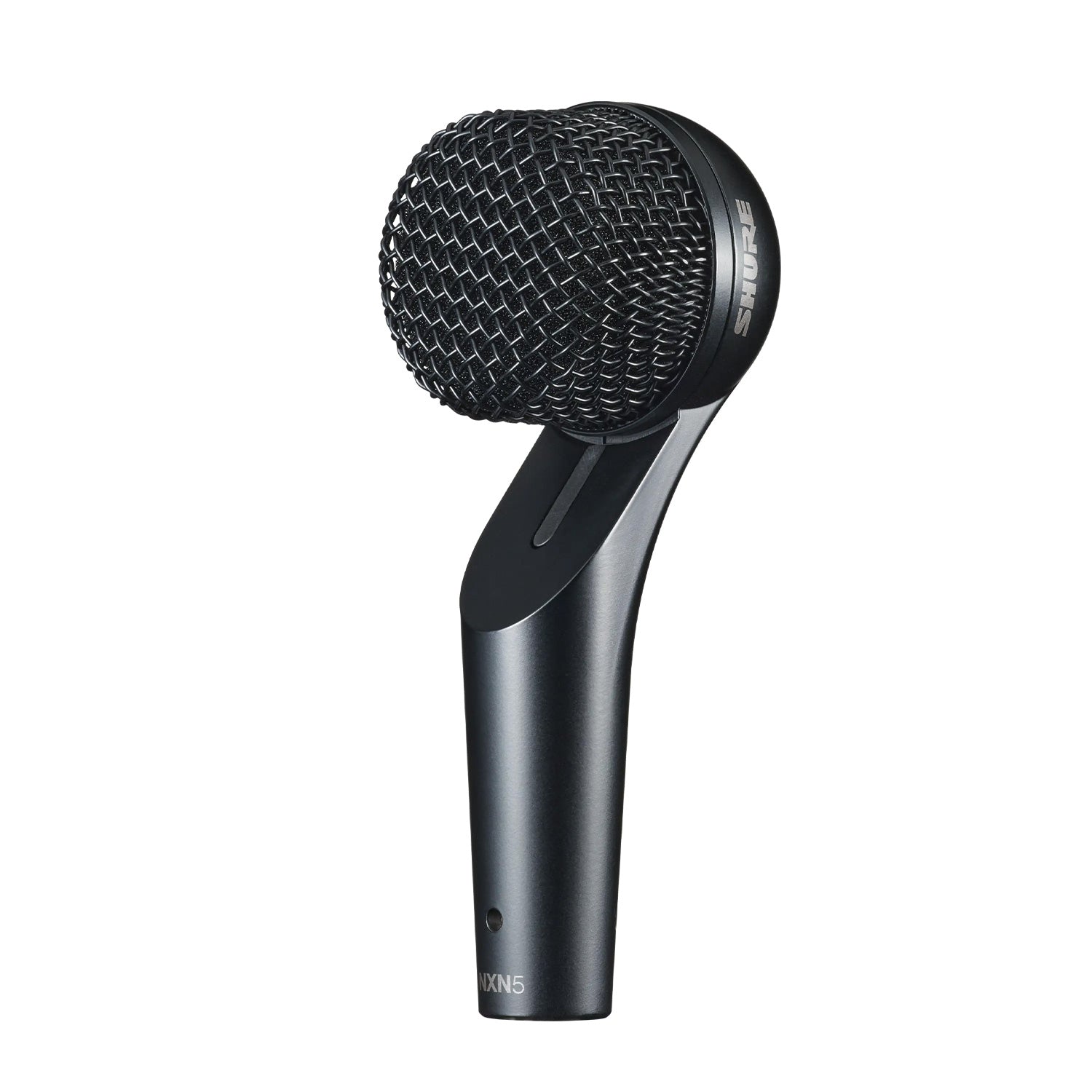

Shure NXN5 - Nexadyne 2 Instrument Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Nexadyneª 5 Dynamic Guitar Amp Microphone is a live performance microphone for professional touring and performance. ÊNexadyne instrument microphones feature patented Shure Revonicª dual-engine transducer technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high-performing microphone line that combines state-of-the-art acoustic signal processing and exceptional supercardioid polar pattern linearity. Built with the industry standard of consistency, durability, and performance that only Shure can provide, the Nexadyne 5 makes sure the full range of the guitar cuts through, every time.
Features:- Featuring Revonicª Dual-Engine Transducer Technology for stunning detail
- Supercardioid polar pattern for optimized off-axis rejection
- Compact dynamic cartridge design for guitar amplifier applications
- Discreet black finish for low-profile onstage
| Transducer Type | Dynamic (moving coil) with secondary vibration-cancelling dynamic transducer |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 HzÐ16 kHz |
| Output Impedance at 1 kHz | 335 ½ |
| Sensitivity, open circuit voltage, @ 1 kHz, typical | Ð60.5 dBV/Pa (0.94 mV/Pa) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3. |
| Weight | 301 g (0.66 lbs.) |
| Connector | Three-pin professional audio (XLR), male |
| Housing | Die-cast aluminum with black paint |
The Nexadyneª 5 Dynamic Guitar Amp Microphone is a live performance microphone for professional touring and performance. ÊNexadyne instrument microphones feature patented Shure Revonicª dual-engine transducer technology, with two precisely calibrated transducers working together to achieve optimal performance. The result is a high-performing microphone line that combines state-of-the-art acoustic signal processing and exceptional supercardioid polar pattern linearity. Built with the industry standard of consistency, durability, and performance that only Shure can provide, the Nexadyne 5 makes sure the full range of the guitar cuts through, every time.
Features:- Featuring Revonicª Dual-Engine Transducer Technology for stunning detail
- Supercardioid polar pattern for optimized off-axis rejection
- Compact dynamic cartridge design for guitar amplifier applications
- Discreet black finish for low-profile onstage
| Transducer Type | Dynamic (moving coil) with secondary vibration-cancelling dynamic transducer |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 HzÐ16 kHz |
| Output Impedance at 1 kHz | 335 ½ |
| Sensitivity, open circuit voltage, @ 1 kHz, typical | Ð60.5 dBV/Pa (0.94 mV/Pa) |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3. |
| Weight | 301 g (0.66 lbs.) |
| Connector | Three-pin professional audio (XLR), male |
| Housing | Die-cast aluminum with black paint |
