Shure P3T Transmitter for PSM300 Systems (H20 Band - 518-542 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Dependable wireless transmission and 24-bit digital audio combine to deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.
Features:
- Transmitter sends a stereo or mono mix wirelessly to performers onstage

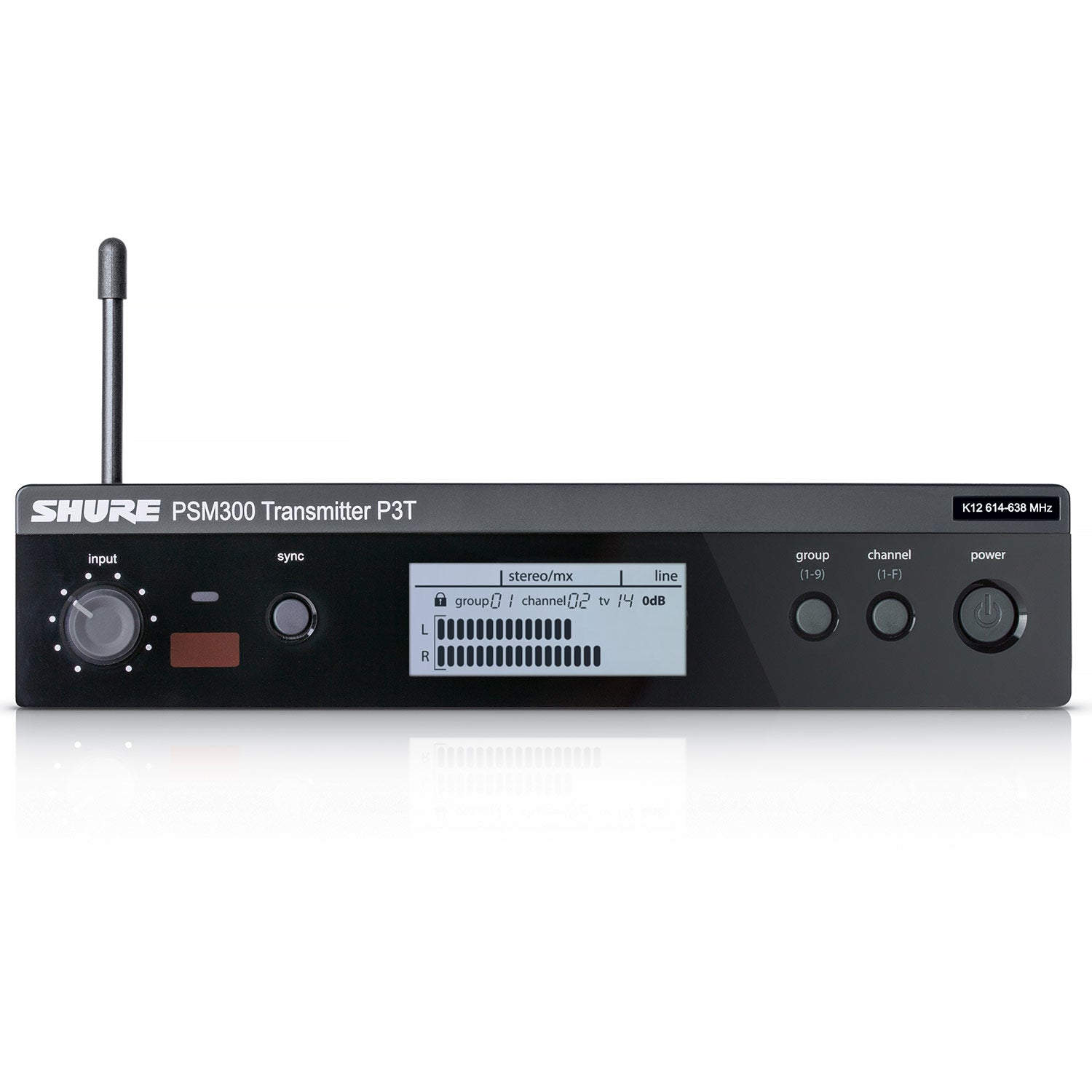

- One-touch IR sync on user-friendly front-panel controls instantly links transmitter to receiver

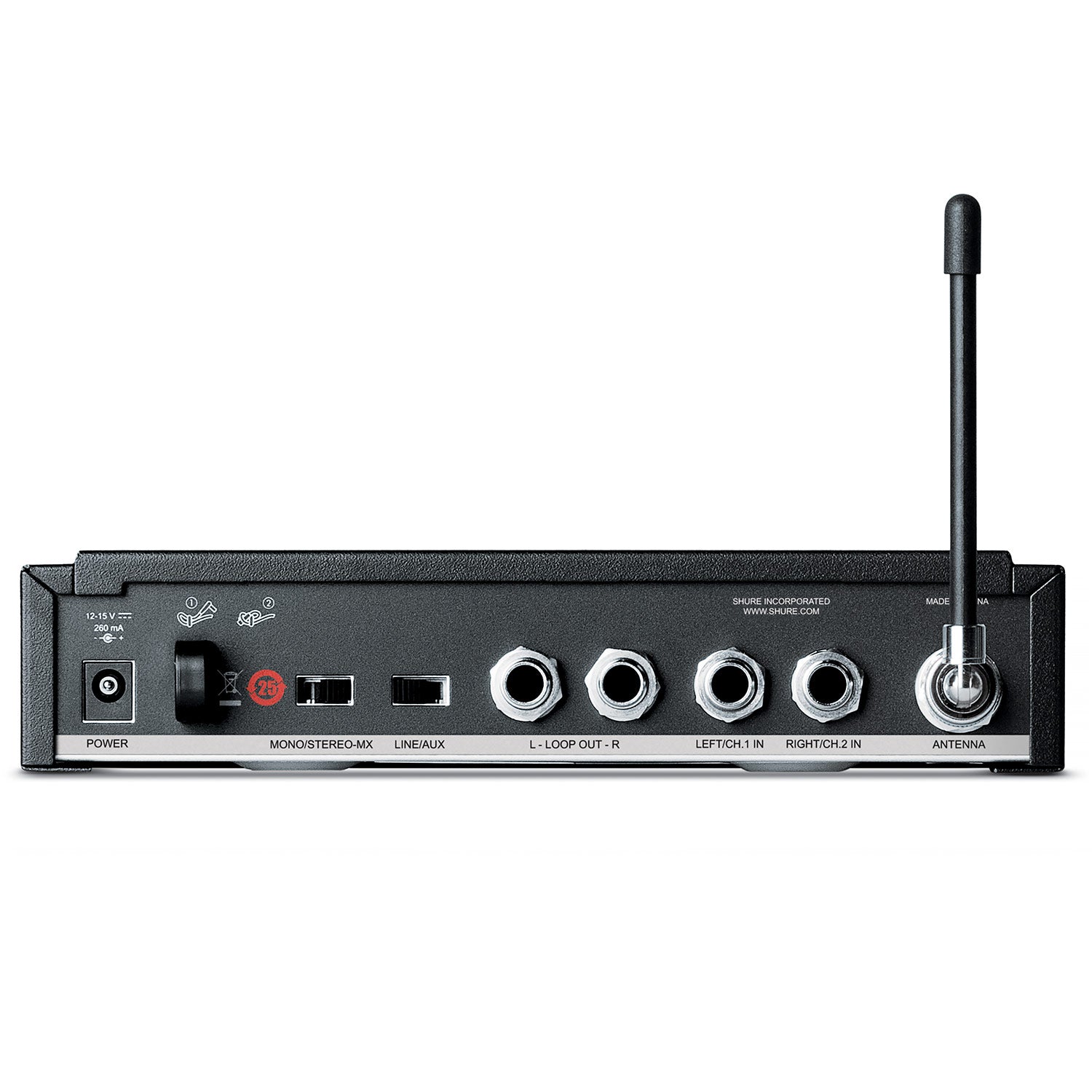

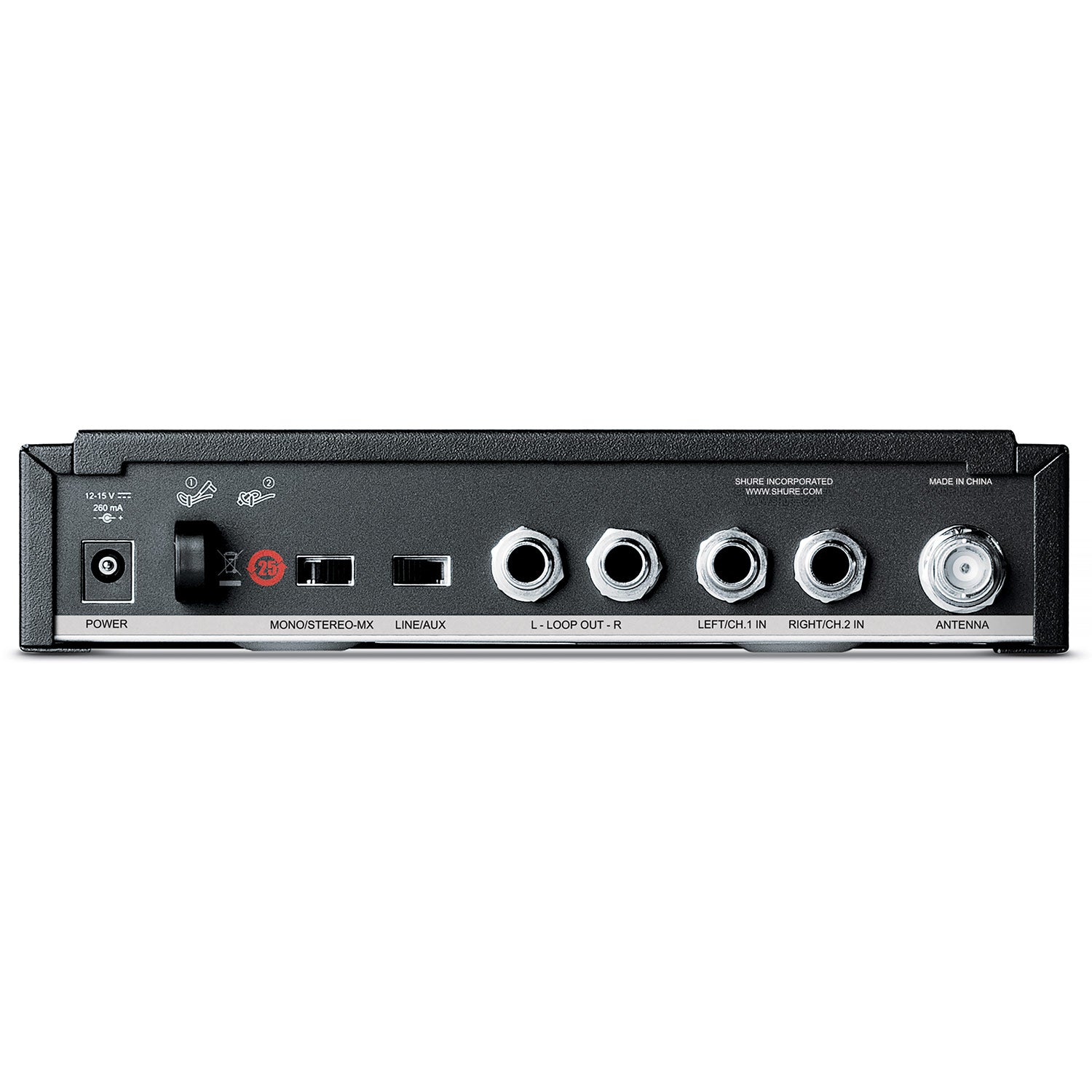

- Rear-panel 1/4" (6.3 mm) TRS balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units
- Up to 30 mW output power (regionally dependent)
- High-contrast LCD screen with left / right audio output meters
- Selectable line / aux level
PSM300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Easy to setup and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode technology or stereo mode to create a personal mix from two channels of audio.
| RF Output Power | 10, 20, 30 mW Note: varies by region |
| RF Output Impedance | 50 (typical) |
| Net Weight | 783 g (27.6oz.) |
| Dimensions | 43 _ 198 _ 172 mm (1.7 _ 7.8 _ 6.8 in.), H _ W _ D |
| Power Requirements | 12Ð15 V DC, 260 mA maximum |
| Audio Input | |
| Connector | Type 6.35 mm (1/4") TRS |
| Polarity | Tip positive with respect to ring |
| Configuration | Electronically balanced |
| Impedance | 40 k (actual) |
| Nominal Input | Level Switchable, +4 dBu, -10 dBV |
| Maximum Input Level | +4 dBu: +22 dBu -10 dBV: +12.2 dBu |
| Pin Assignments | Tip=hot, Ring=cold, Sleeve=ground |
| Phantom Power | Protection Up to 60 V DC |
| Audio Output | |
| Connector | Types 6.35 mm (1/4") TRS |
| Configuration | Electronically balanced |
| Impedance | Connected directly to inputs |
